Dynarex | D500 LTC 5 Function Ultra-Low Bed Adjustable Long-Term Care Hospital Bed for Patients with Limited Mobility
The Dynarex D500 LTC 5 Function Ultra-Low Bed is a durable, split-frame hospital bed designed for long-term care facilities.
Built from welded steel with integrated wooden head and footboards, this bed combines strength and functionality for patients with limited mobility or chronic illness.
It features a true vertical lift with a deck-to-floor range of 2.5” to 25.6”, helping caregivers adjust the bed height safely while reducing the risk of patient injuries.

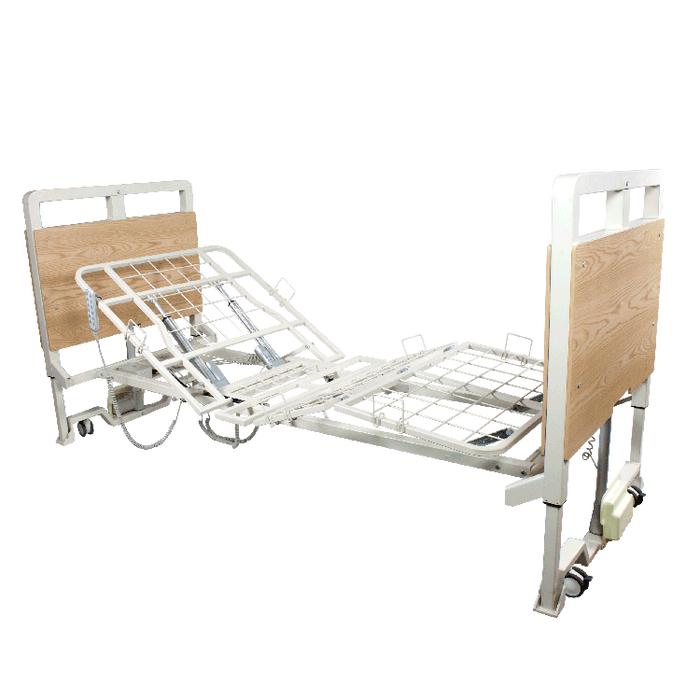

Equipped with ultra-quiet DC motors, the D500 offers five adjustable functions, including Trendelenburg, Reverse Trendelenburg, Extended Heel Lift, and Comfort Chair Position, providing versatility for patient care and comfort.

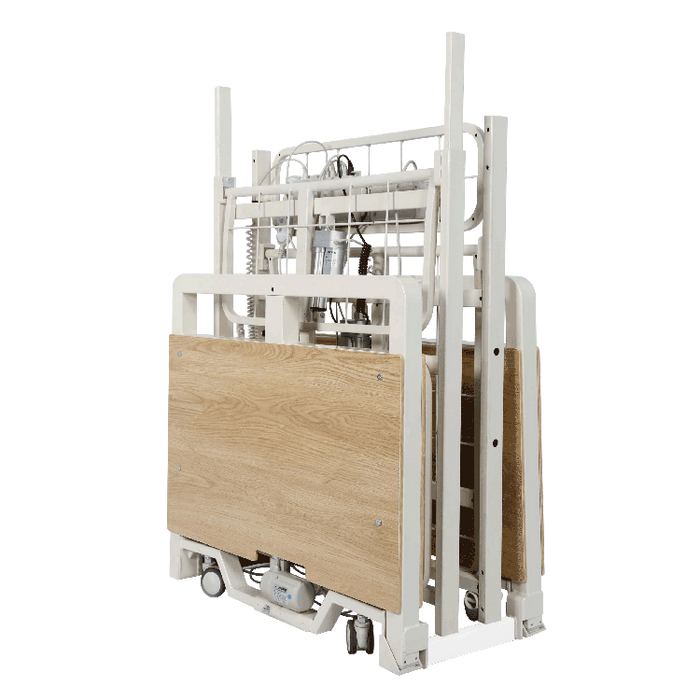

Its split-frame design with a transport bar allows for easy moving and storage, while four 3” total locking swivel casters ensure smooth and stable mobility.
Ideal for use with a variety of pressure mattresses, this ultra-low bed supports a weight capacity of 400 lb.
Alto Med Supply proudly offers this reliable long-term care solution with a warranty of 15 years on all welds, 3 years on electrical and mechanical components, and 1 year on all other parts.
Key Features
-
Durable Split-Frame Design: Built from welded steel with integrated wooden head and footboards for long-term care use.
-
Ultra-Low Bed Height: True vertical lift with a 2.5” to 25.6” deck-to-floor range reduces the risk of patient injuries.
-
Five Adjustable Functions: Includes Trendelenburg, Reverse Trendelenburg, Extended Heel Lift, and Comfort Chair Position for patient comfort.
-
Compatible with Pressure Mattresses: Supports a variety of therapeutic mattresses for patients with limited mobility and pressure wounds.
-
Easy Mobility: Split-frame design with transport bar allows effortless moving and storage.
-
Stable Casters: Equipped with four 3” total locking swivel casters for smooth and secure transport.
-
Weight Capacity: Supports patients up to 400 lb safely.
-
Warranty Coverage: 15 years on welds, 3 years on electrical and mechanical components, and 1 year on all other parts.
Specifications
| Technical Specifications |
| Bed Height |
2.5"-25.6" |
| Back Rest Angle |
0°-70° |
| Knee Break Angle |
0°-27° |
| Additional Manual Leg Lift |
Yes, various positions |
| Trendelenburg/Reverse Trendelenburg |
± 12° |
| Auto Contour |
Yes |
| Weight Limit |
| Weight Capacity |
400 lb. |
| Safe Working Load (SWL) |
400 lb. |
| Weights and Dimensions |
| Sleeping Surface Dimension (W × L) |
36" × 80" |
| Caster Size |
3" |
| Gross Weight |
253 lb. |
| Net Weight |
231 lb. |
| Electrics |
| Power Supply (V/PH/Hz) |
100-240V/1ph/50-60Hz |
| Power Consumption (Max) |
200 W |
| Number of Motors |
5 |
| Protection Class |
IPX4 |
| Insulation Class |
II Type B |
| Duty Cycle Interruption |
10%, Max. 2 min./18 min. |
| Battery Backup |
Yes, optional |
| Environment |
| Operating Temperature |
40°F-105°F (5°C-40°C) |
| Storage Temperature |
15°F-120°F (-10°C-50°C) |
| Operation and Storage Humidity |
20%-80% |
| Operation and Storage Atmospheric Pressure |
700-1060 hPa |
| Operation and Storage Altitude |
≤ 3000 m |
| Noise Level |
50 dB(A) |
Note: Specifications apply to the standard D500 LTC 5 Function Ultra-Low Bed. Optional boards, rails, or accessories may slightly affect weight, width, or overall dimensions.
Product Manual
The User Manual for Dynarex D500 LTC 5 Function Ultra-Low Bed can be found here
The Reference Chart for Dynarex D500 LTC 5 Function Ultra-Low Bed can be found here
Shipping
- Free delivery (Contiguous United States Only)
- Delivery ETA 3-7 business days
-
We also offer white glove engineer delivery with assembly and demonstration if required. Please contact us for a quote.
-
If you require faster shipping or shipping anywhere other than the contiguous United States, please contact us for a shipping quote.
Warranty
The Dynarex D500 LTC 5 Function Ultra-Low Bed includes a 15 year on structural steel, 3 year on electrical or mechanical, 1 year on other parts.
