Human Care | FloorLine LTC Hospital-Style Bed for Home Care and Long-Term Care with Low-Fall Safety Design

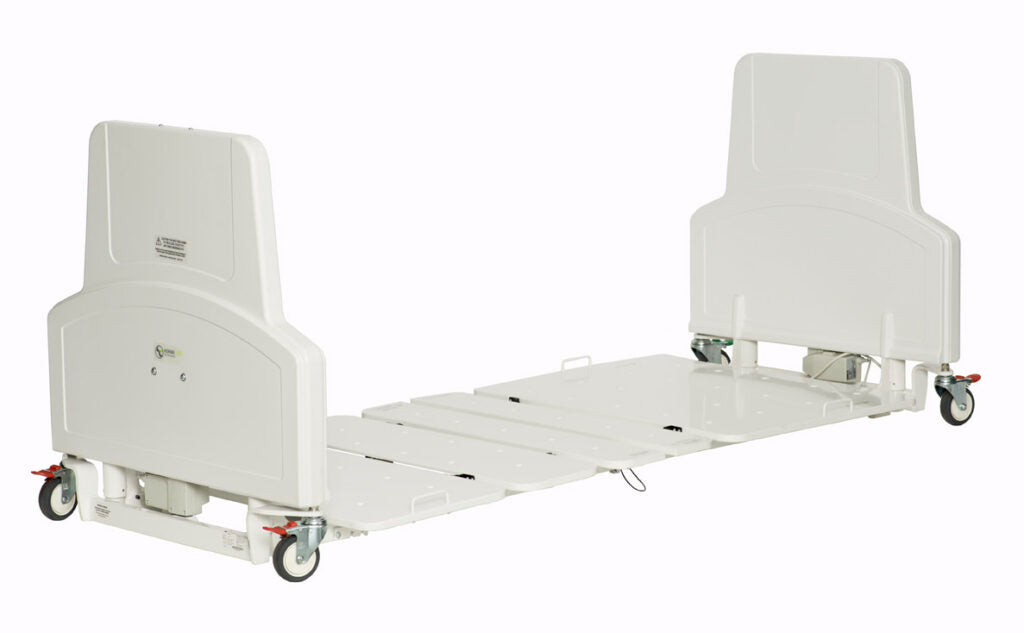

The FloorLine LTC is a versatile and safe bed designed for home care and long-term care facilities.
Available from Alto Med Supply, this hospital-style bed combines functionality with a home-friendly design, making it an excellent choice for caregivers and patients alike.

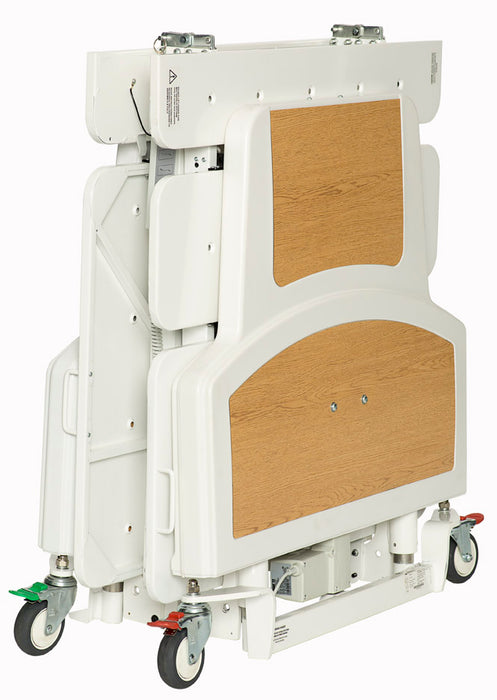

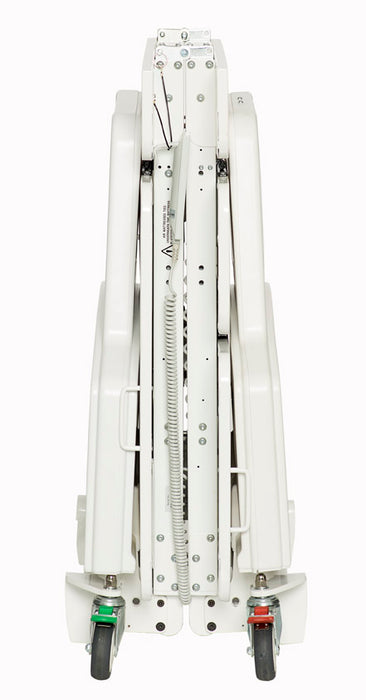

Its one-piece construction allows for easy folding, storage, and transport, providing convenience in any care setting.

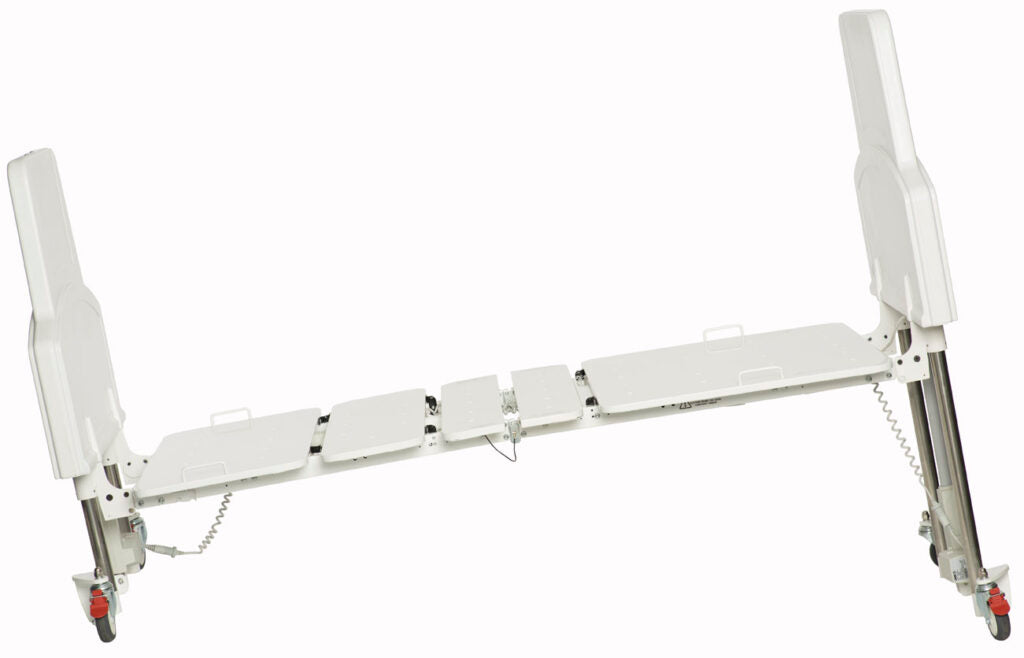

The FloorLine LTC offers essential hospital bed positions, including Trendelenburg, reverse Trendelenburg, and cardiac positioning, ensuring comfort and proper care for residents.

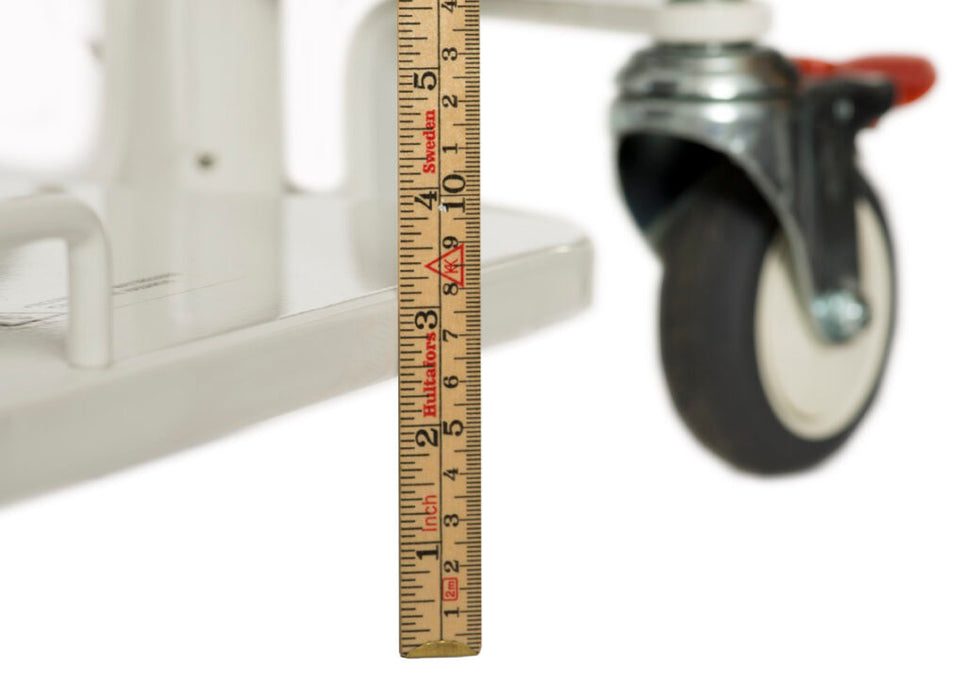

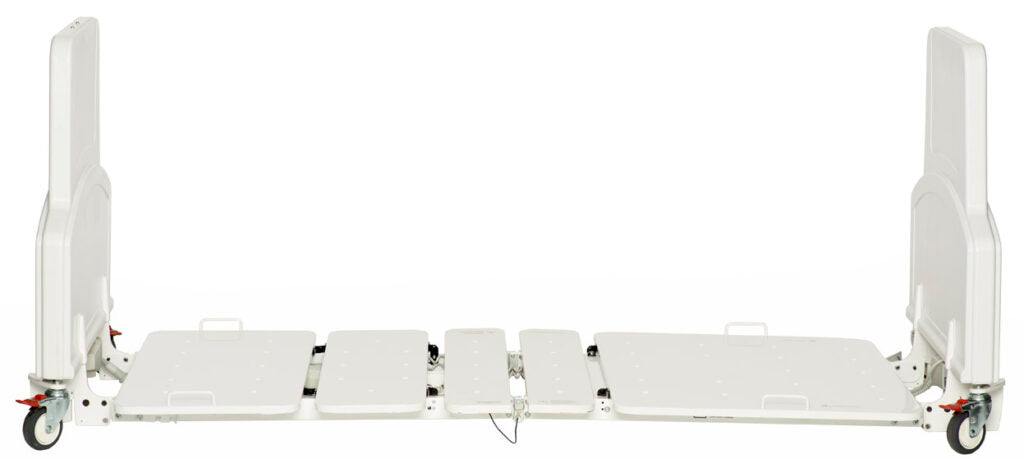

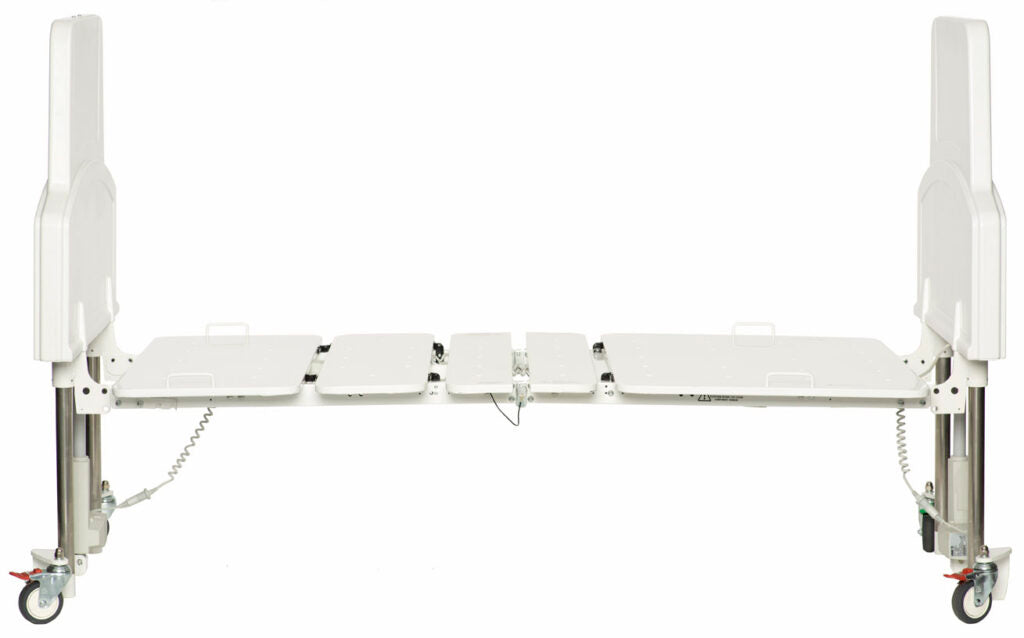

With a minimum height of just 9.5 cm (3.7”), it helps reduce the risk of fall injuries, providing a safer environment for individuals at risk of falling.

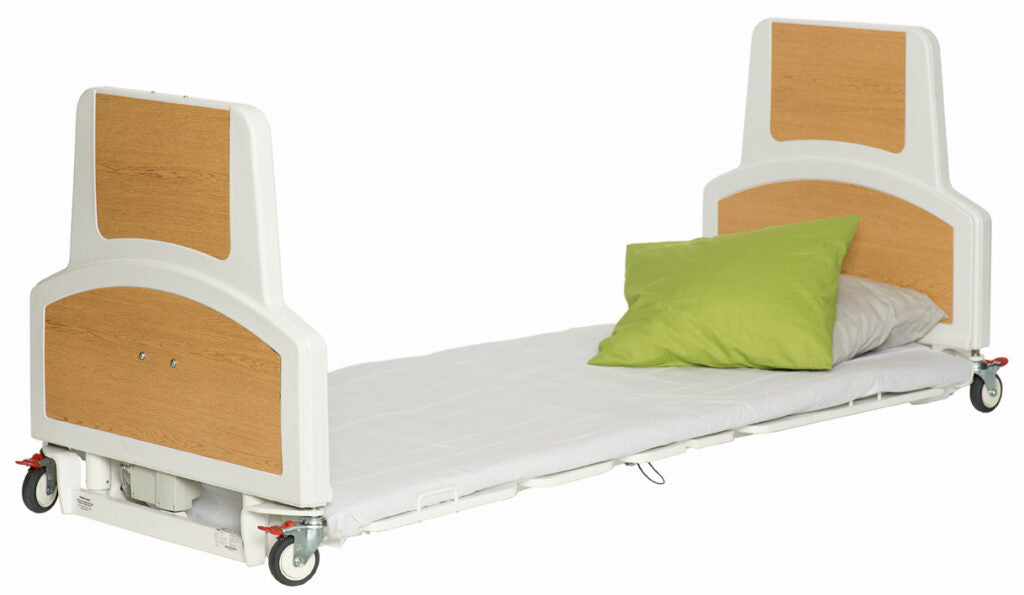

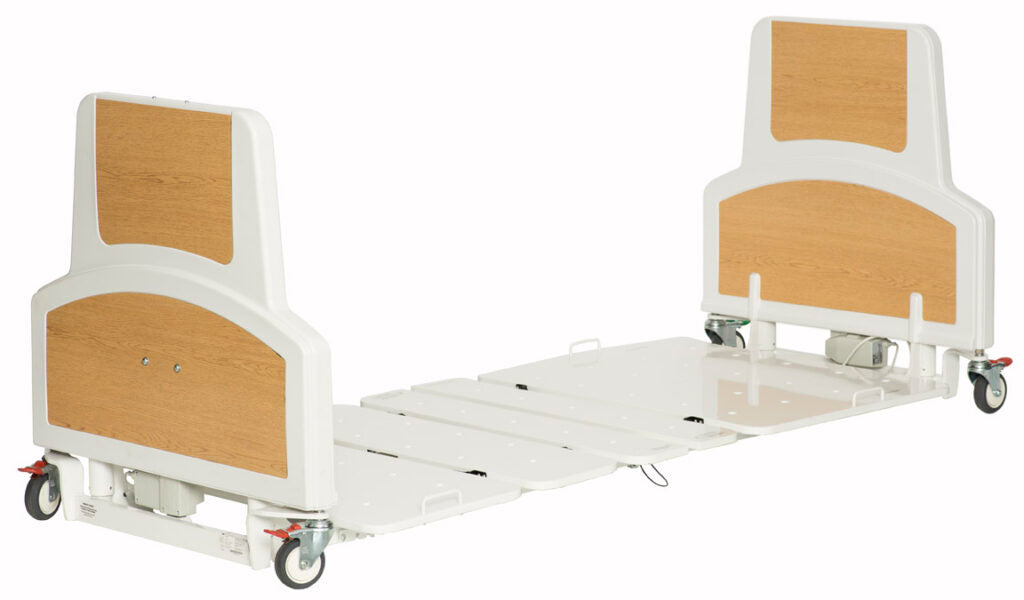

The bed is available in two finishes, including a stylish wood-grain option that complements any room décor, making it both practical and aesthetically pleasing.
The FloorLine LTC is a reliable, safe, and user-friendly solution for long-term care and home care needs.
Key Features
-
Compact design: Folds easily for convenient storage and transport.
-

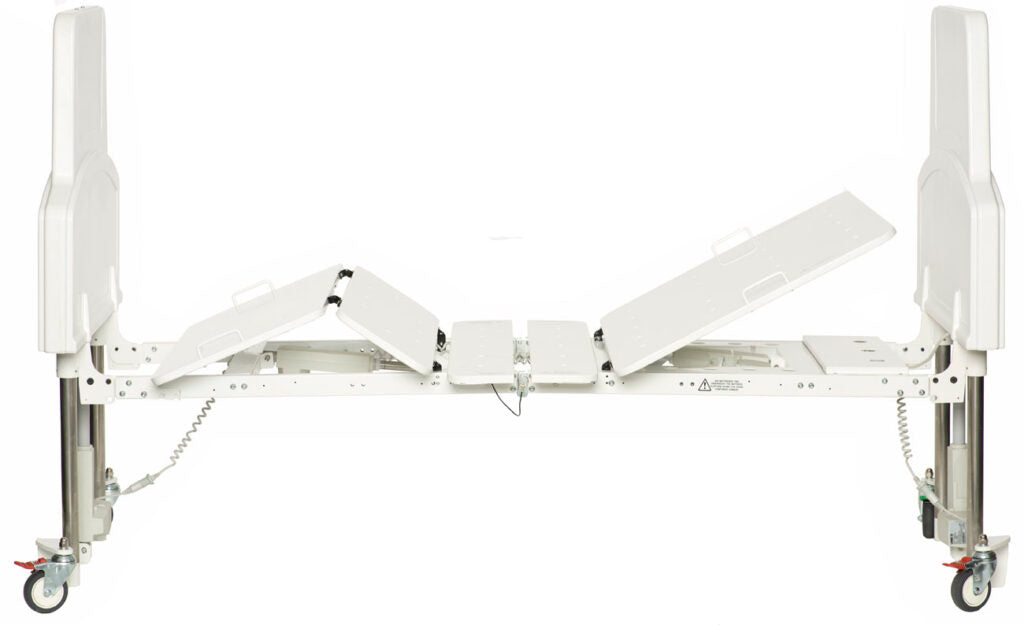

Standard hospital positions: Includes auto-contour, backrest, kneebreak, Trendelenburg, reverse Trendelenburg, and cardiac positions.
-
Premium casters: One central locking and three steering/directional casters for smooth, precise maneuverability.
-

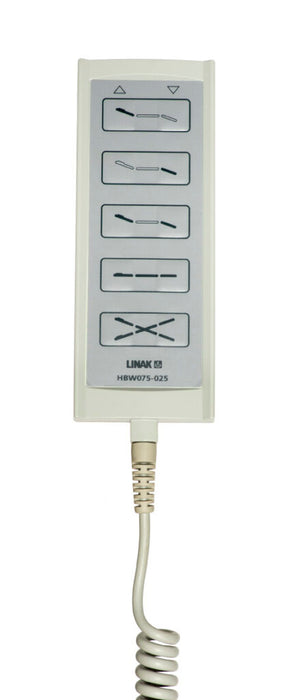

User-friendly controls: Easy-to-use handset allows quick adjustment of all bed positions.
-
Durable electronics: Reliable LINAK system ensures long-lasting performance.
-
Full accessory compatibility: Supports a wide range of hospital bed accessories for enhanced patient care.
Specifications
| Specification |
Details |
| Product Name |
Floorline LTC |
| Part no. White Finish |
90600 (EU), 90602 (UK), 90606 (NA), 90608 (AU) |
| Part no. Woodgrain Finish |
90601 (EU), 90603 (UK), 90607 (NA), 90609 (AU) |
| Platform Position (Min-Max) |
9.5cm - 70cm / 3.7” - 27.5” |
| Overall Bed Length (Standard to Extended with Extension Kit) |
215cm - 232.5cm / 84.5” - 91.5” |
| Platform Dimensions (L x W) |
215cm x 90.5cm / 84.5” x 35.5” |
| Platform Dimensions with Extension Kit (L x W) |
232.5cm x 90.5cm / 91.5” x 35.5” |
| Specification |
Details |
| Part Number |
90600 (EU), 90602 (UK), 90606 (NA), 90608 (AU) |
| Part Number with Wooden Panel |
90601 (EU), 90603 (UK), 90607 (NA), 90609 (AU) |
| Mattress Platform Length (Standard) |
2000 mm / 78¾” |
| Mattress Platform Length (with Extension Kit) |
2175 mm / 85½” |
| Overall Bed Length (Standard to Extended) |
2150 mm ‐ 2325 mm / 84½” ‐ 91½” |
| Mattress Platform Width |
900 mm / 35½” |
| Overall Bed Width |
905 mm / 35½” |
| Mattress Platform Height Adjustment Range |
95 mm / 3¾” ‐ 700 mm / 27½” |
| Overall Weight of Bed (One-piece) |
106 kg / 234 lbs / 16 st 10 lbs |
| Wheel Castor Size |
100 mm / 4” |
| Bed Operating Output Voltage Max. |
24 volts DC |
| Power Input Voltage / Frequency |
90600-90603 and 90608-90609: 230V, 50Hz
90604-90607: 120V, 60Hz |
| Audible Acoustic Energy |
45 dB |
| Duty Cycle—Operating Time |
10% max. 2 min operation / 18 min rest |
| Electrical Protection Classification |
90606-90607: Class 1 - Earthed
90600-90605 and 90608-90609: Class 2 ‐ Double Insulation |
| IP Rating |
IPX4 |
| Mains Power Amps |
90600-90603 and 90608-90609: Max 1.5 Amps
90604-90607: Max 4 Amps |
| Mattress Platform Panel Angles |
Backrest 70°, Thigh 45°, Knee 110°, Calf 25°, Trendelenburg/Reverse Trendelenburg 18° |
| Safe Working Load (SWL) |
200 kg / 440 lbs / 31 st 7 lb |
Product Manual
The Product Manual for the Human Care FloorLine LTC US Class 1 Bed can be found here.
The Product Sheet for the Human Care FloorLine LTC US Class 1 Bed can be found here.
Shipping
- Free delivery (Contiguous United States Only)
- Delivery ETA 3-7 business days
-
We also offer white glove engineer delivery with assembly and demonstration if required. Please contact us for a quote.
-
If you require faster shipping or shipping anywhere other than the contiguous United States, please contact us for a shipping quote.
Warranty
This product comes with a 3 year manufacturer's warranty.
