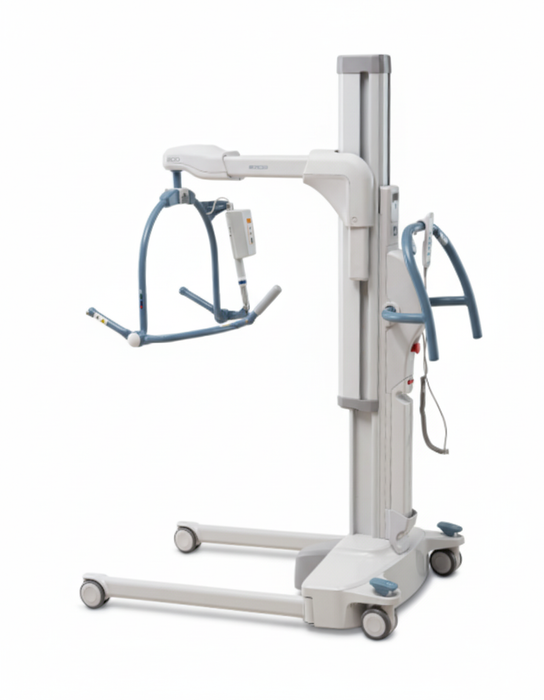

Arjo | Maxi Move 5 Multifunctional Powered Patient Floor Lift | Enhancing Care Efficiency, Safety, and Ergonomic Single-Caregiver Mobility Solutions
The Arjo Maxi Move 5 is a versatile, powered floor lift designed to support safe, comfortable patient transfers across a wide range of care settings.
Built for performance and flexibility, this advanced lifting solution promotes efficiency for caregivers while enhancing dignity and comfort for patients.
Equipped with Arjo’s Motion Assist™ system, the Maxi Move 5 features intelligent touch sensors that respond to push, pull, and pivot movements.
This makes maneuvering smoother and more intuitive, even in tight spaces.

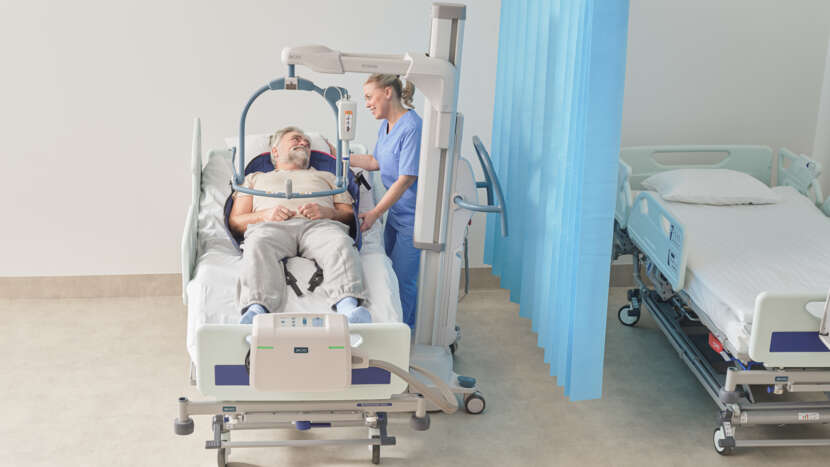

Combined with Powered Dynamic Positioning (PDPS), a single caregiver can safely position the patient with greater precision and less physical effort—improving workflow without compromising care quality.

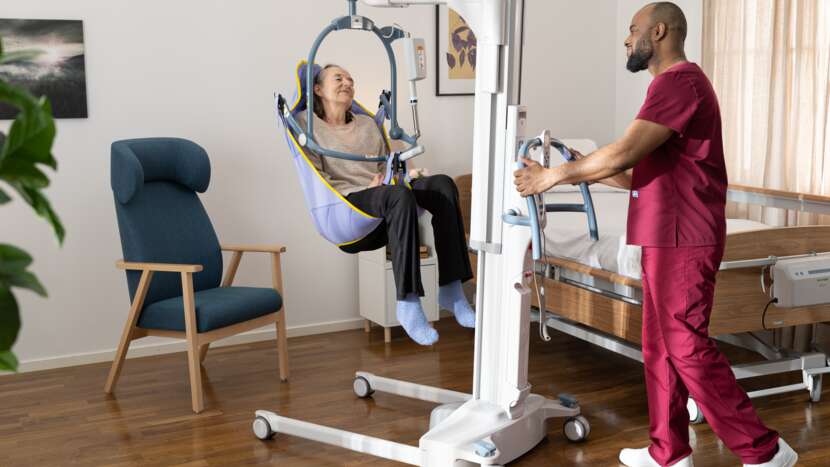

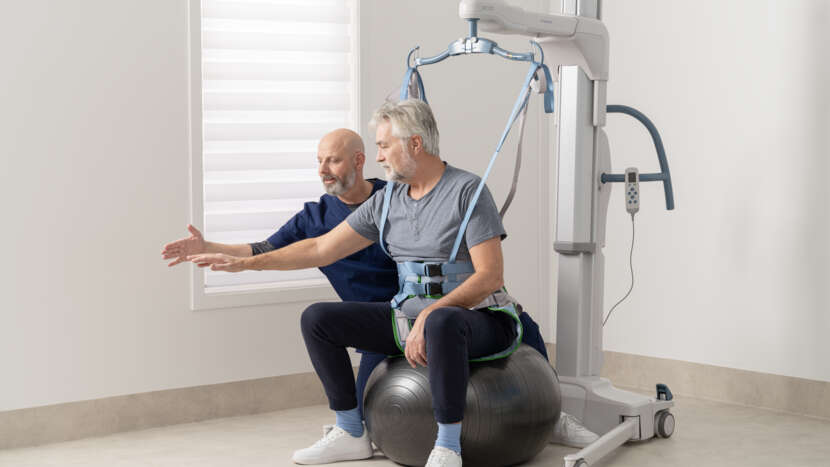

The lift is compatible with a variety of spreader bars and sling types, making it ideal for a wide range of patient needs, including rehabilitation, hygiene routines, and repositioning.
It’s also thoughtfully designed for individuals with cognitive impairments, featuring soft start/stop functions, quiet operation, rounded edges, and contrasting colors to create a more calming, respectful environment.
Two available models support safe working loads of up to 227 kg (500 lb) or 272 kg (600 lb), meeting the demands of different patient profiles.
Additional configurable features include integrated scale for weighing, combi attachment for easy switching between frames, dual control points for safer transfers, and three castor height options to allow access under low beds and trolleys.
The coated lifting strap resists moisture and contamination, helping reduce infection risk and simplifying cleaning.
A telescopic vertical mast adds stability during lifting, while the dual-function operation allows two lift functions to run simultaneously for time-saving performance.
Designed to support both patients and caregivers, the Arjo Maxi Move 5 delivers ergonomic handling, reliable lifting capacity, and patient-centered features—making it a smart addition to professional care environments.
Key Features
-
Multifunctional Floor Lift: Designed for a variety of patient transfers in clinical or care settings.
-
Motion Assist System: Touch sensors respond to push, pull, and pivot for smooth, intuitive maneuvering.
-
Powered Dynamic Positioning (PDPS): Enables precise patient positioning with less effort from a single caregiver.
-
Supports Cognitive Impairment Needs: Quiet operation, rounded corners, and contrast colors promote comfort and dignity.
-
Wide Sling and Bar Compatibility: Works with different spreader bars and slings for various patient care tasks.
-
High Weight Capacity: Available in 227 kg (500 lb) and 272 kg (600 lb) models for different patient needs.
-
Integrated Scale: Optional built-in scale for quick, accurate patient weighing during transfers.
-
Combi Attachment: Allows quick switching between spreader bars and stretcher frames.
-
Three Castor Sizes: Standard, low, and extra-low options for better access under beds and trolleys.
-
Coated Lifting Strap: Non-porous material resists contamination and is easy to clean.
-
Telescopic Vertical Mast: Provides stability and balance during lifting operations.
-
Dual Controls: Operate from the mast or hand control to stay close to the patient during use.
-
Dual Function Operation: Perform two lift functions at once for faster, more efficient transfers.
-
Brake Toggle: Easy-to-use foot brake system enhances safety and control.
-
Configurable Features: Multiple optional features allow customization to meet specific care requirements.
Specifications
| Product Information Standard Capacity |
| Max. safe working load |
227 kg / 500 lb |
| Lifter weight (incl. spreader bar and battery) |
75.4 kg / 162.2 lb |
| Max. lifting height |
1542 mm / 60 3/4 in |
| Min. lifting height |
104 mm / 4 1/8 in |
| Min. storage height |
1416 mm / 53 3/4 in |
| Lifting interval |
1438 mm / 56 5/8 in |
| Max. reach (from column to end of mast) |
614 mm / 24 3/16 in |
| Lifter length |
1279 mm / 50 3/8 in |
| External width legs closed |
665 mm / 26 3/16 in |
| External width legs open |
1102 mm / 43 3/8 in |
| Internal width legs closed |
529 mm / 20 13/16 in |
| Internal width legs open |
967 mm / 38 1/16 in |
| Min. width |
668 mm / 26 5/16 in |
| Leg clearance (floor to top of legs) |
113 mm / 4 7/16 in (std), 100 mm / 3 15/16 in (low), 59 mm / 2 5/16 in (extra low) |
| Chassis clearance (floor to bottom of chassis) |
24 mm / 15/16 in (std & low), 19 mm / 12/16 in (extra low) |
| Turning diameter |
1227 mm / 48 5/16 in |
| Lifting speed |
41-45 mm/s |
| Lifter protection class |
IP24 |
| Hand control protection class |
IPX7 |
| Battery |
24V, 4 Ah |
| Battery charge indicator (displayed on hand control) |
. |
| Cycle counter (displayed on hand control) |
. |
| Overload indicator (displayed on hand control) |
. |
| Automatic safety cut-out if lowered onto an obstacle (spreader bar & lifting column) |
. |
| Emergency stop and system failure override |
. |
| Product Information High Capacity |
| Max. safe working load |
272 kg / 600 lb |
| Lifter weight (incl. spreader bar and battery) |
75.6 kg / 166.7 lb |
| Max. lifting height |
1542 mm / 60 3/4 in |
| Min. lifting height |
104 mm / 4 1/8 in |
| Min. storage height |
1416 mm / 53 3/4 in |
| Lifting interval |
1438 mm / 56 5/8 in |
| Max. reach (from column to end of mast) |
614 mm / 24 3/16 in |
| Lifter length |
1324 mm / 52 1/8 in |
| External width legs closed |
749 mm / 29 1/2 in |
| External width legs open |
1219 mm / 48 in |
| Internal width legs closed |
614 mm / 24 3/16 in |
| Internal width legs open |
1083 mm / 42 5/8 in |
| Min. width |
754 mm / 29 11/16 in |
| Leg clearance (floor to top of legs) |
113 mm / 4 7/16 in (std), 100 mm / 3 15/16 in (low), 59 mm / 2 5/16 in (extra low) |
| Chassis clearance (floor to bottom of chassis) |
24 mm / 15/16 in (std & low), 19 mm / 12/16 in (extra low) |
| Turning diameter |
1309 mm / 51 9/16 in |
| Lifting speed |
41-45 mm/s |
| Lifter protection class |
IP24 |
| Hand control protection class |
IPX7 |
| Battery |
24V, 4 Ah |
| Battery charge indicator (displayed on hand control) |
. |
| Cycle counter (displayed on hand control) |
. |
| Overload indicator (displayed on hand control) |
. |
| Automatic safety cut-out if lowered onto an obstacle (spreader bar & lifting column) |
. |
| Emergency stop and system failure override |
. |
Accessories and Options
| Accessories |
| A wide selection of spreader bars and slings |
. |
| Stretcher solutions (soft stretcher, strap stretcher and scoop stretcher) |
. |
| Wall mounted battery charger |
. |
| Battery pack |
. |
| Plastic leg covers |
. |
| Maxi Cart 2 (storage and transportation cart for spreader bars) |
. |
| Wall support kit (storage for spreader bars) |
. |
| Spreader Bars |
| Two-point loop |
. |
| Two-point medium loop |
. |
| Four-point loop |
. |
| Medium Powered DPS |
. |
| Large Powered DPS |
. |
| Stretcher frame |
. |
| Configurable Options |
| Integrated scale |
. |
| Motion Assist |
. |
| Safe working load capacity |
. |
| Castor size |
. |
