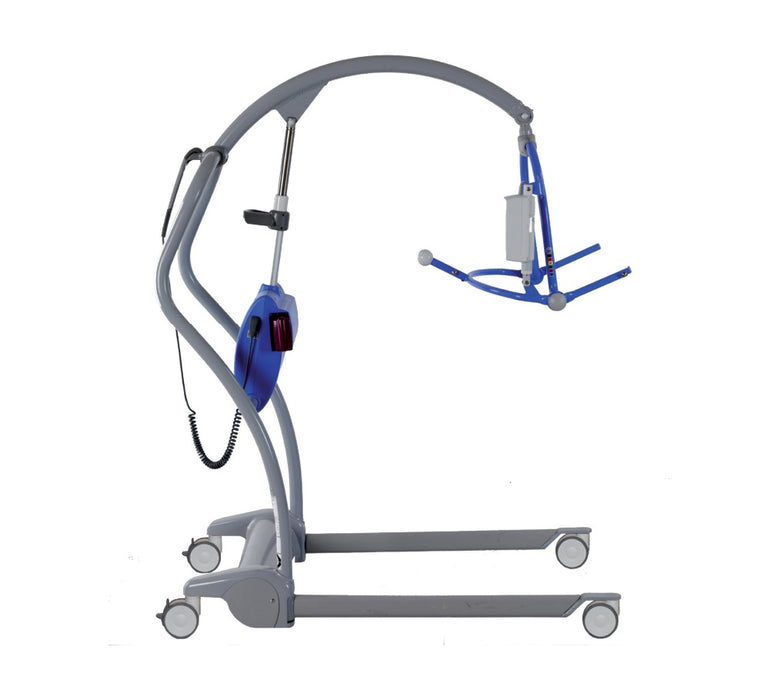

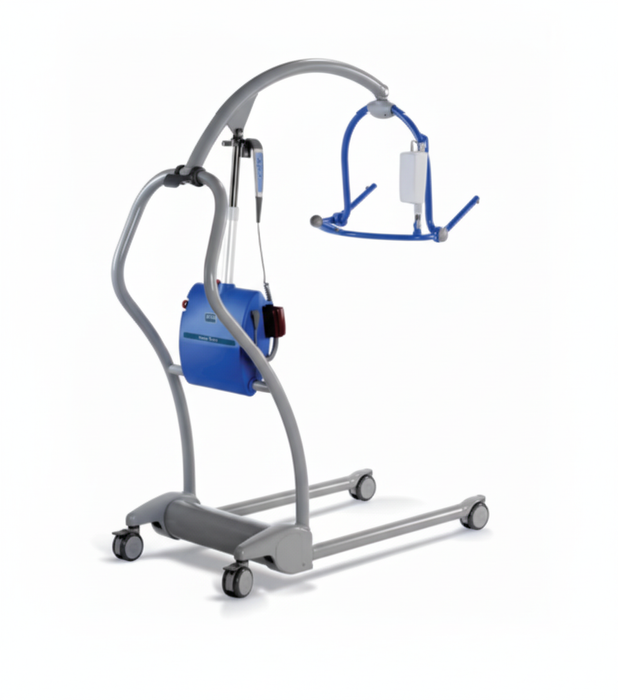

Arjo | Maxi Twin Patient Lift | Enhancing Safe, Ergonomic Transfers with Advanced Positioning and Optional Integrated Scale
The Arjo Maxi Twin Patient Lift, available at Alto Med Supply, is thoughtfully engineered to support safe and efficient patient transfers in healthcare and residential care environments.
Its unique open, dual-mast design enhances caregiver access and promotes close, reassuring interaction with the patient during the transfer process.
Designed with both safety and usability in mind, the Maxi Twin allows for operation by a single caregiver, reducing the physical strain of manual handling.
This lift features exceptional manoeuvrability, thanks to its evenly balanced twin-mast structure and large ergonomic handholds.
The open mast configuration also provides added legroom for the patient, ensuring comfort throughout the transfer.
Integrated into the lift is a powered dynamic positioning system (PDPS), which enables precise positioning of the patient in the sling with minimal manual effort.
The Maxi Twin supports a variety of loop spreader bar sizes, including a 4-point bar with powered PDPS, offering flexible solutions for patients with different needs.
Additional features include an optional suspended electronic scale, allowing caregivers to weigh patients during transfers without additional equipment.
The high-friction spreader bar design minimizes unwanted swinging, enhancing control and stability throughout the process.
Adjustable handles accommodate caregivers of varying heights, contributing to ergonomic, user-friendly operation.
Ideal for hospitals, nursing homes, and home care settings, the Arjo Maxi Twin combines advanced functionality with user-focused design—making it a reliable solution for high-quality patient care.
Key Features
-
Open mast design: Improves caregiver access and supports safe patient transfers.
-
Even weight distribution: Twin-mast frame ensures balanced lifting and smoother operation.
-
Large ergonomic handholds: Provides better grip and control for easy manoeuvrability.
-
Enhanced patient comfort: Open design allows for extra legroom during transfers.
-
Close caregiver-patient contact: Dual-mast design supports eye contact and reassurance.
-
Powered Dynamic Positioning System (PDPS): Enables precise sling adjustments with minimal manual effort.
-
Single caregiver operation: Designed to be safely operated by one caregiver.
-
Optional electronic scale: Allows patients to be weighed during transfer without separate equipment.
-
Spreader bar options: Multiple sizes available, including 4-point bar with powered positioning.
-
Ergonomic handles: Adjustable grip points accommodate caregivers of different heights.
-
High-friction spreader bar: Reduces swinging and improves control during patient lifts.
Specifications
| Weight and Dimensions |
| Max safe working load lb |
400 lbs |
| Lifter weight (with spreader bar and battery) lb |
126 lbs |
| Max lifting height in |
57.7 in |
| Min lifting height in |
9.12 in |
| Lifting stroke in |
48.5 in |
| Min total storage height in |
54 in |
| External width legs closed in |
29.75 in |
| External width legs open in |
54 in |
| Internal width leg closed in |
24.9 in |
| Internal width leg open in |
48.5 in |
| Leg clearance (floor to top of legs) - standard castors in |
4.7 in |
| Leg clearance (floor to top of legs) - low castors in |
4.7 in |
| Chassis clearance (floor to bottom of chassis) - standard & low castors in |
1.2 in |
| Lifter length in |
51.12 in |
| Turning diameter in |
56.6 in |
| Electrical |
| Lifter protection class |
IP24 |
| Hand control protection class |
IPX7 |
| Battery |
24V, 2.5 Ah NiMH |
Product Manual
User manual for Arjo Maxi Twin Patient Lift can be found here.
Video
Warranty
This product comes with a 1-year parts and labor, limited 5-year metal frame and structure manufacturer's warranty.
