Accuris | QuadCount Automated Cell Counter

Accuris | QuadCount™ Automated Cell Counter | Fast, Accurate Live/Dead Cell Analysis with Advanced Imaging and QuadSlide™ Technology

Streamline your cell counting workflow with the Accuris QuadCount™ Automated Cell Counter, available online from Alto Med Supply.

Designed by Benchmark Scientific, this advanced cell counter offers fast, accurate, and reproducible results by combining brightfield microscopy with precision optics, an LED light source, and a high-resolution 5MP CMOS detector.

A motorized XYZ positioning stage enables ultra-fine focus and multi-image capture, delivering high accuracy for a wide range of applications.

Ideal for researchers working with mammalian cell lines, the QuadCount dramatically reduces the time and effort associated with manual hemocytometry.

With count times as fast as 20 seconds per sample, the system’s intelligent software eliminates human error, standardizes results, and enhances overall lab efficiency.

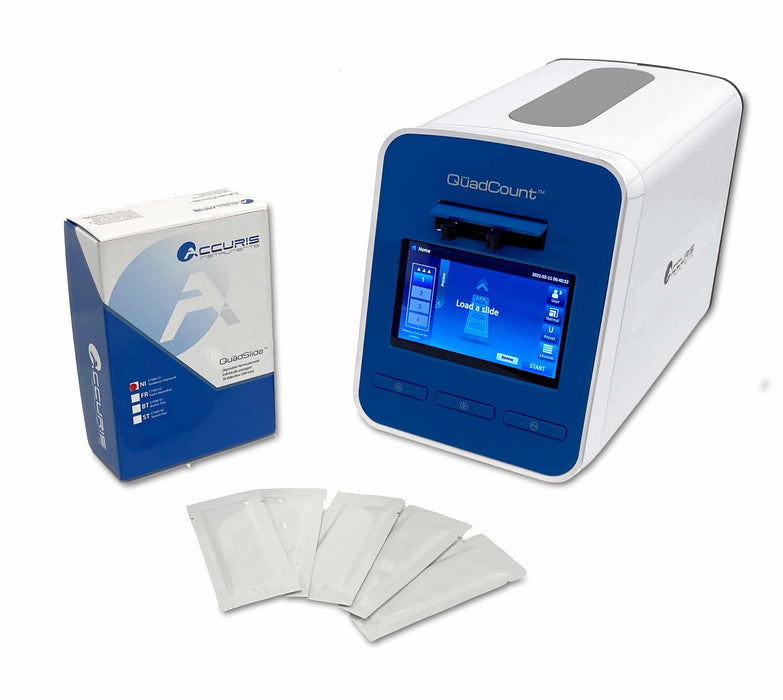

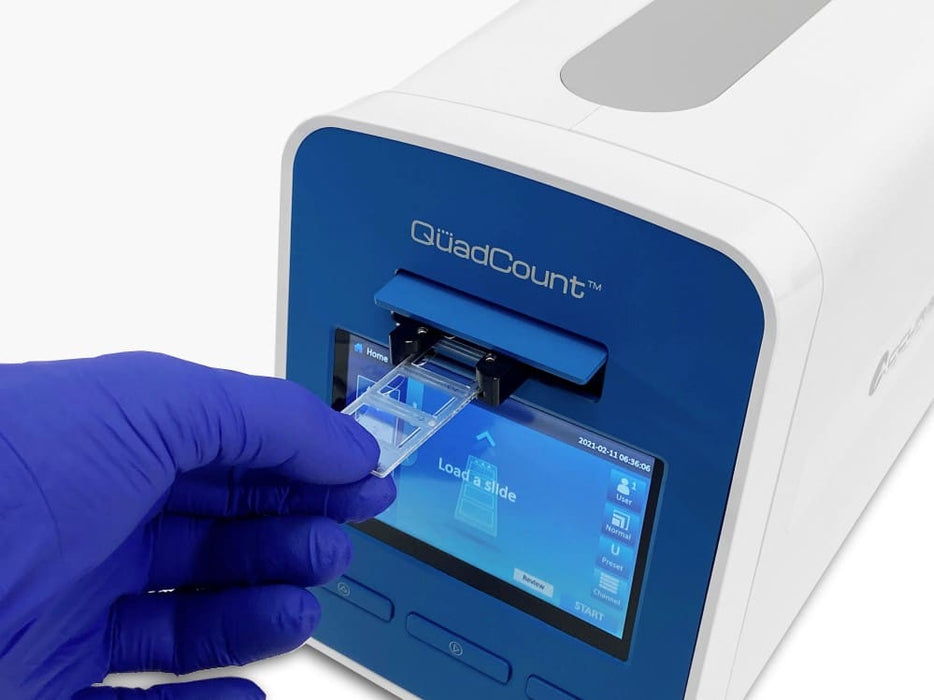

The QuadCount uses proprietary QuadSlides™, innovative four-chamber disposable slides that double the sample capacity of standard slides cutting consumable costs and allowing you to process up to four samples per slide.

Each chamber includes a hydrophilic surface with an engraved grid for consistent and precise counting.

Three flexible counting modes allow you to choose the best approach for your sample size and required accuracy:

• Quick Mode: 0.15 µL in 20 seconds (1 image frame)
• Normal Mode: 0.9 µL in 30 seconds (6 image frames)
• Precise Mode: 3.6 µL in 100 seconds (24 image frames)

Thanks to advanced optics and autofocus technology, the QuadCount automatically adjusts the focal plane in micron increments to ensure clarity and consistency.

The integrated software uses sophisticated detection algorithms to handle irregularly shaped and aggregated cells with ease improving reliability and eliminating user-to-user variability.

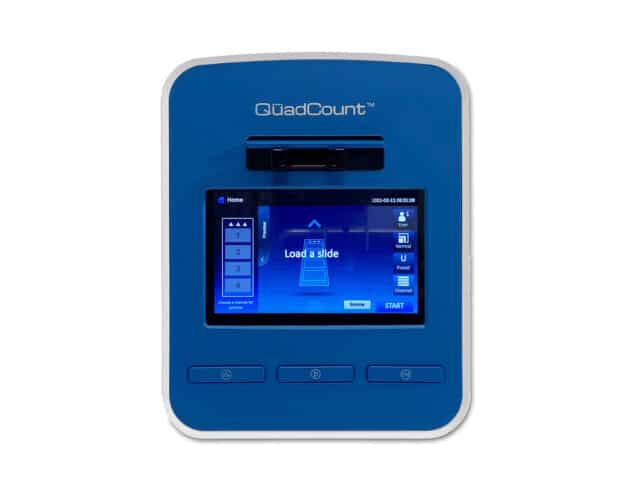

The intuitive touchscreen interface lets you customize analysis parameters such as gating size, aggregation levels, and live/dead cell definitions.

View results in clear histograms and compare data across individual or multiple chambers.

The device also features USB ports for external keyboard, printer, or flash drive connectivity, ensuring seamless data handling.

Whether you're scaling up experiments or seeking greater confidence in your cell count data, the Accuris QuadCount™ from Alto Med Supply is a dependable, cost-effective solution for modern cell analysis.

Key Features

• Fast and accurate cell counting: Delivers results in as little as 20 seconds, eliminating manual counting errors and improving efficiency.
• Advanced imaging technology: Uses a 5MP CMOS detector, precision optics, and a 4X objective lens for high-resolution image capture.
• Motorized XYZ positioning stage: Enables fine focus adjustments and captures multiple image frames for better accuracy.
• Proprietary QuadSlides™: Four-chamber disposable slides allow processing of up to four samples per slide, reducing consumable costs.
• Multiple counting modes: Offers Quick, Normal, and Precise modes to handle volumes from 0.15 µL to 3.6 µL.
• Autofocus system: Automatically adjusts focus to the correct focal plane for optimal image clarity and accurate counts.
• Advanced cell detection algorithms: Accurately counts irregular or aggregated cells, reducing user-to-user variation.
• Intuitive touch-screen interface: Easily adjust gating size, live/dead definition, and aggregation level via a simple user interface.
• Real-time data visualization: Displays histogram statistics and allows cell size gating adjustments for individual or multiple chambers.
• USB connectivity: Connect external devices like keyboards, printers, or flash drives for added convenience and data management.
• Supports common mammalian cell lines: Compatible with a wide range of cell types used in biological and medical research. (Click Here for Detail)
