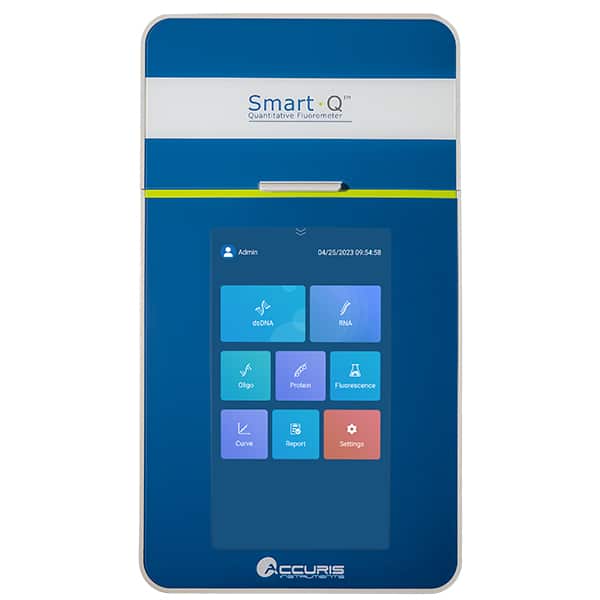

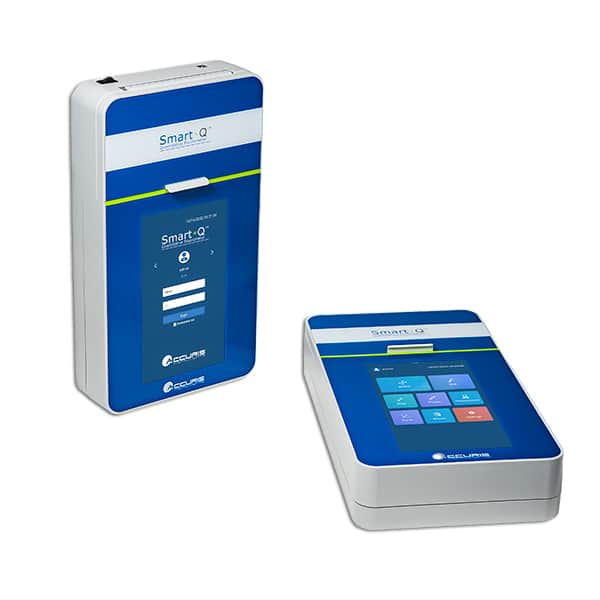

Accuris | Smart-Q Fluorometer | Precise DNA, RNA & Protein Quantification, Sensitive Fluorescence Detection with Touchscreen & High-Throughput Models
At Alto Med Supply, we offer the Accuris Smart-Q Fluorometer, a cutting-edge tool designed for precise quantification of DNA, RNA, and protein samples.
Utilizing advanced fluorescence detection methods, the Smart-Q delivers greater specificity and accuracy compared to traditional UV-absorbance techniques, making it ideal for critical workflows like Next Generation Sequencing, PCR, transfection, Western blotting, and immunoassays.

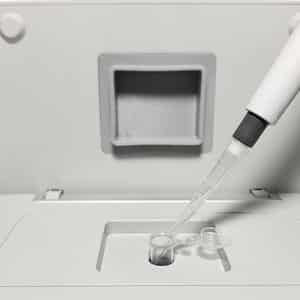

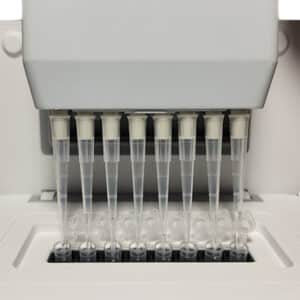

The Smart-Q comes in two models tailored to different lab needs: the Smart-Q 100 for single-sample processing in 0.5mL assay tubes, perfect for low-throughput environments, and the Smart-Q 800, which supports high-throughput analysis of up to eight samples simultaneously with 0.2mL tubes or strip tubes, enhancing efficiency for larger workloads.
Both models feature a user-friendly 7-inch color touchscreen with an intuitive icon-driven interface and preprogrammed protocols, enabling quick assay setup and results in under six seconds. Data is conveniently saved internally and easily exported via USB.
The fluorometers include built-in reagent calculators to assist with sample preparation and support a broad range of fluorescent dyes through Blue and Red detection channels.
Compact and portable, with an 11 by 6-inch footprint, the Smart-Q fluorometers integrate advanced curve-fitting algorithms to deliver accurate concentration measurements by correlating fluorescence signals with known standards.
While optimized for use with Accuris DNA Quantification Kits, these fluorometers are also compatible with many other commercially available assay kits, offering versatile and reliable performance.
Explore the Accuris Smart-Q Fluorometer at Alto Med Supply to enhance your lab’s molecular quantification capabilities with precision, speed, and convenience.
Key Features
-
Precise Quantification: Measures DNA, RNA, and protein samples with high sensitivity down to 0.1 pg/µL dsDNA.
-
Large Touchscreen: Features a 7-inch color touch display for easy programming and operation.
-
Model Options: Available in single-sample (Smart-Q 100) and 8-sample (Smart-Q 800) versions for different lab needs.
-
Built-in Reagent Calculators: Simplifies sample preparation with integrated calculation tools.
-
Compact & Portable: Small footprint (11 x 6 inches) fits easily in any workspace.
-
Enhanced Accuracy: Uses fluorescence detection for better specificity than UV-absorbance methods.
-
Fast Results: Delivers measurements and displays data in under 6 seconds.
-
Data Management: Stores results internally and exports data easily via USB flash drive.
-
Dual Fluorescent Channels: Includes Blue and Red channels for versatile nucleic acid and protein assays.
-
Advanced Calibration: Uses curve-fitting algorithms for precise standard calibration and sample quantification.
-
High-Throughput Compatibility: Smart-Q 800 supports up to 8 samples simultaneously for efficient processing.
-
Compatible with Kits: Optimized for Accuris Fluorescent DNA Quantification Kits and compatible with other suppliers’ kits.
-
Ideal Applications: Perfect for workflows like Next Generation Sequencing, PCR, transfection, Western blotting, and immunoassays.
Specifications
Model |
Smart-Q™ 100 Fluorometer |
Smart-Q™ 800 Fluorometer |
Display |
7.0-inch, color touch screen |
7.0-inch, color touch screen |
Dynamic Range |
5 orders of magnitude |
4 orders of magnitude |
Light Source |
Blue and Red LED |
Blue and Red LED |
Excitation Wavelengths |
Blue: 460 ± 20nm and Red: 625 ± 20nm |
Blue: 460 ± 20nm and Red: 625 ± 20nm |
Emission Wavelengths |
Green: 525 - 570nm and Red: 670 - 725nm |
Green: 525 - 570nm and Red: 670 - 725nm |
Stability |
≤ 1.5% |
≤ 1.5% |
Detector |
Photodiodes (300-1000nm) |
Photodiodes (300-1000nm) |
Measurement Speed |
≤ 5 seconds |
≤ 6 seconds |
Consumable type |
0.5mL assay tubes |
0.2mL assay tubes (single and 8-tube strip) |
Input Voltage |
24 VDC 2A |
24 VDC 2A |
Dimensions (WxDxH) |
16.1 x 28.7 x 6.1cm / 6.34 x 11.30 x 2.40in. |
16.1 x 28.7 x 7.6 cm / 6.3 x 11.3 x 3.0 in. |
Weight |
1.6kg / 3.5lbs |
2.0kg / 4.4lbs |
Product Manual
User manual for Accuris Smart-Q 100 Fluorometer can be found here.
User manual for Accuris Smart-Q 800 Fluorometer can be found here.
