Accuris | SmartReader™ Multimode Microplate Reader | High-Performance Absorbance, Fluorescence & Luminescence Detection for Life Science Research
The Accuris SmartReader™ Multimode is a versatile, high-performance microplate reader designed to meet the demanding needs of modern life science and biomedical research laboratories.
Available now at Alto Med Supply, this all-in-one instrument supports a wide range of applications including UV-visible absorbance, fluorescence, and luminescence detection ideal for ELISA, DNA/RNA analysis, enzyme kinetics, and more.

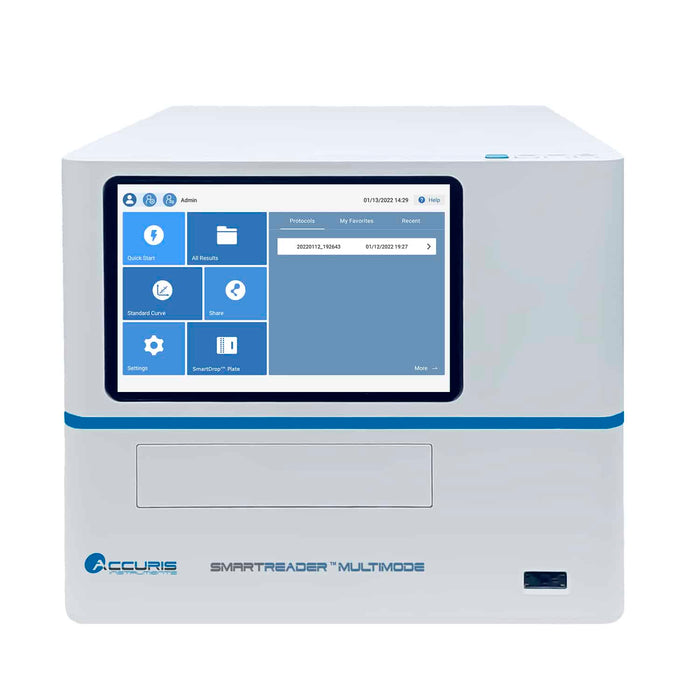

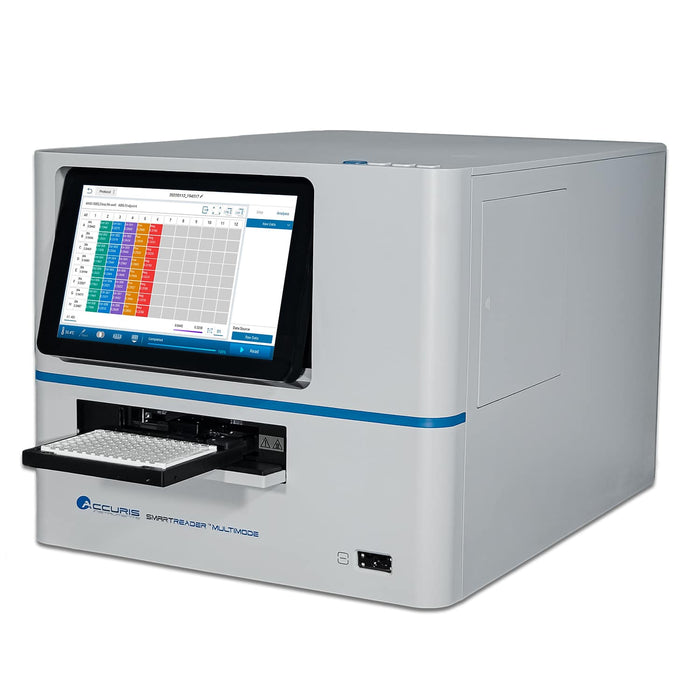

Featuring a large 10-inch color touchscreen and intuitive interface, the SmartReader Multimode operates as a stand-alone system, eliminating the need for an external computer.
For enhanced control and data management, optional SmartReader PC software is available, including a 21 CFR Part 11 compliant version for regulated lab environments.
The system is compatible with 6 to 384 well plates and includes a built-in incubator with top heating (ambient +4°C to 45°C) to reduce condensation, plus a multi-mode plate shaker.
Its advanced optical system includes a monochromator for user-selectable wavelengths (200–1000 nm), a PMT detector for sensitive luminescence assays, and filter modules with barcoded identification for precise fluorescence measurements.
The SmartReader processes a full 96-well plate in under 15 seconds, and kinetic assays can be visualized in real time.
Optional modules, including automatic injectors for flash luminescence and the SmartDrop™ plate for fast UV absorbance of up to 16 micro-volume samples, further expand functionality.
Data export is seamless via USB, FTP, or directly to a PC using the optional software, with support for .XLS and .CSV file formats.
Whether for academic research or high-throughput screening, the Accuris SmartReader Multimode offers reliability, flexibility, and ease of use all backed by Benchmark Scientific’s quality engineering.
Explore with confidence at Alto Med Supply, your trusted online source for laboratory instruments and life science equipment.
Key Features
-
Large 10-Inch Touchscreen: Intuitive color display for easy programming and operation without a PC.
-
Stand-Alone System: Operates independently with optional PC software available for added control and data handling.
-
Monochromator-Based Absorbance: Covers 200–1000 nm with 1 nm precision for ELISA, DNA/RNA analysis, and enzyme kinetics.
-
High-Speed Assay Processing: Reads a full 96-well plate in under 15 seconds with real-time kinetic assay display.
-
Multi-Well Plate Compatibility: Supports 6, 12, 24, 48, 96, and 384-well plates for flexible assay formats.
-
Built-In Plate Shaker & Incubator: Features linear, orbital, and double-orbital shaking modes with top heating (ambient +4°C to 45°C).
-

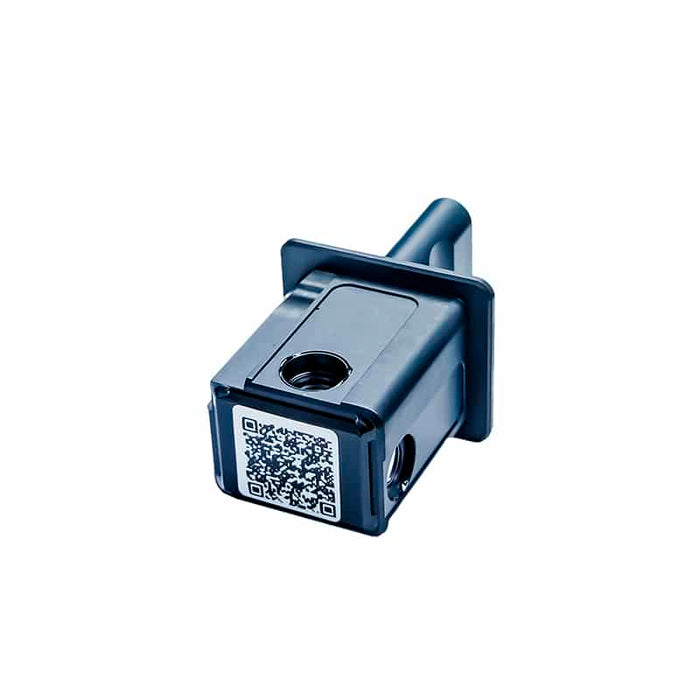

Fluorescence Detection System: Includes three filter modules with high-sensitivity dichroic mirror technology and barcode auto-recognition.
-
Luminescence Detection with PMT: Advanced photomultiplier tube captures both flash and glow assays with high sensitivity and dynamic range.
-
Optional Injectors for Flash Luminescence: Supports up to 2 automatic injectors compatible with 96- and 384-well plates.
-
SmartDrop™ Plate Option: Enables rapid UV absorbance measurement of up to 16 nucleic acid or protein sample droplets.
-
Automatic Calibration & Self-Test: Ensures accuracy and consistent results every time the unit is powered on.
-
Data Export & Remote Access: Save results as .XLS or .CSV files via USB, FTP, or optional PC software.
-
FDA 21 CFR Part 11 Compliance: Optional PC software available for regulated lab environments and research applications.
Specifications
| Model |
Accuris SmartReader™ Multimode |
| Measurement Technologies |
Absorbance, Fluorescence, Luminescence |
| Plate Formats |
6- to 384-well plates |
| Shaking |
Linear (4.7 Hz, 7.0 Hz, 13.5 Hz), orbital and double orbital (240 – 1200 rpm) |
| Incubation Range |
RT +4 °C to 45 °C |
| Display |
10.0 inch touchscreen |
| Communication Ports |
2 USB A type ports / 1 USB B type port
1 Ethernet port
RS232 interface |
| Dimensions (W×D×H) |
16.5 × 21.7 × 15.2 in
(42.0 × 55.0 × 38.6 cm) |
| Power Input |
AC 100 to 240 V, 50 to 60 Hz |
| Weight |
33 kg / 72.8 lbs |
| Absorbance |
| Light Source |
High Energy Xenon Flash Lamp |
| Detector |
Photodiode |
| Wavelength Accuracy |
2 nm |
| Wavelength Repeatability |
0.2 nm |
| Bandwidth (FWHM) |
> 2.5 nm |
| Wavelength Range |
200 – 1000 nm, 1nm steps |
| Absorbance |
0.0 – 4.0 OD |
| Resolution |
0.0001 OD |
| Accuracy |
96-precision mode ± (1.0 %+0.003Abs)@ (0.0-2.0Abs) ;± 2.0 % @ (2.0-3.0Abs) |
| Repeatability |
CV < 1.0 % or SD< 0.003 Fast(0.0-3.0Abs)CV < 0.5 % or SD< 0.003 Accurate(0.0-3.0Abs) |
| Stray Light |
0.1 % @ 220 nm |
| Linearity |
R² > 0.999 @ [0.0-3.0Abs] |
| Measurement Speed |
< 15 seconds |
| Fluorescence |
| Reading Mode |
Top Reading |
| Excitation Light Source |
High Energy Xenon Flash Lamp |
| Detector |
Photo Multiplier Tube (PMT) |
| Detection Limit |
≤ 1 pM |
| Wavelength Range |
EX: 200 – 1000 nm; EM: 270 – 850 nm |
| Included Filter Cartridges |
(EX / EM): 485 / 530nm ; 523 / 564nm ; 624 / 692nm |
| Linear Dynamic Range |
6 logs |
| Luminescence |
| Detector |
Photo Multiplier Tube (PMT) |
| Detection Limit |
15 amol / well |
| Linear Dynamic Range |
6 logs |
Product Manual
User manual for Accuris SmartReader™ Multimode can be found here.
