Accuris | SmartReader UV-Vis Microplate Reader | High-Performance 96 & 384-Well Plate Reader for ELISA, Nucleic Acid, and Protein Quantification
The Accuris SmartReader UV-Vis is a versatile microplate reader designed for high-performance absorbance measurements across a broad range of life science applications.
Available at Alto Med Supply, this stand-alone system offers advanced functionality without the need for a PC or external software.

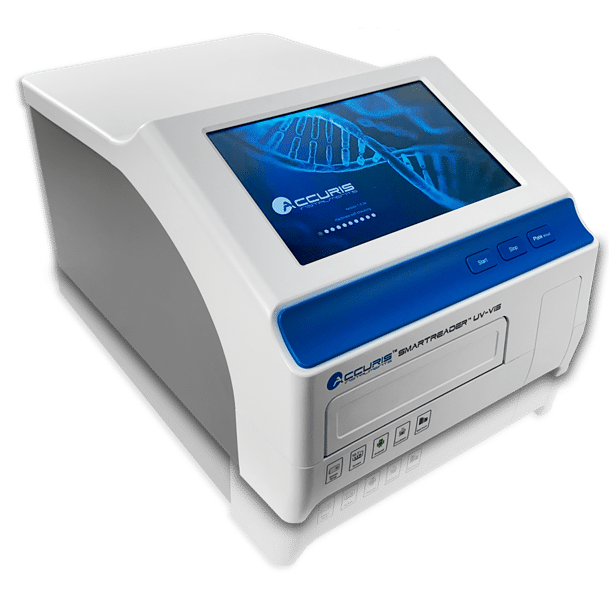

With a user-friendly 10-inch color touchscreen interface, the SmartReader UV-Vis simplifies protocol setup, assay execution, and data management—making it ideal for busy labs with multiple users.
This reader supports both 96-well and 384-well plates, enabling high-throughput screening for ELISA, Bradford, Lowry, turbidity assays, and more advanced applications like nucleic acid and protein quantification.
The monochromator-based optical system eliminates the need for filters, offering precise wavelength selection from 200 to 1000 nm for Endpoint, Kinetic, and Spectral Scanning assays.
For enhanced functionality, the MR9611 model includes a port for standard cuvette-based spectroscopy.
The system also features customizable plate shaking and temperature-controlled incubation (ambient +5°C to 45°C), ensuring optimized results for enzyme kinetics and bacterial growth assays.

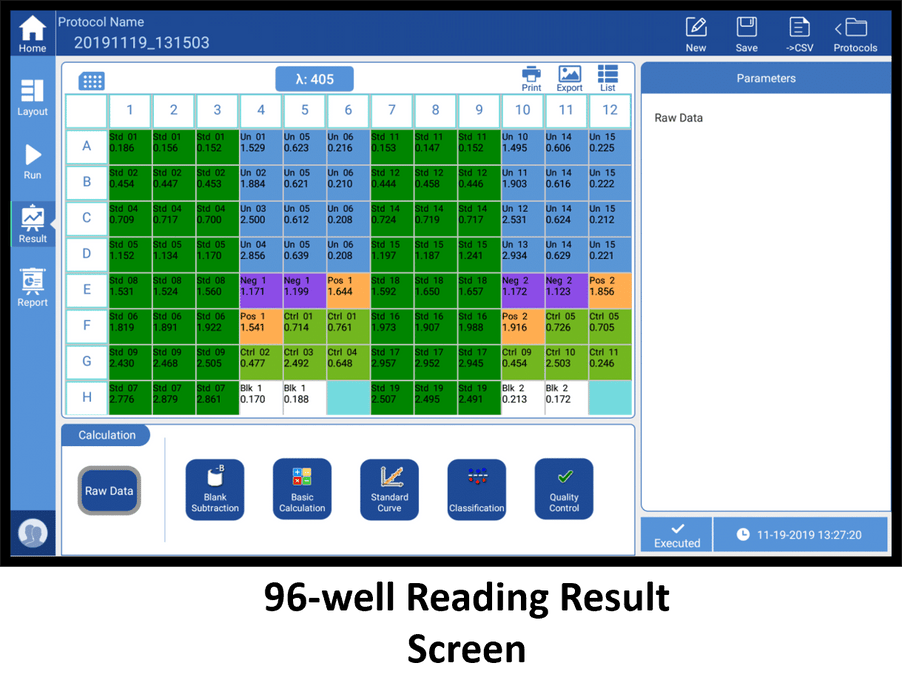

A visual plate layout interface allows users to label and organize well contents easily, streamlining experimental setup.

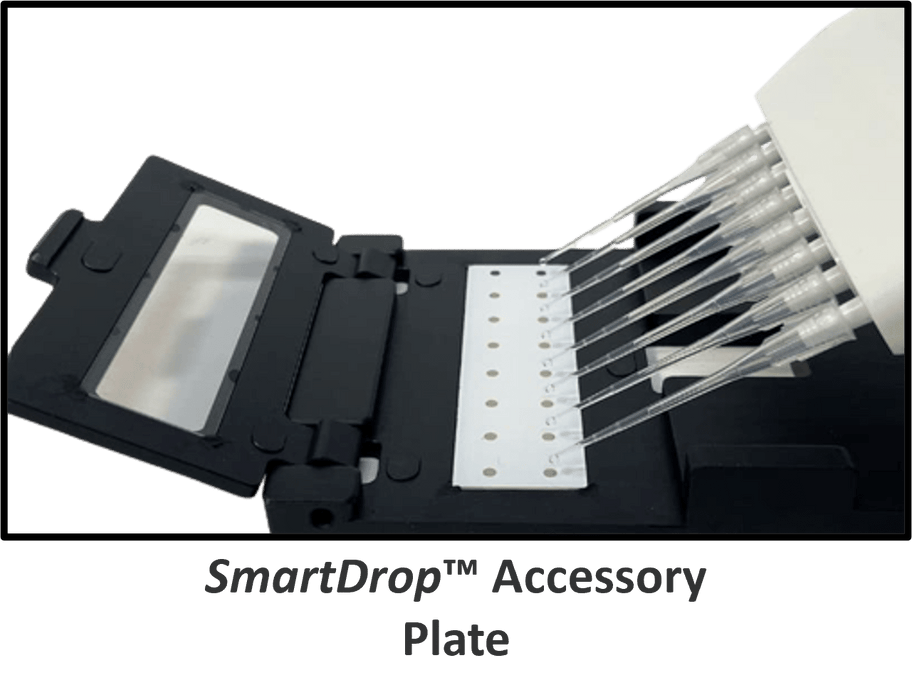

An optional SmartDrop™ Accessory Plate enables ultra-low volume absorbance measurements (less than 0.5 µL), perfect for analyzing nucleic acid purity and concentration in applications like Next Gen Sequencing or protein assays.
Data can be easily exported via a USB port for seamless workflow integration.
Explore the Accuris SmartReader UV-Vis at Alto Med Supply, your trusted online source for high-quality laboratory instruments from leading brands.
Key Features
-
Large Touchscreen Display: Intuitive 10-inch color touchscreen for quick and easy protocol setup and navigation.
-
Multi-Well Plate Compatibility: Supports both 96-well and 384-well microplates for high-throughput workflows.
-
Monochromator-Based System: No filters required; wavelength range from 200 to 1000 nm for flexible assay design.
-
Standalone Operation: No PC or software needed; includes USB port for easy data transfer via flash drive.
-
Optional Cuvette Port (MR9611 model): Includes a built-in port for standard cuvette-based absorbance measurements.
-
Multiple Assay Modes: Supports Endpoint, Kinetic, and Spectral Scanning assays for a wide range of applications.
-
High Throughput Capability: Efficiently processes multiple samples with visual plate layout and well labeling options.
-
Controlled Shaking and Incubation: Adjustable plate shaking and temperature control (ambient +5°C to 45°C) for optimized assay performance.
-
SmartDrop™ Accessory Plate: Measures ultra-low volume samples (<0.5 µL); ideal for nucleic acid and protein quantification.
Specifications
| Model |
Accuris SmartReader UV-Vis |
| Plates Accepted |
96-well and 384-well flat bottom (cuvettes accepted in MR9611 model) |
| Display |
10-inch color touch screen |
| Controls |
Touch screen and mouse |
| Light Source |
Xenon Flash Lamp |
| Wavelength Range |
200-1000nm |
| Wavelength Precision |
± 2 nm |
| Wavelength Accuracy |
± 2 nm |
| Wavelength Selection |
Monochromator |
| Read-out Range |
0 – 4.0 OD |
| Detector |
Dual silicon photoelectric detectors for measurement and reference |
| Linearity @ 450nm |
R² ≥ 0.999, [0.0 – 3.0] |
| Accuracy @ 450nm |
1.0% + 0.003 Abs (0 – 2.0)
2.0% (2.0 – 2.5 Abs) |
| Precision@450nm |
CV < 0.5% or SD<0.003 (Precision mode); CV < 1.0% (Fast mode) |
| Stability@450nm |
< 0.005A . (0.0 – 2.0)
< 2% (2.0 – 2.5 Abs) |
| Measurement Speed |
96 well plate: <6 seconds (fast mode); <25 seconds (precision mode)
384 well plate: <74 seconds (only precision mode available for 384) |
| Plate Shaking |
Linear; three levels of shaking speed |
| Incubator |
From ambient + 5°C to 45°C |
| Temperature Uniformity |
± 0.5°C @ 37°C |
| Storage |
16G memory, more than 10,000 test records can be stored |
| Connection Ports |
3 USB ports, for PC, printer and USB-flash drive |
| Power Supply |
DC24V 6.5A |
| Dimensions(W×D×H) |
300×500×260mm / 11.8 × 19.7 × 10.25 inches |
| Weight |
15.5kg / 34 Lbs |
Product Manual
User manual for Accuris SmartReader UV-Vis Microplate Reader can be found here.
