Arjo | Concerto and Basic | Height Adjustable Shower Trolley for Patient Hygiene Care
The Arjo Concerto and Basic Shower Trolley is designed to simplify patient hygiene routines while providing a safe, comfortable bathing experience for individuals who must remain in a lying position.
Ideal for hospitals, long-term care facilities, rehabilitation centers, and other healthcare environments, these shower trolleys help caregivers perform bathing and hygiene tasks more efficiently while promoting proper ergonomic working posture.

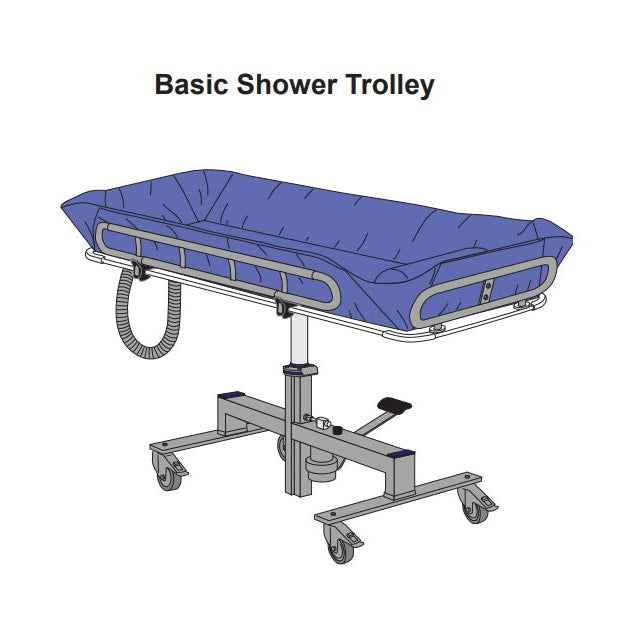

Both the Concerto and Basic models feature a height-adjustable design, allowing caregivers to position the trolley at a comfortable working height to help reduce physical strain during patient care.

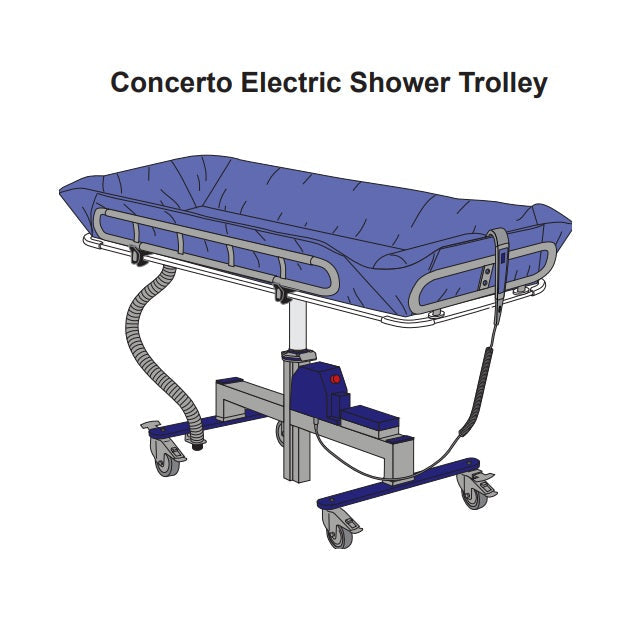

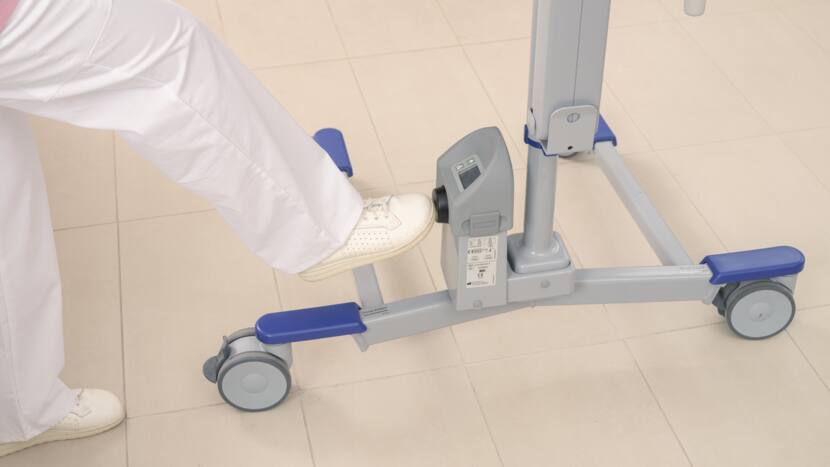

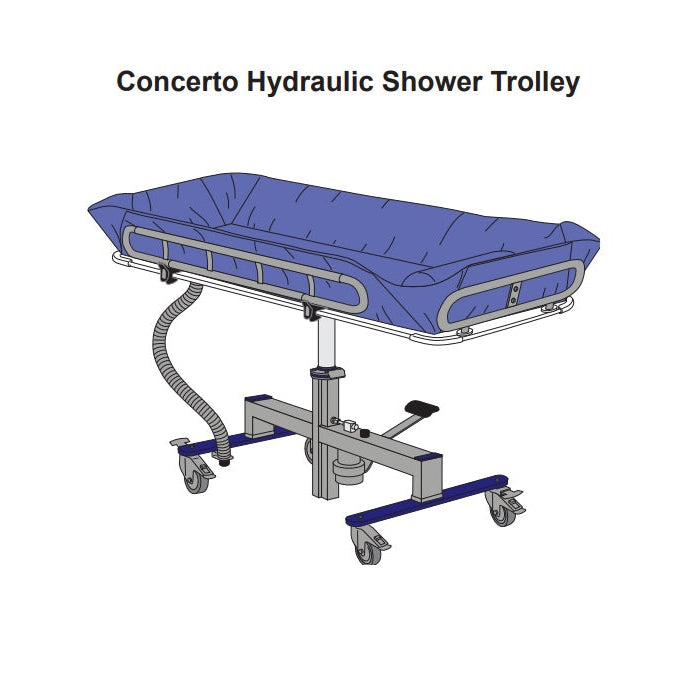

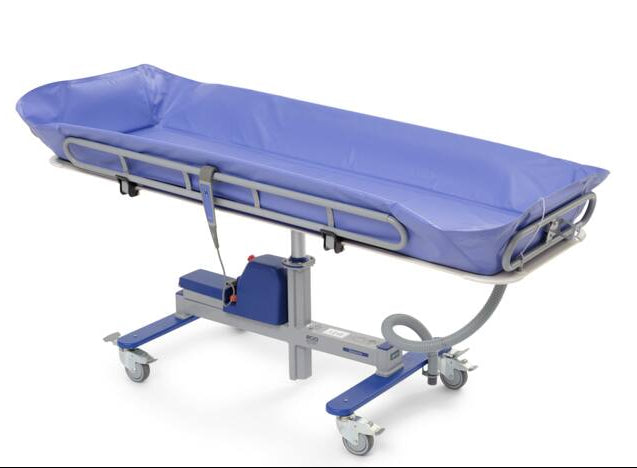

Height adjustment is operated by a reliable hydraulic pump, while the Concerto model is also available with an electrically powered actuator for added convenience and effortless operation.
Patient comfort is enhanced with a padded polyurethane (PU) mattress, head cushion, and wedge pillow that provide support throughout the bathing process.

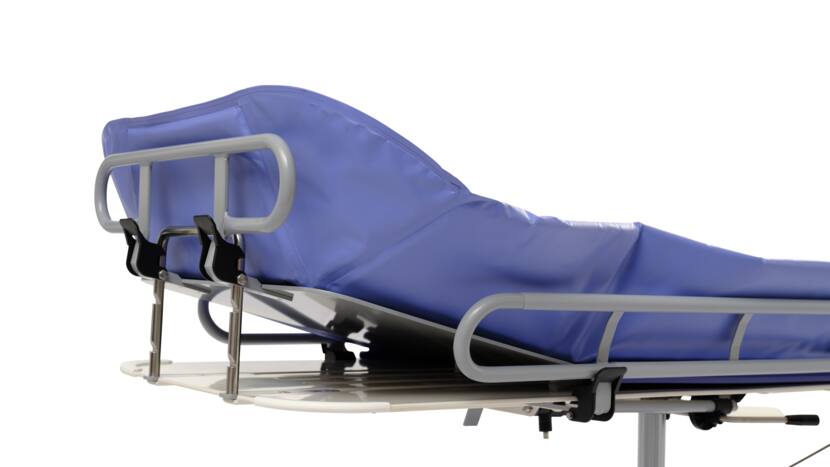

The Concerto model includes a three-position adjustable backrest to improve positioning and comfort, along with a side-tilt function that makes cleaning, drying, and hygiene care easier and more efficient.
Designed for smooth transportation, the Concerto features straight steering on two castors for improved maneuverability in hallways and patient rooms.
It also provides automatic horizontal leveling when lowered alongside a bed, helping facilitate safe patient transfers.
Lockable, foldable side supports can be lowered for convenient lateral transfers, while foot-operated brakes on all four castors help keep the shower trolley securely in place during use.
Available through Alto Med Supply, the Arjo Concerto and Basic Shower Trolley offers a dependable solution for healthcare providers seeking a durable, ergonomic, and patient-focused bathing system that improves caregiver efficiency while supporting patient comfort and safety.
Key Features
-
Height Adjustable Design: Hydraulic height adjustment helps caregivers work at a comfortable position, while the Concerto model is also available with an electric actuator.
-
Supports Patient Hygiene: Designed for safe and efficient showering of patients or residents who need to remain in a lying position.
-
Padded PU Mattress: Soft polyurethane mattress provides comfort and supports shallow bathing during hygiene care.
-
Comfort Accessories: Includes a head cushion and wedge pillow to improve patient support and positioning during bathing.
-
Adjustable Backrest: Concerto features a three-position back support for added comfort and easier patient positioning.
-
Side Tilt Function: Concerto can be tilted sideways to make cleaning and drying easier after bathing.
-
Foldable Side Supports: Lockable side rails fold down to allow safe and convenient lateral patient transfers.
-
Smooth Maneuverability: Concerto features straight steering on two castors for easier movement through hallways and patient rooms.
-
Automatic Horizontal Leveling: Concerto automatically levels when lowered beside a bed to assist with safer patient transfers.
-
Drainage Hose: Built-in drainage hose allows water to drain quickly after bathing.
-
Foot Brakes on All Castors: Four locking castors keep the shower trolley securely in place during patient care.
Specifications
| Weight and Dimensions |
| Weight (Basic) |
72 kg (159 lbs) |
| Weight (Concerto) |
75 kg (165 lbs) |
| Technical Information - Hydraulic |
| Maximum Safe Working Load |
175 kg (385 lbs) |
| Maximum Resident/Patient Weight |
150 kg (330 lbs) |
| Lifting Stroke |
320 mm (12 1/2 in) |
| Height to Stretcher (Top Position) |
740–1060 mm (29–41 3/4 in) |
| Weight |
74 kg (163 lbs) |
| Stretcher Width |
620 mm (23 13/32 in) |
| Total Width (Including Side Supports) |
755 mm (29 3/4 in) |
| Total Length (Available Sizes) |
1600 mm, 1850–1950 mm, 2250 mm (63 in, 73–76 3/4 in, 88 1/2 in) |
| Chassis Length (Including Wheel Frame) |
1155 mm (45 1/2 in) |
| Chassis Height |
160 mm (6 1/4 in) |
| Operating Temperature |
+10°C to +40°C (+50°F to +104°F) |
| Transport Temperature |
-20°C to +70°C (-4°F to +158°F) |
| Storage Temperature |
-20°C to +70°C (-4°F to +158°F) |
| Operating Humidity |
30–75% |
| Transport Humidity |
10–80% |
| Storage Humidity |
10–80% |
| Technical Information - Electric |
| Maximum Safe Working Load |
175 kg (385 lbs) |
| Maximum Resident/Patient Weight |
150 kg (330 lbs) |
| Lifting Stroke |
300 mm (11 3/4 in) |
| Height to Stretcher (Top Position) |
740–1040 mm (29–41 in) |
| Weight |
79 kg (174 lbs) |
| Stretcher Width |
620 mm (23 13/32 in) |
| Total Width (Including Side Supports) |
755 mm (29 3/4 in) |
| Total Length (Available Sizes) |
1600 mm, 1850–1950 mm, 2250 mm (63 in, 73–76 3/4 in, 88 1/2 in) |
| Chassis Length (Including Wheel Frame) |
1155 mm (45 1/2 in) |
| Chassis Height |
160 mm (6 1/4 in) |
| Operating Temperature |
+10°C to +40°C (+50°F to +104°F) |
| Operating Humidity |
30–75% |
| Transport Humidity |
10–80% |
| Storage Humidity |
10–80% |
Product Manual
User manual for Arjo Concerto and Basic Shower Trolley can be found here.
Quick Reference Guide for Arjo Concerto and Basic Shower Trolley can be found here.
Spec Sheet for Arjo Concerto and Basic Shower Trolley can be found here.
