Atlas | VISTA Vertical Platform Lift | Wheelchair Lift with Commercial Kit Option, 1,000 lb Capacity & 160" Travel

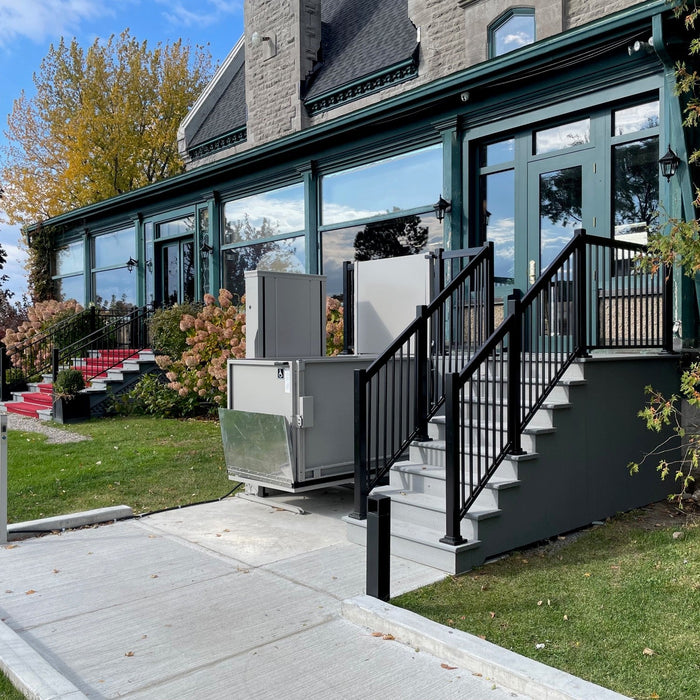

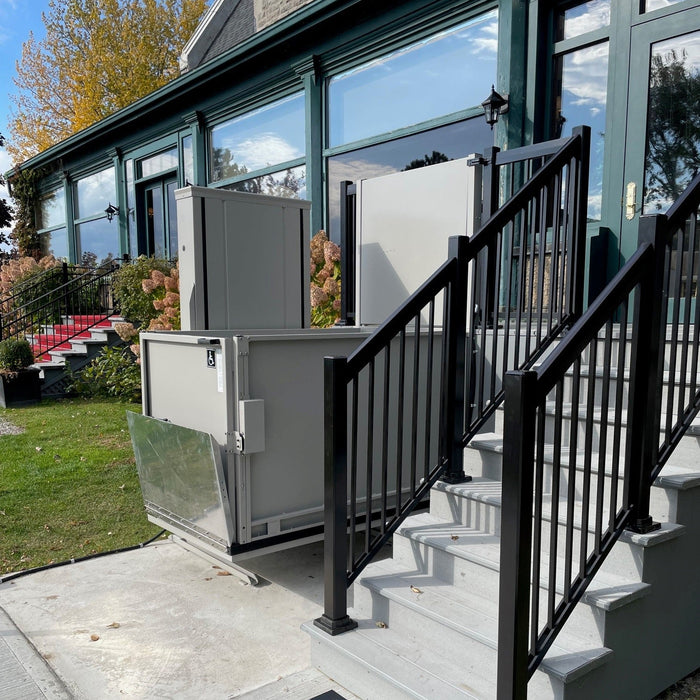

The Atlas VISTA Vertical Platform Lift is a compact and powerful wheelchair lift designed to provide reliable vertical accessibility in residential and commercial applications.

Manufactured in North America, the VISTA is built for demanding climates and offers a practical solution for overcoming vertical barriers without requiring a dedicated mechanical room, drain, or overhead clearance.

The lift is available with capacities ranging from 750 to 1,000 lbs., travel distances of up to 160 inches, and speeds of up to 9 feet per minute (FPM).

The VISTA features an ACME screw drive system powered by a 1.5 HP, 24 VDC motor for smooth and controlled movement during ascent and descent. Its compact design allows for flexible integration into various accessibility applications, while available platform, cabin, control, door, and gate configurations provide additional flexibility for different installation requirements.

Safety features are incorporated into the standard VISTA configuration, including a safety underpan, emergency lowering device, emergency stop controls, emergency alarm, obstacle detection sensors, pit switches, key-lock switches, continuous-pressure rocker controls, and an automatic folding ramp.

The galvanized steel platform provides a durable lifting surface, and the VISTA is available in 0-degree, 90-degree, and 180-degree configurations.

The Atlas VISTA is designed and manufactured to applicable lift and accessibility standards, including CSA B613, B355, ASME 17.1, and ASME 18.1.

For commercial installations, qualified technicians should perform the installation in accordance with applicable federal, state, and local codes and regulations, as well as any applicable permitting and inspection requirements.

Requirements may vary depending on the installation location, building type, and intended application.

The VISTA offers several configuration options to accommodate specific project requirements.

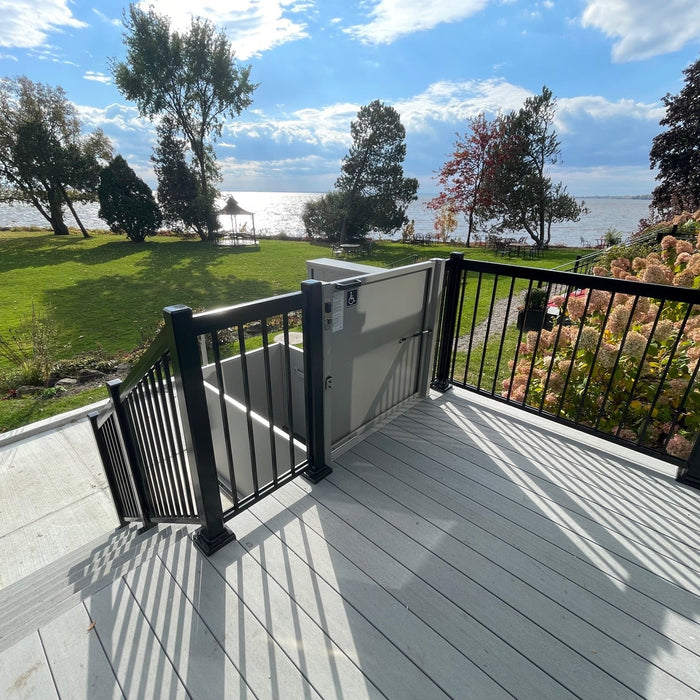

Options include custom cabin heights, platform sizes and configurations, travel distances up to 160 inches, flush or surface-mounted controls, call posts, top gate-mounted controls, and various door and gate sizes and finishes.

A Commercial Kit, including Type 2252 controls, is also available for applications requiring that configuration.

The Atlas VISTA Vertical Platform Lift comes with a 12-month limited warranty on parts from the date of purchase.

Alto Med Supply offers the VISTA with its available configuration options to help customers select a vertical platform lift suited to their accessibility needs, installation requirements, and project specifications.

Key Features

• Capacity: Supports up to 1,000 lbs., with available capacities from 750 to 1,000 lbs.
• ACME Screw Drive: Provides smooth, controlled vertical movement with reduced noise and vibration.
• Travel Distance: Provides up to 160 inches of vertical travel at speeds of up to 9 FPM.
• Safety Features: Includes emergency stop controls, emergency lowering device, safety underpan, obstacle sensors, pit switches, and emergency alarm.
• Space-Saving Design: Requires no dedicated mechanical room, drain, or overhead clearance.
• Galvanized Steel Platform: Provides a durable platform for everyday accessibility needs.
• Flexible Configurations: Available in 0-degree, 90-degree, and 180-degree platform configurations.
• Commercial Kit Option: Available with Type 2252 controls for applications requiring a commercial configuration.
• Custom Options: Offers configurable platform and cabin dimensions, controls, doors, gates, and finishes.
• Standards & Warranty: Designed to applicable CSA B613, B355, ASME 17.1, and ASME 18.1 standards and includes a 12-month limited parts warranty.

Specification

Product Manual

User manual for Atlas VISTA Vertical Platform Lift can be found here.

Product Brochure for Atlas VISTA Vertical Platform Lift can be found here.
