Benchmark Scientific | H3565 SureTherm CO₂ Incubator Series | 45L and 180L Capacities with Precision Temperature Control, Optional IncuView™ LCI, High Heat Decontamination, and O₂ Control

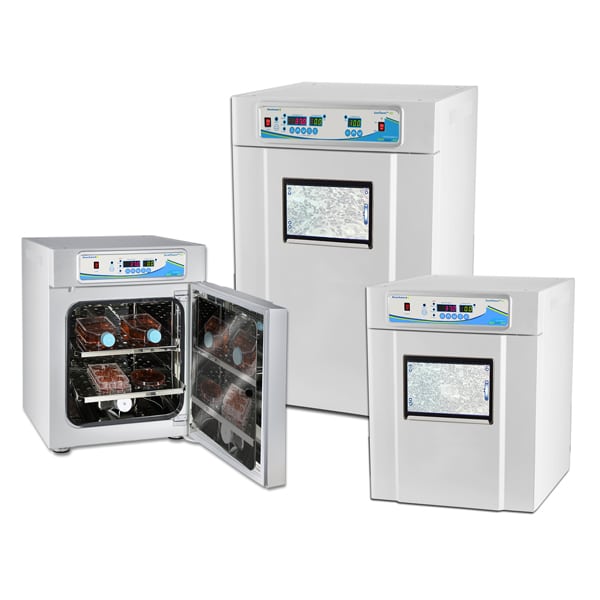

The Benchmark Scientific SureTherm™ CO₂ Incubator Series, available at Alto Med Supply, is designed to deliver precise, reliable conditions for optimal cell culture growth.
This advanced incubator line offers capacities of 45 liters with two shelves and 180 liters with multiple configurations, including models with three shelves, high heat decontamination, split window doors, and O₂ control options—providing flexible solutions for various lab environments.
SureTherm™ CO₂ incubators are engineered with precision temperature and CO₂ control, maintaining a highly stable internal environment with minimal fluctuations (±0.1°C).
A proprietary six-sided heating system, combined with a low-speed internal fan, ensures even air circulation without introducing outside air—ideal for maintaining sterility and consistency.
Select models in this series support IncuView™ LCI (Live Cell Imaging) technology, a unique, patent-pending feature that allows researchers to monitor cells in real-time without opening the incubator.
With an internal microscope and large external display, users can view cultures directly or remotely via a Wi-Fi–enabled phone, tablet, or computer.*
This innovation reduces contamination risks and protects delicate samples from environmental disruption.
Additional features such as a heated door and door frame enhance temperature recovery and uniformity, supporting even the most sensitive cultures.
Whether you need a compact 45L incubator or a fully equipped 180L model with advanced decontamination and O₂ control, the SureTherm™ series offers the reliability and versatility modern laboratories demand.
*IncuView™ LCI functionality requires the optional integrated microscope shelf (sold separately).
Key Features
-

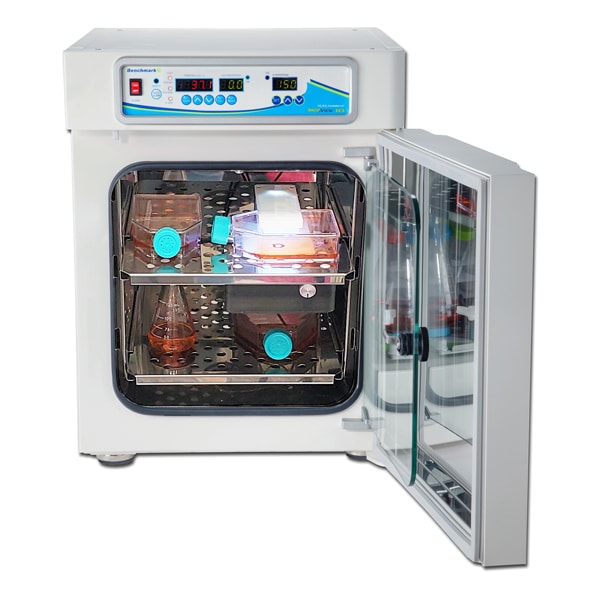

Available Capacities: Choose from 45L with two shelves or 180L models with multiple configurations.
-
High Heat Decontamination Option: Select 180L units include a high heat sterilization cycle for enhanced cleanliness.
-
O₂ Control and Split Window Door: Advanced 180L models feature O₂ regulation and a split window design for reduced air disruption.
-
Precision Temperature Control: Maintains stable temperatures with fluctuations within ±0.1°C for consistent culture growth.
-
Six-Sided Heating System: Proprietary design with low-speed fan ensures even heat distribution without external air exchange.
-
IncuView™ LCI (Live Cell Imaging): Optional feature allows real-time cell monitoring with integrated microscope and external display.
-
Remote Viewing Capability: View live cell images via Wi-Fi using a phone, tablet, or computer.*
-
Internal Microscope Option: Monitor cultures without removing them from the chamber to reduce contamination risk.*
-
Heated Door and Frame: Improves temperature uniformity and speeds up recovery after door openings.
-
Excellent Accuracy and Recovery: Rapid return to set temperature and CO₂ levels after routine access.
*IncuView™ functionality requires optional integrated microscope shelf (sold separately).
Specifications
| Specification |
Details |
| Temperature Range: |
Ambient +5° to 60°C |
| Temperature Accuracy: |
±0.1°C |
| Temperature Uniformity: |
± 0.4°C* |
| Temperature Increments: |
0.1°C |
| Temperature Stability: |
0.1°C |
| CO₂ Range: |
0 to 20% |
| CO₂ Increment: |
0.1% |
| CO₂ Accuracy: |
± 0.1% |
| CO₂ Sensor: |
Dual Beam IR CO₂ Sensor |
| Heat Decontamination: |
Yes (180HD & 180HD-O₂ Model ONLY) |
| O₂ Range: |
0.5 to 20% (180HDO₂ Model ONLY) |
| O₂ Accuracy: |
±0.1% (180HDO₂ Model ONLY) |
| Chamber Dimensions: (W x D x H) (45 Liter) |
13.2 x 14.2 x 15.4 in. / 33.5 x 36.1 x 39.2 cm |
| Chamber Dimensions: (W x D x H) (180 Liters) |
18.7 x 20.8 x 28 in. / 47.3 x 52.8 x 71 cm |
| Chamber Volume: |
45 Liter / 180 Liter |
| Split Inner Door: |
6 Compartments (180HDO₂ Model ONLY) |
| Chamber Material |
Stainless Steel |
| Exterior Dimensions: (W x D x H) (45 Liter) |
16.5 x 18.3 x 21.8 in. / 42 x 46.5 x 55.3 cm |
| Exterior Dimensions: (W x D x H) (180 Liters) |
22 x 26.2 x 37.2 in. / 56 x 66.5 x 94.5 cm |
| Weight: (45 Liter) |
77 lbs / 35kg |
| Weight: (180 Liters) |
172lbs / 78kg |
| Electrical: |
120V or 230V 50-60Hz |
| Power Consumption: |
300W (H3565-45) / 420W (H3565-180) / 700W (H3565-180HD) / 700W (H3565-180HDO2) |
| Warranty: |
2 years |
Product Manual
User manual for Benchmark Scientific SureTherm CO₂ Incubator Series can be found here.
