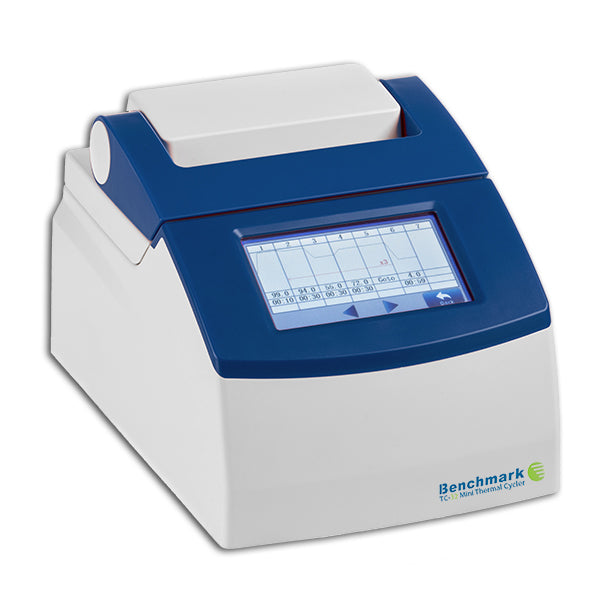

Benchmark Scientific | TC-32 Mini Thermal Cycler | Compact 32-Well PCR Machine with Touchscreen Control & Fast, Reliable Cycling
The Benchmark Scientific TC-32 Mini Thermal Cycler, available at Alto Med Supply, offers a compact and efficient solution for lower throughput PCR needs.
With a small footprint of just 9 by 7 inches, this mini thermal cycler accommodates up to 32 tubes of 0.2 ml or four PCR strips, making it ideal for laboratories and educational facilities with limited space.
Despite its size, the TC-32 delivers fast and reliable cycling performance, heating and cooling samples at rates up to 5°C per second thanks to its advanced proprietary temperature control algorithm that ensures precise temperature regulation without overshoot or undershoot.
Equipped with a large, full-color touchscreen, the device features intuitive, icon-driven programming that simplifies setup and operation.
Users can store over 100 protocols, adjust ramp rates, and utilize features like time and temperature increments, auto pause, and restart functions.
The self-adjusting heated lid prevents sample evaporation and condensation by firmly sealing tubes without the need for manual adjustments.
After a run, samples can be held at 4°C, and an on-screen report is provided for convenient review.
Designed to combine the powerful capabilities of larger thermal cyclers with a more economical price and space-saving design, the Benchmark TC-32 Mini is perfect for researchers needing reliable PCR performance in a compact form.
Discover this versatile thermal cycler at Alto Med Supply, your trusted online retailer for top-quality laboratory equipment.
Key Features
-
Compact Size: Mini 9 x 7 inch footprint fits easily in small labs and educational settings.
-

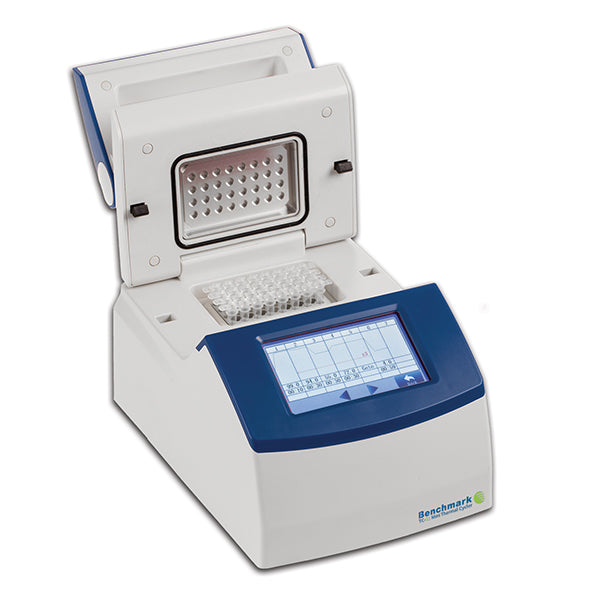

Sample Capacity: Holds 32 x 0.2ml tubes or 4 PCR strips, arranged in a versatile 4x8 format.
-
Fast Temperature Cycling: Heats and cools samples quickly at rates up to 5°C per second.
-
Precise Temperature Control: Proprietary algorithm ensures accurate temperature with no overshoot or undershoot.
-

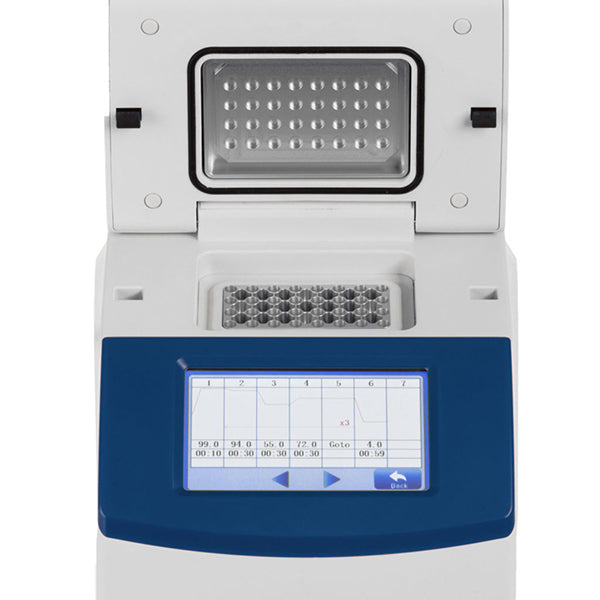

Touchscreen Interface: Large, full-color screen with intuitive, icon-driven menus for easy operation.
-
Flexible Programming: Supports time and temperature increments, adjustable ramp rates, auto pause, and restart functions.
-
Memory Storage: Stores over 100 typical PCR programs for quick recall and repeat runs.
-
Sample Holding: Maintains samples at 4°C after cycling to preserve results.
-
Self-Adjusting Heated Lid: Prevents evaporation and condensation with a spring-loaded platen, no manual adjustment needed.
-
Economical and Efficient: Affordable price and small size ideal for low throughput labs without sacrificing performance.
-
Optimized PCR Results: Compatible with Accuris™ PCR reagents for improved amplification.
Specifications
Feature |
Specification |
Capacity: 0.2ml tubes |
32 |
8 x 0.2ml strips |
4 |
Temp. Control Range |
0° to 99°C |
Temp. Control |
Simulated sample or block |
Accuracy/Uniformity |
± 0.25°C / ± 0.25°C |
Ramp Rate |
Heating: 5°C/sec. (maximum) Cooling: 4°C/sec. (maximum) |
Lid Temp |
30°C to 112°C user adjustable |
Program Memory |
Over 100 typical programs |
Increments/Decrements |
Both time and temperature |
Power Failure Restart |
Yes |
Power Supply |
Universal 100 to 240V 50 to 60 Hz |
Dimensions |
7.2 x 9.2 x 6.2 in. / 18.2 x 23.2 x 15.7cm |
Weight |
6.4 lbs / 2.9kg |
Warranty |
2 years |
Product Manual
User manual for Benchmark Scientific TC-32 Mini Thermal Cycler can be found here.
