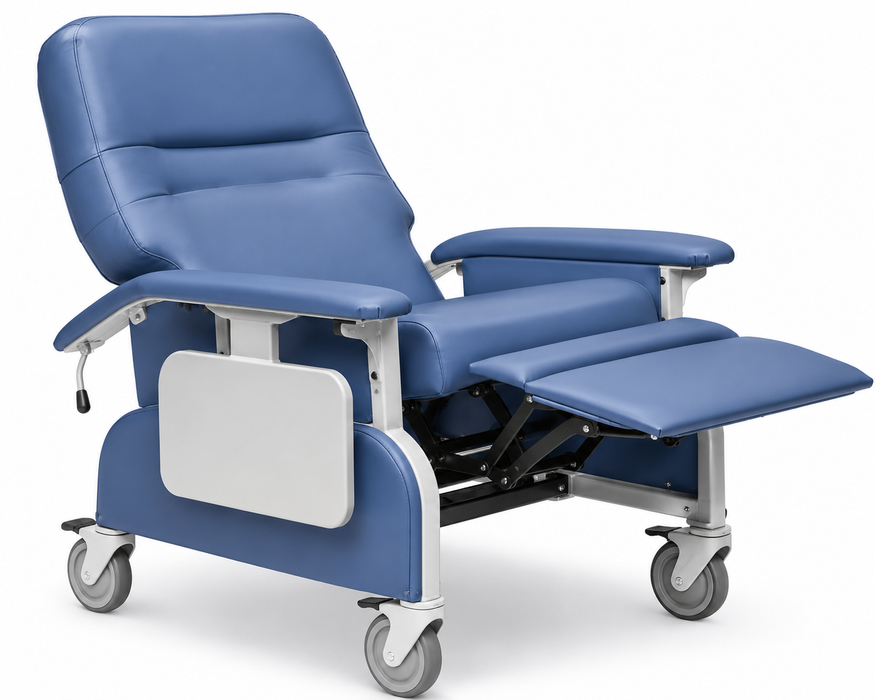

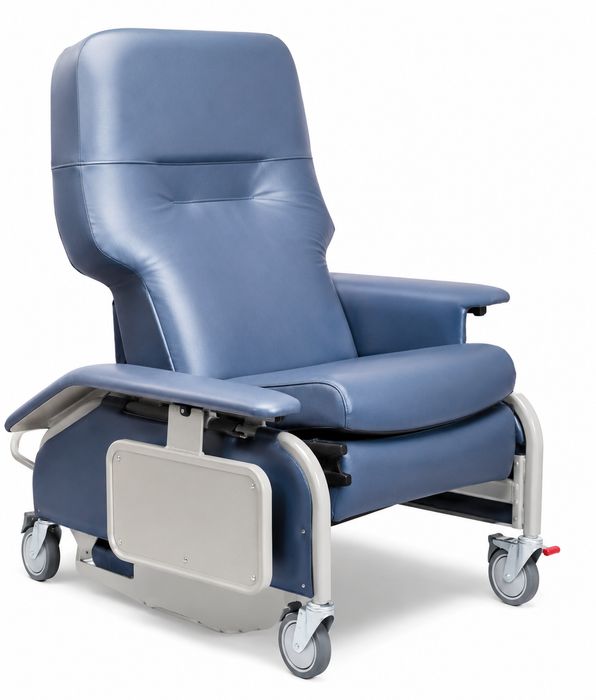

Graham Field | Lumex Deluxe Drop-Arm Clinical Care Recliner | With Drop Arms For Safe Patient Transfers And Maximum Comfort, Bariatric up to 400 lbs Capacity
The Graham Field Deluxe Drop-Arm Clinical Care Recliner is designed to provide safe, comfortable, and reliable seating for patients in hospitals, clinics, infusion centers, and other acute care environments.
Available through Alto Med Supply, this clinical care recliner combines patient comfort with caregiver convenience.
Its self-storing drop arms allow for safer lateral patient transfers, while the contoured seat and back provide excellent support during extended periods of use.
The chair offers three reclining positions upright, first recline, and second recline with a secure position lock that keeps the chair safely in place.
Built for daily clinical use, this recliner includes an integrated leg rest and footrest for added comfort, along with a higher seat and back height that helps caregivers assist patients more easily.
A color-coded side pedal quickly moves the chair into the Trendelenburg position while allowing caregivers to maintain eye contact with the patient.
The 5-inch Tente® swivel casters, including three total-locking casters and one directional-locking caster, provide smooth movement and reliable stability.
The recliner also features wide padded armrests with durable Wall saver arm caps, two fold-down self-storing side tables with easy-to-clean surfaces, removable upholstered side panels for simple maintenance, and a rear push handle for convenient transport.
With a weight capacity of up to 400 lbs., Graham Field Deluxe Drop-Arm Clinical Care Recliner is a dependable seating solution that delivers lasting durability, patient comfort, and practical functionality for healthcare facilities.
Key Features
Drop-Arm Design: Safe, easy patient transfers.
3 Recline Positions: Upright and two recline settings.
Trendelenburg Mode: Quick activation with side pedal.
Comfort Seating: Contoured back, wide seat, and leg rest.
Locking Recline: Secures the chair in any position.
5-Inch Casters: Smooth mobility with locking wheels.
Fold-Down Tables: Two self-storing side tables.
Easy Cleaning: Removable upholstered side panels.
Rear Push Handle: Simple patient transport.
400 lbs. Capacity: Durable frame for clinical use.
Specifications
Specification
Value
Overall Width
32.50 in (82.55 cm)
Overall Width (Side Tables Up)
52.50 in (133.35 cm)
Overall Depth
38.00 in (96.52 cm)
Overall Depth (Trendelenburg)
75.00 in (190.50 cm)
Overall Height
50.50 in (128.27 cm)
Arm Width
4.50 in (11.43 cm)
Width Between Arms
22.00 in (55.88 cm)
Arm Height
28.00 in (71.39 cm)
Seat Width
20.50 in (52.07 cm)
Seat Depth
19.00 in (48.26 cm)
Seat Height
22.50 in (57.15 cm)
Back Width
27.50 in (69.85 cm)
Back Height
30.00 in (76.20 cm)
Back Angle
120°, 130°, 150°
Weight Capacity
400 lbs. (181.44 kg)
Product Manual
User manual for Graham Field Lumex Deluxe Drop-Arm Clinical Care Recliner can be found here.
User Color Variants for Graham Field Lumex Deluxe Drop-Arm Clinical Care Recliner can be found here.
