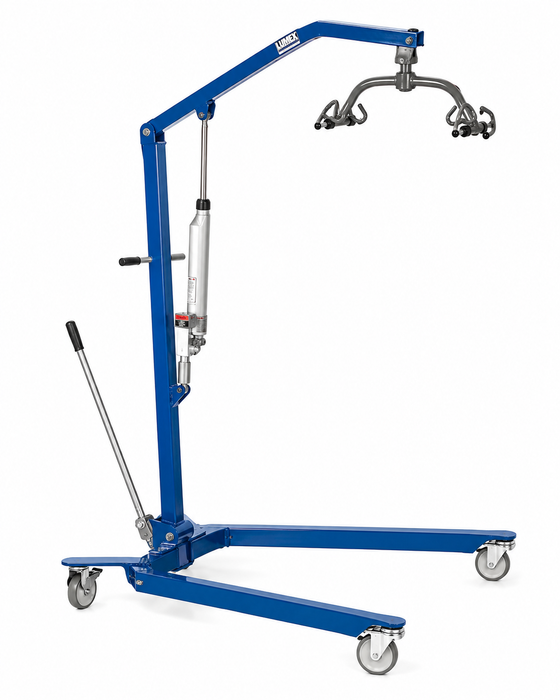

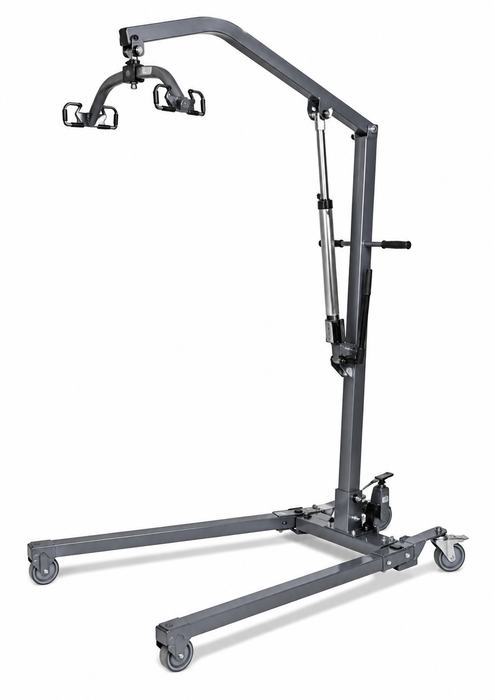

Graham Field | Hydraulic Lifts | With Heavy-Duty Steel Frame, Adjustable Base, 400 lbs. Capacity and 6 Point Spreader Bar
The Graham Field Hydraulic Lift is a dependable patient transfer solution designed to help caregivers move patients safely and comfortably between beds, wheelchairs, chairs, and other surfaces.
Built with a heavy-duty steel frame, this hydraulic floor lift provides lasting durability and reliable performance for home care, hospitals, nursing facilities, and rehabilitation centers.
Its manually operated hydraulic system and ergonomic pump handle make lifting smooth and easy while reducing caregiver strain.
This hydraulic patient lift features a 360-degree rotating six-point spreader bar that works with Lumex® six-point, four-point, and two-point slings, offering flexibility for different patient transfer needs.
The foot-pedal adjustable base allows caregivers to widen or narrow the lift's legs for better access around wheelchairs, beds, and furniture.
When not in use, the lift can be disassembled for convenient storage and transport. An optional digital scale is also available for facilities that require patient weight monitoring.
With a 400 lbs. evenly distributed weight capacity, the Graham Field Hydraulic Lift is designed to provide safe, stable, and secure patient handling.
It meets HCPCS Code E0630 requirements and is backed by a one-year limited warranty, making it a trusted choice for healthcare professionals and caregivers.
Alto Med Supply proudly offers this Graham Field patient lift to provide reliable mobility and transfer solutions from leading medical equipment brands.
Key Features
-
Heavy-Duty Steel Frame: Durable construction for reliable patient transfers.
-
360° Spreader Bar: Six-point design for smooth positioning.
-
Sling Compatible: Works with Lumex® 2-, 4-, and 6-point slings.
-
Adjustable Base: Foot pedal provides easy width adjustment.
-
Hydraulic Pump: Ergonomic handle for simple operation.
-
Easy Storage: Disassembles quickly for transport and storage.
-
Optional Scale: Digital scale available separately.
-
400 lbs. Capacity: Supports up to 400 lbs. evenly distributed.
-
HCPCS E0630: Meets HCPCS Code E0630 requirements.
-
Warranty: One-year limited warranty.
Specifications
| Model |
Capacity |
Floor Clearance |
Min Height |
Max Height |
Dimensions (L × H × W) |
Weight |
Warranty |
| LF1030 - Blue |
400 lbs. |
5.5" |
27.4" |
80.3" |
48" × 55" × 24.6" |
90 lbs. |
1 Year |
| LF1031 - Black/Silver Vein |
400 lbs. |
5.5" |
27.4" |
80.3" |
48" × 55" × 24.6" |
90 lbs. |
1 Year |
| LF1031FP - With Foot Pedal |
400 lbs. |
4.4" |
23.8" |
75" |
53.5" × 56.8" × 26" |
90 lbs. |
1 Year |
Product Manual
User manual for Graham Field Hydraulic Lifts 1030 can be found here.
User manual for Graham Field Hydraulic Lifts 1031 can be found here.
User manual for Graham Field Hydraulic Lifts 1031FP can be found here.
User Guide for Graham Field Hydraulic Lifts can be found here.
