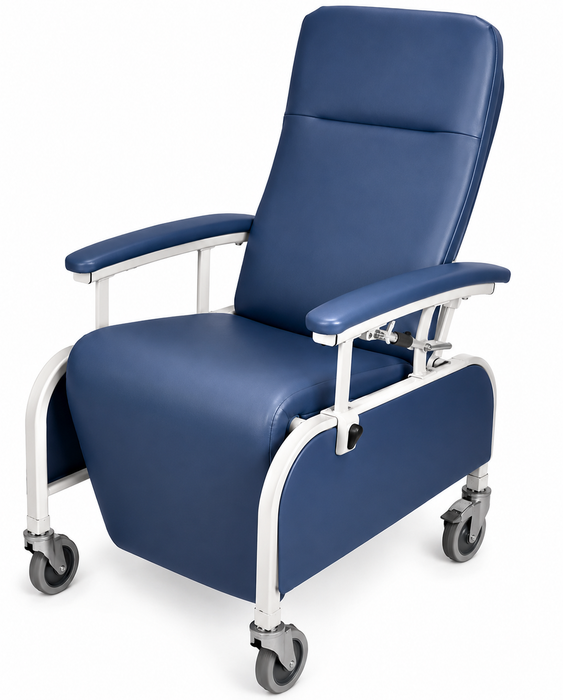

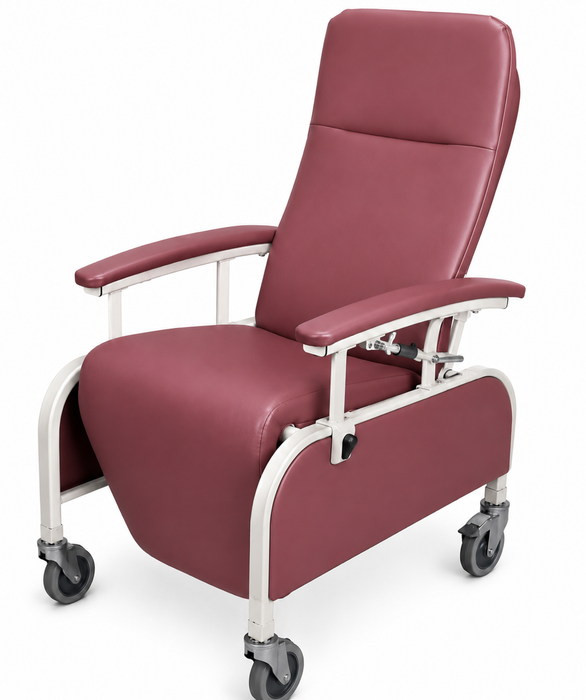

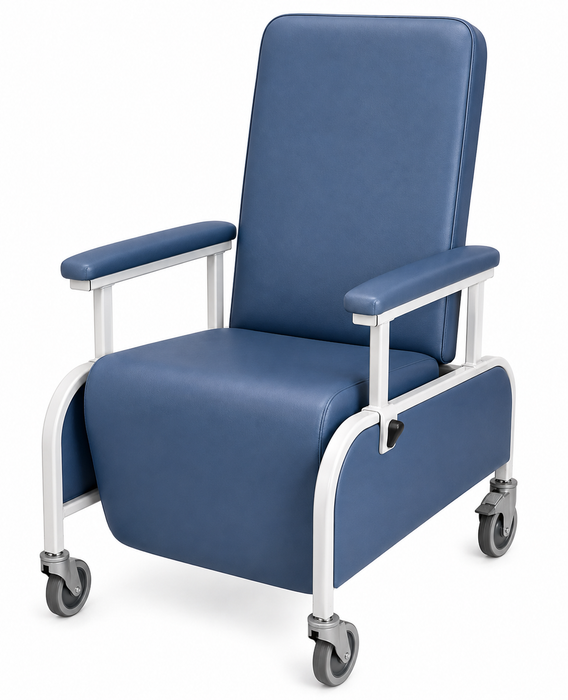

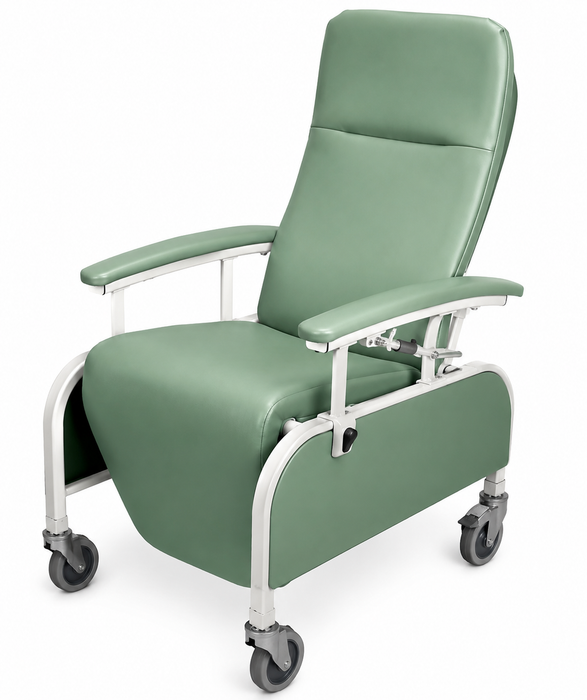

Graham Field | Lumex Preferred Care Recliner FR565G Series | Drop Arms, Infinite Positioning and Easy Lateral Transfer for Extended Care
TheGraham Fiel d Lumex Preferred Care Recliner FR565G Series, available from Alto Med Supply, is designed to support resident comfort, mobility, and everyday caregiving in extended care environments.
Its self-storing, height-adjustable drop arms are easy for caregivers to operate and help provide convenient access for lateral transfers.
Extra-wide padded armrests and side panels add comfort and support.
The patented infinite-position reclining back adjusts from 95° to 145°, allowing residents to find a comfortable seating position.
Caregivers can lock the backrest at the desired angle for added stability. A self-adjusting suspension system supports the resident from head to heel while helping reduce the risk of bottoming out during extended use.
For easier transport, the right rear caster features a directional wheel lock that helps reduce chair crabbing and improves movement through hallways.
The durable epoxy-coated welded steel frame provides a strong, easy-to-maintain foundation for use in long-term care facilities, nursing homes, and other professional care settings.
Quick-release upholstery simplifies cleaning, removal, and replacement when needed. The vinyl-upholstered back is resistant to sulfide stains, mildew, and oil for easier maintenance.
With a 250 lbs. weight capacity and a selection of available accessories, the Graham Field Preferred Care Drop-Arm Recliner can be configured to accommodate a variety of resident care needs.
Key Features
-
Drop Arms: Height-adjustable design supports easier lateral transfers.
-
Infinite Recline: Adjusts from 95° to 145°.
-
Suspension Support: Provides comfortable head-to-heel support.
-
Padded Armrests: Extra-wide design improves comfort.
-
Wheel Lock: Supports smoother hallway movement.
-
Steel Frame: Durable and easy to clean.
-
Quick-Release Upholstery: Simplifies cleaning and replacement.
-
Weight Capacity: Supports up to 250 lbs.
Specifications
| Specification |
FR565G |
FR565DG |
FR565TG |
| Overall Width |
28" (71.12 cm) |
28" (71.12 cm) |
28" (71.12 cm) |
| Overall Depth |
36" (91.44 cm) |
36" (91.44 cm) |
36" (91.44 cm) |
| Overall Depth Fully Reclined |
66" (167.64 cm) |
66" (167.64 cm) |
— |
| Overall Height |
48" (121.43 cm) |
48" (121.43 cm) |
48" (121.43 cm) |
| Arm Width |
4.5" (11.43 cm) |
4.5" (11.43 cm) |
4.5" (11.43 cm) |
| Width Between Arms |
19" (48.26 cm) |
19.5" (49.53 cm) |
19.5" (49.53 cm) |
| Arm Height From Floor |
26" (66.04 cm) |
26.75" (67.95 cm) |
26.75" (67.95 cm) |
| Seat Width |
19" (48.26 cm) |
19" (48.26 cm) |
19" (48.26 cm) |
| Seat Depth |
19.5" (49.53 cm) |
19.5" (49.53 cm) |
19.5" (49.53 cm) |
| Seat Height |
20" (50.80 cm) |
22" (55.88 cm) |
22" (55.88 cm) |
| Back Width |
19" (48.26 cm) |
19" (48.26 cm) |
19" (48.26 cm) |
| Back Height Above Seat |
31" (78.74 cm) |
31" (78.74 cm) |
31" (78.74 cm) |
| Back Angle |
110°–150° |
Varies |
110° |
| Weight Capacity |
250 lbs. (113.40 kg) |
250 lbs. (113.40 kg) |
250 lbs. (113.40 kg) |
Product Manual
User manual for Graham Field Lumex Preferred Care Recliner can be found here.
User Replacement Parts for Graham Field Lumex Preferred Care Recliner can be found here.
Shipping
- Free delivery (Contiguous United States Only)
- Delivery ETA 3-7 business days
- We also offer white glove engineer delivery with assembly and demonstration if required. Please contact us for a quote.
- If you require faster shipping or shipping anywhere other than the contiguous United States, please contact us for a shipping quote.
Warranty
This product comes with a 1 year manufacturer's warranty.
