Graham Field | Lumex Select Comfort 600 Series | Tri-Laminate Foam Mattress for Pressure Redistribution and Heel Support
The Graham Field Lumex Select Comfort 600 Series is a tri-laminate foam mattress designed to provide pressure redistribution, comfort, and support for patients at higher risk of pressure injuries, including those with sensitive heels and ankles.

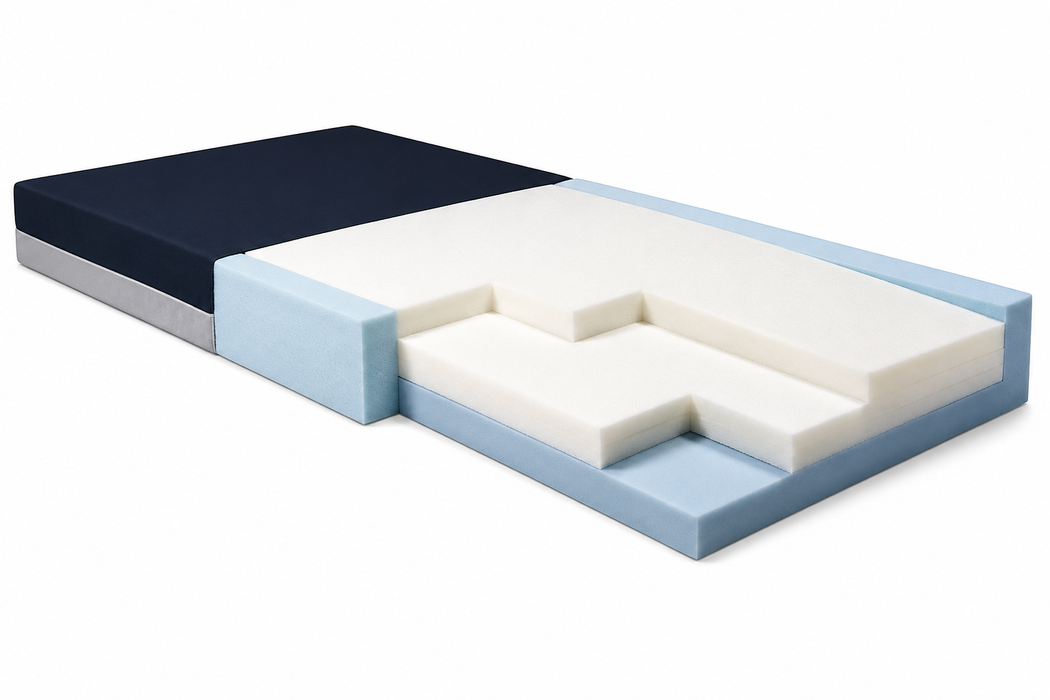

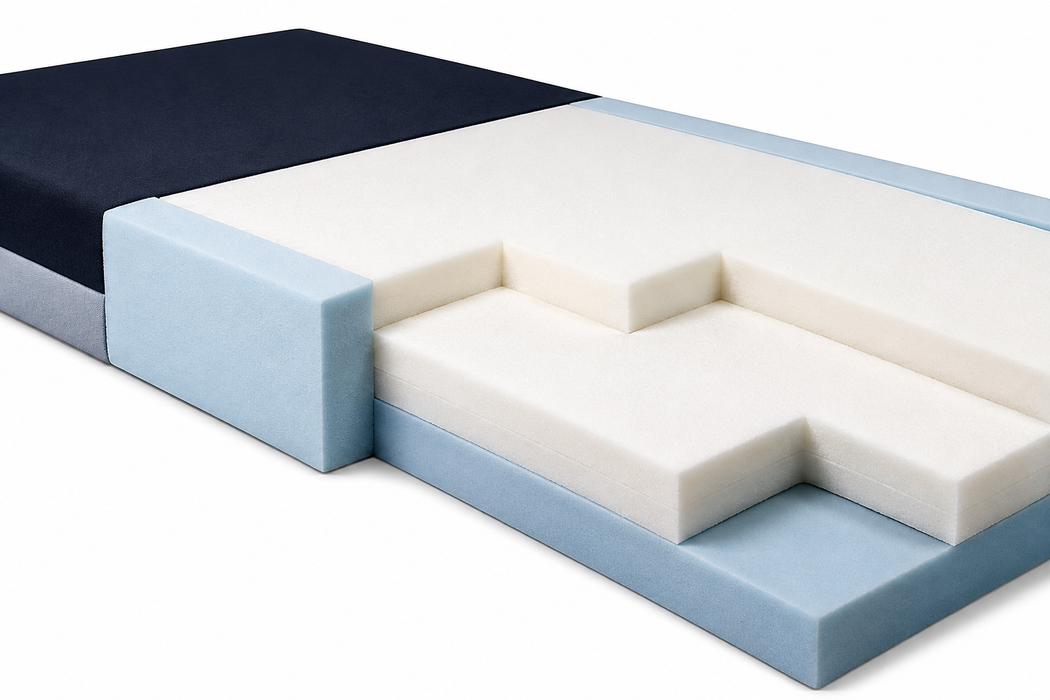

Its layered construction combines a high-density foam base, a supportive secondary layer, and a die-cut foam top that promotes airflow for a more comfortable sleep surface.
A tapered heel section provides additional pressure reduction in sensitive heel and ankle areas.
The mattress features a soft stretch polyurethane top cover with a durable vinyl bottom.
Low-shear fabric helps reduce friction against the skin, while fluid-resistant, antimicrobial, bacteria-resistant, anti-fungal, and non-allergenic properties support cleanliness and routine infection control.
The cover is also anti-static, flame retardant, easy to clean, and equipped with a concealed full zipper.
A firm side perimeter provides stable edge support, with optional 3-inch (7.62 cm) raised perimeter bolsters featuring an ingress-egress cutout.
The 36-inch-wide mattress supports up to 450 lbs. (204.1 kg), while the 42-inch-wide mattress supports up to 500 lbs. (226.8 kg) when weight is evenly distributed.
Made in the USA, the Lumex Select Comfort 600 Series is designed to meet HCPCS Code E0184 requirements and complies with 16 CFR 1633.
It includes a 60-month mattress warranty and a 12-month cover warranty.
Available from Alto Med Supply, this pressure redistribution foam mattress offers practical support, comfort, and easy maintenance for healthcare and patient care environments.
Please note: This item is non-returnable.
Key Features
-
Pressure Redistribution: Helps reduce pressure for high-risk patients.
-
Tri-Laminate Foam: Provides layered comfort and support.
-
Airflow Design: Die-cut foam helps cool the sleep surface.
-
Heel Support: Tapered section reduces pressure on heels and ankles.
-
Protective Cover: Low-shear, fluid resistant, antimicrobial, and easy to clean.
-
Firm Perimeter: Provides stable edge support.
-
Weight Capacity: 450 lbs. for 36" and 500 lbs. for 42" models.
-
Safety Standards: Meets 16 CFR 1633 and HCPCS E0184 requirements.
-
Warranty: 60-month mattress and 12-month cover warranty.
Specifications
| Item No. |
Size (W × L × H) |
Product Weight |
Weight Capacity |
| C600B-3580 |
36" × 80" × 6" |
29 lbs. |
450 lbs. |
| C600RB-3580 |
36" × 80" × 6" |
30 lbs. |
450 lbs. |
| C600B-3584 |
36" × 84" × 6" |
32 lbs. |
450 lbs. |
| C600RB-3584 |
36" × 84" × 6" |
33 lbs. |
450 lbs. |
| C600B-4280 |
42" × 80" × 7" |
40 lbs. |
500 lbs. |
| C600RB-4280 |
42" × 80" × 7" |
41 lbs. |
500 lbs. |
| C600B-4284 |
42" × 84" × 7" |
43 lbs. |
500 lbs. |
| C600RB-4284 |
42" × 84" × 7" |
44 lbs. |
500 lbs. |
Product Manual
User manual for Graham Field Lumex Select Comfort 600 Series can be found here.
