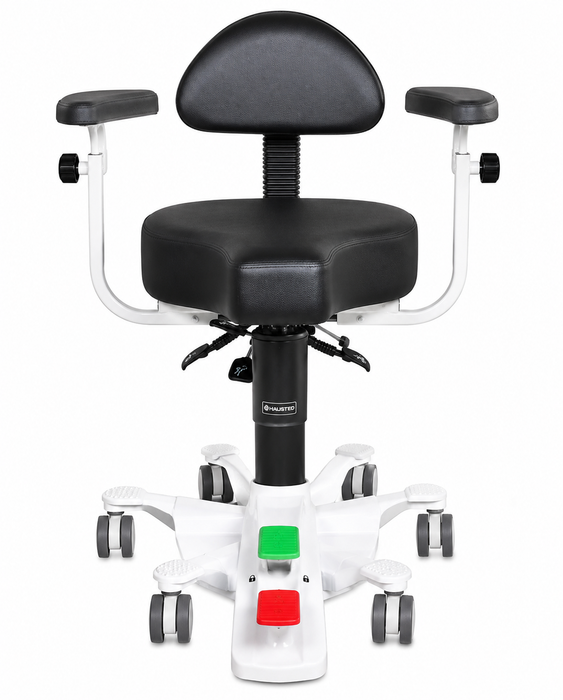

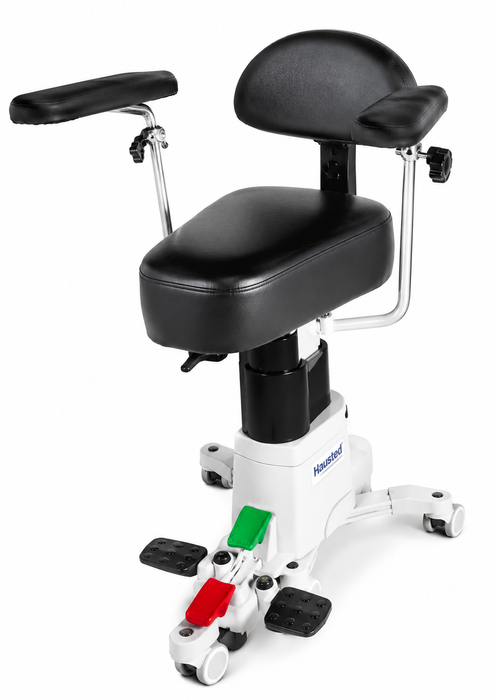

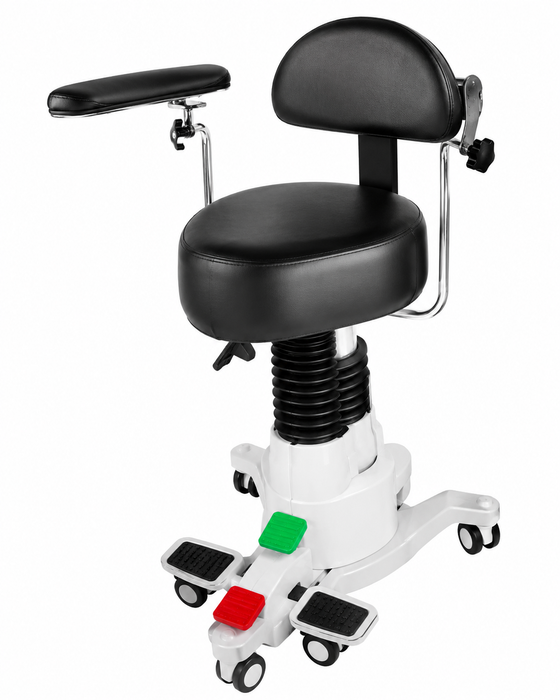

Graham Field | Hausted Surgical Stool | With Hydraulic Height Adjustment and Dura-Gel Comfort Seat
The Graham Field Hausted Surgical Stool, available from Alto Med Supply, is designed to provide comfortable, stable seating for surgeons and medical professionals during clinical and surgical procedures.
It is well suited for eye, ENT, and plastic surgery procedures, as well as use in ambulatory surgery centers (ASCs), hospital outpatient departments, and physician offices.
The surgical stool features foot-controlled hydraulic height adjustment from 21 to 28 inches (53 to 71 cm), allowing users to adjust the seating position without using their hands.
A three-spindle base with four 3-inch (8 cm) dual Tente® casters provides stability and smooth mobility throughout the procedure area.
For added comfort and positioning, the Hausted Surgical Stool includes an adjustable contoured backrest, a 360-degree rotating urethane armrest, and 180-degree armrest support for stable arm positioning.
The seat incorporates a proprietary Dura-Gel® insert for enhanced comfort during extended procedures.

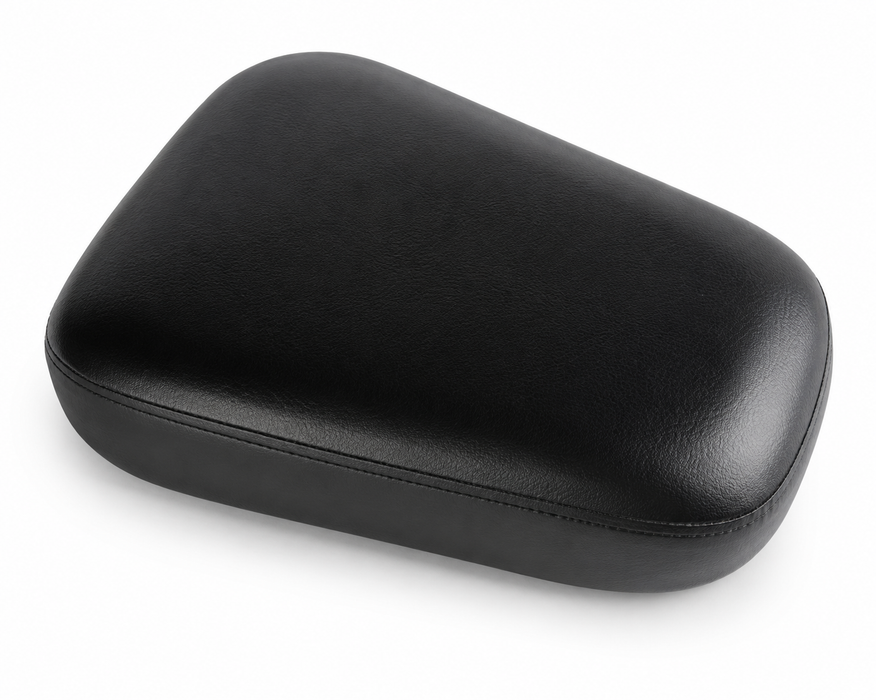

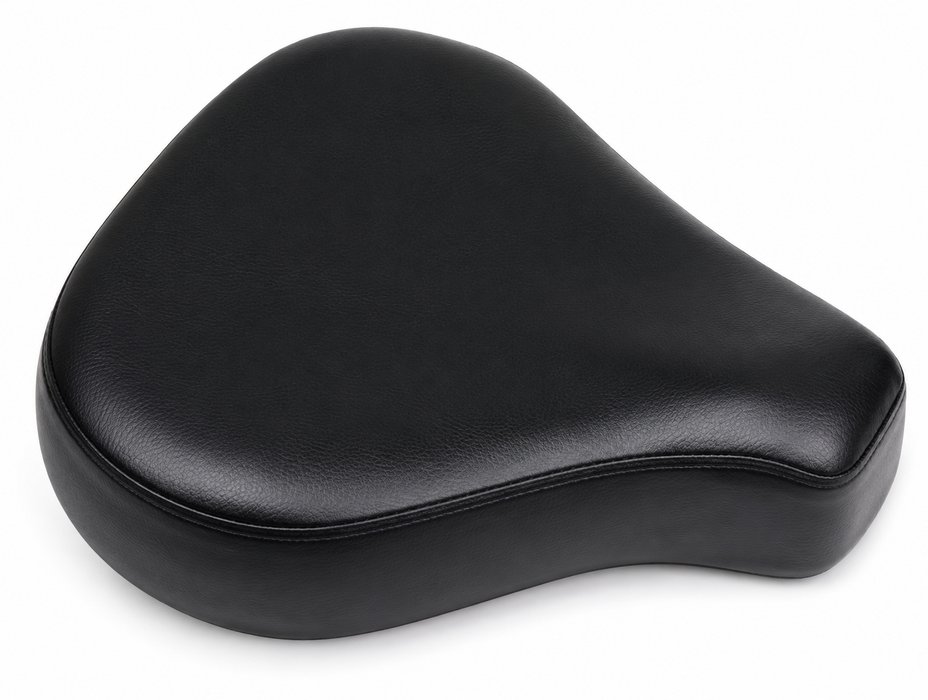

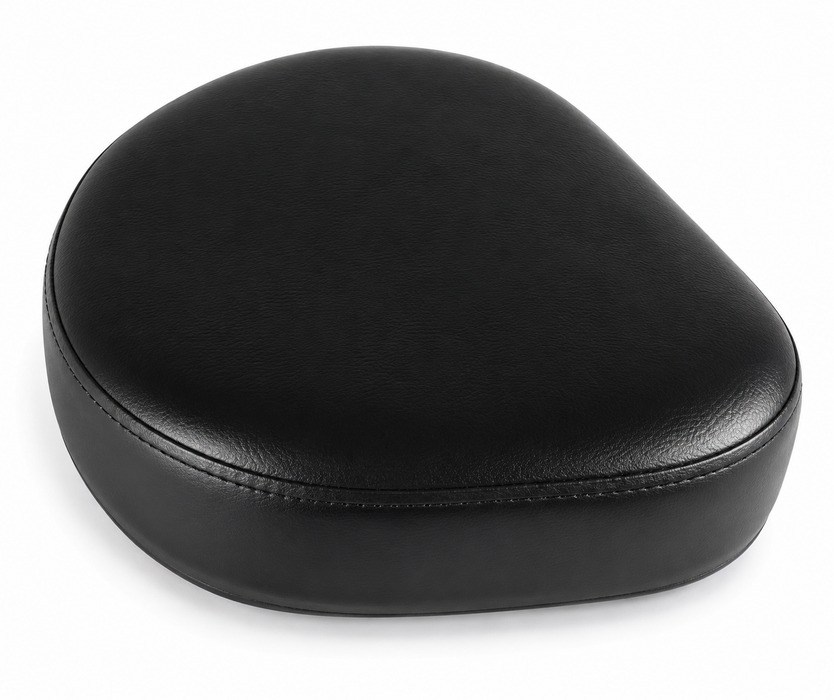

The stool is available with wedge, saddle, or water drop seat styles, allowing medical professionals to select a configuration suited to their seating preferences.
With a maximum evenly distributed weight capacity of 300 lb (136 kg), the Graham Field Hausted Surgical Stool combines adjustable positioning, mobility, and supportive seating for professional healthcare environments.
Stable Base: Three-spindle design with four dual casters.
Rotating Armrest: 360° rotation for easy positioning.
Backrest: Adjustable and contoured for comfort.
Dura-Gel® Seat: Provides added seating comfort.
Seat Options: Wedge, saddle, or water drop styles.
Arm Support: 180° support for stable positioning.
Weight Capacity: Supports up to 300 lbs.
Specifications
Specification
Measurement
Overall Width
25.5" (64.77 cm)
Overall Depth
32.25" (81.92 cm)
Overall Height
21"–28" (53.34–71.12 cm)
Base Width
24" (60.96 cm)
Base Depth
28.5" (72.39 cm)
Seat Height
21.5"–28.5" (54.61–72.39 cm)
Seat Thickness
3" (7.62 cm)
Backrest Width
15.56" (39.52 cm)
Backrest Length
8.25" (20.96 cm)
Backrest Height Range
10.5"–12.5" (26.67–31.75 cm)
Armrest Width
4.75" (12.07 cm)
Armrest Length
12" (30.48 cm)
Armrest Height
7"–15" (17.78–38.10 cm)
Caster Diameter
3" (7.62 cm)
Caster Type
Dual Tente®
Armrest Rotation
360°
Armrest Support Movement
180°
Backrest Tilt
20°
Weight Capacity
300 lb (136.08 kg)
Shipping Weight
74 lb (33.57 kg)
Product Manual
User manual for Graham Field Hausted Surgical Stool can be found here.
User Instructions for Graham Field Hausted Surgical Stool can be found here.
