Graham Field | TRC 750 Tilt Recline Chair | Reclining Bariatric Chair, Up to 750 lbs. Capacity with 28" Wide Seat and Full Foot Board

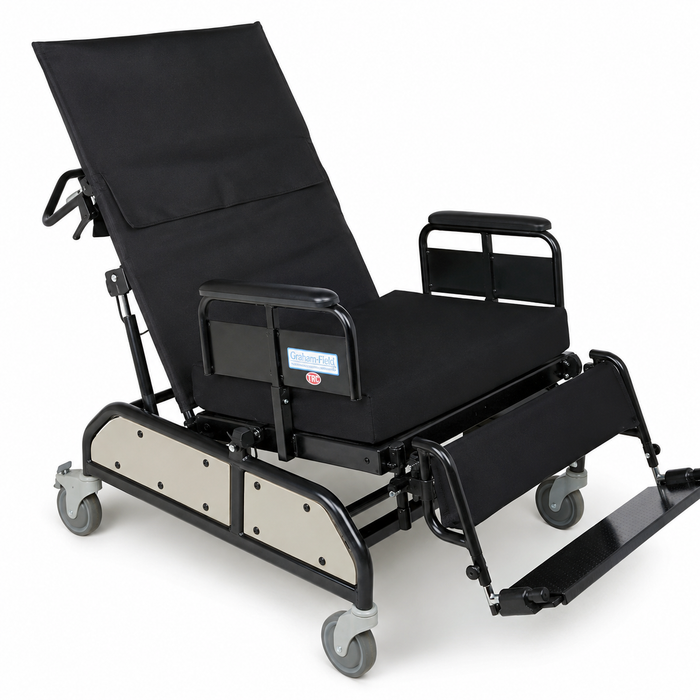

The Graham Field TRC28750-FB Bariatric Tilt-In-Space Recliner is designed to provide exceptional comfort, pressure relief, and reliable support for bariatric patients.
Available from Alto Med Supply, this heavy-duty clinical recliner features a reinforced steel frame with an evenly distributed weight capacity of up to 750 lbs.
The extra-wide 28-inch seat offers ample room, while the tilt-in-space and reclining functions help caregivers reposition patients comfortably to reduce prolonged pressure and improve overall seating comfort.
The recliner includes independent manual hand lever controls that allow the backrest and seat tilt to be adjusted separately for personalized positioning.
Its removable metal seat pan is topped with 4-inch high-density foam cushioning for lasting comfort and easy maintenance.
This model also comes equipped with a full-width foot board and matching padded support, providing a stable and comfortable surface for the legs during extended periods of sitting.
Standard removable full-length armrests make transfers and cleaning more convenient.
With a 20-inch seat depth, 16.25-inch seat-to-floor height, and 35-inch back height, the Graham Field TRC28750-FB is well suited for hospitals, rehabilitation centers, long-term care facilities, and home healthcare environments.
Combining durable construction, adjustable positioning, and bariatric support, this recliner is an excellent choice for facilities seeking dependable seating solutions for larger patients.
Designed for long-term clinical use, the Graham Field TRC28750-FB helps improve patient positioning while supporting caregiver efficiency.
Its durable construction and easy-to-clean design make it a practical choice for busy healthcare settings where comfort, safety, and reliability are essential.
Whether used for recovery, extended care, or daily patient seating, this bariatric recliner delivers dependable performance and lasting value.
Key Features
-
750 lbs. Capacity: Reinforced steel frame for bariatric support.
-
Tilt and Recline: Independent adjustments for patient comfort.
-
28" Wide Seat: Extra-wide design with pressure relief.
-
4" Foam Cushion: Removable high-density padded seat.
-
Full Foot Board: Padded support for the lower legs.
-
Removable Armrests: Easy transfers and cleaning.
-
20" Seat Depth: Provides comfortable patient positioning.
-
35" Back Height: Offers full back support.
-
16.25" Seat Height: Makes patient transfers easier.
-
Removable Seat Pan: Simplifies cleaning and maintenance.
-
Healthcare Use: Ideal for hospitals, rehab, and long-term care.
Specifications
| Specification |
TRC28750 |
TRC28750-FB |
| Overall Width |
49" (124.46 cm) |
49" (124.46 cm) |
| Overall Depth |
33.5" (85.09 cm) |
33.5" (85.09 cm) |
| Overall Height |
52" (132.08 cm) |
52" (132.08 cm) |
| Seat Width |
28" (71.12 cm) |
28" (71.12 cm) |
| Seat Depth |
20" (50.80 cm) |
20" (50.80 cm) |
| Seat Height |
16.25" (41.28 cm) |
16.25" (41.28 cm) |
| Arm Height |
28.75" (73.03 cm) |
28.75" (73.03 cm) |
| Back Height |
35" (88.90 cm) |
35" (88.90 cm) |
| Back Recline |
10°–36° |
10°–36° |
| Seat Tilt |
52° |
52° |
| Casters |
2 |
2 |
| Weight Capacity |
750 lbs. (340.19 kg) |
750 lbs. (340.19 kg) |
| Unit |
Each |
Each |
Product Manual
User manual for Graham Field TRC 750 Tilt Recline Chair can be found here.
