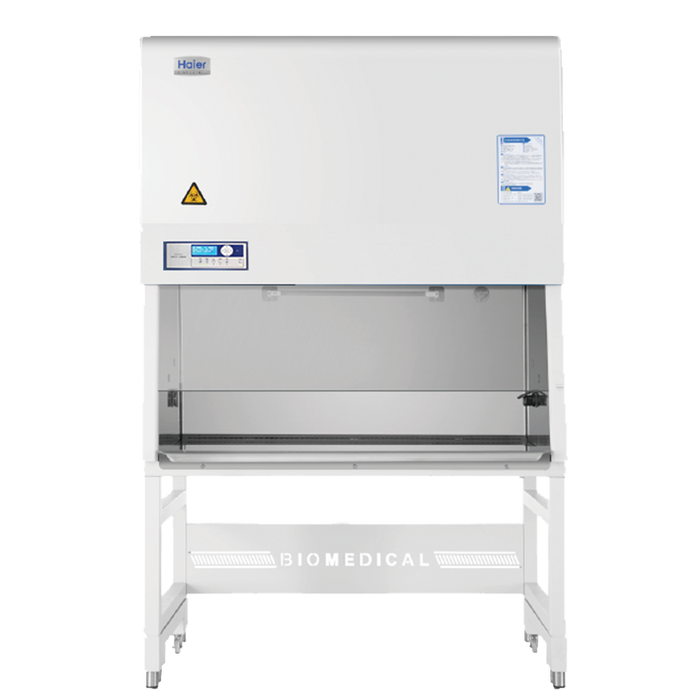

Haier | NSF Series Biological Safety Cabinet | Advanced Air Purification for Pharmaceuticals, Medical, and Research Laboratories
The Haier NSF Series Biological Safety Cabinet is a state-of-the-art air purification system designed for use in the pharmaceutical, medical, and health industries, as well as in scientific research laboratories in universities and other related fields.
Engineered for versatility, it offers full voltage coverage (100-230V, 50/60Hz), making it compatible with a wide range of countries and regions.
This advanced safety cabinet features a microprocessor control system with an interactive digital LCD display, offering real-time monitoring of critical operational parameters such as downflow air velocity, airflow rate, temperature, humidity, and fan cumulative running time.
It also tracks the filter’s remaining service life, ensuring optimal performance. The integrated hot-ball anemometer measures the wind speed of the cabinet’s inflow and downflow, adjusting fan speed automatically to maintain constant airflow.
A one-button UV lamp timer allows users to set automatic on/off times between 0 to 24 hours, enhancing convenience and energy efficiency.
The cabinet’s dual DC centrifugal fans and innovative air distribution system are designed to minimize noise while ensuring uniform airflow throughout the work area.
Additionally, the high-performance ULPA filters capture up to 99.9995% of solid particles as small as 0.12 µm, maintaining a clean and safe environment.
To further enhance safety, the Haier NSF Series Biological Safety Cabinet includes sound and light alarms that activate if any operational parameters fall outside the desired range.
The one-piece welded cabinet structure prevents leaks and conforms to NSF specifications for leak-proof performance, safeguarding against dangerous contaminants.
With its advanced design, user-friendly controls, and robust filtration system, this safety cabinet is an ideal solution for high-precision air purification in demanding environments.
Key Features
-
Platform Arm Rest: Comfortable and ergonomic design that helps relieve fatigue during extended use.
-
Caster and Foot Design: Features 4 universal casters and 4 feet for easy mobility and secure locking for leveling.
-
Wear-Resistant and Easy to Clean: Inner liner made of stainless steel with a one-piece design and 12mm large arc transition for easy cleaning with no hard-to-reach areas.
-
High-Quality Work Surface: Durable 304 stainless steel work surface with no fixed screws, preventing pollutant buildup and ensuring long-lasting cleanliness.
-
Corrosion-Resistant Cabinet: Made from cold-rolled steel with an epoxy resin coating, offering resistance to acid, alkali, and corrosion for added durability.
-
Waterproof Socket with Timer Function: Waterproof socket equipped with timing technology for setting automatic on/off cycles, improving convenience and energy efficiency.
Specifications
| Model |
HR900-IIA2-N |
HR1200-IIA2-N |
HR1500-IIA2-N |
HR1800-IIA2-N |
| General Specification |
Power Supply (V/Hz) |
100–230 / 50–60 |
100–230 / 50–60 |
100–230 / 50–60 |
100–230 / 50–60 |
| Power (VA) |
1300 |
1300 |
1400 |
1400 |
| Power of Blower (W) |
DC 190W / 112W |
DC 120W / 112W |
DC 190W / 112W |
DC 120W / 112W |
| Airflow Circulation |
70% Downflow, 30% Exhaust |
| Main Filter Typical Efficiency |
ULPA, U15,99.9995%@0.12um |
| Exhaust Filter Typical Efficiency |
ULPA, U15,99.9995%@0.12um |
| Filter's Brand |
AAF |
| Downflow Velocity (m/s) |
0.35 |
| Inflow Velocity (m/s) |
0.53 |
| Lighting Intensity (Lux) |
946 |
1323 |
TBD |
1292 |
| Sound Level dB(A) |
67 |
64 |
TBD |
67 |
| Dimensions |
Net/Gross Weight (lbs) |
496/584 |
617/750 |
716.5/804.7 |
827/1014 |
| Internal Dimensions (W×D×H) |
36.6"x23.6"x25.6" |
48.4"x23.6"x25.6" |
60.2"x23.6"x25.6" |
72.0"x23.6"x25.6" |
External Dimensions (W×D×H)
(Width without Armrest) |
40.9"x33.5(31.1)"x85" |
52.8"x33.5(31.1)"x85" |
64.6"x33.5(31.1)"x85" |
76.4"x33.5(31.1)"x85" |
| Packing Dimensions (W×D×H) |
43.5"x36.8"x67.7" |
56.5"x37.2"x66.9" |
67.1"x37.0"x67.7" |
80.2"x37.2"x66.9" |
| Support Stand |
26.8" (Standard)
26.8"–35.4" Adjustable Height (Optional) |
| Sash Opening |
7.9" (Max 18.1") |
| Container Load (20’ / 40’ / 40’H) |
12 / 24 / 24 |
8 / 16 / 16 |
6 / 12 / 12 |
6 / 12 / 12 |
| Alarm Functions |
Alarm |
Sound & Flash |
| Closing Fan Alarm After Door Opening |
Y |
| Door Ajar |
Y |
| Abnormal Inflow |
Y |
| Abnormal Downflow |
Y |
| Door Open More than Limit |
Y |
| Filter Clogging |
Y |
| Filter Damage |
Y |
| Filter Lifetime Lack |
Y |
| UV Light Lifetime Lack |
Y |
| Accessories |
UV Lamp |
Y |
| Sockets |
2 sockets (optional GFCI socket) |
| Valve Port |
Optional |
| Side Wall Service Taps |
Optional gas tap, vacuum tap, compressed air tap and water tap |
| Antimicrobial Coating |
Optional |
| 316SS Work Surface |
Optional |
| Work Surface |
One-piece |
| Touch Screen |
Optional |
| Motorized Window |
N |
| Foot Switch |
N |
| Armrest |
Yes |
| Exhaust Duct Connection Kits |
Optional |
| Others |
Certification |
UL, NSF |
