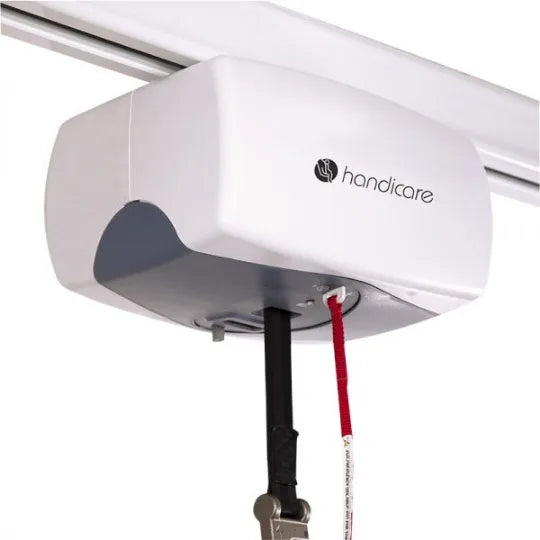

Handicare | C-1000 Bariatric Ceiling Lift Manual Traverse with 1000 lb Capacity | Safe Bariatric Patient Transfers and Caregiver Support

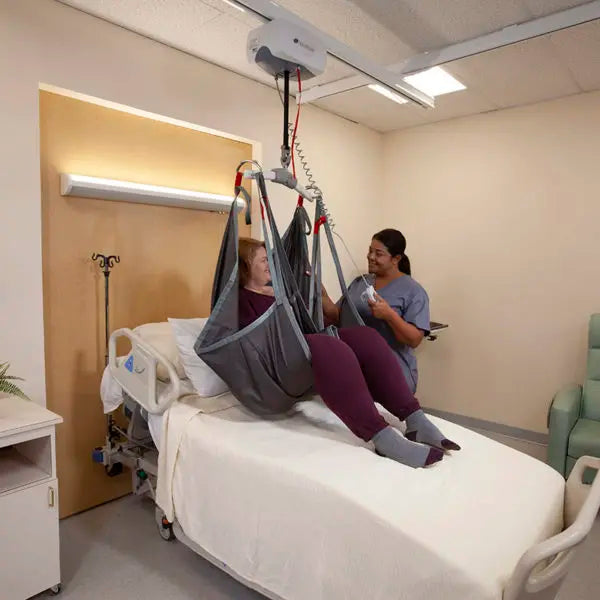

At Alto Med Supply, we offer the Handicare C-1000 Bariatric Ceiling Lift Manual Traverse as a reliable solution for safe and efficient bariatric patient transfers.
Designed to support individuals with higher weight and mobility needs, this ceiling lift features an impressive 1,000 lb capacity, making it suitable for patients who exceed the limits of standard lifting equipment.
It is engineered to enhance safety, comfort, and dignity during transfers while also reducing physical strain on caregivers.
Built for demanding healthcare environments such as hospitals, long-term care facilities, and rehabilitation centers, the Handicare C-1000 provides the strength and stability needed for complex lifting situations.
When conventional ceiling lifts are not enough, this high-capacity system delivers dependable performance and ease of use, helping caregivers complete transfers with greater confidence and efficiency.
Key Features
-
1000 lb Bariatric Weight Capacity: Safely supports bariatric patient transfers up to 1,000 lbs (454 kg), ideal for high-dependency care environments.
-
Tandem Dual-Motor Lifting System (Optional): Provides precise control by lifting the torso and legs independently for improved positioning and patient comfort.
-
Digital Display with Built-In Diagnostics: Offers real-time system feedback and troubleshooting support to improve safety and simplify maintenance.
-
Integrated Lift Counter for Maintenance Compliance: Tracks usage cycles to support preventive maintenance schedules and regulatory compliance.
-
Constant Charge System for Continuous Readiness: Keeps the ceiling lift powered and ready for use, reducing downtime in busy care facilities.
-
Emergency Stop and Controlled Lowering Function: Enhances patient and caregiver safety with immediate stop and safe lowering capabilities.
-
Optional Built-In 1000 lb Patient Scale: Allows accurate weighing during transfers, helping streamline patient care and reduce handling steps.
-
Quick Release Carry Bar System with Multiple Options: Enables fast interchange of carry bars to improve workflow efficiency and adapt to different patient needs.
Specifications
| Lift Motor |
24 VDC |
| Traverse Motor |
24 VDC
(Optional at time of purchase) |
| “H” Frame Traverse Motor |
24 VDC
(Optional at time of purchase) |
| Charger Input |
120 VAC
1.0 Amps |
| Charger Output |
24 VDC
1.5 Amps |
| Batteries |
24 VDC (2 × 12 VDC)
5.0 AH
Sealed Lead Acid |
| Lift Case |
Flame Retardant ABS |
| Hand Control |
Pneumatic |
| Lifting Range |
Up to 96”
(2438 mm) |
| Lift Weight |
24.5 lbs |
| Maximum Load |
Standard maximum load:
1000 lbs |
| Duty Cycle |
1 minute ON
9 minutes OFF |
| Rated Performance |
17–20 lifts at 1000 lbs
10% duty cycle
Each lift: 24 inches
Mid lifting range:
54” strap out → 30” strap out
Per full battery
Note:
Break-in period required before achieving performance.
Duration varies based on usage frequency and load.
Higher loads and frequent use shorten break-in time. |
| Service Life |
22,500 cycles
or 10 years (whichever comes first)
Lifting strap replacement:
Every 5000 cycles
or 3 years (whichever comes first)
Higher usage may require more frequent replacement.
Refer to maintenance guidelines for details. |
Product Manual
User manual for Handicare Bariatric Ceiling Lift Manual Traverse can be found here.
Shipping
- Free delivery (Contiguous United States Only)
- Delivery ETA 3-7 business days
- We also offer white glove engineer delivery with assembly and demonstration if required. Please contact us for a quote.
- If you require faster shipping or shipping outside the contiguous United States, please contact us for a shipping quote.
- If you require installation, please contact us for more information.
Warranty
This product comes with a 1-year limited manufacturer's parts warranty.
Important Notes
The warranty applies only to the original purchaser of a new product.
It does not cover:
- Normal wear and tear
- Damage due to misuse, alteration, tampering, negligence, accidents, lack of maintenance, unauthorized repair, or any other cause beyond the reasonable control of the manufacturer.
If you have any faults with your items, contact us and we'll help to resolve any issues.
Conditions: Warranty is void if the product is altered, misused, or repaired by unauthorized personnel. Damage from improper maintenance or unsuitable environmental conditions is also excluded.
Important: Product Inspection Upon Delivery
Please inspect all items carefully for any damage that may have occurred during shipping immediately after unpacking and report within 24 hours of receiving the product.
Returns
We at Alto Med Supply are committed to ensuring you are delighted with every purchase. However, if you need to make a return, please reach out to us at support@altomedsupply.com, and we'll guide you through the return process.
Here are a few important points to note:
- You have the right to return your order within 14 calendar days of receiving the goods. Beyond this period, we regret that returns cannot be accepted.
- Products must be returned unused, and in their original packaging. If packaging has been opened, returns will not be accepted.
- Return shipping costs and 25% restocking fee apply.
- Opened bathroom products cannot be returned due to hygiene reasons.
- Bespoke items cannot be returned unless damaged or faulty.
For more information, please refer to our Terms and Conditions.
Please view our full returns and refund policy here.
