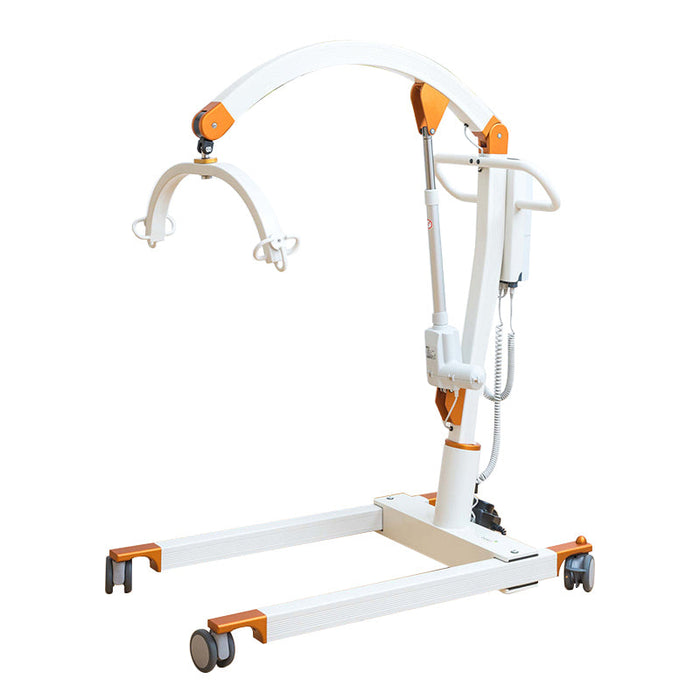

Handicare | CARLO Alu Floor Lift | Lightweight Aluminum Patient Lift with 6-Point Carry Bar and Anti-Rotation Mechanism for Safe Transfers and Fall Recovery
At Alto Med Supply, we offer the Handicare CARLO Alu Floor Lift, a lightweight yet durable patient lifting solution designed to improve safety, comfort, and efficiency in daily care routines.
Constructed from high-quality aluminum, this floor lift provides exceptional stability while remaining easy to maneuver, making it ideal for caregivers handling routine lifting, repositioning, and transfers in both home and professional care settings.
The CARLO Alu Floor Lift features a 6-point carry bar that delivers secure, evenly distributed support during transfers.

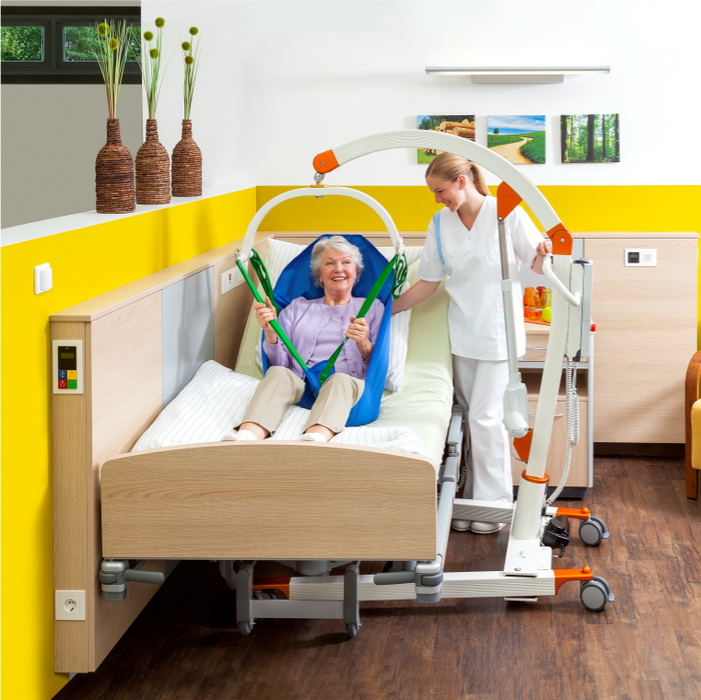

Its ability to lower close to the floor makes it especially effective for safely lifting individuals after slip-and-fall incidents, while the low carry bar height also allows for smooth transfers to beds, bathtubs, and other surfaces.
An integrated Anti-Rotation Mechanism (ARM) helps prevent unwanted movement during lifting, reducing uncomfortable swiveling and enhancing the overall sense of safety for the patient.

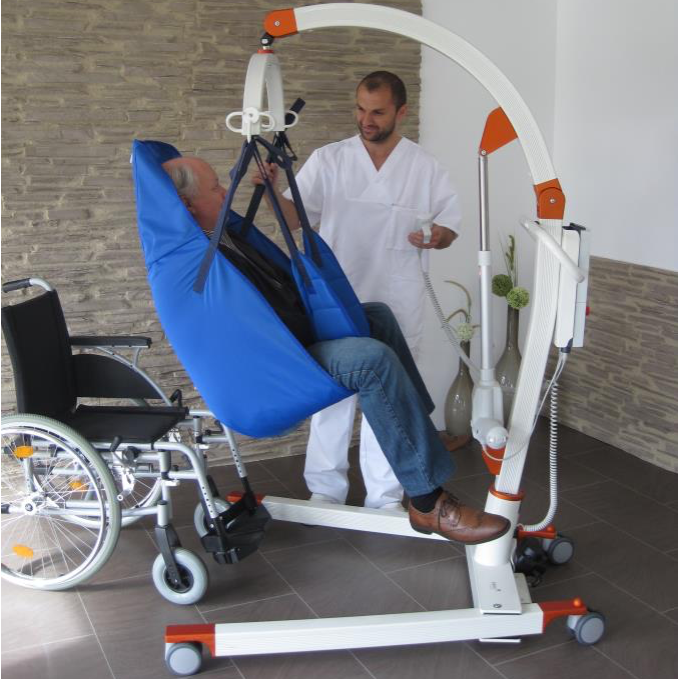

Designed for versatility, this patient floor lift is compatible with a wide range of slings, making it suitable for various applications, including transfers, repositioning, toileting, bathing, and showering.
Combining strength, functionality, and ease of use, the Handicare CARLO Alu Floor Lift is a reliable solution for caregivers seeking safe and efficient patient handling equipment.
Key Features
-
Lightweight Aluminum Patient Lift: Built with 100% aluminum for a strong, durable, and easy-to-maneuver floor lift.
-
6-Point Carry Bar System: Ensures safe, stable, and evenly distributed support during patient transfers.
-
Electric Height Adjustment with Floor Lift Capability: Lowers the carry bar to floor level for safe fall recovery and easy transfers.
-
Anti-Rotation Mechanism (ARM): Reduces unwanted movement for smoother, safer, and more comfortable lifting.
-
Electrically Spreadable Low-Profile Legs: Adjusts easily to fit under beds and bathtubs for versatile patient handling.
-
Multipurpose Patient Transfer Lift: Ideal for transfers, repositioning, toileting, bathing, and showering.
-
Universal Sling Compatibility: Works with all loop slings for flexible use across care environments.
-
Easy Maneuverability with Locking Castors: Smooth-rolling double castors with brakes provide control and stability.
-
Remote Control with Smart Diagnostics: Simple hand control with battery status, alerts, and service notifications for reliable operation.
Specifications
| Carrier Frame (Length/Height) |
1,290 mm / 125 mm (50.78 in / 4.92 in) |
| Inner Width (Closed/Spread) |
540 mm / 1,040 mm (21.26 in / 40.94 in) |
| Outer Width (Closed/Spread) |
700 mm / 1,180 mm (27.56 in / 46.46 in) |
| Total Width of Lift (Carrier Frame Closed) |
700 mm (27.56 in) |
| Lifting Range |
1,400 mm (55.12 in) |
| Max Patient Weight |
Classic: 185 kg (407.86 lbs); Classic 230: 230 kg (507 lbs) |
| Safe Working Load (SWL) |
Classic: 185 kg (407.86 lbs); Classic 230: 230 kg (507 lbs) |
| Drive |
24V LINAK drive |
| Power Consumption |
2.9 Ah |
Product Manual
User manual for Handicare CARLO Alu Floor Lift can be found here.
