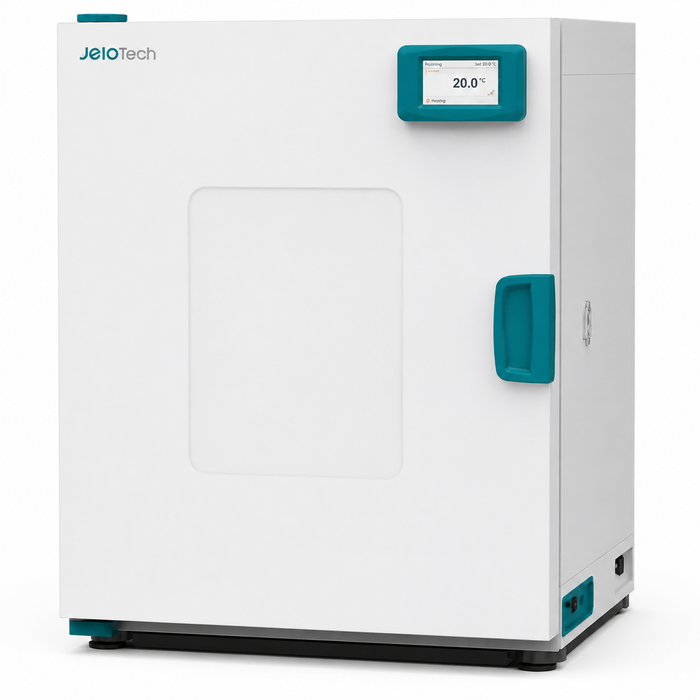

Jeio Tech | Air Jacket Incubator Advanced | Large Touch Controller with 5 Inch Display, Real Time Monitoring and Precision Temperature Calibration
The Jeio Tech Intuitive Large Touch Controller, available from Alto Med Supply, is designed to provide advanced laboratory monitoring, precise temperature control, and convenient operation for incubators and laboratory ovens.
Featuring a large 5-inch touch display, the controller gives users an easy-to-read interface with real-time graphs, alerts, and event monitoring displayed in a single view.
Frequently used temperature settings are automatically suggested to simplify operation, while the “Wait On / Wait Off” timer function helps improve laboratory workflow efficiency.
This advanced controller also includes practical features that support stable incubation conditions and better laboratory space management.
An optional water tray helps reduce media drying and supports longer incubation periods, while the optional stacking set allows double stacking to maximize available workspace in busy laboratory environments.
For real-time equipment supervision, the Jeio Tech Intuitive Large Touch Controller supports optional Building Management System (BMS) monitoring and LC Green Box mobile monitoring.
These features allow users to monitor and control equipment remotely, helping laboratories quickly respond to abnormal temperature conditions and maintain safe operating environments.
The controller also simplifies laboratory data management with built-in RS-232 and USB connectivity for PC integration and data storage.
Test data can be automatically saved and exported in CSV format for easy editing and documentation.
The system records up to 36 recent events, including errors and door openings, to improve equipment tracking and troubleshooting.
Optional LC Data Keeper integration supports 21 CFR Part 11 compliance for GMP-regulated laboratories and audit-ready data management.
Designed for reliable laboratory performance, the controller uses advanced 3-point temperature calibration to maintain stable and accurate temperature control across a wide operating range.
Ramp Control™ technology allows users to customize temperature ramping rates for different experiments, while optimized airflow technology helps provide consistent heat distribution for dependable incubation results.
Key Features
-
Touch Display: Easy monitoring and control.
-
Real-Time Graphs: Displays status and alerts.
-
Temperature Presets: Saves common settings.
-
Built-In Timer: Automates operation.
-
Water Tray Option: Helps reduce media drying.
-
Stackable Design: Saves laboratory space.
-
Remote Monitoring: Optional mobile access.
-
USB and RS-232 Ports: Supports connectivity.
-
USB Data Storage: Exports data in CSV format.
-
Event Log: Records system activity.
-
3-Point Calibration: Improves accuracy.
-
Ramp Control™: Supports gradual temperature changes.
-
Uniform Heating: Ensures consistent incubation.
Specifications
| Specification |
IB4-03AV |
IB4-05AV |
IB4-10AV |
IB4-15AV |
| Chamber Capacity |
| Volume |
25 L (0.88 cu ft) |
60 L (2.19 cu ft) |
114 L (4.03 cu ft) |
150 L (5.30 cu ft) |
| Temperature Performance |
| Temperature Range |
Ambient +5°C to 80°C (Ambient +9°F to 176°F) |
| Fluctuation @ 37°C |
±0.10°C |
±0.10°C |
±0.15°C |
±0.10°C |
| Variation @ 37°C |
±0.31°C |
±0.48°C |
±0.46°C |
±0.55°C |
| Heating Time to 37°C |
44 min |
40 min |
46 min |
49 min |
| Recovery Time @ 37°C |
5 min |
9 min |
9 min |
9 min |
| Ramp Rate |
0–2.0°C/min (0–3.6°F/min) |
| Control and Monitoring |
| Display |
5-Inch TFT Color LCD Touchscreen |
| Temperature Presets |
3 Frequently Used Settings |
| Graph Display |
Real-Timeand Stored Data Viewing |
| Event History |
36 Recent Events |
| Data Storage |
CSV Export via USB |
| Connectivity |
| Communication Ports |
USB-B, RS-232 |
| Interior Dimensions (W × D × H) |
| Metric |
300 × 210 × 400 mm |
380 × 330 × 480 mm |
485 × 350 × 655 mm |
550 × 376 × 710 mm |
| Imperial |
11.81 × 8.27 × 15.75 in |
14.96 × 12.99 × 18.9 in |
19.1 × 13.78 × 25.79 in |
21.62 × 14.8 × 27.95 in |
| Exterior Dimensions (W × D × H) |
| Metric |
478 × 527 × 604 mm |
558 × 648 × 684 mm |
663 × 677 × 859 mm |
728 × 704 × 914 mm |
| Imperial |
18.8 × 20.75 × 23.78 in |
21.97 × 25.5 × 26.93 in |
26.1 × 26.65 × 33.82 in |
28.66 × 27.7 × 36.0 in |
| Shelving Capacity |
| Standard Shelves |
2 |
2 |
2 |
2 |
| Maximum Shelves |
4 |
5 |
8 |
9 |
| Max. Shelf Load |
20 kg (44.09 lbs) |
20 kg (44.09 lbs) |
20 kg (44.09 lbs) |
20 kg (44.09 lbs) |
| Weight |
| Net Weight |
31 kg (68.34 lbs) |
40 kg (88.18 lbs) |
55 kg (121.25 lbs) |
60 kg (132.28 lbs) |
| Power Requirements |
| 230V, 50/60Hz |
2.5 A |
3.5 A |
3.5 A |
3.5 A |
| 120V, 60Hz |
4.8 A |
6.7 A |
6.7 A |
6.7 A |
| Ordering Information |
| 230V Catalog No. |
AAH21755K |
AAH21765K |
AAH21775K |
AAH21785K |
| 120V Catalog No. |
AAH21753U |
AAH21763U |
AAH21773U |
AAH21783U |
Product Manual
User manual for Jeio Tech Air Jacket Incubator Advanced can be found here.
