Jeio Tech | Chiller Recirculating Cooler Compact Type | Precision Cooling Chiller for Laboratory Cooling Systems and Small Lab Equipment

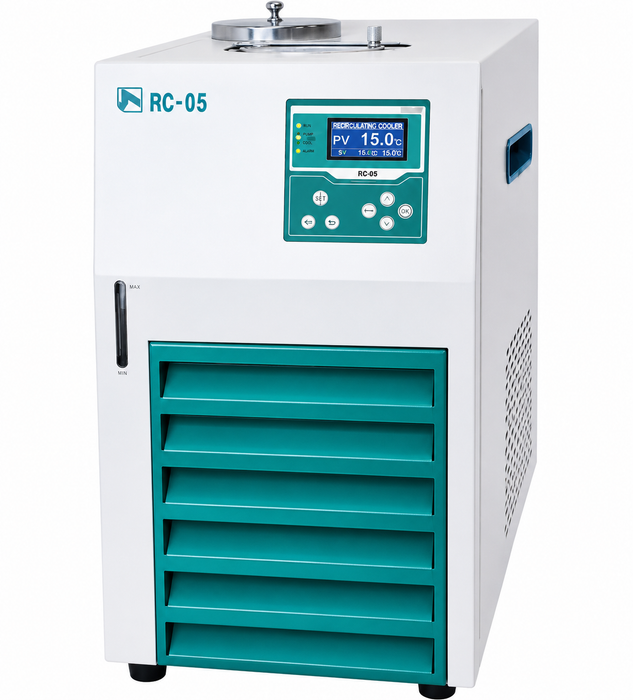

At Alto Med Supply, we offer the Jeio Tech Chiller Recirculating Cooler Compact Type designed for reliable daily cooling of small laboratory equipment.

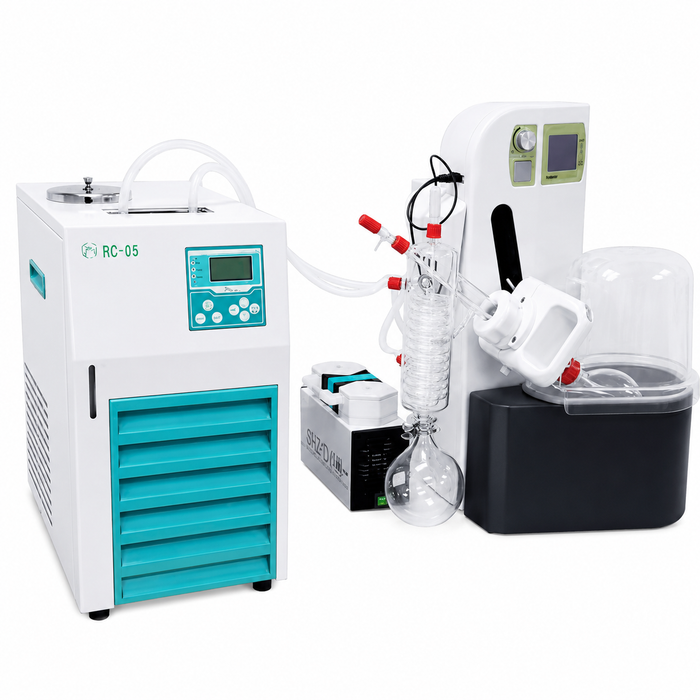

Its space-saving design makes it an excellent choice for laboratories using compact devices such as rotary evaporators and other temperature-sensitive applications.
With a temperature control range of -20°C to 30°C, this laboratory chiller delivers stable and efficient cooling performance while helping reduce overall energy consumption through its optimized refrigeration system.

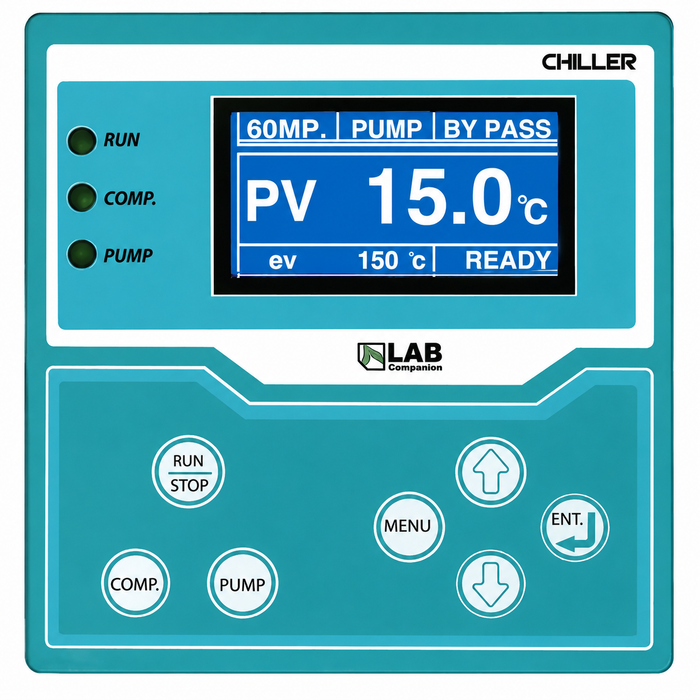

The unit features a clear LCD display with 0.1°C resolution for accurate temperature monitoring and simple operation.

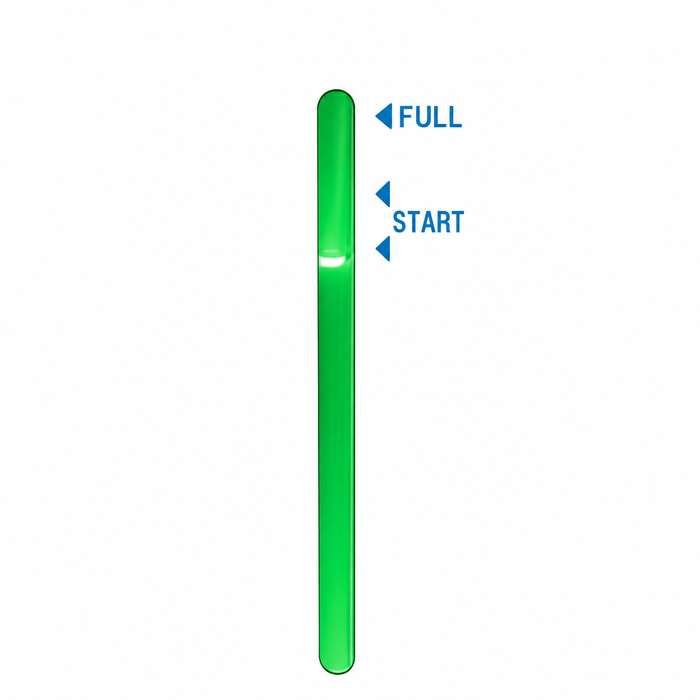

A bright LED water level indicator allows users to quickly check fluid levels from a distance, while the wide filling inlet makes adding solution safe and convenient.
Maintenance is simplified with a removable gridded condenser vent and a double service valve designed to help prevent refrigerant leakage.
Built for laboratory convenience and safety, this compact chiller includes a self-diagnostic system that detects operational errors and provides visual and audible warning alarms.
Integrated protection features include low fluid level and dry-running protection, over-temperature protection, and an over-current circuit breaker for added equipment security.
The splash-proof keypad enhances durability in laboratory environments, while the eco-friendly R-507 refrigerant supports environmentally responsible operation.
Optional accessories are also available to meet a variety of laboratory cooling applications.
Key Features
-
Compact Design: Saves valuable laboratory space.
-
Wide Temperature Range: Cooling performance from -20°C to 30°C.
-
Energy-Efficient Cooling: Reduces power consumption.
-
LCD Display: Provides clear temperature monitoring.
-
LED Water Indicator: Enables quick fluid level checks.
-
Wide Filling Inlet: Allows easy coolant refilling.
-
Leak-Prevention Valve: Minimizes refrigerant loss.
-
Easy Maintenance: Removable vent simplifies cleaning.
-
Stable Cooling: Maintains consistent temperatures.
-
Accessory Support: Compatible with optional accessories.
-
Self-Diagnostics: Automatically detects system errors.
-
Low Fluid Protection: Prevents dry-running damage.
-
Over-Temperature Alarm: Alerts when temperatures exceed limits.
-
Over-Current Protection: Guards against electrical overload.
-
Eco-Friendly Refrigerant: Uses environmentally friendly R-507.
-
Splash-Proof Keypad: Built for laboratory durability.
Specifications
| Model |
| Model Number |
RC-05 |
| Interior Dimension |
| Max. Filling Volume (L / cu ft) |
5 / 0.18 |
| Refrigerator Capacity (HP) |
1 / 3 |
| For Tubing Dia. (mm / inch) |
9.5 / 3/8 |
| Filling Inlet (Ø mm / inch) |
37 / 1.46 |
| Exterior Dimension |
| Width (mm / inch) |
300 / 11.8 |
| Depth with Drain Valve (mm / inch) |
550 / 21.7 |
| Height with Lid (mm / inch) |
530 / 20.9 |
| Net Weight (kg / lbs.) |
45 / 99.2 |
| Temperature Data |
| Working Temperature Range (°C / °F) |
-10 to 30 / 14 to 86 |
| Temperature Stability at 15°C (Bath Fluid: Water) (±°C / °F) |
1 / 1.8 |
| Cooling Capacity, Max (Bath Fluid: Ethanol) |
| At 20°C (W) |
580 |
| At 10°C (W) |
450 |
| At 0°C (W) |
350 |
| At -10°C (W) |
270 |
| At -20°C (W) |
110 |
| Pump Data |
| Max. Flow Rate (L/min, gal/min) |
26 / 6.87 |
| Max. Pressure (bar / psi) |
0.7 / 10.15 |
| Electrical Data and Ordering Information |
| Electrical Requirement |
230V, 50/60 Hz, 4A |
| Catalog Number |
ACH651015K |
Product Manual
User manual for Jeio Tech Chiller Recirculating Cooler Compact Type can be found here.
