Jeio Tech | Chiller Recirculating Coolers General | High Cooling Capacity Laboratory Chiller With Precise Temperature Control 3°C to 40°C

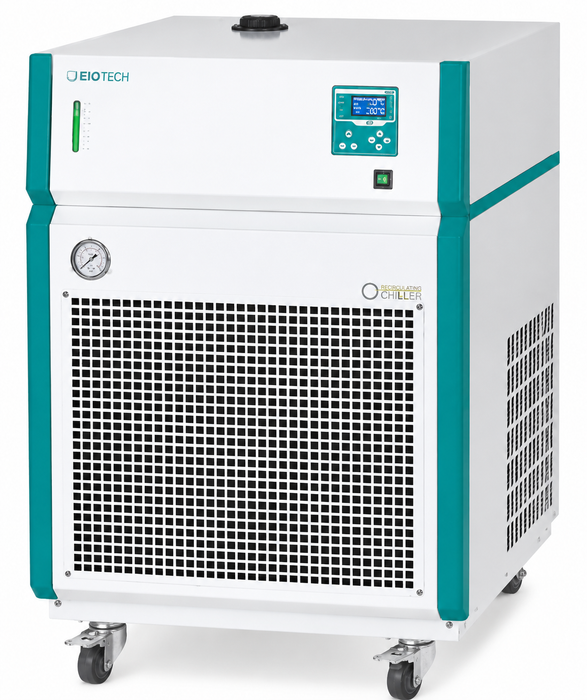

The Jeio Tech Recirculating Chiller is designed to deliver reliable temperature control and high cooling efficiency for laboratory and industrial applications.
Available at Alto Med Supply, this laboratory chiller provides stable cooling performance for research equipment, analytical instruments, medical systems, and process cooling applications that require precise temperature management.
This recirculating chiller operates within a temperature range of 3°C to 40°C and offers powerful cooling capacity up to 7.1kW at 20°C.
The high-performance circulating pump delivers flow rates up to 40L/min with pressure up to 4.3 bar, supporting demanding laboratory cooling applications.
H-type models also feature adjustable pump pressure control using a convenient by-pass function for improved system flexibility.
Designed for energy-efficient operation, the advanced refrigerating system helps reduce power consumption while maximizing cooling performance.
Users can easily monitor and control the system through the clear LCD display with 0.1°C resolution.
A bright LED water level indicator and built-in pressure gauge allow quick system status checks, while H-type models include additional high and low pressure gauges for refrigerating system diagnostics.
The Jeio Tech chiller is built for convenience and easy maintenance.
The wide filling inlet allows safe solution filling, while users can choose between magnetic pump and centrifugal pump models depending on application requirements.
The double service valve design helps prevent refrigerant leakage during maintenance, and the removable gridded vent simplifies condenser cleaning.
Built-in casters allow easy transport and installation within laboratory environments.
Safety features include a self-diagnostic system that detects operational errors and a complete warning alarm system for added protection.
The unit includes low fluid level and dry-running protection, over-temperature protection, and an over-current circuit breaker to help maintain safe operation.
Visual warning indicators and audible alarms notify users of system issues quickly and clearly.
Additional features include a splash-proof keypad and eco-friendly R-404A refrigerant for environmentally responsible operation.
Key Features
-
Temperature Control: Operates from 3°C to 40°C.
-
High Cooling Capacity: Delivers up to 7.1 kW cooling.
-
Powerful Pump: Supports up to 40 L/min flow.
-
LCD Display: Provides easy monitoring.
-
Pressure Gauge: Enables quick system checks.
-
LED Water Indicator: Shows fluid level status.
-
Built-In Casters: Allows easy movement.
-
Self-Diagnostics: Detects system errors.
-
Safety Protection: Includes alarms and overload protection.
Specifications
| HX Series Recirculating Coolers Specifications |
| Specification |
HX-20 |
HX-25 |
HX-20H |
HX-25H |
HX-35H |
HX-45H |
HX-55H |
| Temperature Specifications |
| Working Temperature Range |
+3 to 40°C (+37.4 to 104°F) |
| Temperature Stability @ 15°C |
±1°C (±1.8°F) |
| Cooling Capacity (kW) |
| 20°C |
2.2 |
2.8 |
2.2 |
2.8 |
4.2 |
5.5 |
8.1 |
| 10°C |
1.6 |
2.0 |
1.6 |
2.0 |
3.6 |
4.2 |
5.9 |
| 5°C |
1.2 |
1.6 |
1.2 |
1.6 |
2.8 |
3.4 |
4.8 |

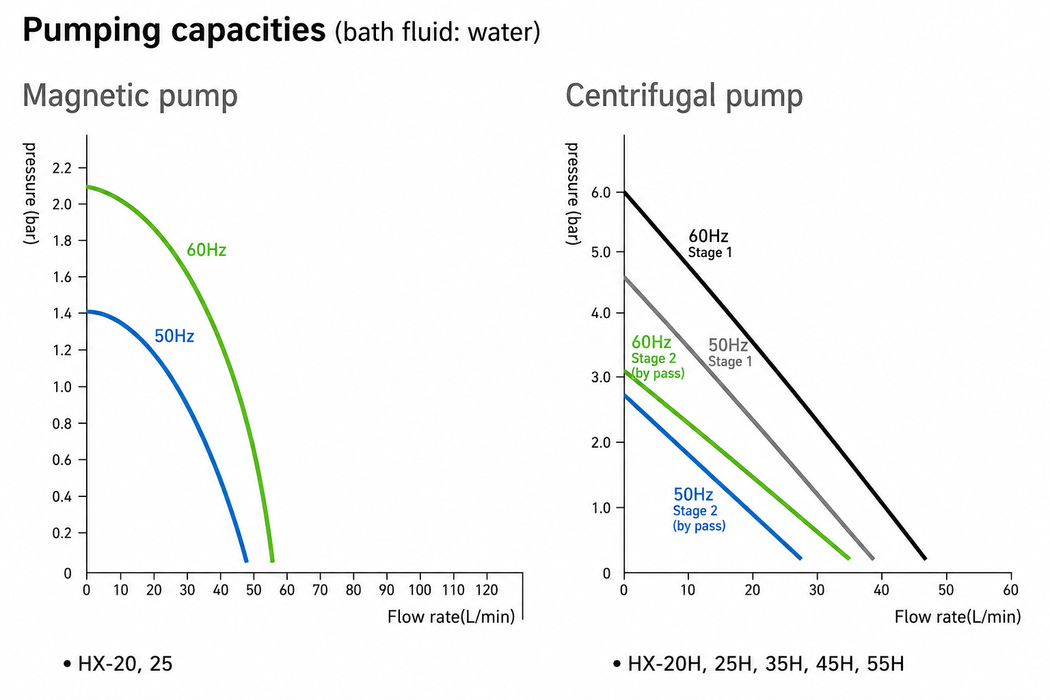

| Pump Performance |
| Max. Flow Rate |
40 L/min (10.6 gal/min) |
32 L/min (8.5 gal/min) |
| Max. Pressure |
2 bar (29 psi) |
6 bar (87 psi) |
| Reservoir and Connections |
| Reservoir Capacity |
35 L (1.24 cu ft) |
45 L (1.59 cu ft) |
| Tubing Diameter |
20 mm (3/4 in) |
| Filling Inlet Diameter |
50 mm (1.9 in) |
| Dimensions and Weight |
| Overall Dimensions (W × D × H) |
620 × 785 × 990 mm
(24.4 × 30.9 × 39 in) |
745 × 800 × 1095 mm
(29.3 × 31.5 × 43.1 in) |
| Net Weight (kg / lbs.) |
93 / 205 |
101 / 223 |
97 / 214 |
105 / 231 |
120 / 265 |
130 / 287 |
140 / 309 |
| Catalog Numbers |
| 230V, 60Hz |
AAH64011K |
AAH64021K |
AAH64111K |
AAH64121K |
AAH64135K |
AAH64141K |
— |
| 230V, 50Hz |
AAH64015K |
AAH64025K |
AAH64115K |
AAH64125K |
AAH64135K |
AAH64145K |
— |
| 120V, 60Hz |
AAH64013U |
AAH64023U |
Not Available |
| 380V, 60Hz |
Not Available |
AAH64149K |
AAH64159K |
| 380V, 50Hz |
Not Available |
AAH64140K |
AAH64150K |
