Jeio Tech | Filtering Storage Cabinets | Filtered Chemical Storage Cabinet with HEPA and Carbon Filtration for Safe Laboratory Reagent Storage
The Jeio Tech Filtered Chemical Storage Cabinet, available from Alto Med Supply, provides safe and efficient reagent storage while helping maintain a clean laboratory environment.
Designed with an advanced recirculating filtration system, this cabinet removes harmful airborne contaminants without requiring expensive external exhaust duct systems.
Its flexible installation design allows laboratories to place the cabinet almost anywhere while reducing heating and cooling loss commonly caused by traditional ducted exhaust systems.
The filtration performance is tested according to BS 7989:2001 standards for recirculatory filtration fume cupboards, ensuring dependable air purification and laboratory safety.
This energy-efficient laboratory storage cabinet supports customizable filtration options to meet different application needs.
Optional ISO Class 4 (US Class 10) HEPA filters remove 99.99% of particles measuring 0.3 μm and larger, helping protect samples from cross-contamination.
Optional activated carbon filters are also available for VOC, MA, and MB chemical filtration applications.
A high-quality polyester fiber pre-filter captures larger particles to extend the lifespan of the main filter, while the intelligent front cover design allows quick filter saturation checks and easy replacement.
The cabinet features user-friendly controls and advanced safety functions for reliable daily operation.
Automatic restart after power failure, adjustable operating settings, and LED safety alarms help protect users and stored chemicals.
Built-in alarms monitor high temperature conditions, fan performance, and door status for added laboratory safety.
An eco-friendly sleep mode can reduce energy consumption by up to 60% while extending the service life of the fan and filters.

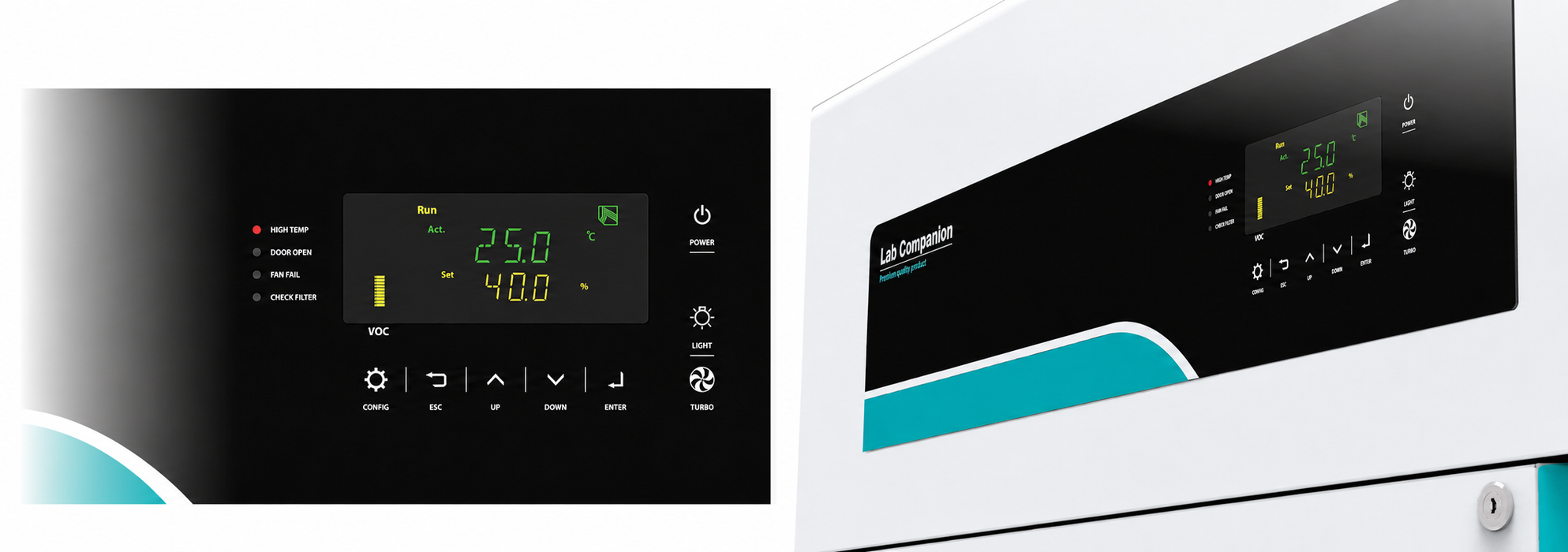

The integrated VOC monitoring system provides real-time air quality readings inside the cabinet, while the turbo fan function delivers rapid air purification before the door is opened to help minimize exposure to hazardous gases.

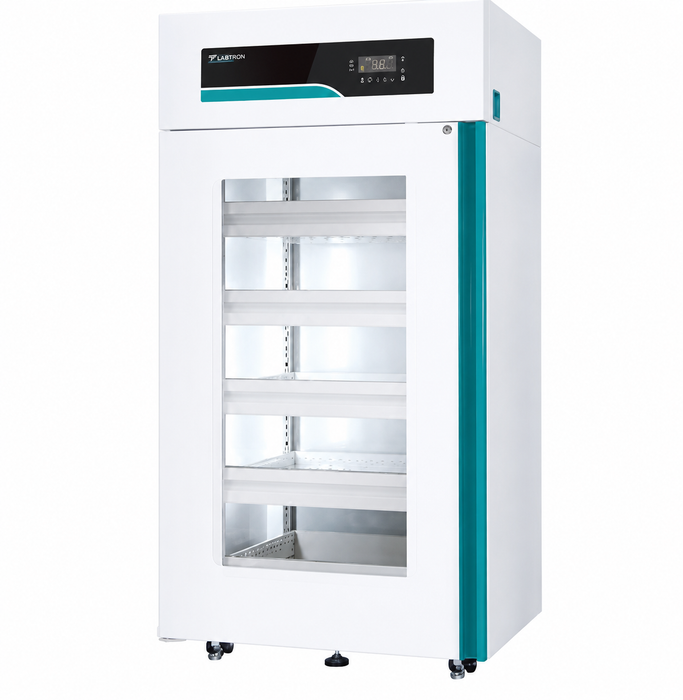

Built for durability and secure chemical storage, the cabinet is constructed with corrosion-resistant epoxy-coated steel and a transparent tempered glass door for easy sample visibility.
The doors and drawers are tested according to SEFA standards for long-term reliability and heavy-duty performance.
Smooth full-extension sliding drawers, a spill tray, and locking door system help keep chemical samples organized, secure, and safely stored.
Alto Med Supply proudly offers this high-performance filtered storage cabinet for laboratories, research facilities, healthcare environments, and industrial applications requiring dependable chemical storage and air purification.
Key Features
-
Filtered Storage: Safely stores laboratory chemicals and reagents.
-
Ductless Design: No external exhaust system required.
-
Advanced Filtration: Helps maintain clean cabinet air.
-
VOC Monitoring: Real-time air quality display.
-
Safety Alarms: Alerts for temperature, fan, and door issues.
-
Energy Saving Mode: Reduces power consumption.
-
Heavy-Duty Storage: Supports up to 40 kg loads.
-
Tempered Glass Door: Clear visibility of contents.
-
Full-Extension Drawers: Easy access and organization.
-
Secure Storage: Includes spill tray and door lock.
Specifications
General Specifications
| Specification |
FSC-140 |
FSC-280 |
| Internal Volume |
604 L (21.3 Cu. Ft.) |
1317 L (46.5 Cu. Ft.) |
| Storage Capacity |
140 L / 140 × 1L Bottles |
280 L / 280 × 1L Bottles |
| Airflow Rate |
0.67 m³/min |
1.34 m³/min |
| Noise Level |
50 dB |
55 dB |
| Warning / Alarm |
High Temperature, Door Open, Fan Failure, Sensor Error, Filter Check, External Input Error |
| Protection Features |
Over-Temperature Protection, Over-Current Protection |
Dimensions & Capacity
| Specification |
FSC-140 |
FSC-280 |
| Internal Dimensions (W × D × H) |
930 × 636 × 1890 mm 36.6 × 24.8 × 74.4 in |
1868 × 636 × 1890 mm 73.5 × 24.8 × 74.4 in |
| External Dimensions (W × D × H) |
795 × 578 × 1315 mm 31.3 × 22.8 × 51.8 in |
1733 × 578 × 1315 mm 68.2 × 22.8 × 51.8 in |
| Drawer Dimensions |
613 × 478 × 109 mm 24.1 × 18.8 × 4.3 in |
613 × 478 × 109 mm 24.1 × 18.8 × 4.3 in |
| Spill Tray Dimensions |
670 × 526 × 34 mm (1 Tray) 26.4 × 20.7 × 1.3 in |
670 × 526 × 34 mm (2 Trays) 26.4 × 20.7 × 1.3 in |
| Net Weight |
300 kg (661.4 lbs.) |
495 kg (1091.3 lbs.) |
Drawer Specifications
| Specification |
FSC-140 |
FSC-280 |
| Drawers (Std./Max.) |
5 / 10 |
10 / 20 |
| Drawer Capacity |
28 × 1L Bottles |
28 × 1L Bottles |
| Max. Load Per Drawer |
40 kg (88.2 lbs.) |
40 kg (88.2 lbs.) |
Electrical & Ordering Information
| Model |
Electrical Requirement |
Catalog Number |
| FSC-140 |
230V, 50/60Hz, 0.5A |
AAHF1122K |
| FSC-280 |
230V, 50/60Hz, 1.0A |
AAHF1132K |
| FSC-140 |
120V, 60Hz, 1.0A |
AAHF1123U |
| FSC-280 |
120V, 60Hz, 2.0A |
AAHF1133U |
Product Manual
User manual for Jeio Tech Filtering Storage Cabinets can be found here.
