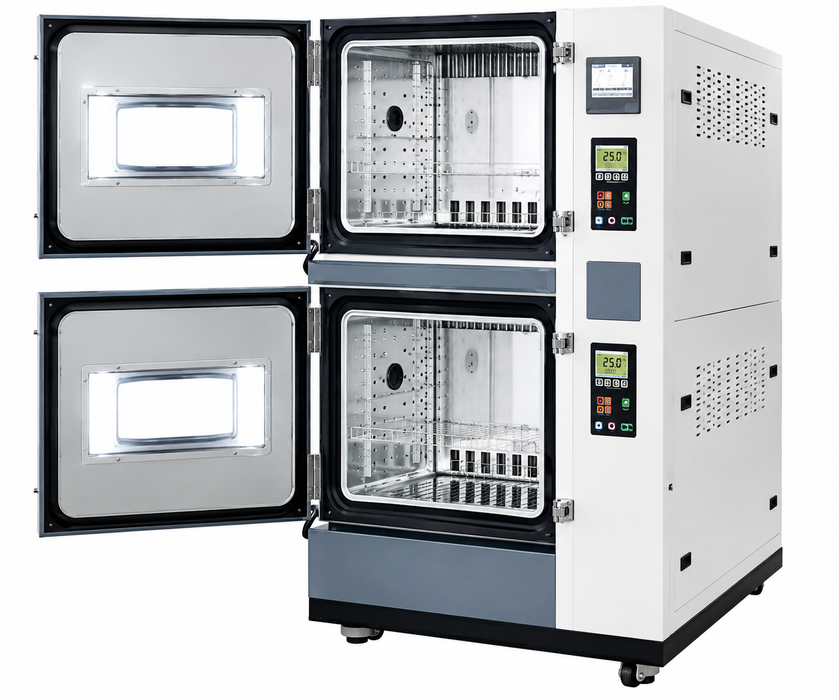

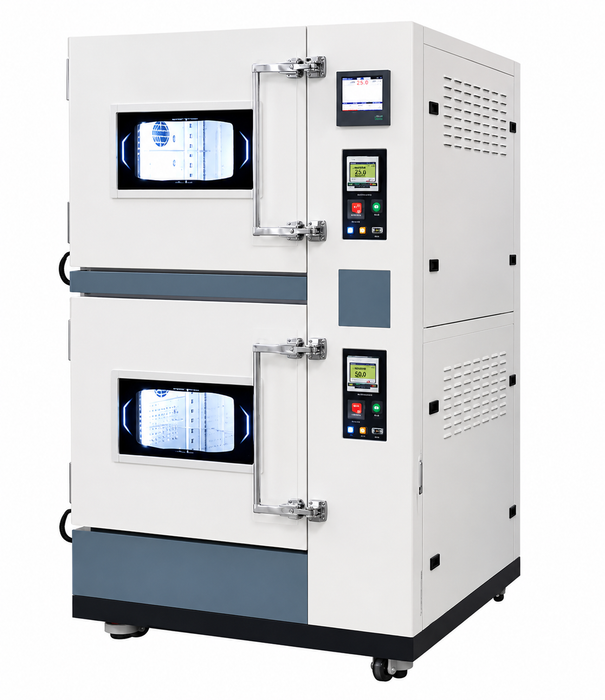

Jeio Tech | Floor Standing Temperature and Humidity Dual Chambers | TH3 DG Environment Test Equipment for Simultaneous Temp and Humidity Testing
The Jeio Tech | Floor Standing Temperature and Humidity Dual Chambers, available from Alto Med Supply, is designed for laboratories and research facilities that need to perform two different environmental tests at the same time while saving valuable lab space.
Built with dual independent chambers in a single unit, this system provides a cost-effective solution for stability testing in accordance with ICH Guidelines Q1A (R2).
Each chamber operates independently with separate temperature and humidity control, allowing users to run different test conditions simultaneously for improved productivity and efficiency.
This dual chamber temperature and humidity testing system uses advanced microprocessor PID control with automatic tuning and temperature calibration to maintain stable and accurate environmental conditions.
Its optimized humidification system improves low and high temperature humidity performance for reliable long-term testing.
The built-in water recycling system helps reduce water consumption during extended operation.

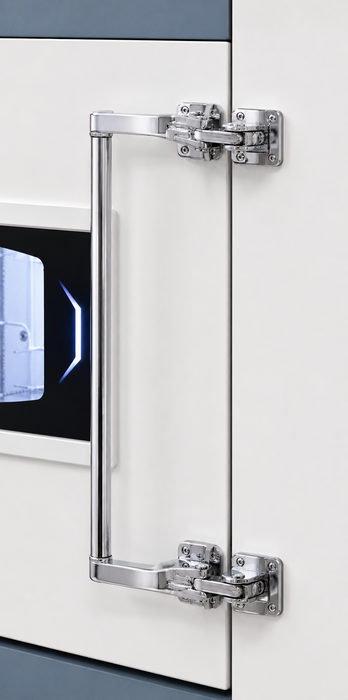

The chamber is designed with airtight door sealing, heat-resistant silicone packing, and dual door latches to reduce heat leakage and improve temperature stability.
The optimized insulation system increases energy efficiency while helping keep the outer surface temperature below 60°C during operation.

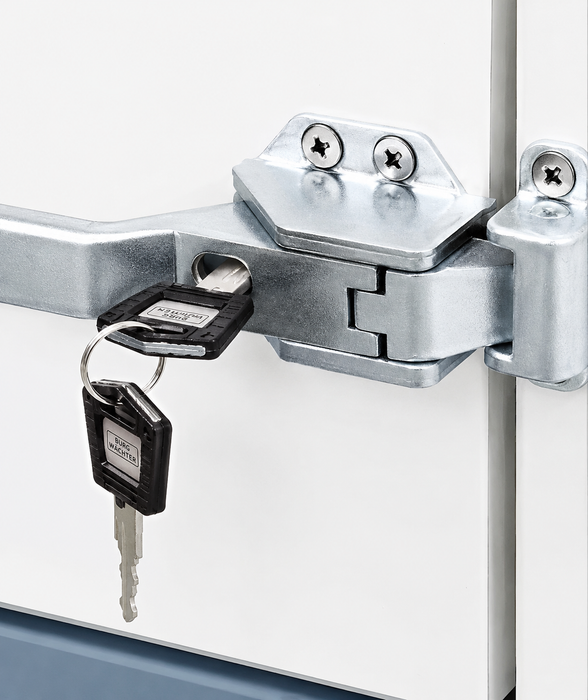

For safe laboratory operation, the Jeio Tech Floor Standing Temperature and Humidity Dual Chambers includes a built-in key lock, automatic overheat shutoff, low and empty water alarms, power leakage breaker, overcurrent protection, and open door alarm functions.

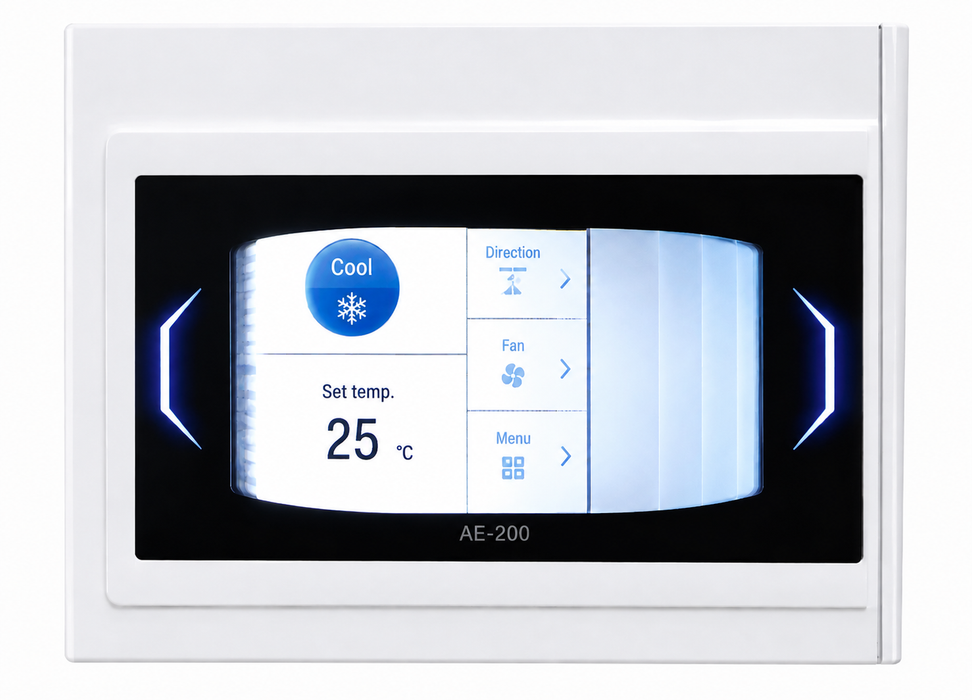

The user-friendly color touch LCD controller displays both set and current values together for easy monitoring.
Key Features
Dual Chamber Design: Two chambers for simultaneous testing.
ICH Compliance: Supports ICH Q1A (R2) stability testing.
Independent Control: Separate temperature and humidity settings.
High Program Capacity: Stores up to 100 patterns and 2,000 segments.
Specifications
Specification
TH-DG-150
TH-DG-300
TH-DG-400
Chamber Volume (L)
150 × 2
288 × 2
384 × 2
Controller
PID LCD Controller
Temperature Range
-5°C to 100°C / 15°C to 90°C (With Humidity)
Temperature Fluctuation
±0.3°C
Temperature Variation
±0.5°C
Heating Time
85 Minutes (-5°C to 100°C)
Cooling Time
100 Minutes (100°C to -5°C)
Humidity Range
20% to 90% RH
Humidity Fluctuation
±0.8% RH
Humidity Variation
±3.0% RH
Refrigeration System
Air-Cooled
Refrigerant
R-507A
Water Supply Capacity (L)
20
24
24
Water Quality
pH 6.2–7.2 / ≤20 μS/cm
Wire Shelves (Std. / Max.)
2 / 7
2 / 8
2 / 8
Shelf Spacing (mm)
60
Max Shelf Load (kg)
25
Total Load Capacity (kg)
75
Interior Dimensions (W × D × H, mm)
600 × 500 × 500
800 × 600 × 600
800 × 600 × 800
Exterior Dimensions (W × D × H, mm)
1055 × 1320 × 1725
1255 × 1470 × 1925
1255 × 1670 × 1925
Viewing Window (mm)
200 × 330 × 2
Net Weight (kg)
420
516
560
Cable Port
Ø50 mm Standard / Ø50 mm or Ø80 mm Optional
Interface Port
RS-485C Standard / RS-232 Optional
Electrical Requirement (230V, 60Hz)
1Ph / 13.6A × 2
1Ph / 17.5A × 2
1Ph / 17.5A × 2
Catalog No. (230V, 60Hz)
AAHC6001K
AAHC6011K
AAHC6021K
Electrical Requirement (230V, 50Hz)
1Ph / 13.6A × 2
1Ph / 17.5A × 2
1Ph / 17.5A × 2
Catalog No. (230V, 50Hz)
AAHC6002K
AAHC6012K
AAHC6022K
Product Manual
User manual for Jeio Tech Floor Standing Temperature and Humidity Dual Chambers can be found here.
Video
Shipping
Free delivery (Contiguous United States Only)
Delivery ETA 3-7 business days
We also offer white glove engineer delivery with assembly and demonstration if required. Please contact us for a quote.
If you require faster shipping or shipping anywhere other than the contiguous United States, please contact us for a shipping quote.
Warranty
This product comes with a 2 year manufacturer's warranty.
