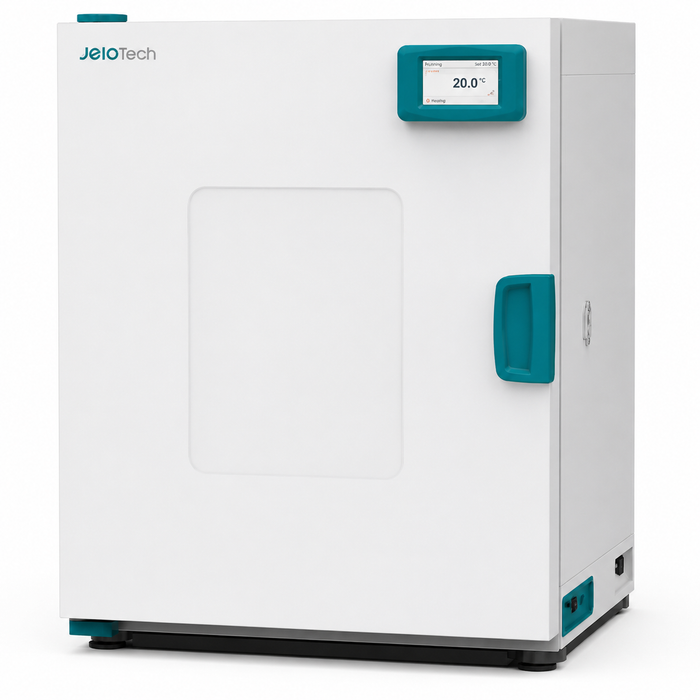

Jeio Tech | Forced Convection Incubator Advanced | Large Touch Controller with 5 Inch Display, Real Time Monitoring and Precision Temperature Control
The Jeio Tech Intuitive Large Touch Controller, available from Alto Med Supply, delivers advanced laboratory monitoring, precise temperature control, and user-friendly operation for incubators and laboratory ovens.
Designed with a large 5-inch touch display, the controller provides clear visibility of events, alerts, and real-time process graphs in a single screen for easier experiment management.
Frequently used temperature settings are automatically suggested, while the “Wait On / Wait Off” timer function helps improve laboratory workflow efficiency.
For reliable and flexible operation, the controller features Opti-flow™ fan speed control, allowing users to adjust airflow based on sample type and testing conditions.
This helps minimize media drying while maintaining stable temperature performance.
Optional double stacking capability also helps maximize valuable laboratory space for high-efficiency lab environments.
The Jeio Tech Intuitive Large Touch Controller supports real-time monitoring and remote supervision through optional Building Management System (BMS) connectivity and LC Green Box mobile monitoring.
Users can monitor and control equipment remotely, helping laboratories respond quickly to temperature abnormalities and maintain safe operating conditions.
Data management is simple and efficient with built-in RS-232 and USB connectivity for PC operation and data storage.
Test data can be automatically saved and exported in CSV format for easy editing and documentation.
The system also records up to 36 recent events, including errors and door openings, helping improve laboratory tracking and troubleshooting.
Optional LC Data Keeper integration supports 21 CFR Part 11 compliance for GMP-regulated environments and audit-ready data management.
Designed for dependable laboratory performance, the controller uses advanced 3-point calibration to maintain accurate temperature control across a wide operating range.
Ramp Control™ technology allows users to set customized temperature ramping rates for specific experiments, while optimized airflow technology delivers uniform heat distribution within ±0.41℃ at 37℃ for consistent and reliable incubation results.
Key Features
-
Touch Display: Easy operation.
-
Real-Time Graphs: Live status monitoring.
-
Temperature Presets: Saves common settings.
-
Built-In Timer: Supports automation.
-
Opti-Flow™: Optimizes airflow.
-
Stackable Design: Saves space.
-
Remote Monitoring: Optional mobile access.
-
USB & RS-232: Easy connectivity.
-
Data Export: Saves CSV files.
-
Event Log: Records activity.
-
3-Point Calibration: Improves accuracy.
-
Ramp Control™: Supports temperature profiling.
-
Uniform Heating: Ensures consistent results.
Specifications
| Specification |
IB4-03V |
IB4-05V |
IB4-10V |
IB4-15V |
| Capacity |
| Chamber Volume |
25 L (0.88 cu ft) |
60 L (2.12 cu ft) |
111 L (3.92 cu ft) |
146 L (5.16 cu ft) |
| Temperature Performance |
| Temperature Range |
Ambient +5°C to 80°C (Ambient +9°F to 176°F) |
| Temperature Fluctuation @ 37°C |
±0.10°C |
±0.15°C |
±0.10°C |
±0.10°C |
| Temperature Variation @ 37°C |
±0.23°C |
±0.41°C |
±0.39°C |
±0.35°C |
| Heating Time to 37°C |
5 min |
4 min |
8 min |
7 min |
| Recovery Time @ 37°C |
5 min |
4 min |
4 min |
3 min |
| Temp. Ramp Rate |
0–8.0 °C/min |
0–6.0 °C/min |
0–5.0 °C/min |
0–4.0 °C/min |
| Controls and Monitoring |
| Display |
5-Inch TFT Color LCD Touchscreen |
| Communication |
USB-B, RS-232 |
| Event Log |
36 Recent Events |
| Temperature Presets |
3 Frequently Used Settings |
| Graph Function |
Real-Time and Stored Graph Viewing |
| Data Export |
CSV Format via USB |
| Interior Dimensions (W × D × H) |
| Metric |
300 × 210 × 400 mm |
380 × 330 × 480 mm |
485 × 350 × 655 mm |
550 × 376 × 710 mm |
| Imperial |
11.81 × 8.27 × 15.75 in |
14.96 × 12.99 × 18.90 in |
19.10 × 13.78 × 25.79 in |
21.62 × 14.80 × 27.95 in |
| Exterior Dimensions (W × D × H) |
| Metric |
478 × 527 × 604 mm |
558 × 648 × 684 mm |
663 × 677 × 859 mm |
728 × 704 × 914 mm |
| Imperial |
18.80 × 20.75 × 23.78 in |
21.97 × 25.50 × 26.93 in |
26.10 × 26.65 × 33.82 in |
28.66 × 27.70 × 36.00 in |
| Shelving Capacity |
| Standard Shelves |
2 |
2 |
2 |
2 |
| Maximum Shelves |
4 |
5 |
8 |
9 |
| Max. Load per Shelf |
20 kg (44.09 lbs) |
| Weight |
| Net Weight |
32 kg (70.55 lbs) |
41 kg (90.39 lbs) |
56 kg (123.46 lbs) |
62 kg (136.69 lbs) |
| Electrical Requirements |
| 230V, 50/60Hz |
3.0 A |
| 120V, 60Hz |
5.8 A |
| Catalog Numbers |
| 230V |
AAH21655K |
AAH21665K |
AAH21675K |
AAH21685K |
| 120V |
AAH21653U |
AAH21663U |
AAH21673U |
AAH21683U |
Product Manual
User manual for Jeio Tech Forced Convection Incubator Advanced can be found here.
