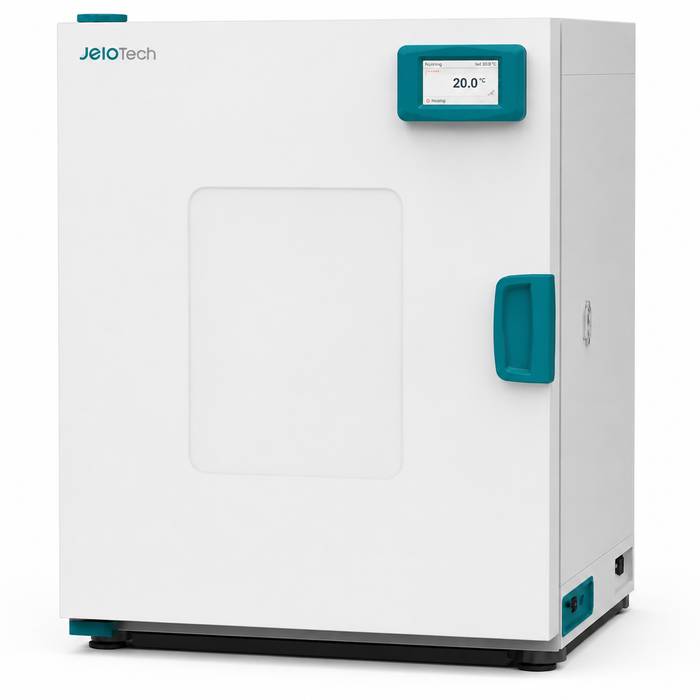

Jeio Tech | Forced Convection Incubator Standard | Intuitive Touch Controller with 3.5 Inch Display, Precise Temperature Control and Smart Laboratory Monitoring
The Jeio Tech Intuitive Touch Controller, available at Alto Med Supply, delivers reliable temperature control and user-friendly operation for laboratory incubators and ovens.
Designed with a clear 3.5-inch touch display, this advanced controller makes it easy to monitor settings, adjust temperatures, and manage experiments with precision.
The convenient “Wait On / Wait Off” timer function helps streamline laboratory workflows and supports efficient daily operation.
Built for accurate and stable performance, the system uses 3-point temperature calibration to maintain precise temperature control across a wide operating range.
Optimized airflow technology provides uniform heat distribution for consistent results, while customizable upper and lower temperature limits trigger alerts when deviations occur, helping protect valuable samples and experiments.
For improved data management and remote monitoring, the controller supports optional RS-232 and USB connectivity for PC operation and software integration.
Optional LC Green Box mobile monitoring allows users to check and control equipment remotely, while Building Management System (BMS) compatibility helps laboratories quickly respond to temperature abnormalities.
The optional LC Data Keeper system is compliant with 21 CFR Part 11 requirements, making it suitable for GMP-regulated environments and audit-ready documentation.
The Jeio Tech Intuitive Touch Controller also prioritizes laboratory safety and convenience.
It features an advanced overheating prevention system, Over Temperature Limiter protection, and compliance with IEC Class II and DIN 12880 Class 3.1 safety standards.
The controller stores the latest 12 operational events, including errors and run history, for easier tracking and troubleshooting.
Optional double stacking capability helps maximize laboratory space efficiency.
Additional features are designed to reduce incubation failure and improve experiment stability.
An optional water tray helps minimize media drying for longer incubation periods, while a door-open alarm helps maintain internal temperature stability.
In the event of a brief power interruption, the system automatically restores previous settings within 30 seconds. A controller lock function also helps prevent accidental setting changes during operation.
Key Features
-
Touch Display: Easy operation.
-
Built-In Timer: Supports automation.
-
3-Point Calibration: Improves accuracy.
-
Uniform Heating: Ensures consistent results.
-
Temperature Alerts: Detects abnormalities.
-
USB and RS-232: Optional connectivity.
-
Remote Monitoring: Optional mobile access.
-
Overheat Protection: Enhances safety.
-
Safety Certified: Meets IEC and DIN standards.
-
Event Log: Records activity.
-
Stackable Design: Saves space.
-
Water Tray Option: Reduces media drying.
-
Door Alarm: Alerts when left open.
-
Auto Recovery: Restarts after power loss.
-
Controller Lock: Prevents changes.
Specifications
| Specification |
IB4-03S |
IB4-05S |
IB4-10S |
IB4-15S |
| Capacity |
| Chamber Volume |
25 L (0.88 cu ft) |
60 L (2.19 cu ft) |
111 L (3.92 cu ft) |
146 L (5.16 cu ft) |
| Temperature Performance |
| Temperature Range |
Ambient +5°C to 80°C (Ambient +9°F to 176°F) |
| Fluctuation @ 37°C |
±0.10°C |
±0.15°C |
±0.10°C |
±0.10°C |
| Variation @ 37°C |
±0.23°C |
±0.41°C |
±0.39°C |
±0.35°C |
| Heating Time to 37°C |
5 min |
4 min |
8 min |
7 min |
| Recovery Time @ 37°C |
5 min |
4 min |
4 min |
3 min |
| Controls and Monitoring |
| Control Panel |
3.5-Inch TFT Color LCD |
| Communication |
USB-B, RS-232 (Optional) |
| Event History |
12 Recent Events |
| Interior Dimensions |
| Metric (W × D × H) |
300 × 210 × 400 mm |
380 × 330 × 480 mm |
485 × 350 × 655 mm |
550 × 376 × 710 mm |
| Imperial (W × D × H) |
11.81 × 8.27 × 15.75 in |
14.96 × 12.99 × 18.90 in |
19.10 × 13.78 × 25.79 in |
21.62 × 14.80 × 27.95 in |
| Exterior Dimensions |
| Metric (W × D × H) |
478 × 527 × 604 mm |
558 × 648 × 684 mm |
663 × 677 × 859 mm |
728 × 704 × 914 mm |
| Imperial (W × D × H) |
18.80 × 20.75 × 23.78 in |
21.97 × 25.50 × 26.93 in |
26.10 × 26.65 × 33.82 in |
28.66 × 27.70 × 36.00 in |
| Shelving |
| Standard Shelves |
2 |
2 |
2 |
2 |
| Maximum Shelves |
4 |
5 |
8 |
9 |
| Max. Load per Shelf |
20 kg (44.09 lbs) |
| Weight |
| Net Weight |
32 kg (70.55 lbs) |
41 kg (90.39 lbs) |
56 kg (123.46 lbs) |
62 kg (136.69 lbs) |
| Electrical Requirements |
| 230V, 50/60Hz |
3.0 A |
| 120V, 60Hz |
5.8 A |
| Catalog Numbers |
| 230V Models |
AAH21455K |
AAH21465K |
AAH21475K |
AAH21485K |
| 120V Models |
AAH21453U |
AAH21463U |
AAH21473U |
AAH21483U |
Product Manual
User manual for Jeio Tech Forced Convection Incubator Standard can be found here.
