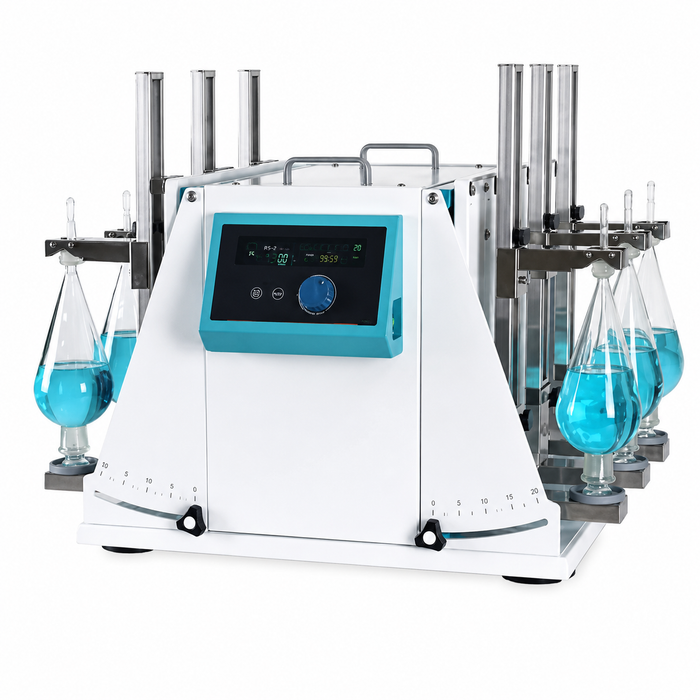

Jeio Tech | Funnel Shaker | Vertical Reciprocating Funnel Shaker with Adjustable Tilt, BLDC Motor and High Efficiency Laboratory Sample Mixing
The Jeio Tech vertical reciprocating funnel shaker, available at Alto Med Supply, is designed to deliver efficient and reliable sample mixing for laboratory and research applications.

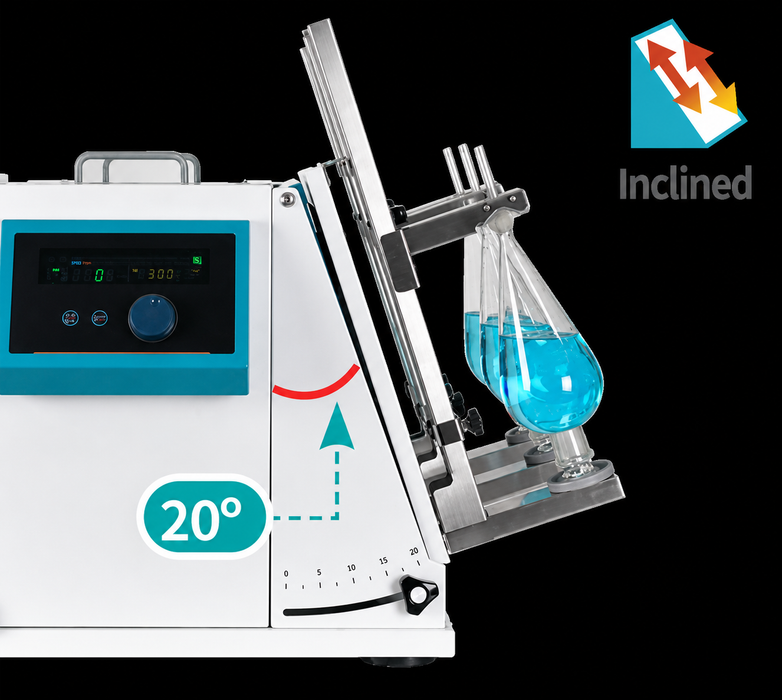

Featuring double-sided vertical reciprocation and an adjustable tilt angle up to 20°, this advanced laboratory shaker helps improve mixing performance while maintaining stable operation.

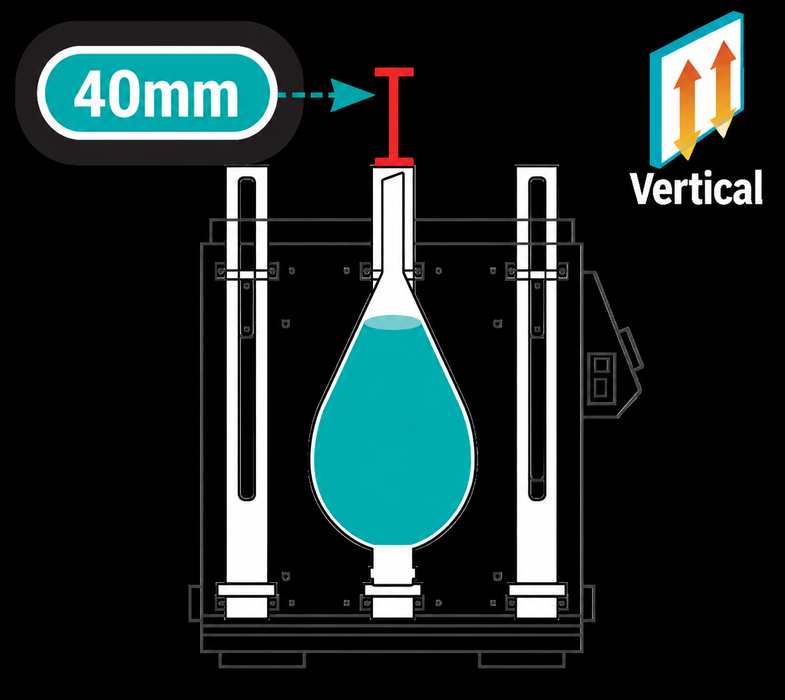

With a maximum speed of 300 rpm and a 40 mm stroke length, it provides effective agitation for a wide range of sample preparation tasks.
Built with a durable BLDC motor, this funnel shaker offers lower noise levels, improved stability, and longer service life compared to traditional DC motor systems.
The adjustable tilt function allows users to optimize mixing efficiency even at lower speeds, making it suitable for sensitive laboratory procedures and funnel-based sample mixing applications.
The system supports simultaneous mixing of multiple funnels, including up to four 2L funnels, six 0.5L to 1L funnels, or up to ten funnels smaller than 500 ml.
It is compatible with both cone-shaped and cylindrical funnels, offering flexibility for different laboratory workflows.

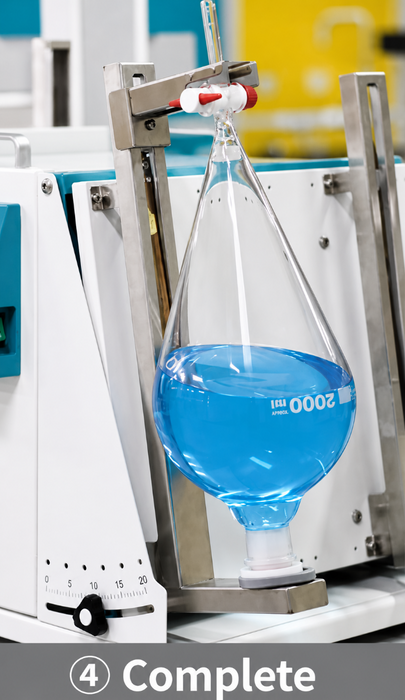

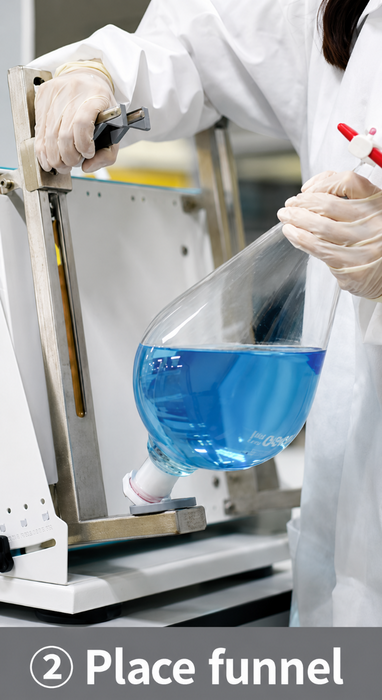

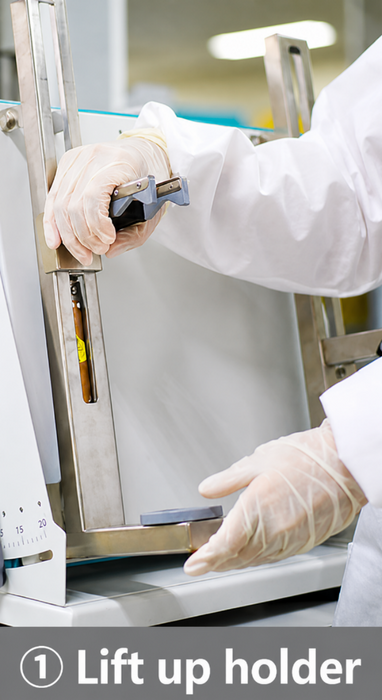

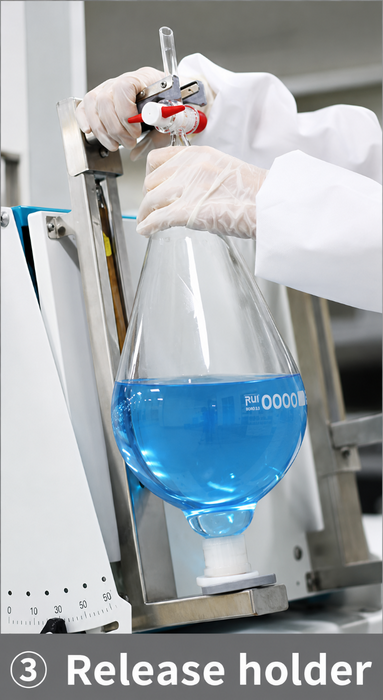

The one-touch installation mechanism allows quick and convenient loading and removal of funnels, while the balanced center-of-gravity design helps minimize vibration during operation, even during high-speed or tilted mixing.
For added convenience, the shaker includes an angled controller with a clear display panel for easy viewing and operation.
Built-in safety features such as overcurrent protection, automatic restart after power recovery, error alarms, and status indicators help protect both the user and the experiment.
The optional LC Connected mobile monitoring system allows real-time monitoring and control for improved experiment planning and workflow management.
Designed for demanding laboratory environments, the Jeio Tech funnel shaker combines high-capacity sample mixing, stable performance, and user-friendly operation in one dependable laboratory mixing solution.
Key Features
-
Double-Sided Mixing: Provides uniform sample agitation.
-
Adjustable Tilt: Improves mixing performance.
-
BLDC Motor: Delivers quiet and stable operation.
-
Funnel Compatible: Supports various funnel sizes.
-
One-Touch Installation: Enables quick funnel setup.
-
Low-Vibration Design: Enhances operating stability.
-
High Capacity: Mixes multiple samples at once.
-
Expandable Holders: Supports up to 10 holders.
-
Angled Controller: Improves visibility and control.
-
Safety Protection: Includes overcurrent and alarm functions.
-
Remote Monitoring: Optional real-time system monitoring.
-
Programmable Timer: Supports extended operation.
-
Included Holders: Comes with 4 funnel holders.
Specifications
| RS-2 Reciprocating Shaker Specifications |
| Performance |
| Motion Type |
Vertical & Inclined Reciprocating (0° – 20°) |
| Speed Range |
Vertical: 30 – 300 rpm
Inclined: 30 – 250 rpm |
| Speed Accuracy |
±1 rpm (at 100 rpm) |
| Timer |
Up to 999 hr. 59 min. |
| Dimensions & Capacity |
| Exterior Dimensions (W × D × H) |
600 × 460 × 470 mm |
| Required Space (20° Tilt) |
900 × 460 × 670 mm |
| Maximum Load Per Side |
5 kg |
| Net Weight |
52 kg |
| Electrical Information |
| Power Supply |
AC 100–240V, 50/60Hz |
| Current |
0.88 A (Max.) |
| Ordering Information |
| KR Plug Cat. No. |
AAH32025K |
| US Plug Cat. No. |
AAH32023U |
Product Manual
User manual for Jeio Tech Funnel Shaker can be found here.
