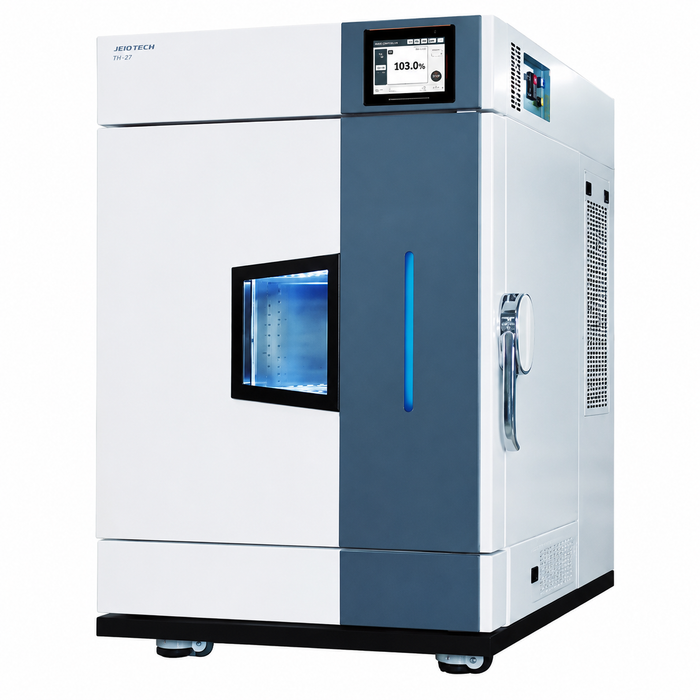

Jeio Tech | Heating and Cooling Chamber Tabletop Type | Compact Temperature and Humidity with PID Control, Touch Display and GMP Ready Monitoring
The Jeio Tech Heating and Cooling Chamber Tabletop Type is designed for reliable environmental testing in laboratories, research facilities, pharmaceutical applications, and industrial quality control environments.
Available in two models, the TC3-KE with a temperature range of -40°C to 100°C and the TC3-ME with a range of -20°C to 100°C, this compact chamber allows users to select the ideal configuration based on their testing requirements.
Alto Med Supply proudly offers this advanced Jeio Tech | Heating and Cooling Chamber Tabletop Type as part of our extensive selection of high-quality laboratory equipment from trusted brands.
Built with a space-saving design, this compact temperature and humidity chamber delivers excellent performance while minimizing installation space.
Its advanced structural design provides reliable temperature and humidity reproducibility, even during repeated testing cycles.
The chamber features excellent thermal insulation, a double-sealed airtight door structure, and a corrosion-resistant stainless steel interior for dependable operation and easy maintenance.
The chamber is equipped with a user-friendly 5.6-inch color touch display controller that allows simple operation and precise monitoring.

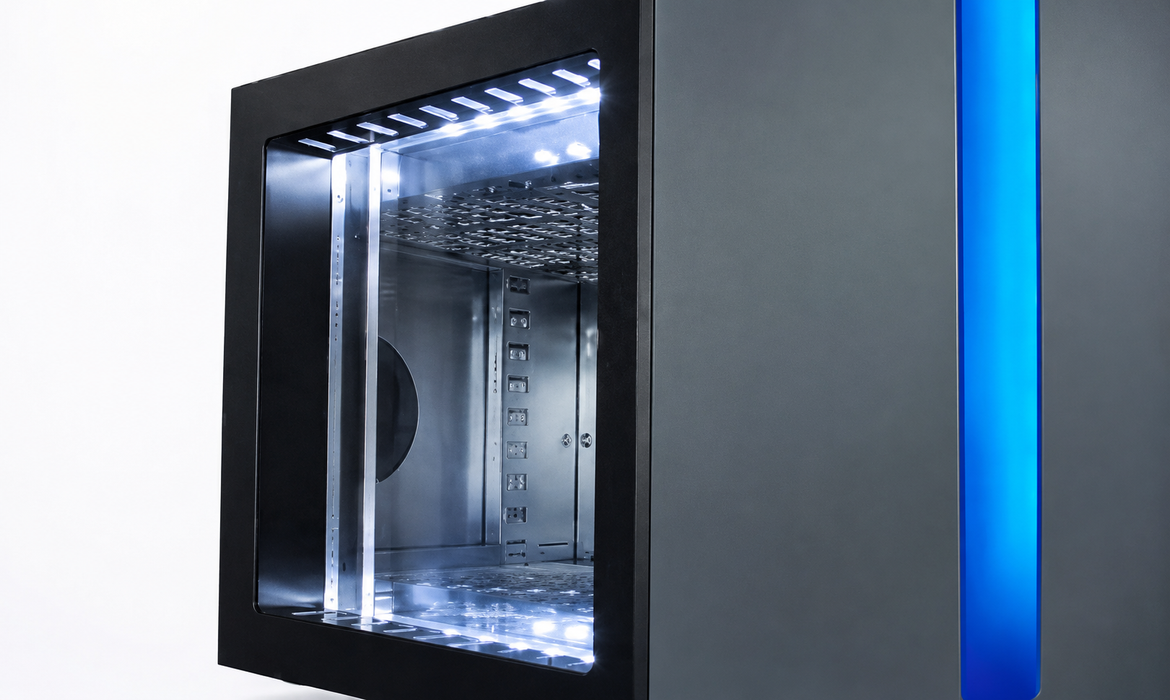

A tempered glass door with a built-in heating wire and LED lamp makes sample observation easy during testing.

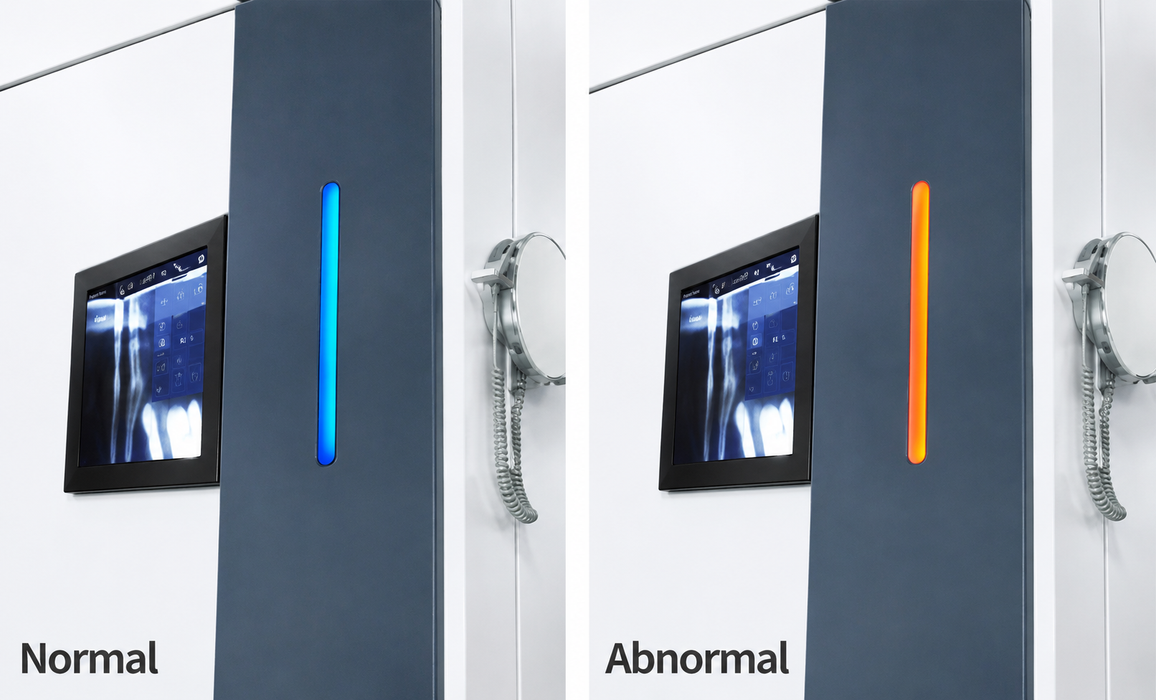

LED status indicators provide clear visibility of the chamber’s operating condition from a distance.

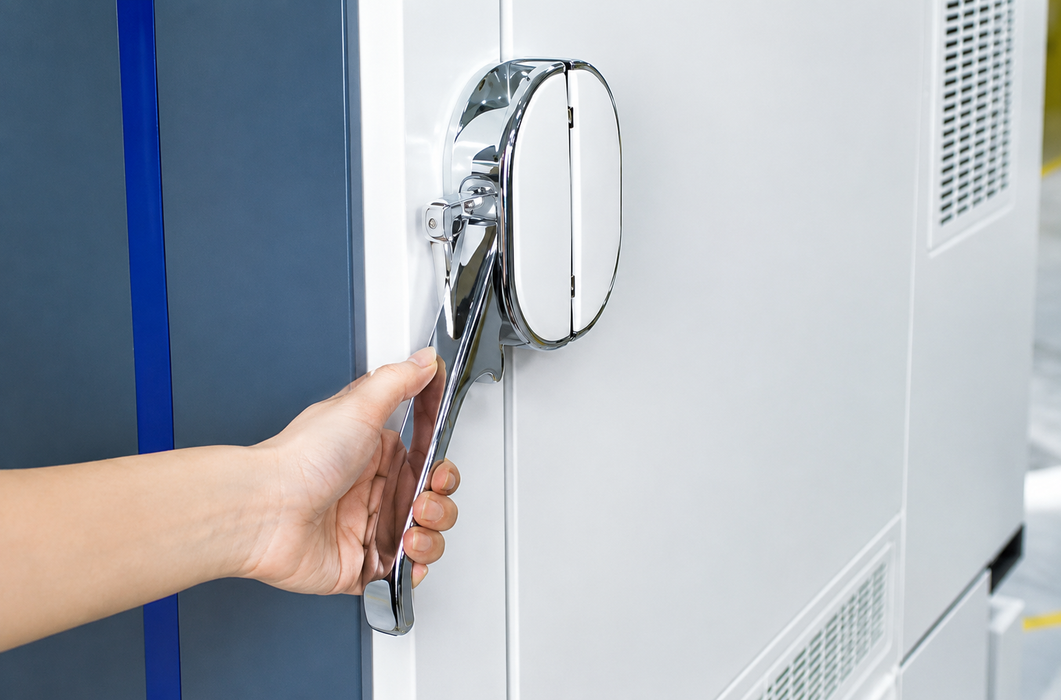

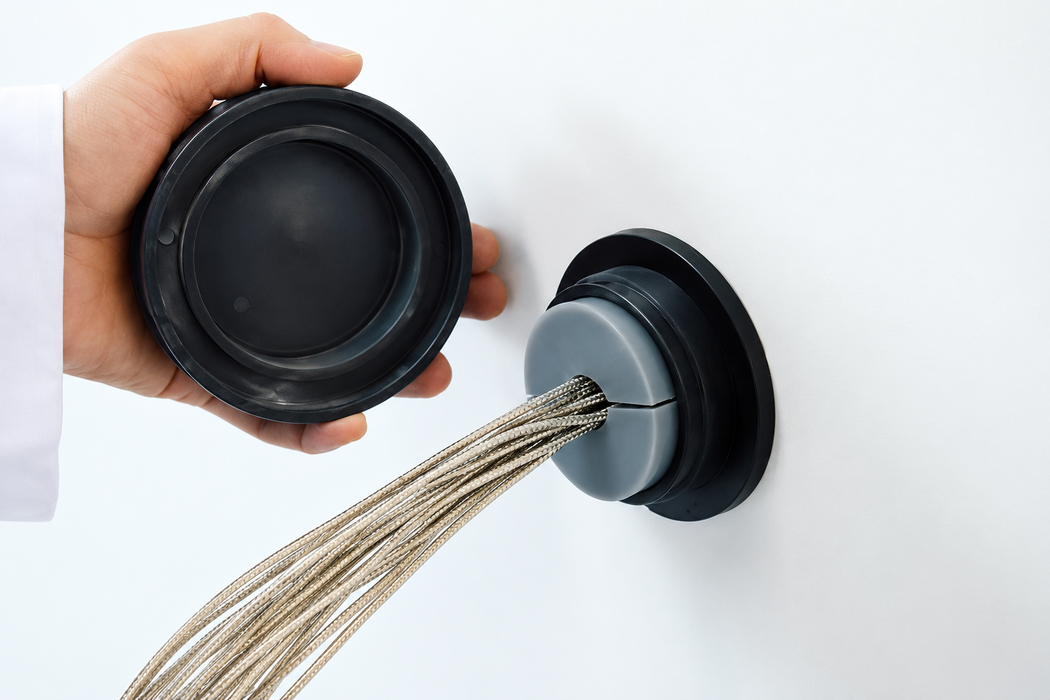

Additional convenience features include a standard ø50 mm cable port for connecting external equipment, built-in key lock door handle, easy-open door structure, removable condenser grill for simple cleaning, and caster wheels for easy movement and installation.
For advanced monitoring and data management, the Jeio Tech Heating and Cooling Chamber Tabletop Type supports RS-232 communication as standard and optional RS-485 connectivity for connecting up to 32 devices to a PC simultaneously.
The system uses auto-tuning subdivided PID zone control for highly stable and accurate temperature management.
Optional LC Connected mobile monitoring and 21 CFR Part 11 compliant LC Data Keeper integration make this chamber suitable for GMP environments and regulated laboratory applications.
The programmable control system supports up to 100 patterns, 100 segments per pattern, 999 repeat cycles, and a maximum of 2,000 available segments.
Users can conveniently monitor operation data with built-in graph displays for improved process management and testing accuracy.
Key Features
-
Wide Temperature Range: Supports -40°C to 100°C or -20°C to 100°C.
-
Compact Design: Maximizes laboratory space.
-
PID Control: Accurate and stable temperature management.
-
Touchscreen Display: Easy operation and monitoring.
-
Stainless Steel Interior: Durable and easy to clean.
-
Programmable Testing: Supports automated test cycles.
-
Safety Protection: Includes overheat, overload, and door-open alarms.
-
RS-232/RS-485 Connectivity: Supports system integration and monitoring.
-
Remote Monitoring: Optional mobile access and data management.
-
Caster Wheels: Easy to move and install.
Specifications
Performance
| Specification |
TC3-ME-025 |
TC3-ME-065 |
TC3-ME-100 |
| Temperature Range |
-20°C To 100°C (-4°F To 212°F) |
-20°C To 100°C (-4°F To 212°F) |
-20°C To 100°C (-4°F To 212°F) |
| Temperature Fluctuation |
±0.3°C (±0.54°F) |
±0.3°C (±0.54°F) |
±0.3°C (±0.54°F) |
| Temperature Variation |
±0.5°C (±0.9°F) |
±0.5°C (±0.9°F) |
±0.5°C (±0.9°F) |
| Heating Time |
50 Minutes |
50 Minutes |
50 Minutes |
| Cooling Time |
55 Minutes |
55 Minutes |
55 Minutes |
Chamber Capacity and Dimensions
| Specification |
TC3-ME-025 |
TC3-ME-065 |
TC3-ME-100 |
| Chamber Volume |
25 L (0.88 Cu. Ft.) |
65 L (2.30 Cu. Ft.) |
100 L (3.53 Cu. Ft.) |
| Interior Dimensions (W × D × H) |
350 × 220 × 350 mm 13.8 × 8.7 × 13.8 in |
400 × 330 × 495 mm 15.7 × 13.0 × 19.5 in |
500 × 380 × 530 mm 19.7 × 15.0 × 20.9 in |
| Net Weight |
80 kg (176.4 lbs.) |
110 kg (242.5 lbs.) |
130 kg (286.6 lbs.) |
Shelving and Load Capacity
| Specification |
TC3-ME-025 |
TC3-ME-065 |
TC3-ME-100 |
| Wire Shelves (Std./Max.) |
2 / 7 |
2 / 10 |
2 / 10 |
| Shelf Spacing |
20 mm (0.8 in) |
20 mm (0.8 in) |
20 mm (0.8 in) |
| Max. Shelf Load |
25 kg (55.1 lbs.) |
25 kg (55.1 lbs.) |
25 kg (55.1 lbs.) |
| Total Load Capacity |
65 kg (143.3 lbs.) |
65 kg (143.3 lbs.) |
65 kg (143.3 lbs.) |
| Cable Port |
Ø50 mm (2 in) |
Ø50 mm (2 in) |
Ø50 mm (2 in) |
Electrical Requirements
| Model |
Power Requirement |
| TC3-ME-025 |
AC230V, 1Ph, 50/60Hz, 5.5A |
| TC3-ME-065 |
AC230V, 1Ph, 50/60Hz, 6.5A |
| TC3-ME-100 |
AC230V, 1Ph, 50/60Hz, 8.6A |
Overall Dimensions
| Dimension |
TC3-ME-025 |
TC3-ME-065 |
TC3-ME-100 |
| Width (W) |
550 mm (21.7 in) |
600 mm (23.6 in) |
700 mm (27.6 in) |
| Depth (D) |
880 mm (34.6 in) |
1050 mm (41.3 in) |
1110 mm (43.7 in) |
| Height (H) |
915 mm (36.0 in) |
1060 mm (41.7 in) |
1100 mm (43.3 in) |
| A |
211 mm (8.3 in) |
276 mm (10.9 in) |
276 mm (10.9 in) |
| B |
495 mm (19.5 in) |
580 mm (22.8 in) |
580 mm (22.8 in) |
| E |
170 mm (6.7 in) |
170 mm (6.7 in) |
170 mm (6.7 in) |
| F |
229 mm (9.0 in) |
229 mm (9.0 in) |
229 mm (9.0 in) |
* The above specifications are tested according to DIN 12880 and IEC 60068 standards.
* Permissible environmental conditions are 18 - 30°C (recommended 20°C), 85% RH or less, under 2000m above sea level.
1) The set value is set under the conditions of 100°C.
2) The set value is set under the conditions of 25°C.
3) TC3-KE : -40℃ to 100℃(-40℉ to 212℉), TC3-ME : -20℃ to 100℃(-4℉ to 212℉)
4) TC3-KE : 20℃ to -40℃(68℉ to -40℉), TC3-ME : 20℃ to -20℃(68℉ to -4℉)
Product Manual
User manual for Jeio Tech Heating Cooling Chamber Tabletop Type can be found here.
