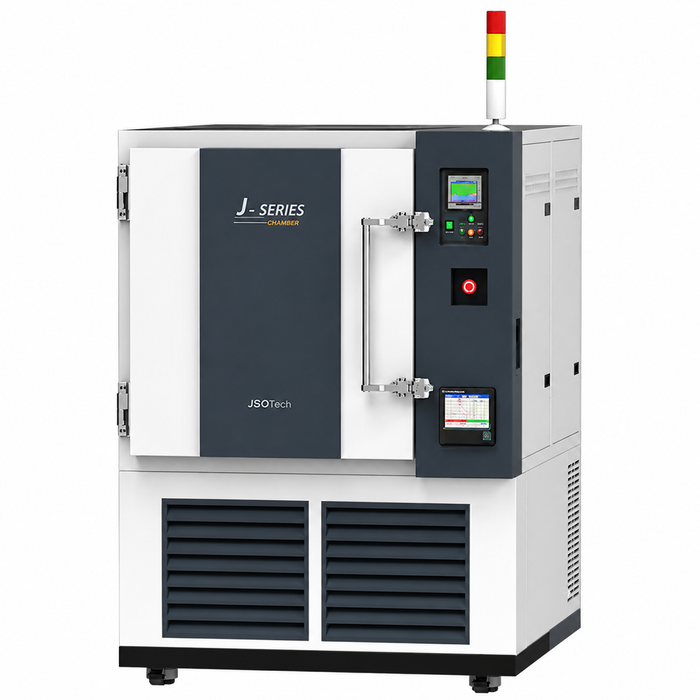

Jeio Tech | Heating and Cooling Chambers JMV Series | Industrial High Temp Drying Oven with PID Control, Stainless Steel, Advanced Programmable System
The Jeio Tech Heating and Cooling Chambers JMV is designed for reliable heat treatment, drying, and laboratory testing applications in research laboratories, pharmaceutical facilities, industrial environments, and quality control operations.
Built according to DIN 12880 and IEC 60068-3-5 standards, this advanced laboratory oven delivers precise temperature performance, dependable operation, and enhanced safety for demanding thermal processing applications.
Alto Med Supply proudly offers this professional drying oven as part of our wide selection of premium laboratory equipment from trusted manufacturers.
This high-performance drying oven uses advanced microprocessor PID control with automatic tuning and temperature calibration to provide accurate and stable temperature control during operation.
The oven is designed for both durability and operator safety. Even when operating at maximum temperatures, the exterior surface remains below 51°C according to DIN EN 563 standards.
The heavy-duty chamber door is engineered for long-term reliability and tested under high-load conditions to ensure dependable performance in busy laboratory and industrial environments.
Safety features are integrated throughout the system to protect users and equipment.
The Jeio Tech Heating and Cooling Chambers JMV includes over-temperature protection, over-current.
Current leakage protection with ELCB, independent safety fuses, reverse-phase protection, motor overload protection, and automatic shut-off functions.
Additional safety systems include open door warnings, automatic heater and fan shutdown when the door is opened, electric panel access protection, and a built-in key lock for secure operation.
The corrosion-resistant stainless steel inner chamber offers excellent durability, easy cleaning, and resistance to harsh laboratory conditions.
Its space-efficient design allows convenient sample loading and includes two standard shelves, with optional heavy-duty shelves available for loads up to 40 kg.

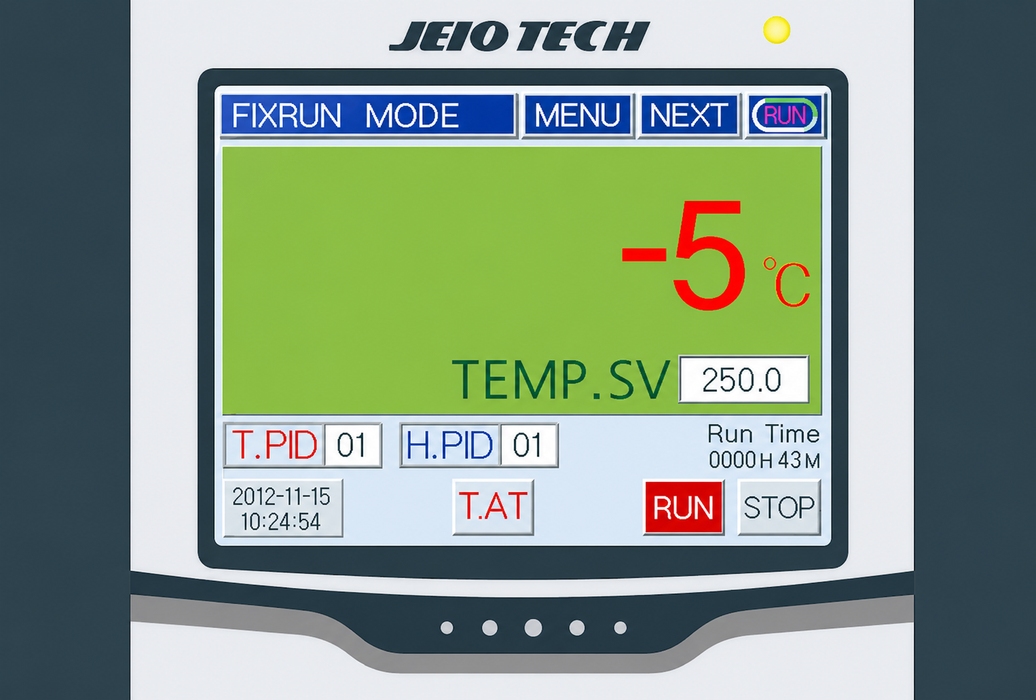

A colorful touch-type LCD controller provides simple and user-friendly operation. Users can easily monitor set temperatures, current temperatures, and operating conditions on the display.
The programmable controller supports automatic start and stop functions, graph display mode for process monitoring, and multi-language support in English, Chinese, and Korean.
Optional six-channel digital recording is also available for temperature and operational data tracking.
For advanced connectivity and process management, the oven includes a standard RS-232 communication port and optional RS-485 communication that allows simultaneous monitoring and operation of up to 32 units.
The included software supports real-time monitoring, graph analysis, program setup, data storage, backup and recovery functions, and exporting data in Excel or text formats for documentation and reporting.
The programmable control system supports up to 100 programmable patterns, 999 pattern repeat cycles, 255 part repeat cycles, and a maximum of 2,000 programmable segments.
Each segment can be programmed from 0 to 99 hours and 59 minutes, providing flexible process control for a wide range of laboratory heating, drying, and thermal treatment applications.
Key Features
-
PID Temperature Control: Accurate and stable heating performance.
-
Heat Treatment and Drying: Ideal for laboratory and industrial applications.
-
High-Efficiency Insulation: Reduces heat loss and improves stability.
-
Stainless Steel Chamber: Durable, corrosion-resistant, and easy to clean.
-
Touch LCD Controller: Simple operation and real-time monitoring.
-
Programmable Operation: Supports automated testing processes.
-
Safety Protection: Includes overheat, overload, and leakage protection.
-
Data Connectivity: Supports RS-232 and optional RS-485 communication.
-
Monitoring and Export: Enables data logging and report generation.
-
High Program Capacity: Supports up to 100 patterns and 2,000 segments.
Specifications
| Performance Specifications |
| Model |
JMV-025 |
JMV-040 |
JMV-070 |
JMV-100 |
| Temperature Range |
-35°C To 180°C (-31°F To 356°F) |
| Temperature Fluctuation |
±0.3–0.6°C |
±0.2–0.4°C |
±0.2–0.4°C |
±0.2–0.5°C |
| Temperature Gradient |
±0.6–1.4°C |
±0.3–1.5°C |
±0.7–1.1°C |
±0.6–1.3°C |
| Heating Performance (Minutes) |
| Temperature Change |
JMV-025 |
JMV-040 |
JMV-070 |
JMV-100 |
| -40°C → 25°C |
30 |
31 |
20 |
21 |
| 25°C → 100°C |
28 |
21 |
26 |
25 |
| 25°C → 150°C |
50 |
39 |
39 |
51 |
| 25°C → 180°C |
56 |
63 |
46 |
56 |
| -40°C → 180°C |
61 |
81 |
62 |
73 |
| Cooling Performance (Minutes) |
| Temperature Change |
JMV-025 |
JMV-040 |
JMV-070 |
JMV-100 |
| 25°C → -40°C |
37 |
29 |
28 |
46 |
| 25°C → -25°C |
22 |
20 |
22 |
24 |
| 25°C → -10°C |
18 |
17 |
19 |
17 |
| 100°C → 25°C |
30 |
26 |
34 |
31 |
| 180°C → -40°C |
172 |
198 |
192 |
297 |
| Recovery Time After 30-Second Door Opening (Minutes) |
| Temperature |
JMV-025 |
JMV-040 |
JMV-070 |
JMV-100 |
| -40°C |
6 |
6 |
6.5 |
9 |
| 25°C |
5.5 |
4.5 |
2 |
7 |
| 100°C |
5.5 |
4.5 |
6 |
5.5 |
| 180°C |
6.5 |
6.5 |
8 |
4 |
| Electrical & Ordering Information |
| Model |
Electrical Requirement |
Catalog No. |
| JMV-025 (230V, 60Hz, 1Ph) |
26A |
AAHKB021K |
| JMV-025 (230V, 50Hz, 1Ph) |
26A |
AAHKB025K |
| JMV-040 (380V, 50/60Hz, 3Ph) |
12.5A |
AAHKB030K |
| JMV-070 (380V, 50/60Hz, 3Ph) |
19.6A |
AAHKB040K |
| JMV-100 (380V, 50/60Hz, 3Ph) |
19.6A |
AAHKB050K |
* Even though the max. segments per pattern are 100, the total available segments are up to 6000 not 10000, therefore arrangement of the number of segment and patterns will need to be done properly.
Product Manual
User manual for Jeio Tech Heating and Cooling Chambers JMV Series can be found here.
Shipping
- Free delivery (Contiguous United States Only)
-
Delivery ETA 3-7 business days
- We also offer white glove engineer delivery with assembly and demonstration if required. Please contact us for a quote.
-
If you require faster shipping or shipping anywhere other than the contiguous United States, please contact us for a shipping quote.
Warranty
This product comes with a 2 year manufacturer's warranty.
