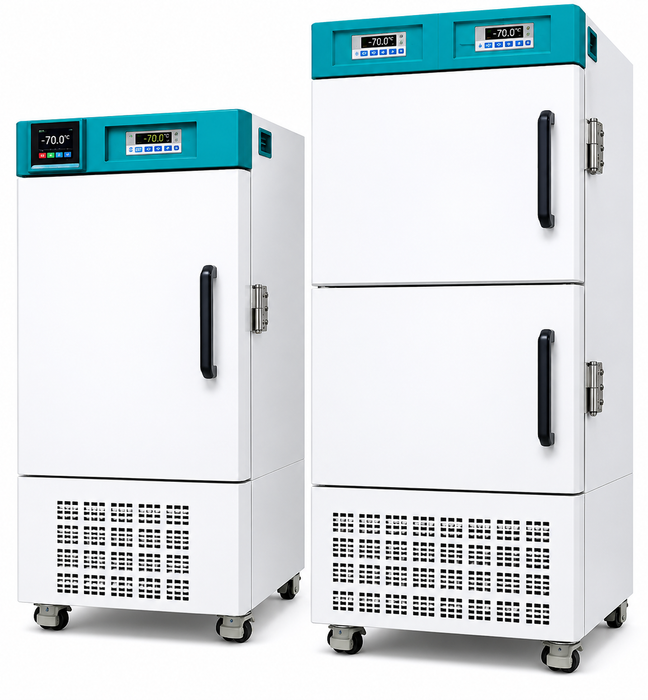

Jeio Tech | Heating and Cooling Chambers LCH G Series | Dual Chamber Heating and Cooling Incubator With PID Temperature Control and Forced Air Convection
At Alto Med Supply, we offer high-performance Jeio Tech Heating and Cooling Chambers LCH-G Series incubators designed for accurate temperature control, reliable chamber uniformity, and efficient laboratory operation.
These programmable laboratory chambers are ideal for research, testing, sample storage, and temperature-sensitive applications that require stable environmental conditions.
The advanced microprocessor PID control system provides precise temperature management with automatic tuning and temperature calibration for dependable performance.
An adjustable three-step fan speed system with defrost timing control helps optimize airflow and chamber efficiency.
The forced air convection system uses a cross flow fan to maintain uniform chamber temperatures, improving consistency for laboratory testing and incubation processes.
The optimized insulation system also improves energy efficiency while keeping the outer surface temperature below 60℃ for safer daily operation.
Designed for convenience and space efficiency, these laboratory incubators combine two independently controlled chambers into one compact unit, allowing users to operate separate temperature settings simultaneously.
The bright LED display with 0.1℃ resolution and touch-sensitive keypad provides easy operation and clear monitoring of chamber conditions.
These heating and cooling chambers support programmable operation with up to 9 temperature steps and 200 repeat cycles per profile, making them suitable for automated laboratory workflows.
Dual wait on/off timer modes provide flexible scheduling from 1 minute to 99 hours and 59 minutes.
Three preset temperature settings allow quick access to frequently used programs for improved productivity.
Additional convenience features include an integrated 80mm cable port for connecting external instruments inside the chamber and an RS-232 interface for external control and data collection.
For laboratory safety, the system includes automatic shut-off during overheat conditions, power leakage breaker protection, over-current protection.
Open door alarm to help protect users, samples, and equipment during operation.
Key Features
-
PID Temperature Control: Ensures accurate and stable temperature management.
-
Automatic Calibration: Enhances temperature accuracy and consistency.
-
Forced Air Convection: Provides uniform temperature distribution.
-
Adjustable Fan Speed: Optimizes airflow for reliable performance.
-
Dual Chamber Design: Two independently controlled chambers save space.
-
Energy-Efficient Insulation: Reduces heat loss and operating costs.
-
LED Touch Controller: Bright display with precise temperature control.
-
Programmable Operation: Supports timers, presets, and multi-step profiles.
-
Integrated Cable Port: Allows connection of external devices.
-
RS-232 Connectivity: Supports data logging and device communication.
-
Overheat Protection: Automatically shuts down during overheating.
-
Leakage Breaker: Protects against electrical faults.
-
Overcurrent Protection: Prevents equipment damage.
-
Open Door Alarm: Alerts users when the door is left open.
Specifications
| General Specifications |
| Temperature Range |
0°C to 100°C (32°F to 212°F) |
| Temperature Fluctuation |
±0.3°C (±0.54°F) |
| Temperature Variation at 80°C |
±0.8°C (±1.44°F) |
| Heating Time |
80 Minutes (20°C to 100°C) |
| Cooling Time |
60 Minutes (100°C to 40°C) |
| Shelf Distance |
30 mm (1.2 in) |
| Cable Port |
Ø80 mm (Ø3.15 in) |
| Interface Port |
RS-232C |
| Model |
LCH-11G |
LCH-21G |
LCH-31G |
LCH-11G-2C |
| Chamber Volume (L / cu ft) |
150 / 5.3 |
255 / 9.0 |
485 / 17.1 |
150 / 5.3 × 2 |
| Wire Shelves (Std. / Max.) |
2 / 12 |
2 / 24 |
2 / 29 |
2 / 12 Per Chamber |
| Max. Shelf Load (kg / lbs.) |
15 / 33.1 |
20 / 44.1 |
20 / 44.1 |
15 / 33.1 |
| Total Load Capacity (kg / lbs.) |
50 / 110.2 |
70 / 154.3 |
70 / 154.3 |
50 / 110.2 Per Chamber |
| Interior Dimensions (W × D × H mm) |
600 × 500 × 500 |
600 × 500 × 850 |
700 × 680 × 1020 |
600 × 500 × 500 |
| Exterior Dimensions (W × D × H mm) |
740 × 1032 × 1280 |
740 × 1032 × 1630 |
840 × 1212 × 1800 |
740 × 1032 × 1900 |
| Net Weight (kg / lbs.) |
120 / 264.6 |
180 / 396.8 |
220 / 485.0 |
190 / 418.9 |
| Electrical (230V, 60Hz) |
7.1A |
10.6A |
13.8A |
14.2A |
| Electrical (230V, 50Hz) |
7.4A |
11.1A |
14.4A |
14.8A |
| Electrical (120V, 60Hz) |
13A |
— |
— |
26A |
| Catalog No. (230V, 60Hz) |
AAHK6121K |
AAHK6221K |
AAHK6321K |
AAHK6421K |
| Catalog No. (230V, 50Hz) |
AAHK6122K |
AAHK6222K |
AAHK6322K |
AAHK6422K |
| Catalog No. (120V, 60Hz) |
AAHK6123U |
— |
— |
AAHK6423U |
Product Manual
User manual for Jeio Tech Heating and Cooling Chambers LCH G Series can be found here.
