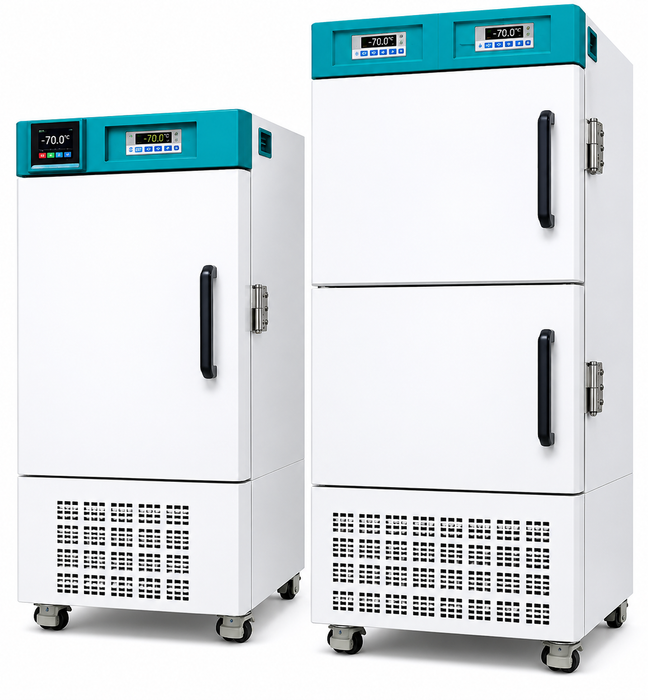

Jeio Tech | Heating and Cooling Chambers LCH Series | Dual Chamber Heating and Cooling Incubator Programmable Operation
At Alto Med Supply, we offer Jeio Tech Heating and Cooling Chambers LCH Series engineered for precise temperature control, energy efficiency, and dependable laboratory performance.
These programmable chambers are ideal for research, testing, incubation, and sample storage applications that require stable and uniform temperature conditions.
The advanced microprocessor PID control system delivers accurate temperature regulation with automatic tuning and calibration for reliable operation.
Forced air convection technology and adjustable fan speeds help maintain excellent temperature uniformity throughout each chamber, ensuring consistent results across a wide range of laboratory applications.
Designed to maximize workspace efficiency, the dual-chamber configuration allows two independently controlled chambers to operate simultaneously with different temperature settings while occupying minimal floor space.
High-performance insulation improves energy efficiency and helps maintain safe exterior surface temperatures during operation.
For added convenience, the chambers feature a bright LED display with 0.1℃ resolution, a touch-sensitive keypad, programmable temperature profiles, preset settings, and timer functions that support automated testing workflows.
An integrated cable port allows easy use of external instruments inside the chamber, while the RS-232 communication interface enables external control, monitoring, and data collection.
Key Features
-
PID Temperature Control: Accurate and stable temperature management.
-
Forced Air Convection: Ensures uniform chamber temperatures.
-
Dual Chamber Design: Two independent chambers in one unit.
-
Energy-Efficient Design: Reduces heat loss and power consumption.
-
LED Touch Controller: Easy operation and monitoring.
-
Programmable Operation: Supports timers and multi-step profiles.
-
Cable Port: Connects external instruments easily.
-
RS-232 Connectivity: Supports device communication and data logging.
-
Safety Protection: Includes overheat, leakage, and overcurrent protection.
-
Open Door Alarm: Alerts users when the door is left open.
Specifications
| Performance Specifications |
| Temperature Range |
-20°C to 100°C (-4°F to 212°F) |
| Temperature Fluctuation |
±0.3°C (±0.54°F) |
| Temperature Variation @ 80°C |
±0.8°C (±1.44°F) |
| Heating Time |
80 min (20°C to 100°C) |
| Cooling Time |
60 min (100°C to 40°C) |
| Shelf Spacing |
30 mm (1.2 in) |
| Cable Port |
Ø80 mm (Ø3.15 in) |
| Interface Port |
RS-232C |
| Model |
LCH-11 |
LCH-21 |
LCH-31 |
LCH-11-2C |
| Chamber Volume (L / cu ft) |
150 / 5.3 |
255 / 9.0 |
485 / 17.1 |
150 / 5.3 × 2 |
| Wire Shelves (Std. / Max.) |
2 / 12 |
2 / 24 |
2 / 29 |
2 / 12 Per Chamber |
| Max. Shelf Load (kg) |
15 |
20 |
20 |
15 |
| Total Load Capacity (kg) |
50 |
70 |
70 |
50 Per Chamber |
| Interior Dimensions (W × D × H mm) |
600 × 500 × 500 |
600 × 500 × 850 |
700 × 680 × 1020 |
600 × 500 × 500 |
| Exterior Dimensions (W × D × H mm) |
794 × 1070 × 1280 |
794 × 1070 × 1630 |
894 × 1250 × 1800 |
794 × 1070 × 1900 |
| Net Weight (kg) |
125 |
185 |
225 |
195 |
| Electrical & Ordering Information |
LCH-11 |
LCH-21 |
LCH-31 |
LCH-11-2C |
| 230V, 60Hz |
6.3A AAHK6111K |
9.2A AAHK6211K |
11.1A AAHK6311K |
12.6A AAHK6411K |
| 230V, 50Hz |
6.6A AAHK6112K |
9.6A AAHK6212K |
11.6A AAHK6312K |
13.2A AAHK6412K |
| 120V, 60Hz |
11.6A AAHK6113U |
— |
— |
23.2A AAHK6413U |
