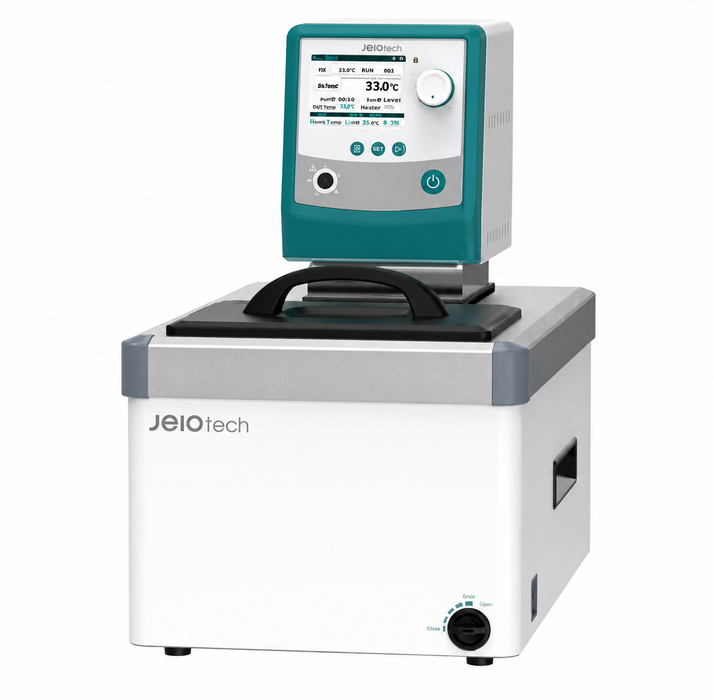

Jeio Tech | Heating Bath Circulator Programmable

Jeio Tech | Heating Bath Circulator Programmable | With Touch LCD Controller, PID Temperature Control and and USB Connectivity

The Jeio Tech Heating Bath Circulator Programmable available at Alto Med Supply, is designed for laboratories that require precise temperature control, advanced programming functions, and reliable circulation performance.

This high-performance laboratory bath features intelligent program control that allows users to create up to 10 temperature programs with ramp and dwell settings for automated operation.

Each program supports up to 10 steps with adjustable run times up to 99 hours and 59 minutes per step, making it ideal for demanding research, testing, and laboratory heating applications.

Stored programs can also be linked and repeated for up to 99 cycles to improve workflow efficiency.

Built with advanced microprocessor PID control technology, this heating bath circulator delivers stable and accurate temperature management from ambient +10°C to 150°C.

The system includes three-point temperature calibration, automatic tuning, and automatic run functions for reliable performance across a wide range of laboratory processes.

A powerful variable-speed pump provides efficient internal and external circulation with adjustable pump settings for optimized flow and pressure throughout the entire temperature range.

The intuitive touch screen LCD controller features easy-to-use icons and logical menu navigation for convenient operation.

Additional user-friendly features include dual wait on/off timer modes, digital input and output control for external device interlocking, and RS-232/USB connectivity for external control and data collection.

The corrosion-resistant stainless steel bath is leak-proof, easy to clean, and designed with rounded corners and an accessible drain valve for simple maintenance.

Built-in casters and side handles allow easy transport and installation within laboratory environments.

For enhanced monitoring and convenience, the system supports optional LC Connected mobile monitoring through the LC Green Box, allowing users to monitor operation remotely from a mobile device anytime and anywhere.

Safety is a key focus of the Jeio Tech Heating Bath Circulator Programmable.

The agitator, heater, and sensor are isolated by a protective baffle plate to minimize fluid turbulence and reduce direct contact with internal components.

The unit also features a color-based temperature warning indicator for quick visual monitoring of reservoir temperature.

An advanced safety protection system provides alarms for low fluid level, dry-running, over-temperature, and over-current conditions.

Additional safety features include a keypad lock function to prevent accidental setting changes and a splash-proof keypad for dependable laboratory operation.

Key Features

• Programmable Control: Up to 10 programs.
• Wide Temperature Range: Ambient +10°C to 150°C.
• PID Control: Precise temperature stability.
• Touch LCD: Simple operation and monitoring.
• Variable-Speed Pump: Adjustable circulation.
• Dual Timer: Programmable up to 99 hr. 59 min.
• USB and RS-232: Data and device connectivity.
• Stainless Steel Bath: Durable and corrosion resistant.
• Mobile Monitoring: Optional remote access.
• Safety Alarms: Protects against faults.
• Keypad Lock: Prevents setting changes.

Specifications

Product Manual

User manual for Jeio Tech Heating Bath Circulator Programmable can be found here.
