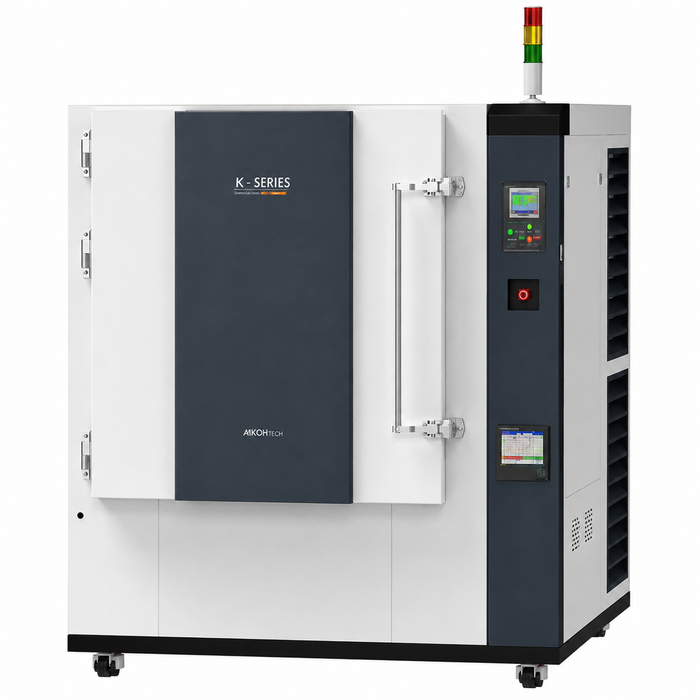

Jeio Tech | Heating and Cooling Chambers KMV Series | Programmable Heating and Drying Oven with PID Temperature Control, Airtight Double-Sealed Chamber
The Jeio Tech Heating and Cooling Chambers KMV is designed for reliable heat treatment, drying, and laboratory testing applications in research laboratories, pharmaceutical facilities, industrial environments, and quality control operations.
Built according to DIN 12880 and IEC 60068-3-5 standards, this advanced laboratory oven delivers accurate temperature performance, dependable operation, and excellent energy efficiency for demanding thermal processing applications.
Alto Med Supply proudly offers this premium Jeio Tech Heating and Cooling Chambers KMV as part of our wide selection of professional laboratory equipment from trusted manufacturers.
This high-performance drying oven uses advanced microprocessor PID temperature control with automatic tuning and calibration to provide stable and precise heating results.

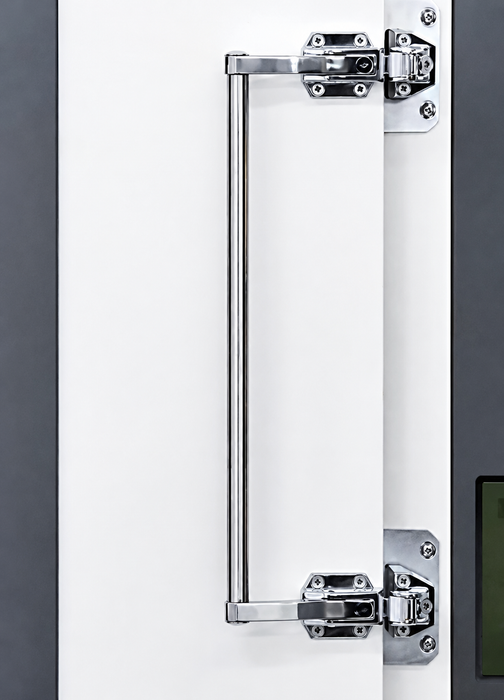

The air-tight chamber design features heat-resistant silicone double door packing and a secure two-point door latch to minimize heat loss and maintain excellent temperature consistency throughout operation.
The optimized insulation system also improves energy efficiency while helping the exterior surface remain below 51°C during maximum temperature operation based on DIN EN 563 standards.
The chamber door is engineered for long-term durability and tested for reliable operation under demanding laboratory conditions. Its heavy-duty construction ensures safe and secure performance even during continuous use.
The Jeio Tech heating and drying oven includes multiple advanced safety systems to protect both users and equipment.
Safety features include over-temperature protection, over-current and current leakage protection with ELCB, independent safety fuses, reverse-phase protection, motor overload protection, open door warning functions, and automatic shutdown systems.

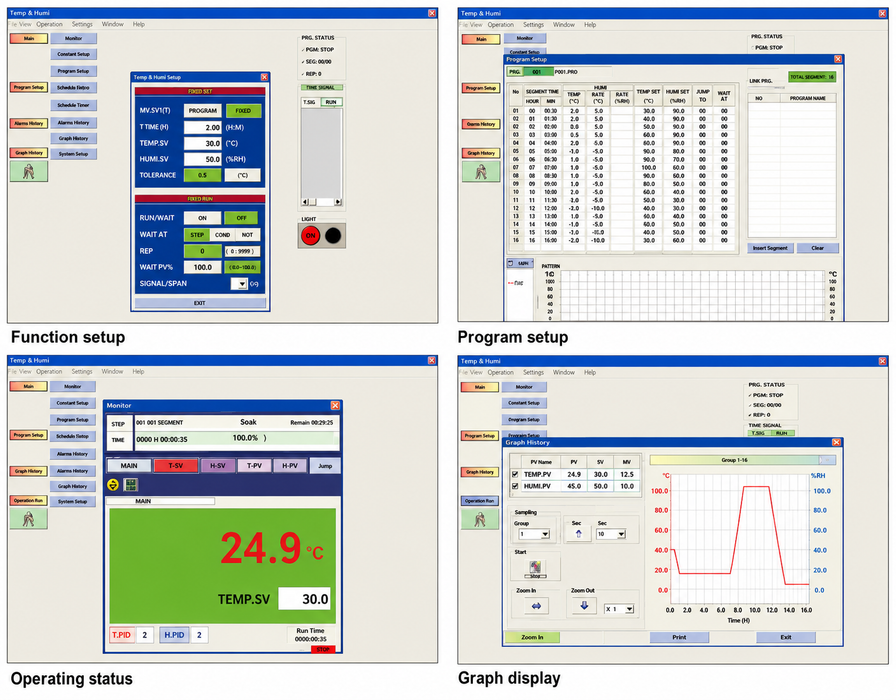

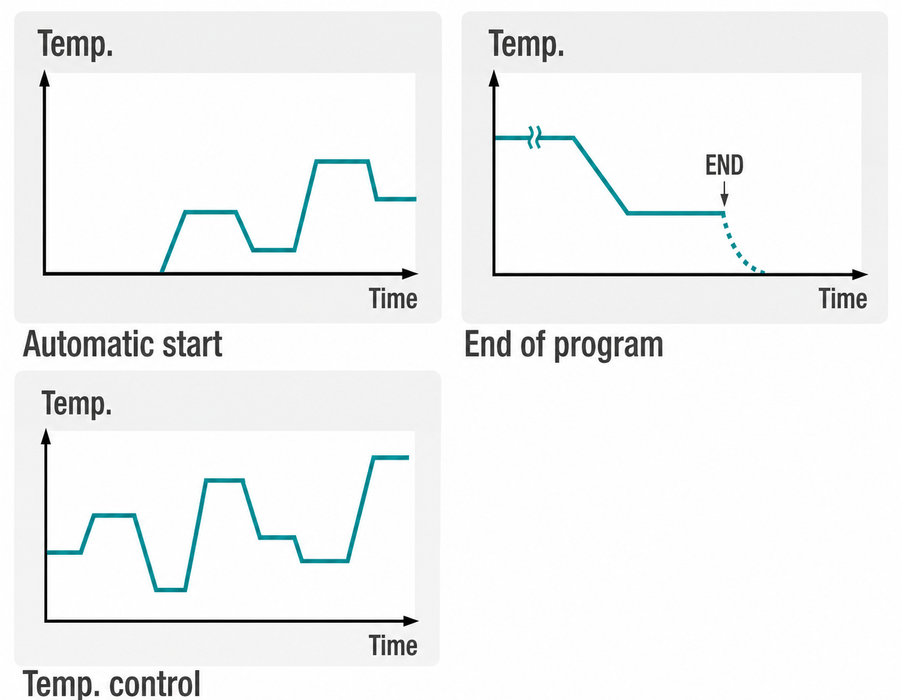

The programmable controller supports automatic start and stop functions, graph display mode for process monitoring, and multi-language support in English, Chinese, and Korean.
Key Features
-
PID Temperature Control: Accurate and stable heating performance.
-
Heat Treatment and Drying: Ideal for laboratory and industrial use.
-
Double-Sealed Door: Reduces heat loss and improves efficiency.
-
Energy-Efficient Design: Optimizes heating performance.
-
Stainless Steel Chamber: Durable and easy to clean.
-

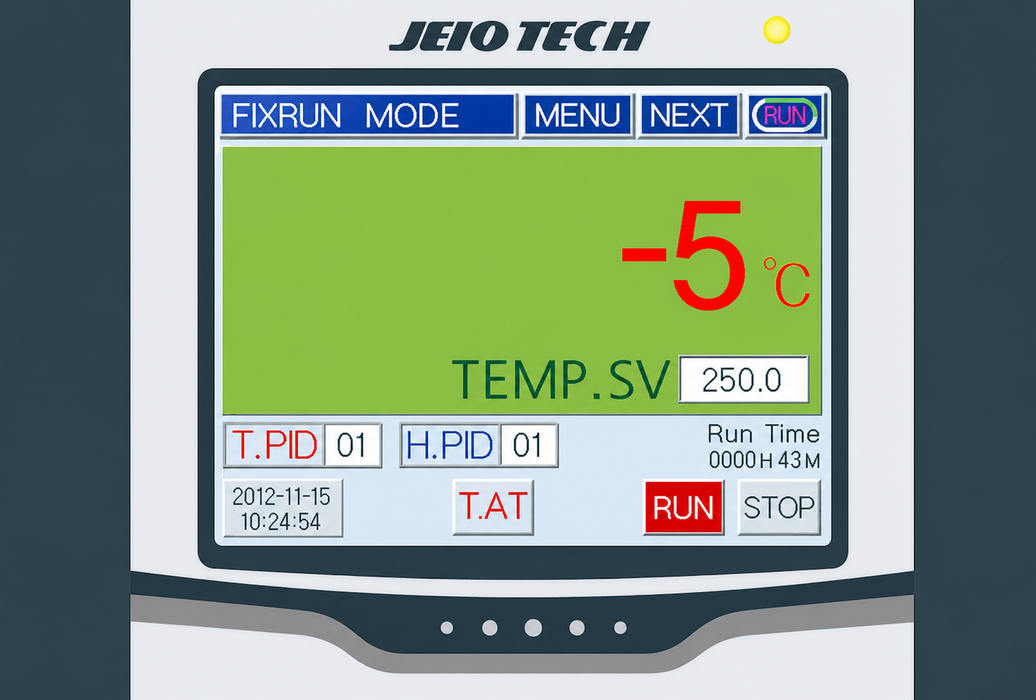

Touch LCD Controller: Easy monitoring and operation.
-
Programmable Functions: Supports automated processes.
-
Safety Protection: Includes overheat, overload, and leakage protection.
-
Data Connectivity: Supports RS-232 and optional RS-485.
-
Data Management: Enables monitoring and data export.
-
High Program Capacity: Supports up to 2,000 segments.
Specifications
| Performance Specifications |
| Model |
KMV-012 |
KMV-025 |
KMV-040 |
KMV-070 |
KMV-100 |
| Temperature Range |
-35°C to 180°C (-31°F to 356°F) |
| Temperature Fluctuation |
±0.2~0.5°C |
±0.2~0.5°C |
±0.2~0.5°C |
±0.2~0.4°C |
±0.2~0.3°C |
| Temperature Gradient |
±0.5~1.4°C |
±0.5~1.4°C |
±1.1~2.3°C |
±0.5~1.1°C |
±0.3~0.8°C |
| Interface Port |
RS-232C Standard / RS-485 Optional (Up To 32 Units) |
| Heating Time (Minutes) |
KMV-012 |
KMV-025 |
KMV-040 |
KMV-070 |
KMV-100 |
| -40°C To 25°C |
23 |
23 |
23 |
20 |
23 |
| 25°C To 100°C |
31 |
31 |
29 |
44 |
44 |
| 25°C To 150°C |
61 |
61 |
48 |
82 |
90 |
| 25°C To 180°C |
65 |
65 |
55 |
100 |
76 |
| Capacity and Dimensions |
KMV-012 |
KMV-025 |
KMV-040 |
KMV-070 |
KMV-100 |
| Chamber Volume (L) |
125 |
253 |
420 |
720 |
1000 |
| Wire Shelves (Std./Max.) |
2 / 6 |
2 / 9 |
2 / 11 |
2 / 15 |
2 / 16 |

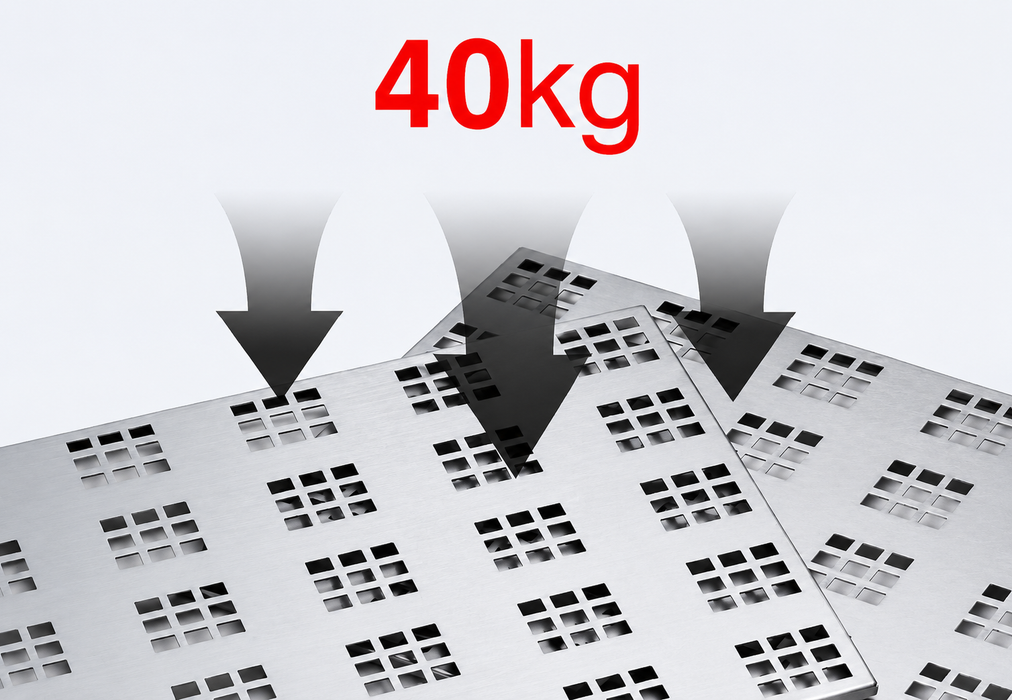

| Max. Shelf Load (kg) |
15 |
20 |
30 |
40 |
45 |
| Total Load Capacity (kg) |
50 |
70 |
90 |
120 |
150 |
| Interior Dimensions (W × D × H mm) |
500 × 500 × 500 |
600 × 650 × 650 |
750 × 700 × 800 |
900 × 800 × 1000 |
1000 × 910 × 1100 |
| Exterior Dimensions (W × D × H mm) |
1070 × 775 × 1385 |
1170 × 925 × 1585 |
1370 × 975 × 1780 |
1495 × 1625 × 1650 |
1595 × 1725 × 1800 |
| Net Weight (kg) |
170 |
260 |
320 |
390 |
440 |
| Electrical and Ordering Information |
Power Requirement |
Catalog No. |
| KMV-012 (230V, 60Hz, 1Ph) |
19.2A |
AAHK9011K |
| KMV-012 (230V, 50Hz, 1Ph) |
19.2A |
AAHK9015K |
| KMV-025 (230V, 60Hz, 1Ph) |
26A |
AAHK9021K |
| KMV-025 (230V, 50Hz, 1Ph) |
26A |
AAHK9025K |
| KMV-040 (380V, 50Hz, 3Ph) |
12.5A |
AAHK9030K |
| KMV-070 (380V, 50Hz, 3Ph) |
18A |
AAHK9040K |
| KMV-100 (380V, 50Hz, 3Ph) |
19.4A |
AAHK9050K |
* Even though the max. segments per pattern are 100, the total available segments are up to 6000 not 10000, therefore arrangement of the number of segment and patterns will need to be done properly.
Product Manual
User manual for Jeio Tech Heating and Cooling Chambers KMV Series can be found here.
