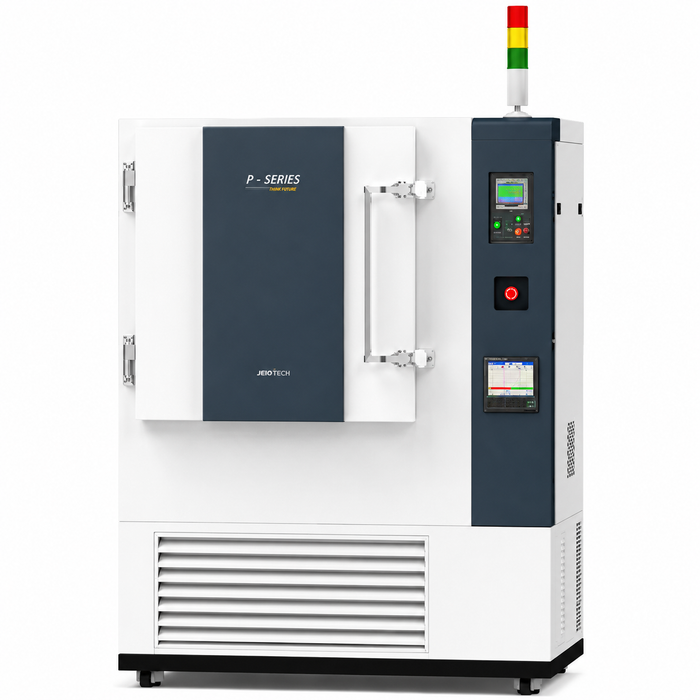

Jeio Tech | Heating and Cooling Chambers PBV Series | Programmable High Temperature Drying Oven with PID Control and Advanced Safety Features
The Jeio Tech Heating and Cooling Chambers PBV is designed for reliable heat treatment, drying, and laboratory testing applications.
Built to meet DIN 12880 and IEC 60068-3-5 standards, this advanced laboratory oven delivers precise temperature control and dependable performance for research laboratories, pharmaceutical facilities, industrial environments, and quality control testing.
Alto Med Supply proudly offers this premium Jeio Tech drying oven as part of our extensive selection of professional laboratory equipment from trusted manufacturers.
This high-performance drying oven features advanced microprocessor PID control with automatic tuning and temperature calibration for stable and accurate heating results.
The optimized insulation system improves energy efficiency while maintaining consistent chamber temperatures throughout operation.

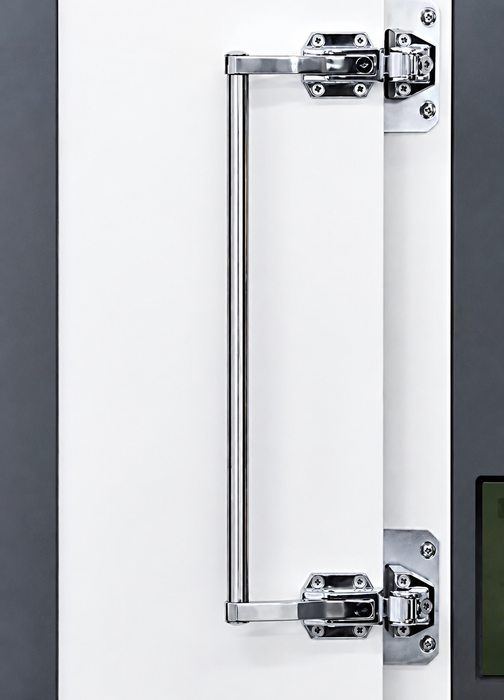

Heat-resistant silicone door packing and a secure two-point door latch help reduce heat loss and improve chamber sealing for dependable thermal performance.
The oven is engineered with user safety and durability in mind. Even during high-temperature operation, the exterior surface temperature remains below 51°C according to DIN EN 563 standards.
The chamber door is built for long-term reliability and tested for structural strength under demanding operating conditions.
For enhanced safety, the Jeio Tech Heating and Cooling Chambers PBV includes over-temperature protection, over-current and leakage protection with ELCB, independent safety fuses, reverse-phase protection, motor overload protection, and automatic shut-off systems.
Additional features such as open door warnings, automatic heater and fan stop functions, electric wiring panel safety protection, and a built-in key lock help ensure safe operation in busy laboratory environments.

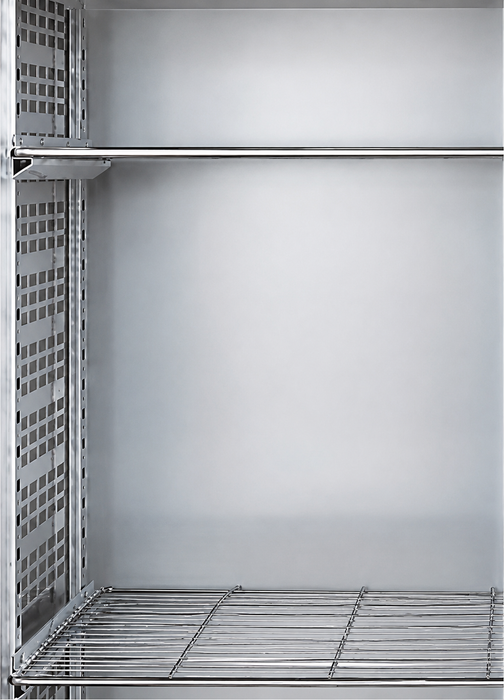

The corrosion-resistant stainless steel inner chamber provides excellent durability, easy cleaning, and reliable resistance to harsh laboratory conditions.

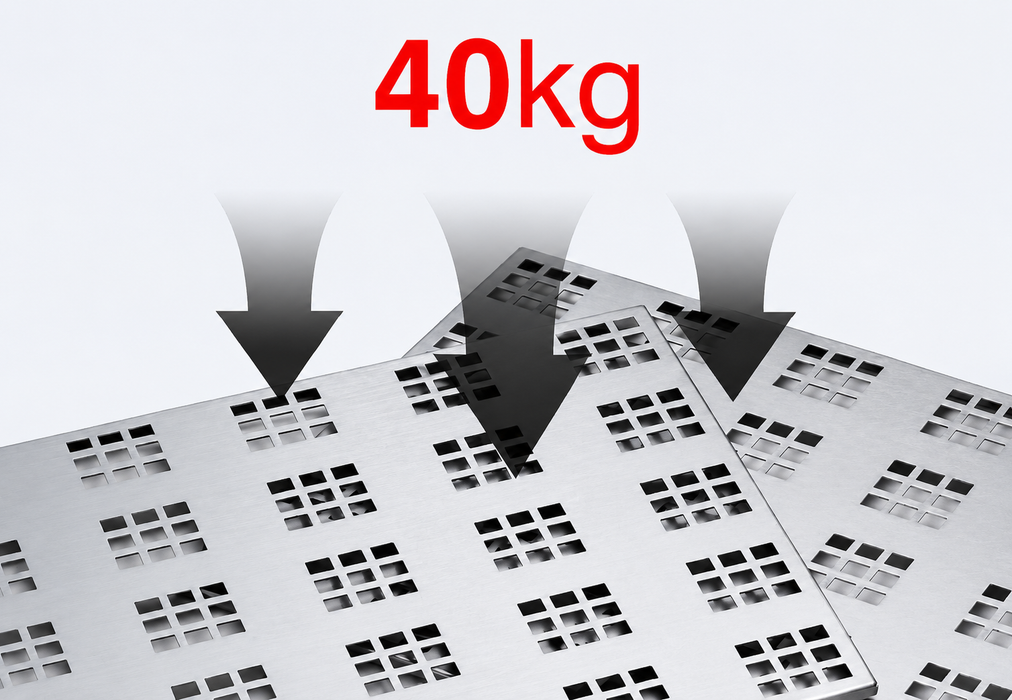

Its space-efficient chamber design allows convenient sample loading and includes two standard shelves, with optional heavy-duty shelves available for loads up to 40 kg.

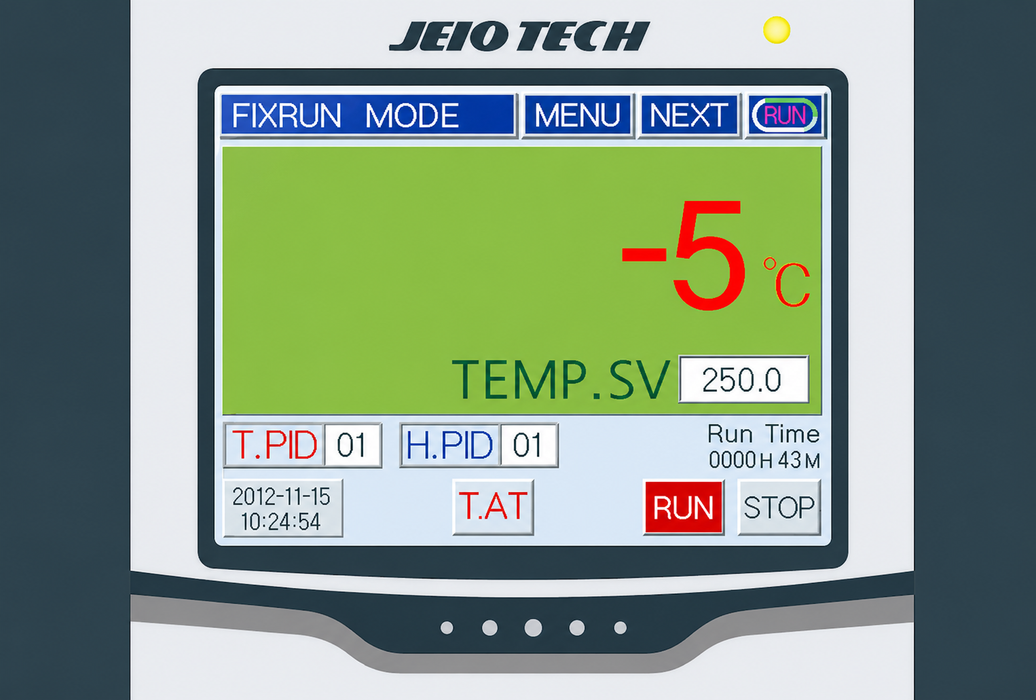

Operation is simple with the colorful touch-type LCD controller. Users can easily monitor set temperatures, current temperatures, and operating conditions on the display.

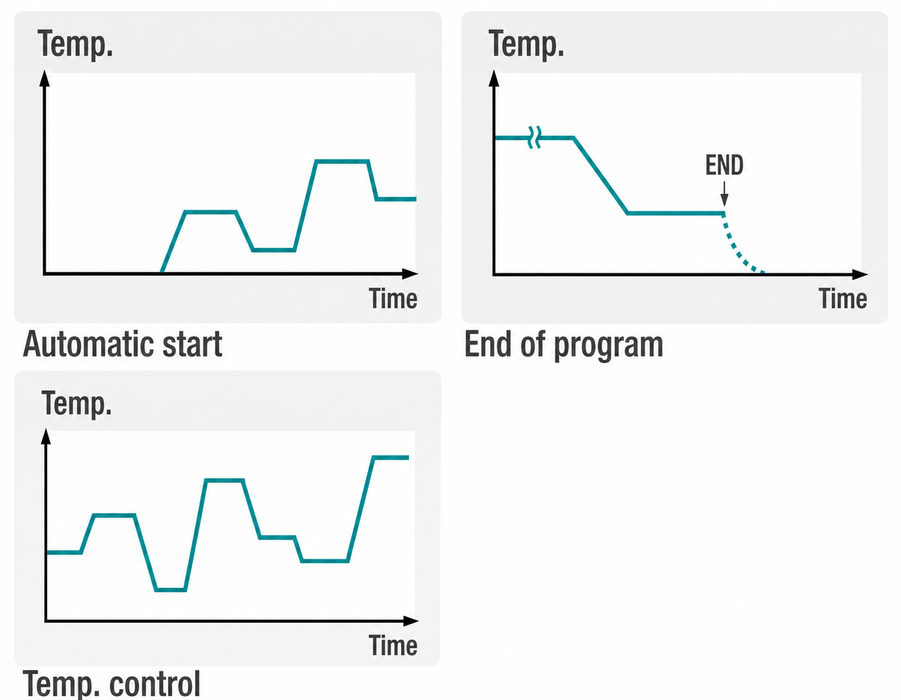

The programmable controller supports automatic start and stop functions, graph display mode for process monitoring, multi-language support, and advanced programmable operation for unattended testing applications.
Each segment can be programmed from 0 to 99 hours and 59 minutes, providing flexible process control for a wide range of laboratory heating and drying applications.
Key Features
-
PID Temperature Control: Delivers accurate and stable heating with auto-tuning.
-
Versatile Applications: Ideal for drying, heat treatment, and laboratory testing.
-
Standards Compliant: Meets DIN 12880 and IEC 60068-3-5 requirements.
-
Heat Retention: Silicone sealing minimizes heat loss.
-
Secure Door Latch: Improves chamber efficiency and temperature stability.
-
Energy-Efficient Design: Optimized insulation reduces power consumption.
-
Safe Exterior Surface: Remains below 51℃ during operation.
-
Over-Temperature Protection: Prevents overheating for safer operation.
-
Electrical Safety System: Includes ELCB, fuses, and reverse-phase protection.
-
Automatic Safety Functions: Stops operation when doors or panels are opened.
-
Stainless Steel Chamber: Durable, corrosion-resistant, and easy to clean.
-
Heavy-Duty Shelves: Optional shelves support up to 40 kg.
-
Touch LCD Controller: Provides simple operation and monitoring.
-
Graph Display: Shows real-time operating status.
-
Programmable Operation: Supports automatic start, stop, and process control.
-
Multi-Language Support: Available in English, Chinese, and Korean.
-
Data Recording Option: Tracks and stores operating data.
-
PC Connectivity: Supports RS-232 and RS-485 communication.
-

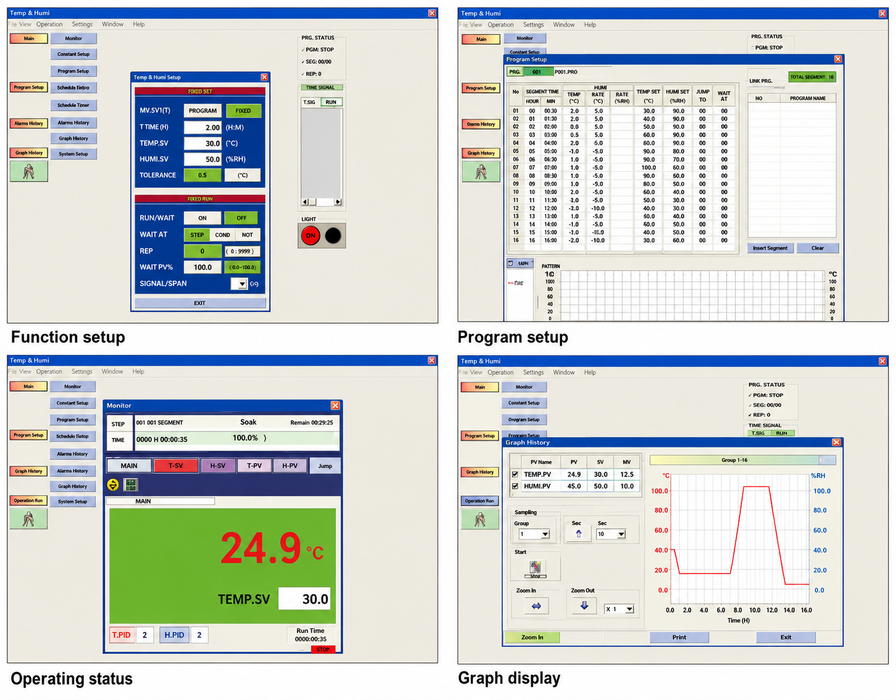

Monitoring Software: Enables live monitoring and data analysis.
-
Data Export: Saves records in Excel and text formats.
-
Advanced Programming: Supports up to 100 patterns and 999 cycles.
Specifications
| Specification |
PBV-012 |
PBV-025 |
PBV-040 |
PBV-070 |
PBV-100 |
| Temperature Range (°C / °F) |
| Operating Range |
-25 to 100 / -13 to 212 |
-25 to 100 / -13 to 212 |
-25 to 100 / -13 to 212 |
-25 to 100 / -13 to 212 |
-25 to 100 / -13 to 212 |
| Temperature Fluctuation (±°C / ±°F) |
| -25°C |
0.2 / 0.36 |
0.2 / 0.36 |
0.2 / 0.36 |
0.2 / 0.36 |
0.2 / 0.36 |
| -15°C |
0.2 / 0.36 |
0.2 / 0.36 |
0.2 / 0.36 |
0.2 / 0.36 |
0.2 / 0.36 |
| -10°C |
0.3 / 0.54 |
0.3 / 0.54 |
0.2 / 0.36 |
0.2 / 0.36 |
0.2 / 0.36 |
| 25°C |
0.3 / 0.54 |
0.3 / 0.54 |
0.3 / 0.54 |
0.4 / 0.72 |
0.2 / 0.36 |
| 70°C |
0.2 / 0.36 |
0.2 / 0.36 |
0.2 / 0.36 |
0.3 / 0.54 |
0.3 / 0.54 |
| 100°C |
0.2 / 0.36 |
0.2 / 0.36 |
0.2 / 0.36 |
0.3 / 0.54 |
0.2 / 0.36 |
| Temperature Gradient (±°C / ±°F) |
| -25°C |
0.3 / 0.54 |
0.3 / 0.54 |
0.4 / 0.72 |
0.4 / 0.72 |
0.4 / 0.72 |
| -15°C |
0.3 / 0.54 |
0.3 / 0.54 |
0.4 / 0.72 |
0.4 / 0.72 |
0.4 / 0.72 |
| -10°C |
0.3 / 0.54 |
0.3 / 0.54 |
0.4 / 0.72 |
0.4 / 0.72 |
0.4 / 0.72 |
| 25°C |
0.3 / 0.54 |
0.3 / 0.54 |
0.4 / 0.72 |
0.4 / 0.72 |
0.4 / 0.72 |
| 70°C |
0.4 / 0.72 |
0.4 / 0.72 |
0.6 / 1.08 |
0.6 / 1.08 |
0.6 / 1.08 |
| 100°C |
0.6 / 1.08 |
0.6 / 1.08 |
0.7 / 1.26 |
0.8 / 1.44 |
0.8 / 1.44 |
| Heating Time (Minutes) |
| -25°C → 25°C |
19 |
19 |
29 |
22 |
24 |
| -15°C → 25°C |
17 |
17 |
22 |
20 |
22 |
| -10°C → 25°C |
15 |
15 |
21 |
18 |
20 |
| 25°C → 70°C |
20 |
20 |
33 |
22 |
27 |
| 25°C → 100°C |
34 |
34 |
52 |
35 |
38 |
| -25°C → 100°C |
47 |
47 |
76 |
46 |
61 |
| Cooling Time (Minutes) |
| 25°C → -25°C |
36 |
36 |
26 |
25 |
34 |
| 25°C → -15°C |
21 |
21 |
21 |
20 |
24 |
| 25°C → -10°C |
17 |
17 |
19 |
18 |
21 |
| 70°C → 25°C |
17 |
17 |
20 |
20 |
25 |
| 100°C → 25°C |
28 |
28 |
30 |
29 |
35 |
| 100°C → -25°C |
65 |
65 |
50 |
53 |
56 |
| Power Consumption (kW) |
| -25°C |
5.0 |
5.0 |
5.0 |
4.0 |
7.0 |
| -15°C |
4.5 |
4.5 |
3.5 |
5.5 |
5.0 |
| -10°C |
6.0 |
6.0 |
4.5 |
4.0 |
5.0 |
| 25°C |
5.0 |
5.0 |
4.0 |
5.5 |
3.5 |
| 70°C |
5.0 |
5.0 |
9.5 |
5.0 |
7.5 |
| 100°C |
5.5 |
5.5 |
9.0 |
6.0 |
7.0 |
| Electrical Requirements and Catalog Numbers |
| 230V, 60Hz, 1Ph |
16.3 AAHK5011K |
22.8 AAHK5021K |
- |
- |
- |
| 230V, 50Hz, 1Ph |
16.3 AAHK5015K |
22.8 AAHK5025K |
- |
- |
- |
| 380V, 50/60Hz, 3Ph |
- |
- |
10.0 AAHK5030K |
15.4 AAHK5040K |
16.8 AAHK5050K |
* Even though the max. segments per pattern are 100, the total available segments are up to 6000 not 10000, therefore arrangement of the number of segment and patterns will need to be done properly.
Product Manual
User manual for Jeio Tech Heating and Cooling Chambers PBV Series can be found here.
