Jeio Tech | Heating and Cooling Chambers PMV Series

Jeio Tech | Heating and Cooling Chambers PMV Series | High Temperature Drying Oven with PID Control, Stainless Steel Chamber and Programmable LCD System

The Jeio Tech High Temperature Drying Oven is designed for reliable heat treatment, drying, and laboratory testing applications.

Built to meet DIN 12880 and IEC 60068-3-5 standards, this advanced laboratory oven delivers precise temperature control and dependable performance for research facilities, industrial laboratories, pharmaceutical environments, and quality control applications.

Alto Med Supply proudly offers this high-quality Jeio Tech drying oven as part of our extensive selection of professional laboratory equipment from trusted brands.

This laboratory drying oven features advanced microprocessor PID control with automatic tuning and temperature calibration for accurate and stable heating performance.

The optimized insulation system improves energy efficiency while maintaining consistent chamber temperatures.

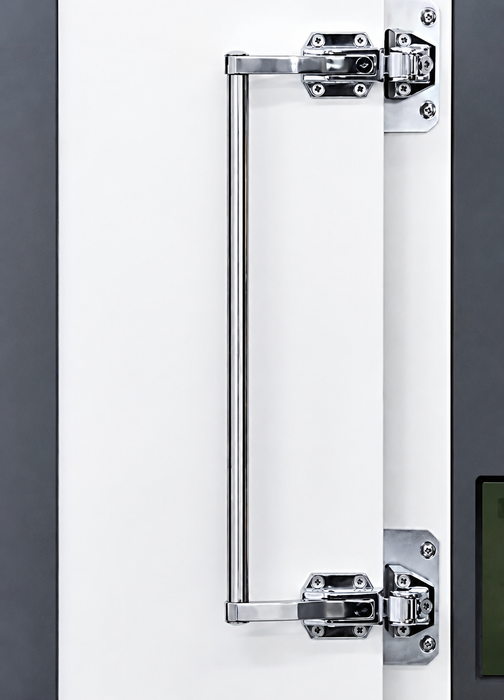

Heat-resistant silicone door packing and a two-point door latch provide excellent airtight sealing to reduce heat loss during operation.

Even at maximum operating temperature, the exterior surface remains safe with temperatures below 51°C according to DIN EN 563 standards.

The oven is built with a corrosion-resistant stainless steel inner chamber for durability, easy cleaning, and long-term use.

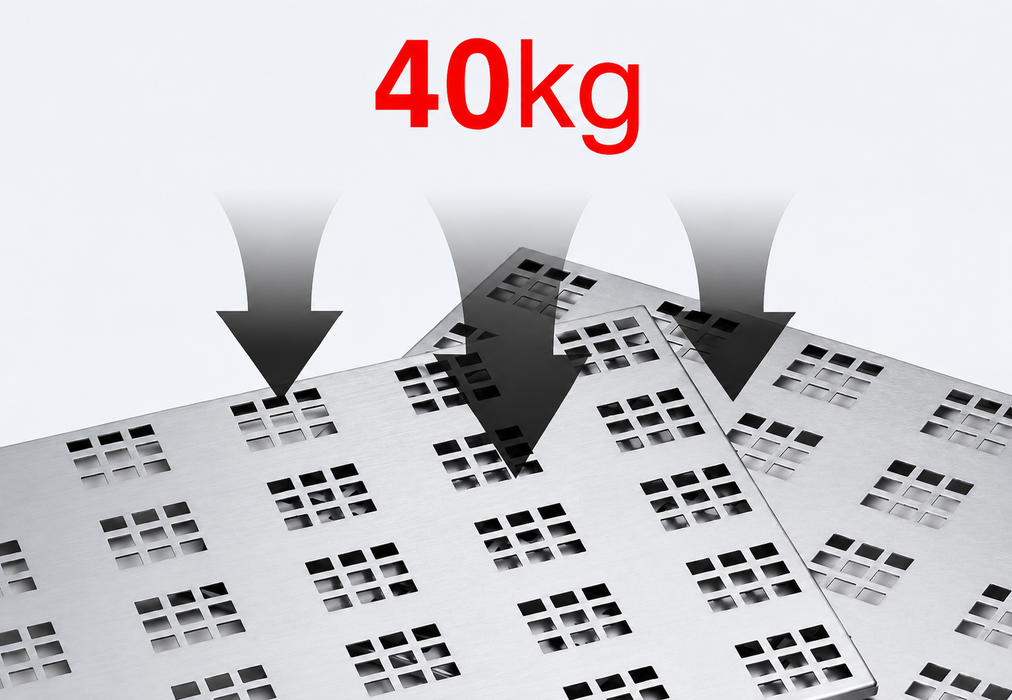

Its space-efficient chamber design allows convenient loading of samples and includes two standard shelves, with optional heavy-duty shelves available for loads up to 40 kg.

The door structure is engineered for strength and reliability, ensuring stable operation even under demanding laboratory conditions.

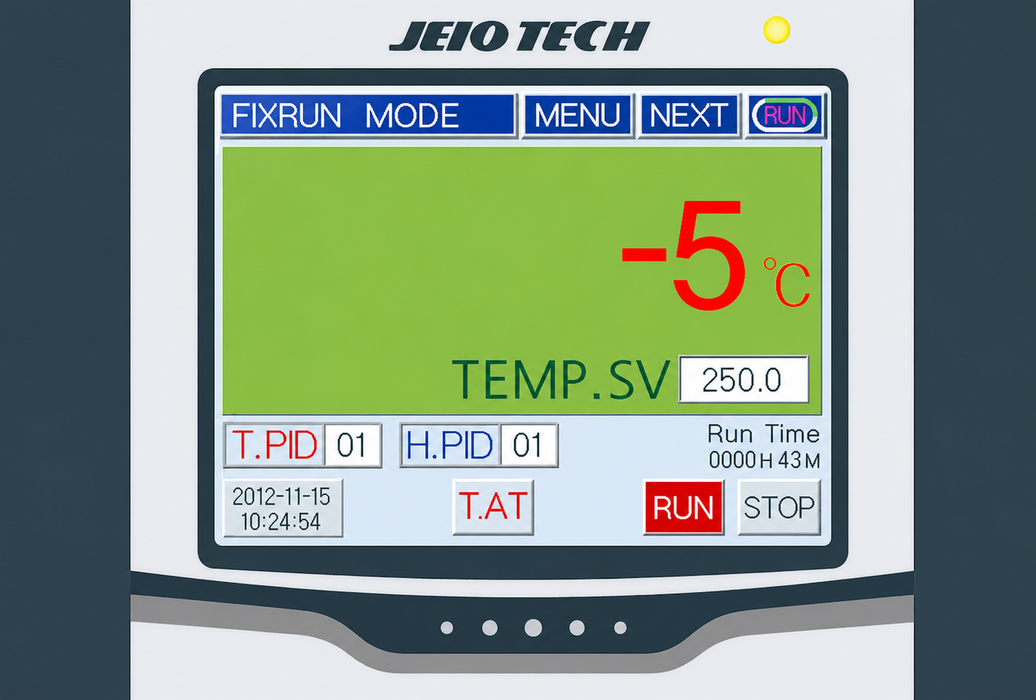

A user-friendly color touch LCD controller makes operation simple and efficient.

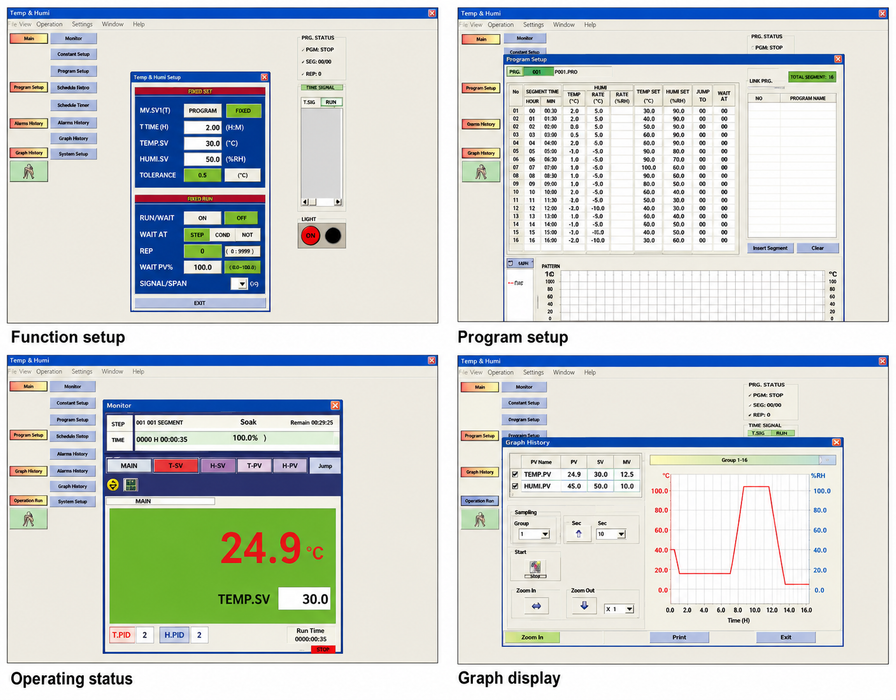

Users can easily monitor set temperatures and current operating conditions on the display, while graph mode allows quick viewing of operating progress and performance data.

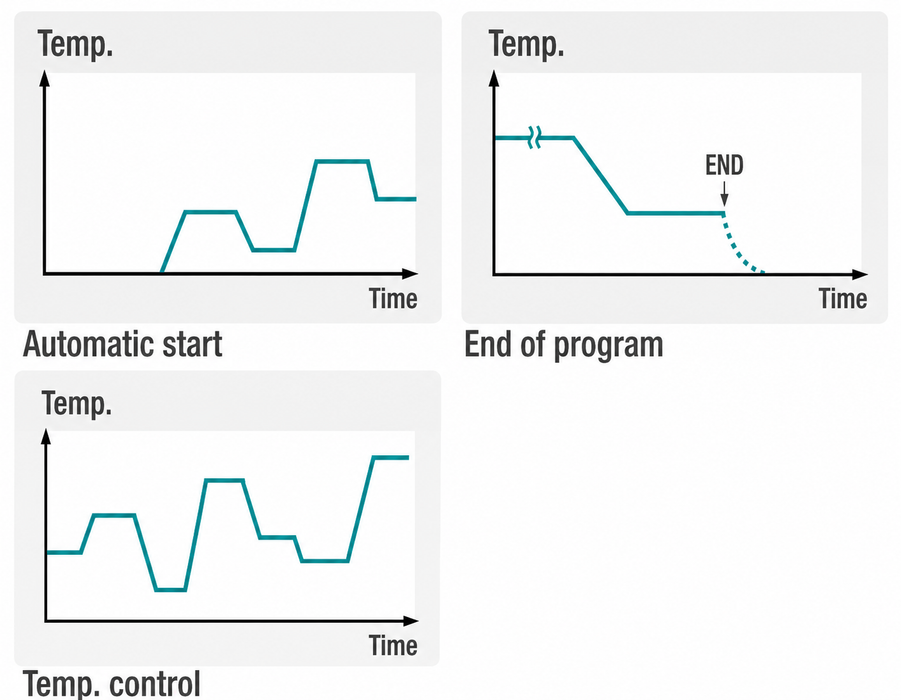

The programmable control system supports automatic start and stop functions for unattended operation, multiple language options, and programmable patterns for advanced testing applications.

Optional six-channel digital recording is available for monitoring temperature and operating parameters.

The programmable control system supports up to 100 programmable patterns, 999 pattern repeat cycles, 255 part repeat cycles, 100 segments per pattern, and a maximum of 2,000 programmable segments.

Each segment can be programmed from 0 to 99 hours and 59 minutes, providing flexible control for complex laboratory heating and drying processes.

Key Features

• Heat Treatment and Drying: Ideal for laboratory applications.
• DIN and IEC Compliant: Meets industry testing standards.
• Stainless Steel Chamber: Durable and easy to clean.
• Touch LCD Controller: Easy operation and monitoring.
• Programmable Functions: Supports automated testing.
• Safety Protection: Includes overheat, overload, and leakage protection.
• Data Connectivity: Supports RS-232 and optional RS-485.
• Data Export: Enables logging and reporting.
• High Program Capacity: Supports up to 2,000 segments.

• PID Temperature Control: Accurate and stable heating.

Specifications

* Even though the max. segments per pattern are 100, the total available segments are up to 6000 not 10000, therefore arrangement of the number of segment and patterns will need to be done properly.

Product Manual

User manual for Jeio Tech Heating and Cooling Chambers PMV Series can be found here.
