Jeio Tech | Heating Shaker | Programmable Microtube Mixer with PID Temperature Control, Interval Mix Function and High Speed Lab Shaking Performance

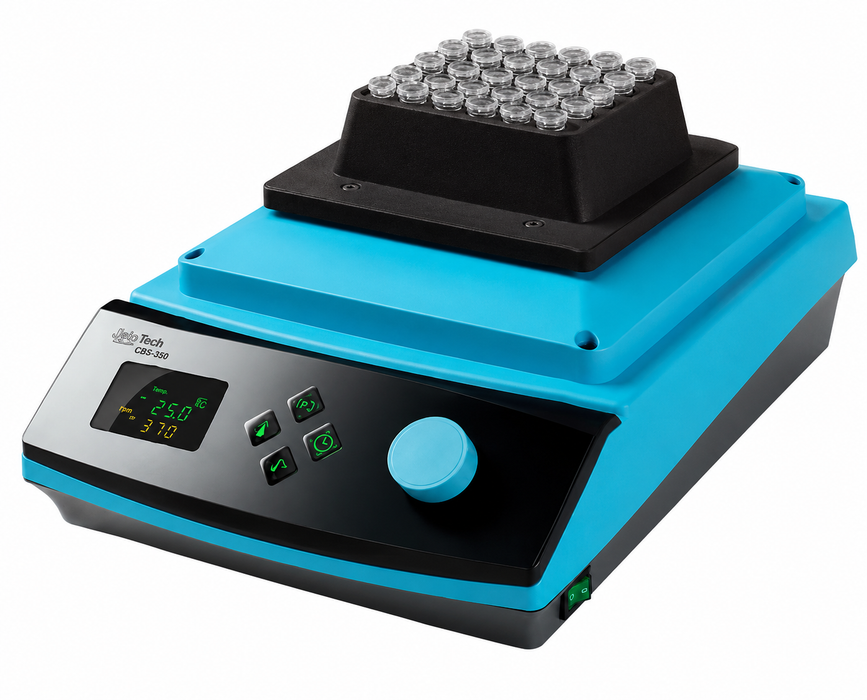

The Jeio Tech programmable microtube mixer, available at Alto Med Supply, is designed to deliver precise and reliable mixing performance for laboratory and research applications.
Equipped with advanced microprocessor PID control, this laboratory shaker provides consistent shaking motion and accurate temperature regulation to help support dependable experimental results.
With a wide speed range from 150 to 1500 rpm, depending on the block used, it offers flexibility for a variety of sample processing needs.
This programmable mixer features a convenient interval mix function that allows users to alternate between shaking and pausing based on specific experimental conditions.
Its advanced memory system can store up to 10 customizable programs with up to 10 steps each, making repetitive laboratory procedures more efficient and easier to manage.
Users can save and control important settings such as temperature, speed, and operation time for improved workflow consistency.
For added convenience, the unit includes a bright VFD display with responsive touch controls for simple operation and monitoring.
The advanced dual wait timer modes allow the timer to start immediately or only after the desired temperature is reached, helping improve process accuracy.
The tightly coupled design between the main body and corrosion-resistant anodized aluminum blocks promotes efficient heat transfer and stable temperature performance.
Its low-profile structure with rubber feet helps reduce vibration and noise during operation, making it suitable for busy laboratory environments.
Key Features
-
Microprocessor PID Control: Delivers precise temperature regulation and consistent shaking performance for reliable laboratory results.
-
Wide Speed Range: Adjustable shaking speeds from 150 to 1500 rpm depending on the block configuration.
-
Automatic Temperature Calibration: Maintains accurate temperature settings for improved testing consistency.
-
Bright VFD Display: Features an easy-to-read display with responsive touch buttons for simple operation.
-
Programmable Memory Function: Stores up to 10 programs with up to 10 steps each for repeat laboratory procedures.
-
Interval Mixing Function: Allows continuous switching between shaking and pausing to match specific experimental conditions.
-
Dual Timer Modes: Lets users start timing immediately or after the target temperature is reached.
-
Efficient Heat Transfer: Tight coupling design and anodized aluminum blocks provide stable and uniform heating performance.
-
Self-Diagnostic System: Detects operational errors to help improve laboratory safety and performance.
-
Chemical-Resistant Housing: Durable polypropylene body resists chemicals and allows easy cleaning.
-
Low Vibration Design: Rubber feet and low-profile construction help reduce vibration and operating noise.
-
Over-Current Protection: Built-in safety protection helps prevent electrical overload during operation.
Specifications
| Model |
CBS-350 |
| Control |
PID Feedback Control |
| Display |
VFD Display (0.1°C Resolution) |
| Temperature |
Range (°C/°F): Ambient +5 to 100°C / 41 to 212°F |
| Fluctuation at 80°C (±°C/°F): 0.3 / 0.9 |
| Variation at 80°C (±°C/°F): 0.7 / 0.27 |
| Heating Power: 360 W |
| Safety |
Over Temperature Protection: Heating Plate |
| PCB Protection: Built-In Safety System |
| Over Current Protection: Current Limit Protection |
| Motion Type |
Orbital |
| Speed Range (rpm) |
96-Well Tube Block: 150 to 1500 rpm |
| 0.5mℓ Tube Block: 150 to 1000 rpm |
| 1.5mℓ Tube Block: 150 to 1000 rpm |
| 15mℓ Tube Block: 150 to 900 rpm |
| Ø12 Tube Block: 150 to 850 rpm |
| Ø13 Tube Block: 150 to 850 rpm |
| 50mℓ Tube Block: 150 to 800 rpm |
| Orbit Size (mm/inch) |
2 mm / 0.08 inch |
| Dimensions (W×D×H) |
Body Dimensions: 249 × 325 × 120 mm / 9.8 × 12.8 × 4.7 in |
| Net Weight: 8.3 kg / 18.3 lbs. |
| Electrical Requirements (230V, 50/60Hz) |
1.7A |
| Catalog Number (230V) |
AAHJ4015K |
| Electrical Requirements (120V, 60Hz) |
3.4A |
| Catalog Number (120V) |
AAHJ4013U |
Product Manual
User manual for Jeio Tech Heating Shaker can be found here.
