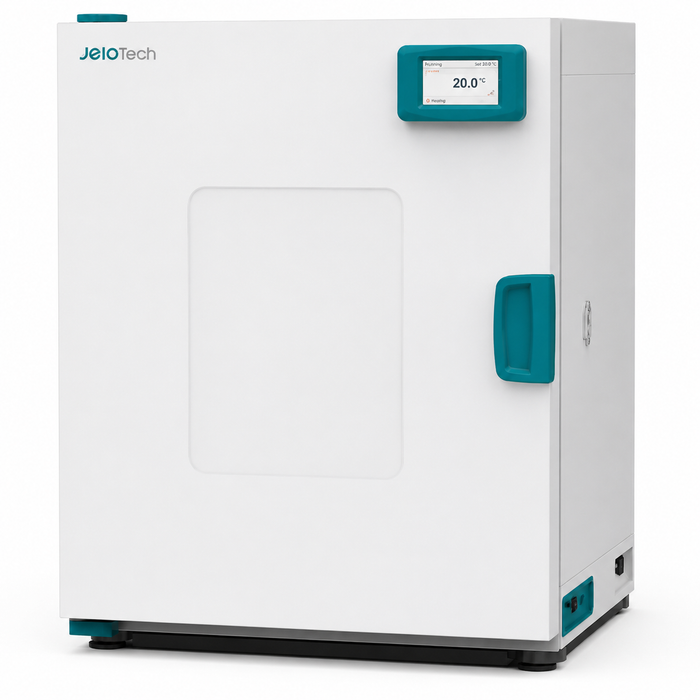

Jeio Tech | Air Jacket Incubator Standard | Intuitive Touch Controller with 3.5 Inch LCD, Precise Temperature Control and Advanced Laboratory Monitoring
The Jeio Tech Intuitive Touch Controller, available from Alto Med Supply, combines precise temperature control, smart monitoring features, and user-friendly operation for laboratory incubators and ovens.
Designed with a responsive 3.5-inch touch display, this advanced controller allows easy adjustment of settings, clear data visibility, and efficient experiment management.
The built-in “Wait On / Wait Off” timer function helps automate laboratory processes and improve workflow efficiency.
For reliable laboratory performance, the controller uses advanced 3-point temperature calibration to maintain accurate temperature control across a wide operating range.
Optimized airflow technology ensures uniform heat distribution with temperature variation within ±0.55℃ at 37℃.
Adjustable upper and lower temperature limits provide fast alerts when abnormal conditions occur, helping protect sensitive samples and laboratory processes.
The Jeio Tech Intuitive Touch Controller also supports convenient data management and remote monitoring capabilities.
Optional RS-232 and USB connectivity allow operation and monitoring from a PC, while the optional LC Green Box mobile monitoring system enables real-time equipment monitoring from mobile devices.
Optional BMS compatibility allows laboratories to quickly respond to temperature abnormalities, and the optional LC Data Keeper system supports 21 CFR Part 11 compliance for GMP-regulated environments and audit-ready data management.
Built with laboratory safety in mind, this controller features a patented overheating prevention system, Over Temperature Limiter protection, and compliance with IEC Class II and DIN 12880 Class 3.1 standards.
The system stores the latest 12 operational events, including run times, stops, and errors, making troubleshooting and tracking easier.
Optional double stacking capability also helps maximize valuable laboratory space.
Additional features help reduce incubation failure and improve experiment stability.
An optional water tray minimizes media drying for longer incubation periods, while automatic power recovery restores previous settings within 30 seconds after brief blackouts.
The controller lock function helps prevent accidental changes, and audiovisual alarms quickly notify users of abnormal operating conditions for added safety and convenience.
Key Features
-
Touch Display: Easy monitoring and control.
-
Built-In Timer: Supports automated operation.
-
3-Point Calibration: Improves temperature accuracy.
-
Uniform Heating: Ensures consistent results.
-
Temperature Alerts: Warns of abnormal conditions.
-
USB and RS-232: Supports connectivity.
-
Remote Monitoring: Optional mobile access.
-
BMS Compatible: Supports facility monitoring.
-
21 CFR Part 11 Ready: Supports compliance requirements.
-
Overheat Protection: Enhances safety.
-
Event Log: Records operating history.
-
Stackable Design: Saves laboratory space.
-
Water Tray Option: Helps reduce media drying.
-
Auto Power Recovery: Restarts after power loss.
-
Controller Lock: Prevents setting changes.
-
Audiovisual Alarms: Provides instant alerts.
Specifications
| Specification |
IB4-03AS |
IB4-05AS |
IB4-10AS |
IB4-15AS |
| Chamber Capacity |
| Volume |
25 L (0.88 cu ft) |
60 L (2.19 cu ft) |
114 L (4.03 cu ft) |
150 L (5.30 cu ft) |
| Temperature Performance |
| Temperature Range |
Ambient +5°C to 80°C (Ambient +9°F to 176°F) |
| Temperature Fluctuation @ 37°C |
±0.10°C |
±0.10°C |
±0.15°C |
±0.10°C |
| Temperature Variation @ 37°C |
±0.31°C |
±0.48°C |
±0.46°C |
±0.55°C |
| Heating Time to 37°C |
44 min |
40 min |
46 min |
49 min |
| Recovery Time @ 37°C |
5 min |
9 min |
9 min |
9 min |
| Control System |
| Display |
3.5-Inch TFT Color LCD |
| Communication Interface |
USB-B, RS-232 (Optional) |
| Event History |
12 Recent Events |
| Interior Dimensions (W × D × H) |
| Metric (mm) |
300 × 210 × 400 |
380 × 330 × 480 |
485 × 350 × 655 |
550 × 376 × 710 |
| Imperial (in) |
11.81 × 8.27 × 15.75 |
14.96 × 12.99 × 18.90 |
19.10 × 13.78 × 25.79 |
21.62 × 14.80 × 27.95 |
| Exterior Dimensions (W × D × H) |
| Metric (mm) |
478 × 527 × 604 |
558 × 648 × 684 |
663 × 677 × 859 |
728 × 704 × 914 |
| Imperial (in) |
18.80 × 20.75 × 23.78 |
21.97 × 25.50 × 26.93 |
26.10 × 26.65 × 33.82 |
28.66 × 27.70 × 36.00 |
| Shelving Capacity |
| Standard Shelves |
2 |
2 |
2 |
2 |
| Maximum Shelves |
4 |
5 |
8 |
9 |
| Maximum Shelf Load |
20 kg (44.09 lbs.) |
| Weight |
| Net Weight |
32 kg (68.34 lbs.) |
40 kg (88.18 lbs.) |
55 kg (121.25 lbs.) |
60 kg (132.28 lbs.) |
| Electrical Requirements |
| 230V, 50/60Hz |
2.5 A |
3.5 A |
3.5 A |
3.5 A |
| 120V, 60Hz |
4.8 A |
6.7 A |
6.7 A |
6.7 A |
| Ordering Information |
| Catalog No. (230V) |
AAH21555K |
AAH21565K |
AAH21575K |
AAH21585K |
| Catalog No. (120V) |
AAH21553U |
AAH21563U |
AAH21573U |
AAH21583U |
Product Manual
User manual for Jeio Tech Incubator Air Jacket Standard can be found here.
Shipping
- Free delivery (Contiguous United States Only)
-
Delivery ETA 3-7 business days
- We also offer white glove engineer delivery with assembly and demonstration if required. Please contact us for a quote.
-
If you require faster shipping or shipping anywhere other than the contiguous United States, please contact us for a shipping quote.
Warranty
This product comes with a 2 year manufacturer's warranty.
