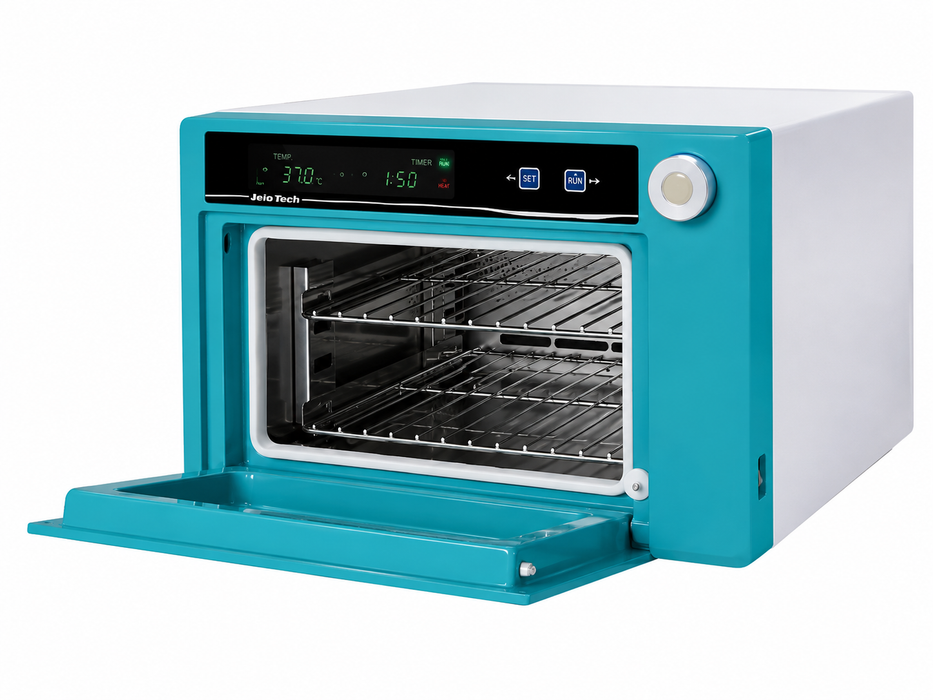

Jeio Tech | Low Temperature Forced Convection Incubator Mini Type | With PID Temperature Control for ELISA Microplates and Uniform Heating up to 65°C
The Jeio Tech Laboratory Incubator, available at Alto Med Supply, is designed for reliable temperature control and efficient laboratory performance.
With a temperature range from ambient +5°C to 65°C, this compact incubator is ideal for ELISA testing, microplate incubation, and other laboratory applications that require stable and uniform heating.
The advanced microprocessor PID feedback control system manages both the heater and fan to maintain consistent temperature distribution throughout the chamber, while automatic temperature calibration helps ensure accurate operation.
Built for convenience, this laboratory incubator features a bright VFD display, responsive touch buttons, and an easy-to-use jog dial for simple operation.
Its compact design helps save valuable lab space, while the included wire shelves maximize chamber storage.
The unit can support up to four wire shelves and hold as many as eight microplates, making it especially suitable for ELISA workflows.
A transparent polycarbonate window allows clear viewing of the chamber interior without opening the door, and push-button door access provides added convenience during daily use.
The Jeio Tech incubator is a practical solution for laboratories seeking accurate temperature control, user-friendly operation, and space-saving performance.
Key Features
-
Temperature Control: Operates from ambient +5°C to 65°C.
-
PID System: Ensures stable temperatures.
-
Auto Calibration: Improves accuracy.
-
Simple Controls: VFD display, touch buttons, and jog dial.
-
ELISA Ready: Holds up to 8 microplates.
-
Compact Design: Saves laboratory space.
-
Viewing Window: Allows sample monitoring.
-
Push-Button Door: Provides easy access.
-
Door Alarm: Alerts when left open.
-
Safety Protection: Guards against overheating and overcurrent.
Specifications
| IM-10 Specifications |
| Temperature Performance |
| Temperature Range (°C / °F) |
Ambient +5 to 65°C / Ambient +9 to 149°F |
| Fluctuation at 50°C, 9 RPM (±°C / °F) |
0.5 / 0.9 |
| Variation at 50°C, 9 RPM (±°C / °F) |
0.5 / 0.9 |
| Chamber & Dimensions |
| Volume (L / cu ft) |
10 / 0.4 |
| Wire Shelf (W × D) |
247 × 247 mm / 9.7 × 9.7 in |
| Interior Dimensions (W × D × H) |
278 × 262 × 160 mm / 11 × 10.4 × 6.3 in |
| Exterior Dimensions (W × D × H) |
400 × 410 × 264 mm / 15.7 × 16.1 × 10.4 in |
| Net Weight |
12.8 kg / 28.2 lbs |
| Electrical Requirements |
| 230V, 50/60Hz |
1.0A |
| 120V, 60Hz |
2.1A |
| Catalog Numbers |
| 230V Model |
AAH24315K |
| 120V Model |
AAH24316U |
Product Manual
User manual for Jeio Tech Low Temperature Forced Convection Incubator Mini Type can be found here.
