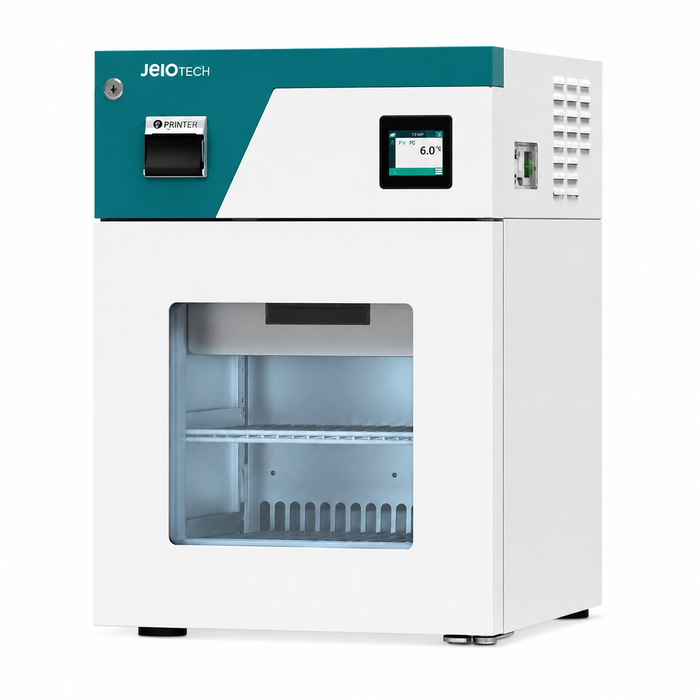

Jeio Tech | Laboratory Refrigerator CLG3 70 | Pharmaceutical Cold Storage Refrigerator with GMP Compliant Temperature Control ICH Q1A Stability
At Alto Med Supply, we offer the Jeio Tech Laboratory Refrigerator CLG3-70 cold storage refrigerator designed to meet strict international laboratory and pharmaceutical storage standards.
Built with excellent insulation and a durable sealing structure, this unit delivers stable temperature control for long-term storage of temperature-sensitive pharmaceuticals, laboratory samples, and medical products.
Its stainless steel interior provides strong corrosion resistance, while the clean construction helps prevent condensation on outer walls for reliable daily operation.
This pharmaceutical refrigerator is designed for convenience and efficient laboratory use. The easy-to-read VFD display and touch key controller allow users to monitor both set and actual temperatures at the same time.
A calibration function helps maintain accurate temperature control, while adjustable shelves provide flexible storage options for different applications.
Additional features such as auto defrost, smooth magnetic packing doors, built-in lighting, and optional glass door models improve accessibility and visibility during use.
Optional cable ports also allow easy connection of external devices for advanced laboratory applications.
For enhanced safety and compliance, select models include dual refrigeration systems that help maintain stable temperatures even if one system experiences failure.
The unit also includes high and low temperature alarms, controller lock protection, and secure door locking systems to help protect stored pharmaceuticals and laboratory materials.
Designed to support GMP environments, the refrigerator can be integrated with the optional 21 CFR Part 11 compliant LC Data Keeper system for audit-ready data management.
Optional accessories such as drawer shelves, temperature recorders, voice alarm systems, and mobile monitoring through LC Connected provide additional flexibility and control for modern laboratory and medical environments.
Key Features
-
Stable Temperature Control: Maintains reliable and consistent cold storage conditions.
-
Pharmaceutical Storage: Ideal for pharmaceuticals, samples, and temperature-sensitive materials.
-
Stainless Steel Interior: Durable, corrosion-resistant chamber for long-term use.
-
Condensation-Free Design: Helps prevent moisture buildup on exterior surfaces.
-
Magnetic Door Seal: Enhances sealing performance and temperature stability.
-
Built-In Casters: Allows easy movement and positioning.
-
Stackable Design: Saves space with optional double-stack configuration.
-
Auto Defrost: Eliminates manual defrosting requirements.
-
Advanced Controller: Provides accurate temperature management.
-
VFD Display: Clear touch-control interface for easy operation.
-
Dual Temperature Display: Shows set and actual temperatures simultaneously.
-
Temperature Calibration: Improves storage accuracy and consistency.
-
Adjustable Shelves: Accommodates various storage needs.
-
Interior Lighting: Improves visibility inside the chamber.
-
Glass Door Option: Enables quick viewing of stored items.
-
Cable Port Option: Supports external device connections.
-
21 CFR Part 11 Support: Helps meet GMP compliance requirements.
-
Dual Refrigeration System: Maintains cooling if one system fails.
-
Temperature Alarms: Alerts users to temperature deviations.
-

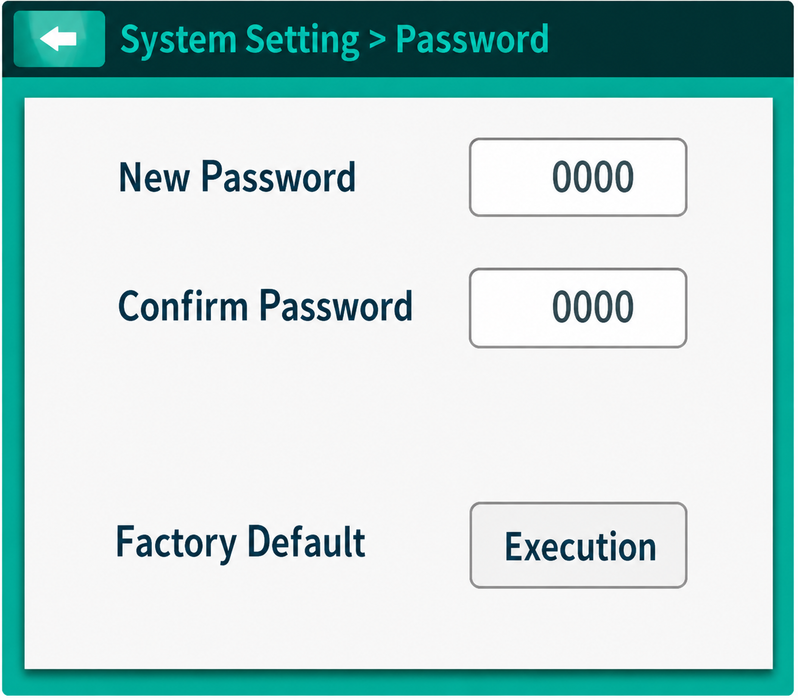

Controller Lock: Prevents unauthorized setting changes.
-

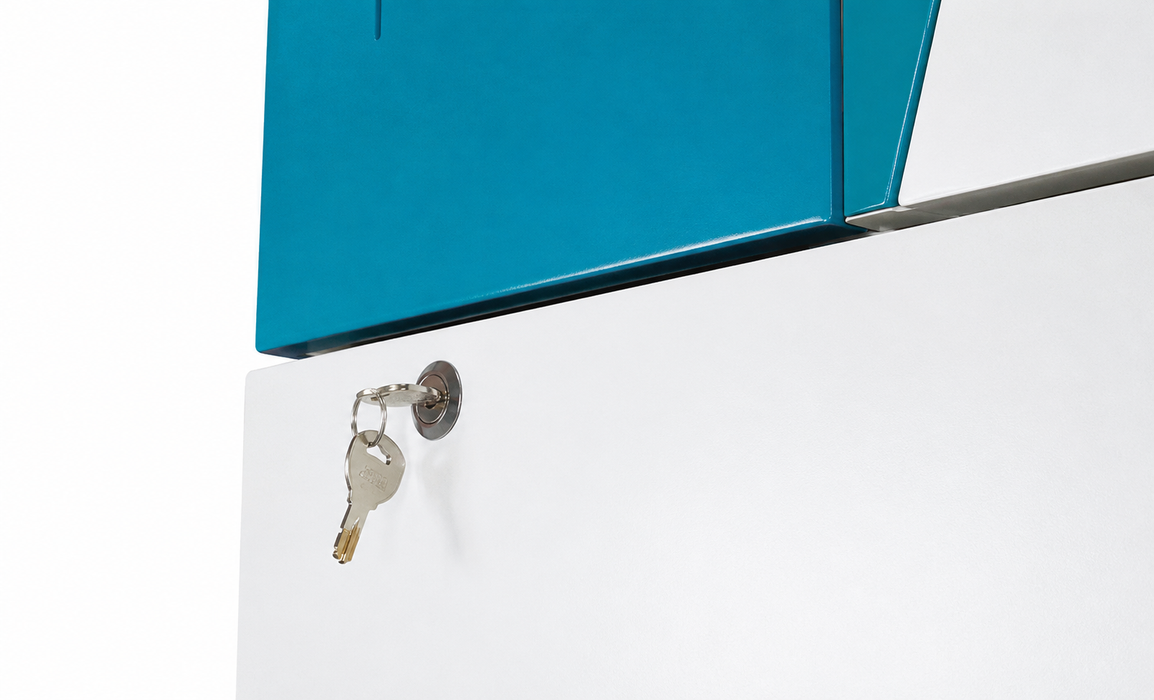

Door Lock Security: Protects stored contents.
-
Digital Lock Option: Provides enhanced access control.
-
ICH Q1A Compliance: Meets pharmaceutical storage standards.
-
Remote Monitoring: Optional mobile app-based monitoring.
-
Voice Alarm Option: Sends phone alerts during abnormalities.
-

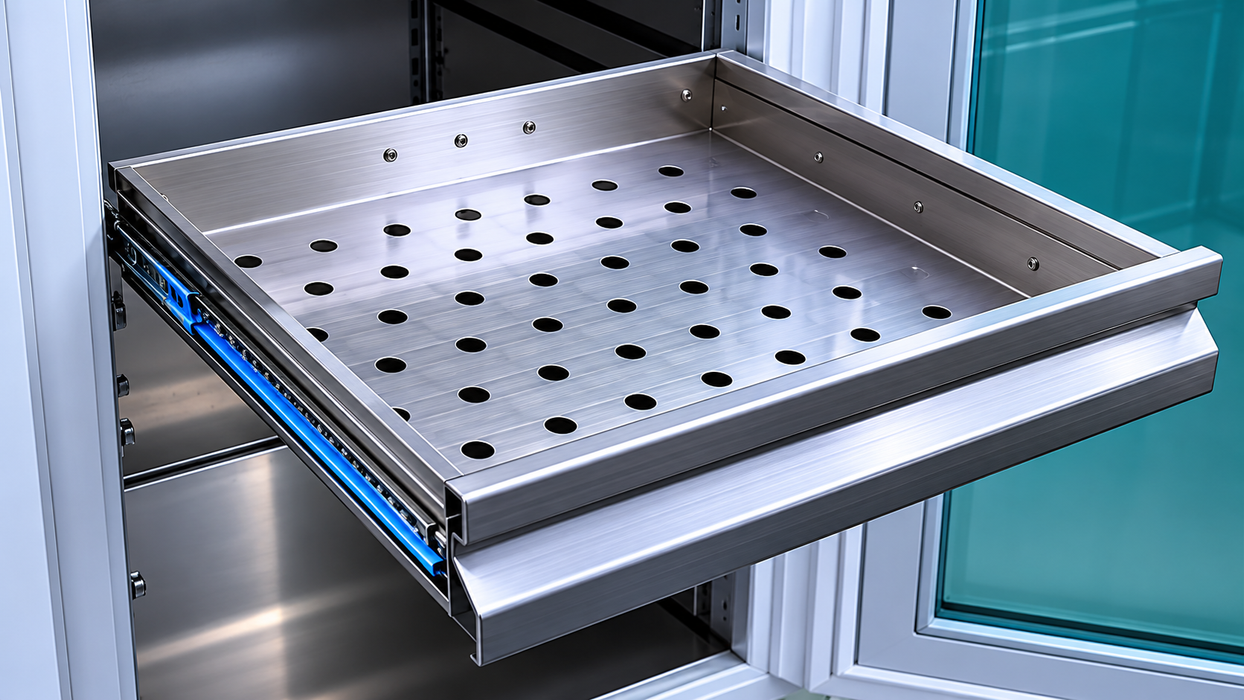

Drawer Shelf Option: Improves storage organization.
-
Recorder Compatibility: Supports multiple temperature recorders.
-

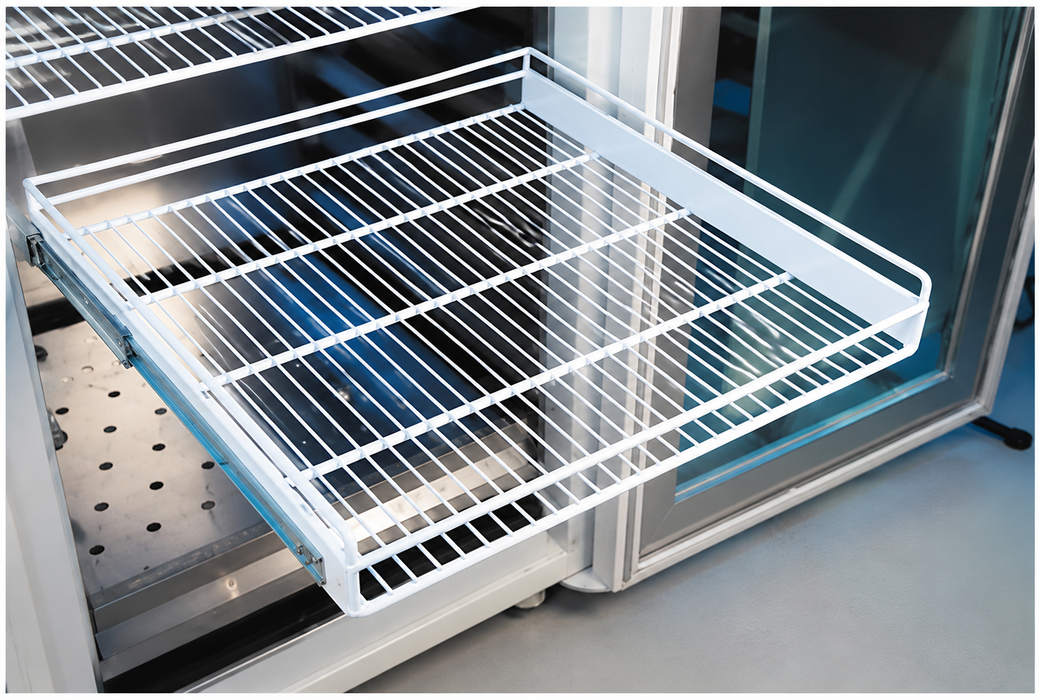

Wire Shelves: Provides strong and reliable storage support.
Specifications
| Specification |
CLG3-70 |
CLG-150 |
CLG-300 |
CLG-650 |
CLG-850 |
CLG-1400 |
| Temperature Range (°C / °F) |
2 to 10 / 35.6 to 50 |
2 to 10 / 35.6 to 50 |
2 to 10 / 35.6 to 50 |
2 to 10 / 35.6 to 50 |
2 to 10 / 35.6 to 50 |
2 to 10 / 35.6 to 50 |
| Chamber Volume (L / cu ft) |
73 / 2.6 |
156 / 5.5 |
303 / 10.7 |
603 / 21.3 |
805 / 28.4 |
1327 / 46.9 |
| Interior Dimensions (W × D × H, mm) |
418 × 440 × 400 |
550 × 580 × 490 |
550 × 550 × 1000 |
650 × 640 × 1450 |
750 × 740 × 1450 |
1430 × 640 × 1450 |
| Exterior Dimensions (W × D × H, mm) |
522 × 600 × 725 |
683 × 791 × 870 |
670 × 770 × 1515 |
770 × 865 × 1965 |
870 × 965 × 1965 |
1550 × 865 × 1965 |
| Net Weight (kg / lbs.) |
67 / 147.7 |
100 / 220.5 |
130 / 286.6 |
210 / 463 |
260 / 573.2 |
350 / 771.6 |
| Wire Shelves (Standard / Max.) |
2 / 3 |
2 / 6 |
3 / 11 |
3 / 17 |
3 / 17 |
6 / 34 |
| Slide Wire Shelves (Max.) |
- |
4 |
7 |
11 |
11 |
22 |
| Drawer Shelves (Max.) |
2 |
3 |
5 |
8 |
8 |
16 |
| Load Per Shelf (kg / lbs.) |
30 / 66.1 |
26 / 57.3 |
30 / 66.1 |
30 / 66.1 |
30 / 66.1 |
30 / 66.1 |
| Fluorescent Lamp |
4.2W, 1ea |
- |
18W, 1ea |
18W, 1ea |
32W, 1ea |
32W, 1ea |
| Electrical Requirements |
CLG3-70 |
CLG-150 |
CLG-300 |
CLG-650 |
CLG-850 |
CLG-1400 |
| 230V, 60Hz |
1.1A |
2A |
2.3A |
4A |
5A |
6A |
| 230V, 50Hz |
1.1A |
2A |
2.3A |
4A |
5A |
6A |
| 120V, 60Hz |
2.9A |
4A |
4.5A |
6.5A |
9A |
13A |
| Model |
230V, 60Hz Solid Door |
230V, 60Hz Glass Door |
230V, 50Hz Solid Door |
230V, 50Hz Glass Door |
120V, 60Hz Solid Door |
120V, 60Hz Glass Door |
| CLG3-70 |
- |
AAHE1301K |
- |
AAHE1302K |
- |
AAHE1303U |
| CLG-150 |
AAHE1001K |
AAHE1101K |
AAHE1002K |
AAHE1102K |
AAHE1003U |
AAHE1103U |
| CLG-300 |
AAHE1011K |
AAHE1111K |
AAHE1012K |
AAHE1112K |
AAHE1013U |
AAHE1113U |
| CLG-650 |
AAHE1021K |
AAHE1121K |
AAHE1022K |
AAHE1122K |
AAHE1023U |
AAHE1123U |
| CLG-850 |
AAHE1031K |
AAHE1131K |
AAHE1032K |
AAHE1132K |
AAHE1033U |
AAHE1133U |
| CLG-1400 |
AAHE1041K |
AAHE1141K |
AAHE1042K |
AAHE1142K |
AAHE1043U |
AAHE1143U |
Product Manual
User manual for Jeio Tech Laboratory Refrigerator CLG3 70 can be found here.
