Jeio Tech | Low Temperature Chiller Recirculating Cooler | Powerful Precision Temperature Control and Energy Efficient Performance
At Alto Med Supply, we proudly offer Jeio Tech Recirculating coolers designed for reliable temperature control and high-performance cooling in laboratory and industrial environments.
These powerful recirculating chillers provide a wide temperature range from -20°C to 40°C, making them ideal for applications that require stable and precise cooling performance.

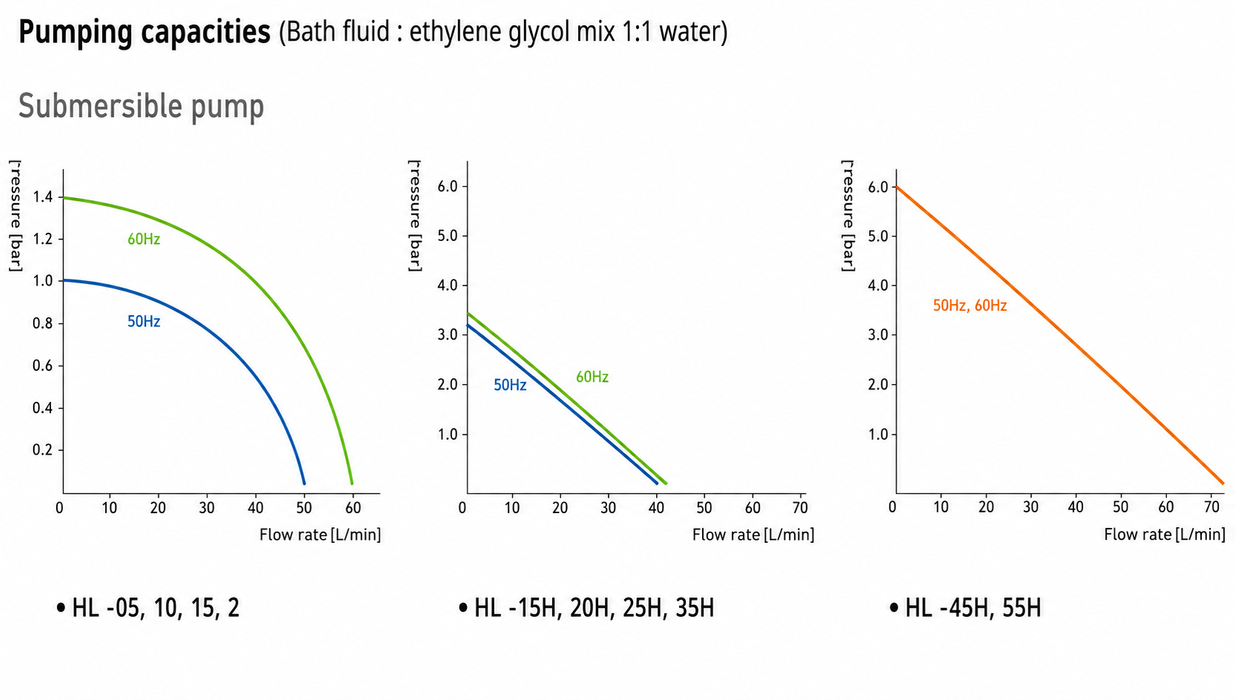

With cooling capacities up to 7.1kW at 20°C and powerful pumps delivering up to 70L/min. at 6 bar pressure, these systems are built to handle demanding workflows with efficiency and consistency.
The advanced refrigeration system is engineered to maximize cooling efficiency while helping reduce energy consumption.
For easy operation, the unit features a user-friendly touch screen control panel with an easy-to-read VFD display, interactive touch keys, and precise 0.1°C/°F temperature resolution.
Additional convenience features include a quick keypad lock to prevent accidental setting changes, operation status indicators, and a bright LED water level display that can be easily seen from a distance.
These Jeio Tech recirculating coolers are also designed for simple maintenance and daily usability.
Built-in pressure gauges allow quick monitoring of pump pressure, while H-type models include high and low pressure gauges for easy refrigeration system diagnostics.
A wide filling inlet supports safe and convenient solution pouring, and the removable gridded vent allows easy condenser maintenance.
Double service valves help reduce refrigerant leakage during servicing, while built-in casters make transportation and installation more convenient.
Safety features are integrated throughout the system to support dependable operation.
The self-diagnostic function quickly identifies system errors, while warning alarms help alert users to potential issues.
Protection systems include low fluid level and dry-running protection, over-temperature protection with visual and audible alerts, and an over-current circuit breaker for added safety.
Eco-friendly R-404A and R-507 refrigerants support environmentally responsible operation, and the splash-proof keypad helps improve durability in busy laboratory settings.
Key Features
-
Wide Temperature Range: Operates from -20°C to 40°C.
-
High Cooling Capacity: Delivers up to 7.1 kW cooling.
-
Powerful Pump: Supports up to 70 L/min flow.
-
Touch Screen Control: Enables easy operation.
-
Precise Control: Features 0.1°C resolution.
-
Pressure Monitoring: Built-in pressure gauge.
-
Built-In Casters: Allows easy mobility.
-
Self-Diagnostics: Detects system errors.
-
Safety Protection: Includes alarms and overload protection.
Specifications
| HL Series Recirculating Coolers Specifications |
| Specification |
| Specification |
HL-05 |
HL-10 |
HL-15 |
HL-20 |
HL-15H |
HL-20H |
HL-25H |
HL-35H |
HL-45H |
HL-55H |
| Working Temperature Range |
-20 to 40°C (-4 to 104°F) |
| Temperature Stability @ 15°C |
±1°C (±1.8°F) |
| Cooling Capacity @ 20°C (kW) |
0.6 |
0.7 |
1.45 |
1.8 |
1.45 |
1.8 |
2.5 |
3.3 |
6.5 |
7.1 |
| Cooling Capacity @ 10°C (kW) |
0.5 |
0.6 |
1.15 |
1.5 |
1.15 |
1.5 |
1.8 |
2.3 |
4.5 |
6.0 |
| Cooling Capacity @ 0°C (kW) |
0.35 |
0.42 |
0.86 |
1.15 |
0.86 |
1.15 |
1.1 |
1.7 |
3.0 |
4.1 |
| Cooling Capacity @ -10°C (kW) |
0.18 |
0.32 |
0.62 |
0.85 |
0.62 |
0.85 |
0.65 |
1.0 |
2.1 |
2.5 |
| Cooling Capacity @ -20°C (kW) |
0.04 |
0.14 |
0.30 |
0.40 |
0.30 |
0.40 |
0.40 |
0.55 |
1.20 |
1.50 |
Product Manual
User manual for Jeio Tech Low Temperature Chiller Recirculating Cooler can be found here.
