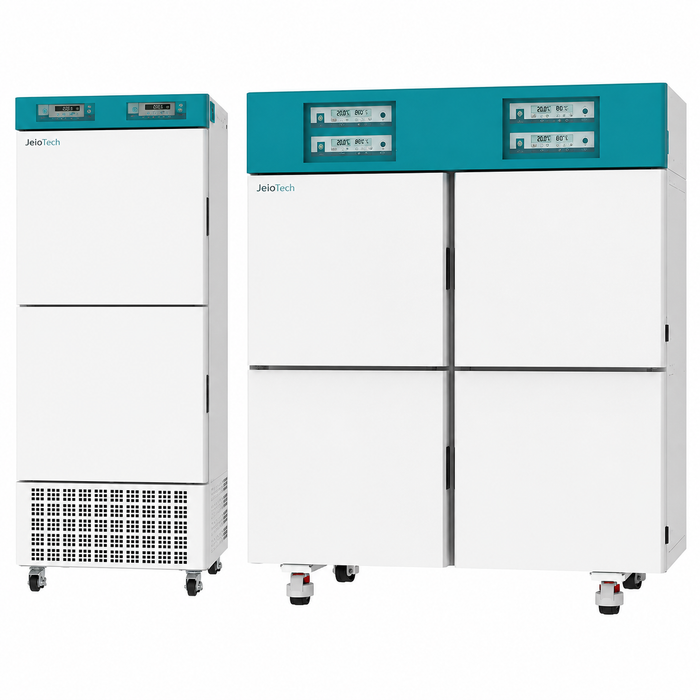

The Jeio Tech Multi-Chamber Refrigerated Incubator, available at Alto Med Supply, is designed to provide a cost-effective and space-saving solution for laboratories with limited workspace.
This laboratory incubator combines two or four 150L chambers into a single unit, allowing users to perform multiple experiments at the same time while maximizing laboratory efficiency.
Each chamber features independent temperature and timer control using a microprocessor PID system, making it ideal for applications requiring different incubation conditions simultaneously.
With a temperature range from 0°C to 60°C, this refrigerated incubator delivers stable and accurate performance for microbiology, pharmaceutical, research, and laboratory applications.
The silent cooling system helps reduce water evaporation inside the chamber, while PID temperature control, automatic tuning, and temperature calibration ensure dependable temperature stability.
Adjustable 3-step fan speed control and programmable defrost settings help maintain uniform airflow and reliable chamber conditions.
The incubator is designed for easy operation with a bright LED display featuring 0.1°C resolution and an intuitive control panel.
Dual wait on/off timer modes support operation from 1 minute to 99 hours and 59 minutes.
Users can save up to three commonly used temperature settings and program up to nine temperature steps with a maximum of 200 repeat cycles for advanced testing applications.
For added convenience, the incubator includes an inner tempered-glass door for sample monitoring without affecting chamber temperature.
Rounded chamber corners improve airflow and simplify cleaning, while built-in casters allow easy transport and installation within the laboratory.
Safety features include automatic restart after power interruption, keypad lock protection to prevent accidental setting changes, over-temperature and over-current protection, and audible and visible open door alarms.
The Jeio Tech multi-chamber refrigerated incubator is an ideal solution for laboratories needing reliable temperature control, flexible chamber operation, and efficient use of laboratory space.
Key Features
-
Multi-Chamber Design: Combines two or four chambers in one compact unit.
-
Independent Controls: Separate temperature and timer settings for each chamber.
-
Space-Saving Design: Maximizes laboratory workspace.
-
0°C to 60°C Range: Supports refrigerated incubation applications.
-
Silent Cooling: Helps reduce sample evaporation.
-
PID Control: Ensures stable temperature performance.
-
Temperature Calibration: Improves accuracy and consistency.
-
Adjustable Fan Speed: Enhances airflow uniformity.
-
Defrost Control: Maintains efficient cooling operation.
-
LED Display: Provides clear temperature monitoring.
-
Dual Timer Modes: Supports automated operation.
-
Temperature Presets: Saves frequently used settings.
-
Programmable Profiles: Supports multi-step temperature programs.
-
Glass Inner Door: Allows sample viewing without disruption.
-
Easy-Clean Interior: Simplifies maintenance.
-
Built-In Casters: Enables easy movement.
-
Auto Power Recovery: Restarts after power loss.
-
Keypad Lock: Prevents accidental changes.
-
Safety Protection: Includes over-temperature and over-current protection.
-
Open Door Alarm: Alerts when the door is left open.
Specifications
| Specification |
IL-11-2C |
IL-11-4C |
| Chamber Configuration |
| Number of Chambers |
2 Chambers |
4 Chambers |
| Chamber Volume |
150 L / 5.3 cu ft Per Chamber |
150 L / 5.3 cu ft Per Chamber |
| Total Chamber Capacity |
300 L / 10.6 cu ft |
600 L / 21.2 cu ft |
| Refrigeration System |
1/8 HBP × 2 |
1/8 HBP × 4 |
| Temperature Performance |
| Temperature Range |
0°C to 60°C 32°F to 140°F |
0°C to 60°C 32°F to 140°F |
| Temperature Fluctuation at 25°C |
±0.1°C / ±0.18°F |
±0.1°C / ±0.18°F |
| Temperature Variation at 25°C |
±0.5°C / ±0.9°F |
±0.5°C / ±0.9°F |
| Interior Dimensions |
| Per Chamber (W × D × H) |
600 × 500 × 500 mm 23.6 × 19.7 × 19.7 in |
600 × 500 × 500 mm 23.6 × 19.7 × 19.7 in |
| Exterior Dimensions |
| Overall Size (W × D × H) |
760 × 760 × 1690 mm 29.9 × 29.9 × 66.1 in |
1500 × 760 × 1690 mm 59.1 × 29.9 × 66.1 in |
| Storage Capacity |
| Wire Shelves (Standard) |
2 Per Chamber |
2 Per Chamber |
| Maximum Shelves |
11 Per Chamber |
11 Per Chamber |
| Weight |
| Net Weight |
180 kg / 397 lbs |
350 kg / 772 lbs |
| Electrical Requirements |
| 230V, 60Hz |
9A |
9A × 2 Units |
| 230V, 50Hz |
9A |
9A × 2 Units |
| 120V, 60Hz |
16.5A |
16.5A × 2 Units |
| Catalog Numbers |
| 230V, 60Hz |
AAH28111K |
AAH28011K |
| 230V, 50Hz |
AAH28112K |
AAH28012K |
| 120V, 60Hz |
AAH28113U |
AAH28013U |
Product Manual
User manual for Jeio Tech Low Temperature Incubator Multi type can be found here.
