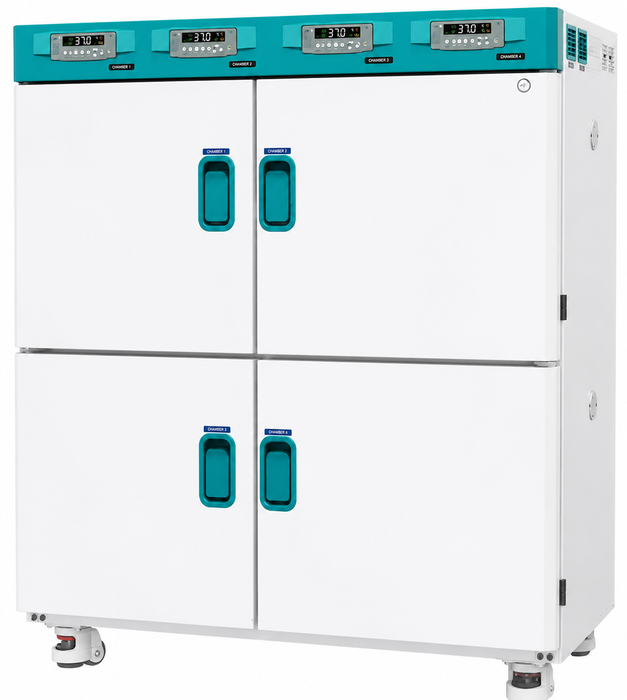

Jeio Tech | Low Temperature Incubators Multi Type Forced Convection | Multi Chamber with PID Temp Control Forced Air Convection up to 70°C
The Jeio Tech Multi-Chamber Laboratory Incubator, available at Alto Med Supply, is designed for precise temperature control, efficient space utilization, and reliable laboratory performance.
With a temperature range from ambient +5°C to 70°C, this incubator is ideal for a wide range of laboratory applications requiring stable and uniform heating.
Each chamber features independent temperature and timer control using a microprocessor PID system, allowing accurate operation for different testing conditions at the same time.
Automatic tuning and temperature calibration help maintain consistent performance and dependable results.
This laboratory incubator uses a powerful yet quiet sirocco fan to create forced air convection for excellent airflow and temperature uniformity throughout the chamber.
The unit combines two or four independently controlled 60L chambers into one compact system, helping maximize valuable laboratory space.
An intuitive control panel with a bright LED display and 0.1°C resolution makes operation simple and precise.
Dual wait on/off timer modes and programmable temperature settings provide added convenience for daily laboratory workflows.
Built for durability and easy maintenance, the incubator features a corrosion-resistant Incoloy sheath heating element and a stainless steel interior.
Rounded chamber corners improve airflow and make cleaning easier.
A built-in cable port allows the use of additional instruments inside the chamber, while integrated casters support smooth transport and installation.
For added safety and reliability, the incubator includes automatic restart after power interruption, keypad lock protection, over-temperature and over-current protection, and audible and visible open door alarms.
The Jeio Tech Multi-chamber incubator is a dependable solution for laboratories needing accurate temperature control, flexible chamber operation, and space-saving performance.
Key Features
-
Wide Temperature Range: Operates from ambient +5°C to 70°C.
-
Independent Controls: Separate settings for each chamber.
-
PID Control: Ensures stable temperatures.
-
Auto Calibration: Improves accuracy.
-
Forced Air Convection: Promotes uniform heating.
-
Multi-Chamber Design: Available in 2- or 4-chamber models.
-
LED Display: Provides clear monitoring.
-
Programmable Timers: Supports automated operation.
-
Temperature Presets: Saves common settings.
-
In-Coloy Heater: Durable and corrosion-resistant.
-
Stainless Steel Interior: Easy to clean.
-
Built-In Cable Port: Supports lab equipment.
-
Integrated Casters: Enables easy movement.
-
Auto Power Recovery: Restarts after power loss.
-
Keypad Lock: Prevents accidental changes.
-
Safety Protection: Guards against overheating and overcurrent.
-
Open Door Alarm: Alerts when left open.
Specifications
| Specification |
IB-02G-2C |
IB-02G-4C |
| Chamber Configuration |
| Number of Chambers |
2 |
4 |
| Volume per Chamber |
60 L (2.1 cu ft) |
60 L (2.1 cu ft) |
| Total Capacity |
120 L (4.2 cu ft) |
240 L (8.4 cu ft) |
| Temperature Performance |
| Temperature Range |
Ambient +5°C to 70°C (Ambient +9°F to 158°F) |
Ambient +5°C to 70°C (Ambient +9°F to 158°F) |
| Temperature Fluctuation @ 37°C |
±0.1°C (±0.18°F) |
±0.1°C (±0.18°F) |
| Temperature Variation @ 37°C |
±0.6°C (±1.08°F) |
±0.6°C (±1.08°F) |
| Internal Dimensions (Per Chamber) |
| Width × Depth × Height |
400 × 360 × 420 mm (15.7 × 14.2 × 16.5 in) |
400 × 360 × 420 mm (15.7 × 14.2 × 16.5 in) |
| External Dimensions |
| Width × Depth × Height |
570 × 640 × 1360 mm (22.4 × 25.2 × 53.5 in) |
1170 × 640 × 1360 mm (46.1 × 25.2 × 53.5 in) |
| Shelving Capacity |
| Standard Shelves |
2 Per Chamber |
2 Per Chamber |
| Maximum Shelves |
7 Per Chamber |
7 Per Chamber |
| Weight |
| Net Weight |
110 kg (242.5 lbs) |
168 kg (370.4 lbs) |
| Power Requirements |
| 230V, 50/60Hz |
4.1 A |
4.1 A × 2 Units |
| 120V, 50/60Hz |
7.5 A |
7.5 A × 2 Units |
| Ordering Information |
| Catalog No. (230V) |
AAH2A115K |
AAH2A015K |
| Catalog No. (120V) |
AAH2A116U |
AAH2A016U |
Product Manual
User manual for Jeio Tech Low Temperature Incubators Multi Type Forced Convection can be found here.
