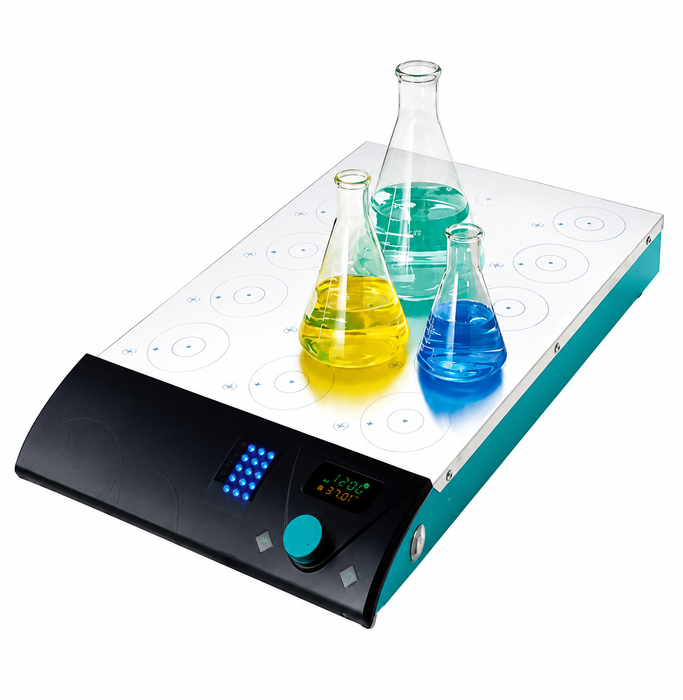

Jeio Tech | Magnetic Stirrers Multi Position | Digital PID Control, High Speed, Multi Point Mixing and Stainless Steel Construction
The Jeio Tech Multi-Position Magnetic Stirrer, available at Alto Med Supply, is designed to deliver reliable high-speed stirring performance for laboratories, research facilities, and industrial applications.
Equipped with powerful magnets and a durable BLDC motor, this advanced magnetic stirrer provides smooth, silent, and spark-free operation while maintaining consistent stirring performance across multiple positions.
Its broad speed range makes it ideal for demanding experimental environments that require precise and stable mixing.
Built with convenience in mind, this laboratory magnetic stirrer features an ergonomic, lightweight, and low-profile design that is easy to operate and fits comfortably into any workspace.
The wide top plate and strong magnetic coupling help ensure stable stirring, while the digital PID feedback control independently manages each stirring point for improved accuracy and consistency.
Users can customize operations through multiple stirring modes, including single point, multiple point, whole row, and whole column settings, making it a versatile solution for various laboratory workflows.
The intuitive control panel, easy-to-read VFD display, and bright LED position indicators simplify operation and monitoring during use.
For added durability, the unit includes a chemical-resistant #304 stainless steel top plate and optional non-slip transparent silicone mat for enhanced stability.
Non-slip rubber feet help keep the unit securely positioned during high-speed operation.
Safety is also a priority with the Jeio Tech Multi-Position Magnetic Stirrer.
The system is designed to protect internal components from accidental spills and includes built-in thermal shutdown and current limit protection for dependable long-term use.
Whether used in research laboratories, pharmaceutical settings, or educational facilities, this high-performance magnetic stirrer offers reliable mixing, user-friendly controls, and durable construction for everyday laboratory applications.
Key Features
High-Speed Stirring: Provides efficient and stable mixing.
Safety Features: Includes thermal and current protection.
Specifications

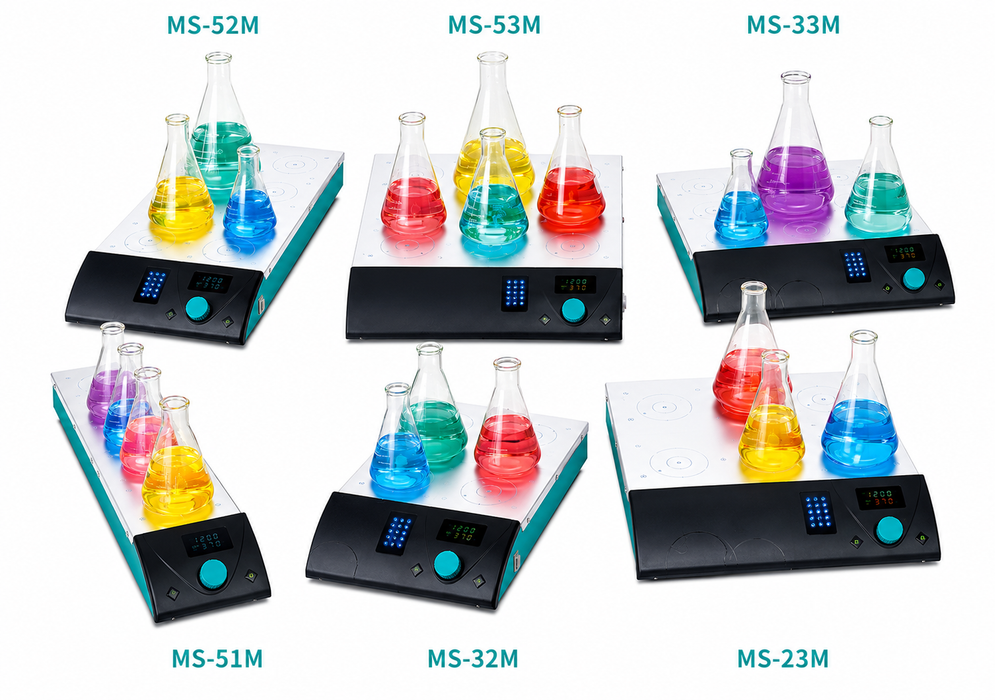

Multi-Position Magnetic Stirrer Specifications
Specification
MS-23M
MS-32M
MS-33M
MS-51M
MS-52M
MS-53M
Stirring Performance
Speed Control
PID Feedback Control
Stirring Positions
6
6
9
5
10
15
Speed Range
30 - 2,000 rpm
Stirring Point Distance
117 × 170 mm 4.6 × 6.69 in
117 × 90 mm 4.6 × 3.54 in
117 × 90 mm 4.6 × 3.54 in
90 mm 3.54 in
117 × 90 mm 4.6 × 3.54 in
117 × 90 mm 4.6 × 3.54 in
Timer
1 min. - 99 hr. 59 min.
Display
VFD
Capacity & Motor
Motor Input / Output (Per Point)
2.9 W / 1.6 W
Maximum Load
30 kg / 66.14 lbs.
Dimensions & Weight
Dimensions (W × D × H)
377 × 436 × 82 mm 14.8 × 17.2 × 3.2 in
254 × 436 × 82 mm 10.0 × 17.2 × 3.2 in
377 × 436 × 81 mm 14.8 × 17.2 × 3.2 in
131 × 603 × 82 mm 5.2 × 23.7 × 3.2 in
254 × 602 × 82 mm 10.0 × 23.7 × 3.2 in
377 × 599 × 82 mm 14.9 × 23.6 × 3.2 in
Net Weight
6 kg 13.23 lbs.
5 kg 11.02 lbs.
7 kg 15.43 lbs.
4 kg 8.82 lbs.
8 kg 17.64 lbs.
11 kg 24.25 lbs.
Electrical Information
Power Supply
AC 100–240V, 50/60Hz
Power Consumption
45 W
45 W
54 W
45 W
85 W
135 W
Protection Class
IP21 (DIN EN 60529)
Ordering Information
KR Plug Cat. No.
AAH332115K
AAH332215K
AAH332315K
AAH332415K
AAH332515K
AAH332615K
US Plug Cat. No.
AAH332115U
AAH332215U
AAH332315U
AAH332415U
AAH332515U
AAH332615U
Product Manual
User manual for Jeio Tech Magnetic Stirrers Multi Position can be found here.
