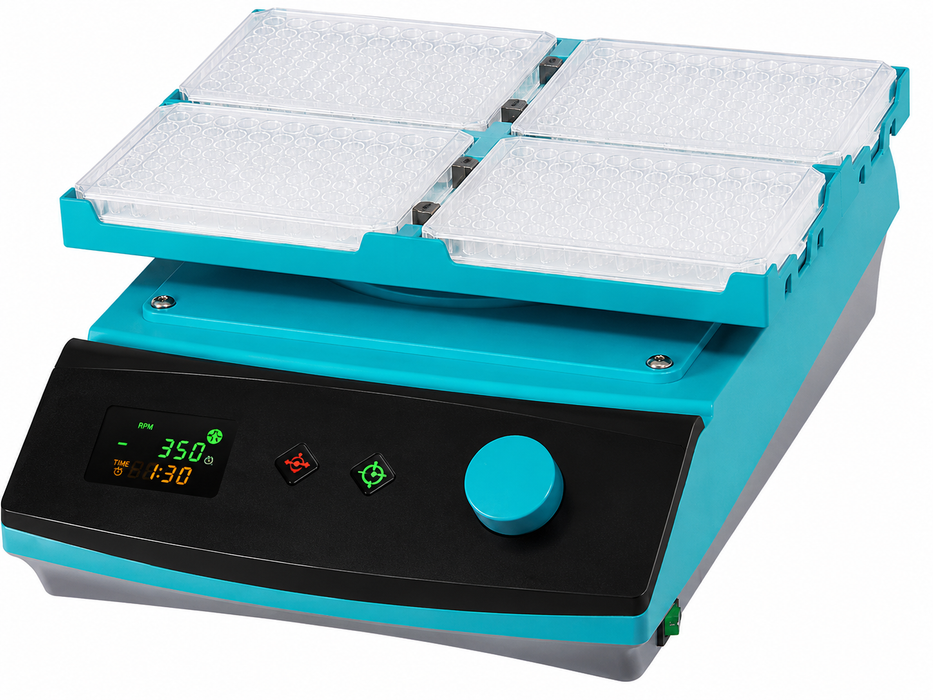

Jeio Tech | Microplate Shaker | With PID Control and Wide Speed Range for Precise Laboratory Mixing Applications
The Jeio Tech Microplate Shaker, available at Alto Med Supply, is designed to provide precise and repeatable mixing for a wide range of laboratory and bioscience applications.
Built to accommodate up to four microplates simultaneously, this compact laboratory shaker is ideal for sample testing, research workflows, and other applications that require consistent shaking performance.
Its wide speed range of 150 to 1,200 rpm allows users to easily adjust mixing intensity for different sample types and laboratory procedures.
Equipped with advanced microprocessor PID control, the shaker delivers stable and accurate operation for dependable laboratory results.
The 3 mm orbital shaking motion ensures uniform sample mixing, while the smooth start function helps reduce the risk of sample contamination during operation.
A maintenance-free BLDC motor provides quiet, smooth, and powerful shaking performance with minimal vibration, making it suitable for continuous laboratory use.
For convenience and ease of use, the unit features a bright vacuum fluorescent display (VFD) with a touch-sensitive keypad for simple monitoring and operation.
The built-in one-touch timer supports timed shaking functions from 1 minute up to 99 hours and 59 minutes, allowing flexibility for both short and extended procedures.
Its compact and lightweight design makes it easy to use in incubators, cold rooms, and other space-limited laboratory environments.
The Jeio Tech Microplate Shaker also supports a variety of accessories to meet different application needs.
Optional tube racks are available for 1.5 ml micro-tubes, 15 ml conical tubes, and 50 ml conical tubes, providing added versatility for laboratory workflows.
For improved safety and durability, the shaker includes self-diagnostic error detection, over-current protection, and a chemical-resistant polypropylene body that is easy to clean and built for demanding laboratory environments.
Key Features
-
4-Microplate Capacity: Shakes up to four plates simultaneously.
-
PID Control: Delivers consistent shaking performance.
-
Wide Speed Range: Adjustable from 150–1,200 rpm.
-
Orbital Motion: Provides uniform sample mixing.
-
BLDC Motor: Ensures quiet, low-vibration operation.
-
VFD Display: Enables easy control and monitoring.
-
Programmable Timer: Supports timed operation.
-
Compact Design: Saves laboratory space.
-
Chemical-Resistant Body: Durable and easy to clean.
-
Safety Protection: Includes diagnostics and overload protection.
Specifications
| CPS-350 Microplate Shaker Specifications |
| Performance |
| Control System |
PID Feedback Control |
| Display |
VFD Display |
| Motion Type |
Orbital Shaking |
| Speed Range |
150 – 1,200 rpm |
| Speed Accuracy |
±15 rpm (at 500 rpm) |
| Orbit Size |
3 mm / 0.12 in |
| Timer |
1 min. – 99 hr. 59 min. |
| Maximum Load |
4 kg / 8.8 lbs. |
| Dimensions and Weight |
| Tray Size (W × D) |
269 × 185 mm
10.6 × 7.3 in |
| Body Dimensions (W × D × H) |
269 × 325 × 128 mm
10.6 × 12.8 × 5.0 in |
| Net Weight |
7.7 kg / 17 lbs. |
| Electrical Specifications |
| Power Supply |
AC 100–240V, 50/60Hz |
| Catalog Numbers |
| KR Plug |
AAH3C1115K |
| US Plug |
AAH3C1115U |
Product Manual
User manual for Jeio Tech Microplate Shaker can be found here.
