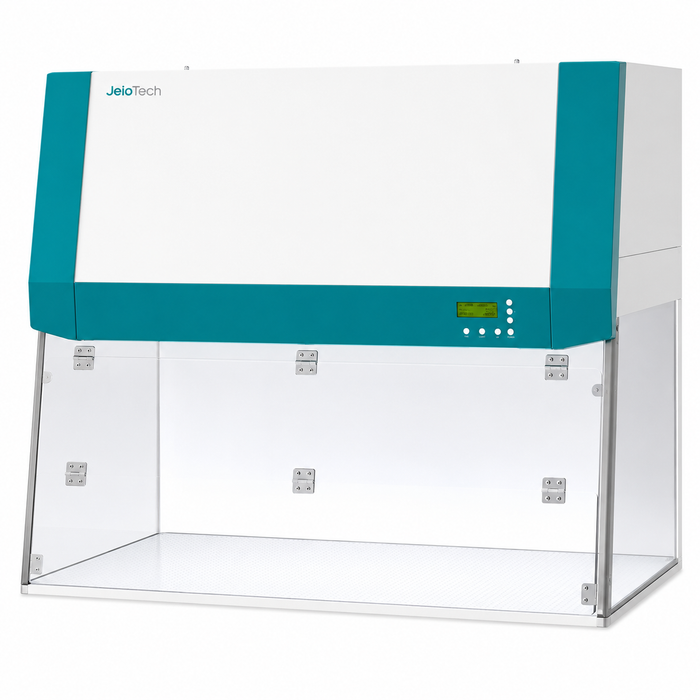

Jeio Tech | PCR Workstation | Fume Hood with HEPA Filtration, UV Sterilization and ISO Class 4 Clean Air Protection
The Jeio Tech PCR Workstation, available at Alto Med Supply, is designed to provide clean and protected workspace conditions for PCR preparation, DNA/RNA handling, and other sensitive laboratory applications.
Featuring an ISO Class 4 (US Class 10) HEPA filtration system, this workstation helps minimize cross-contamination by removing airborne particles and maintaining a clean working environment.
The high-quality polyester fiber pre-filter captures larger particles to help extend the life of the main HEPA filter, which typically lasts up to three years depending on operating conditions.
For effective sterilization, the workstation includes a long-life 254 nm UV lamp with an average lifespan of 8,000 hours.
A built-in digital timer allows easy control of UV exposure for deactivating DNA and RNA contaminants, with a programmable timer setting up to 30 minutes.
The integrated anti-glare LED lighting improves visibility while reducing shadows and eye strain during laboratory work.
Designed for convenience and daily laboratory use, the Jeio Tech PCR Workstation features a user-friendly microprocessor control panel, a large-capacity blower, and adjustable airflow speed controls.
Front-access cartridge-style filters allow fast and simple maintenance when filter replacement is needed.
Safety features include an interlocking door system that automatically shuts off the UV lamp when the door is opened to help protect users from UV exposure.
Transparent UV-blocking polycarbonate side panels and doors provide clear visibility inside the chamber while maintaining user protection.
Additional safety functions include a UV over-exposure alarm and over-current protection for reliable laboratory operation.
Key Features
-
HEPA Filter: ISO Class 4 clean air.
-
Long Filter Life: Lasts up to 3 years.
-
UV Sterilization: Effective decontamination.
-
LED Lighting: Clear workspace visibility.
-
Adjustable Airflow: Easy speed control.
-
UV Timer: Programmable operation.
-
Quick Filter Access: Fast replacement.
-
UV Safety Shutoff: Automatic protection.
-
UV-Blocking Panels: Enhanced user safety.
-
Safety Alarms: UV and over-current alerts.
Specifications
| Specification |
PW-01 |
PW-11 |
PW-21 |
| Airflow & Filtration System |
| Air Flow Type |
Vertical Laminar Flow |
| Airflow Velocity |
0.4 m/s (78.7 fpm) |
| Main Filter |
HEPA Filter (99.99% Efficiency at 0.3 μm) |
| Pre-Filter |
Polyester Fiber Filter |
| UV Sterilization & Lighting |
| UV Lamp Power |
15 W |
20 W |
30 W |
| LED Lamp (254 nm) |
7 W |
10 W |
13 W |
| Light Intensity |
More Than 1000 Lux |
| UV Protection |
99.9% |
| Construction Materials |
| Window Material |
Clear Polycarbonate (Front, Sides & Rear) |
| Working Surface |
Clear Polycarbonate |
| Interior Dimensions (W × D × H) |
| Metric |
700 × 585 × 602 mm |
880 × 585 × 602 mm |
1180 × 585 × 602 mm |
| Imperial |
27.5 × 23 × 23.7 in |
34.6 × 23 × 23.7 in |
46.5 × 23 × 23.7 in |
| Exterior Dimensions (W × D × H) |
| Metric |
720 × 605 × 964 mm |
900 × 605 × 964 mm |
1200 × 605 × 964 mm |
| Imperial |
28 × 24 × 38 in |
35.4 × 24 × 38 in |
47.2 × 24 × 38 in |
| Weight & Operating Noise |
| Net Weight |
56.2 kg (123.9 lbs.) |
64.2 kg (141.5 lbs.) |
77.8 kg (171.5 lbs.) |
| Noise Level |
< 60 dB |
| Electrical Requirements |
| 230V, 50/60Hz |
1.3 A |
1.4 A |
1.5 A |
| 120V, 60Hz |
2.2 A |
2.7 A |
2.9 A |
| Ordering Information |
| Catalog No. (230V) |
AAHB3002K |
AAHB3012K |
AAHB3022K |
| Catalog No. (120V) |
AAHB3003U |
AAHB3013U |
AAHB3023U |
Product Manual
User manual for Jeio Tech PCR Workstation can be found here.
