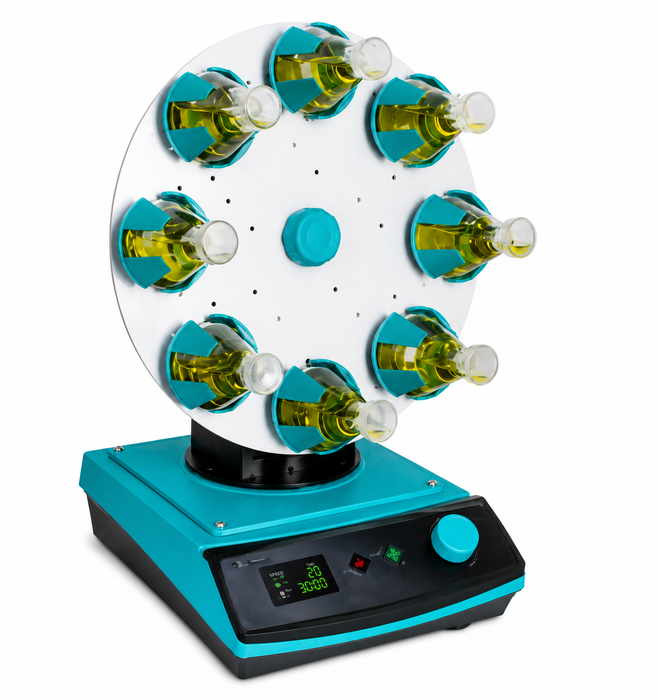

Jeio Tech | Rotator | Tube Rotator Mixer or Shaker for Biological Samples, Vials and Test Tubes with Adjustable Speed and Tilt Control
The Jeio Tech Tube Rotator from Alto Med Supply is designed for reliable and efficient mixing of biological samples in a wide range of vials and test tubes.
Ideal for laboratories, research facilities, and clinical applications, this laboratory tube mixer delivers smooth and consistent rotation with an adjustable speed range from 2 to 70 rpm.

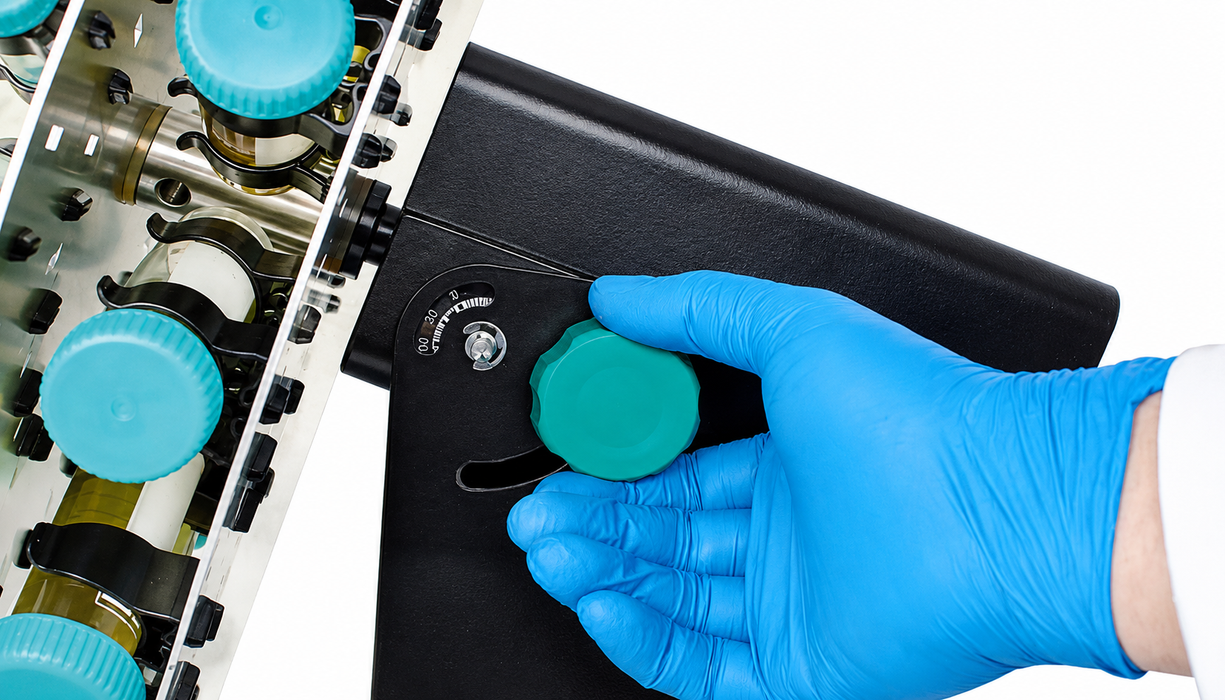

Its fully adjustable tilt angle up to 90° allows users to switch from gentle horizontal mixing to complete end-over-end sample rotation, making it suitable for various mixing requirements.
Built with advanced microprocessor PID control, this lab rotator provides accurate speed performance and stable operation even at low speeds.
The low-profile design with rubber feet helps minimize vibration and noise, creating a quieter and more stable working environment.
The bright vacuum fluorescent display (VFD) with a touch-sensitive keypad offers simple operation and easy monitoring, while the one-touch timer can be set from 1 minute up to 99 hours and 59 minutes for flexible laboratory workflows.

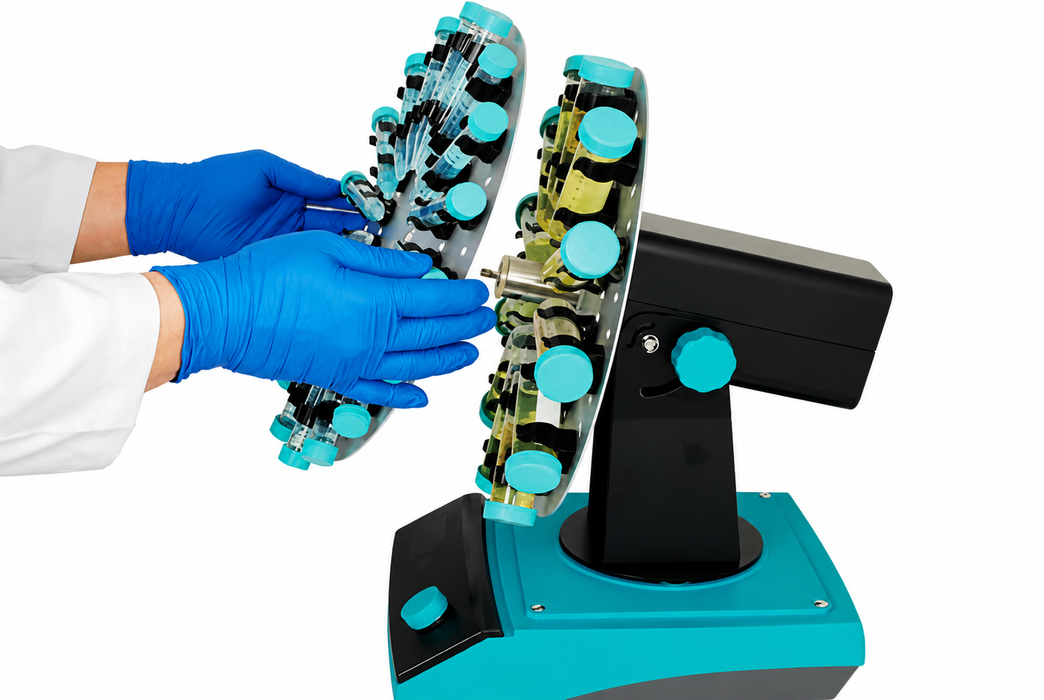

For added convenience, the rotating disk system allows quick installation and removal of accessories.
Optional tube holders and flask clamp disks provide compatibility for different sample sizes and applications.

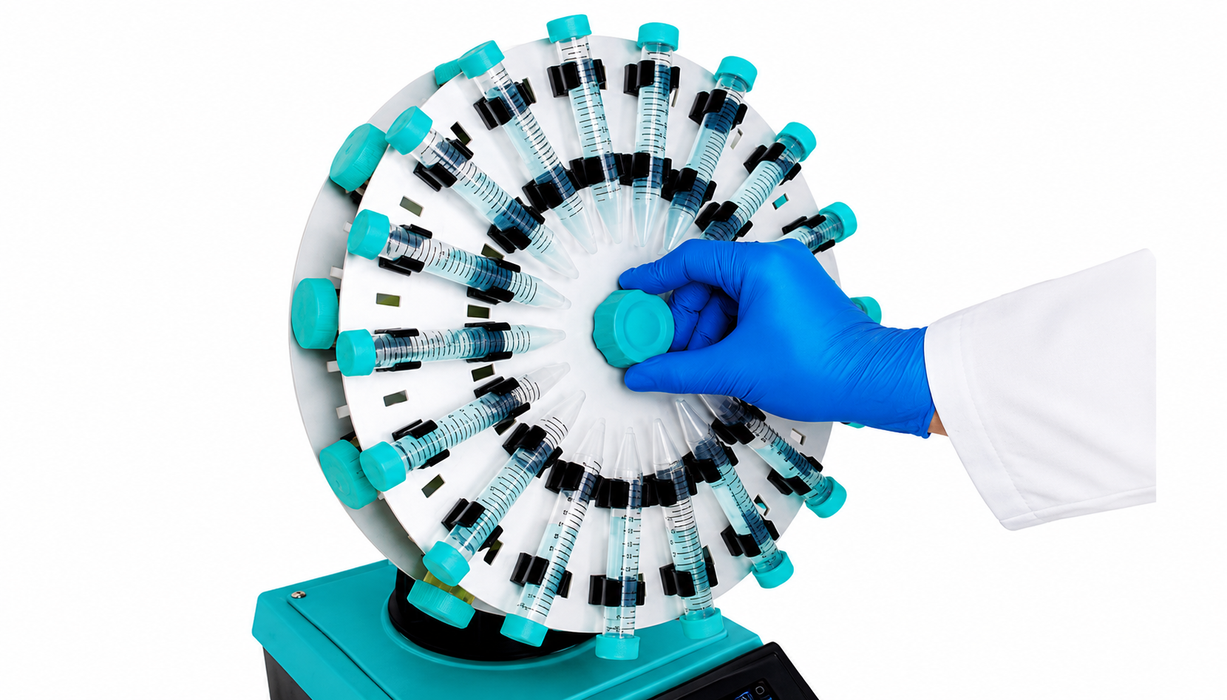

With the optional dual holder accessory, the unit can rotate up to 120 test tubes simultaneously, making it a practical choice for high-volume sample processing.
The Jeio Tech Rotator is also designed with durability and safety in mind. Its chemical-resistant polypropylene body is easy to clean and built for long-term laboratory use.
Additional safety features include over-current protection, a self-protection stepping motor, and a self-diagnostic system that helps identify operational errors quickly for dependable performance.
Key Features
-
Efficient Mixing: Provides reliable sample rotation.
-
PID Speed Control: Ensures consistent performance.
-
Adjustable Speed: Operates from 2 to 70 rpm.
-
90° Tilt Angle: Supports multiple mixing modes.
-
Low-Vibration Design: Delivers quiet operation.
-
High Capacity: Holds up to 120 test tubes.
-
Flexible Holders: Supports various tube sizes.
-
VFD Display: Enables easy control and monitoring.
-
Programmable Timer: Supports timed operation.
-
Durable Motor: Provides long-lasting reliability.
-
Chemical-Resistant Body: Easy to clean and maintain.
-
Safety Protection: Includes over-current protection.
Specifications
| CRT-350 Tube Rotator Specifications |
| Performance |
| Control System |
PID Feedback Control |
| Display |
VFD Display |
| Motion Type |
Orbital Rotation |
| Speed Range |
2 – 70 rpm |
| Tilt Angle |
0° – 90° |
| Maximum Load |
4 kg / 8.8 lbs. |
| Construction |
| Optional Disk Material |
Aluminum |
| Body Material |
Polypropylene (PP) |
| Dimensions & Weight |
| Exterior Dimensions (W × D × H) |
320 × 325 × 463 mm
12.6 × 12.8 × 18.2 in |
| Net Weight |
7.5 kg / 16.5 lbs. |
| Electrical Information |
| Power Supply |
AC 100–240V, 50/60Hz |
| Ordering Information |
| KR Plug Cat. No. |
AAH3E115K |
| US Plug Cat. No. |
AAH3E115U |
Product Manual
User manual for Jeio Tech | Rotator can be found here.
