Jeio Tech | Safety Acid Corrosive Cabinet | Chemical Storage Cabinet with Ventilation System and Chemical Resistant Interior

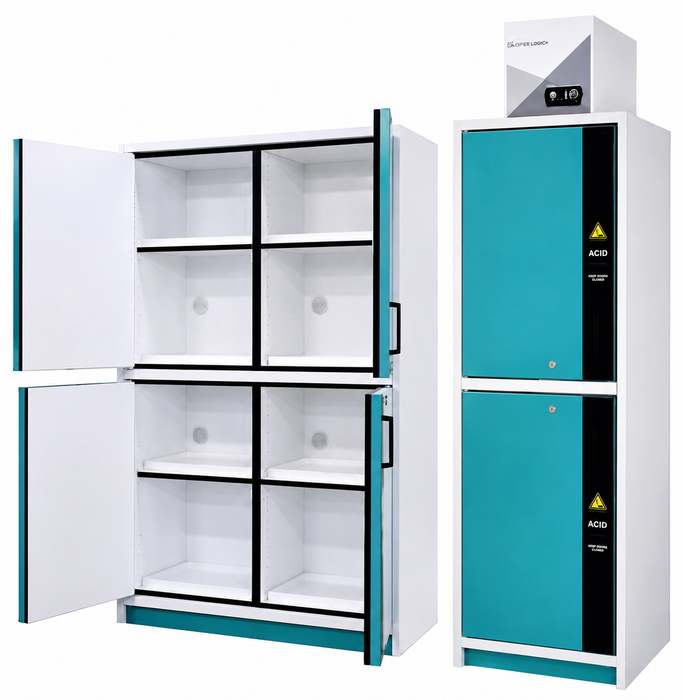

The Jeio Tech Corrosive Chemical Storage Cabinet, available at Alto Med Supply, is designed for the safe and organized long-term storage of corrosive chemicals, acids, and bases in laboratories, industrial facilities, and research environments.
Built with a durable steel structure and corrosion-resistant interior materials, this laboratory safety cabinet provides reliable chemical protection and dependable performance for daily laboratory use.
The cabinet features phenol resin-coated interior panels and an epoxy-coated exterior surface that offer excellent resistance against harsh chemicals and corrosive substances.
Its sturdy metal frame helps prevent deformation, while the heavy-duty shelf system supports up to 80 kg per shelf for secure chemical storage.

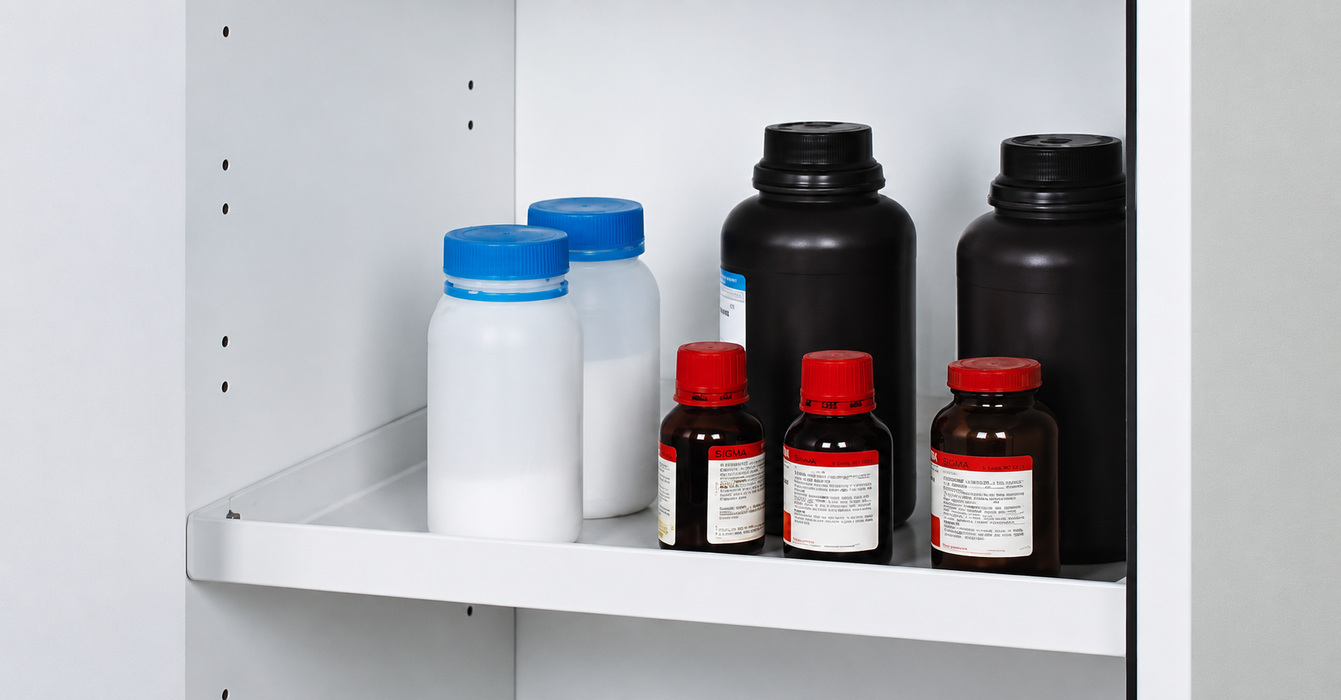

The shelves are firmly fastened to both cabinet walls and include a 30 mm spill-resistant edge to help contain accidental leaks and improve safety during use.

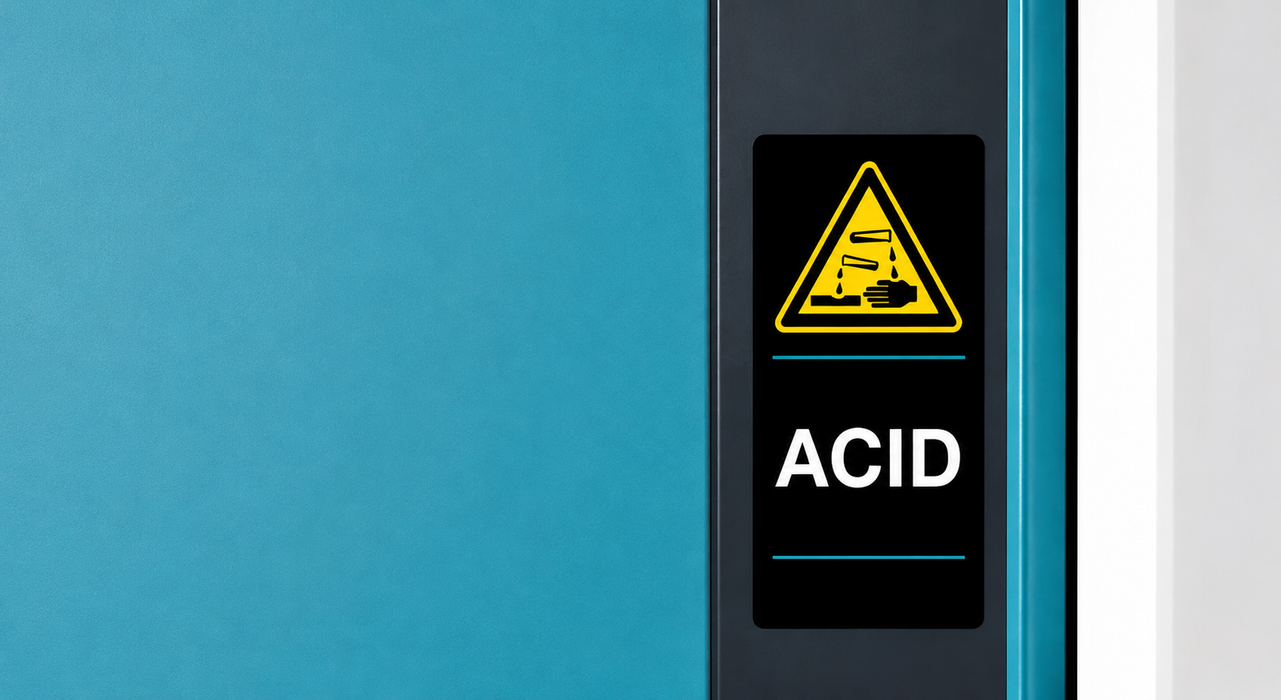

Designed for safe chemical handling, the cabinet includes corrosion-resistant polypropylene spill trays and removable acid/base identification stickers for easy material organization.
The ergonomic shelf layout allows convenient access to stored materials, helping improve laboratory workflow and user safety.

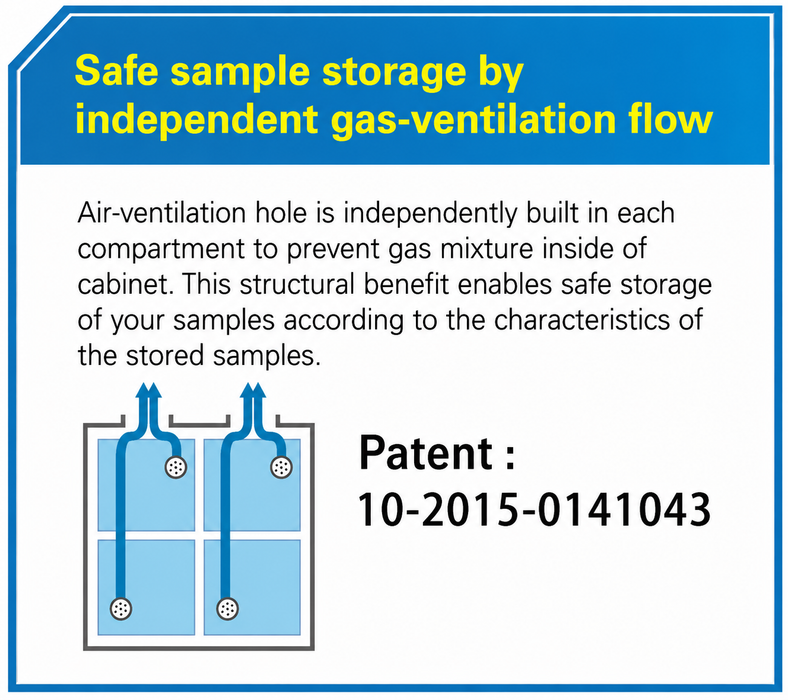

An efficient built-in ventilation system helps reduce the buildup of harmful or explosive vapors inside the cabinet.
Ventilation holes at the top and exhaust openings at the rear support proper airflow, while select models can connect directly to a laboratory exhaust system for improved vapor removal.
An optional carbon filter exhaust module is also available to help filter harmful gases without requiring an external duct connection.

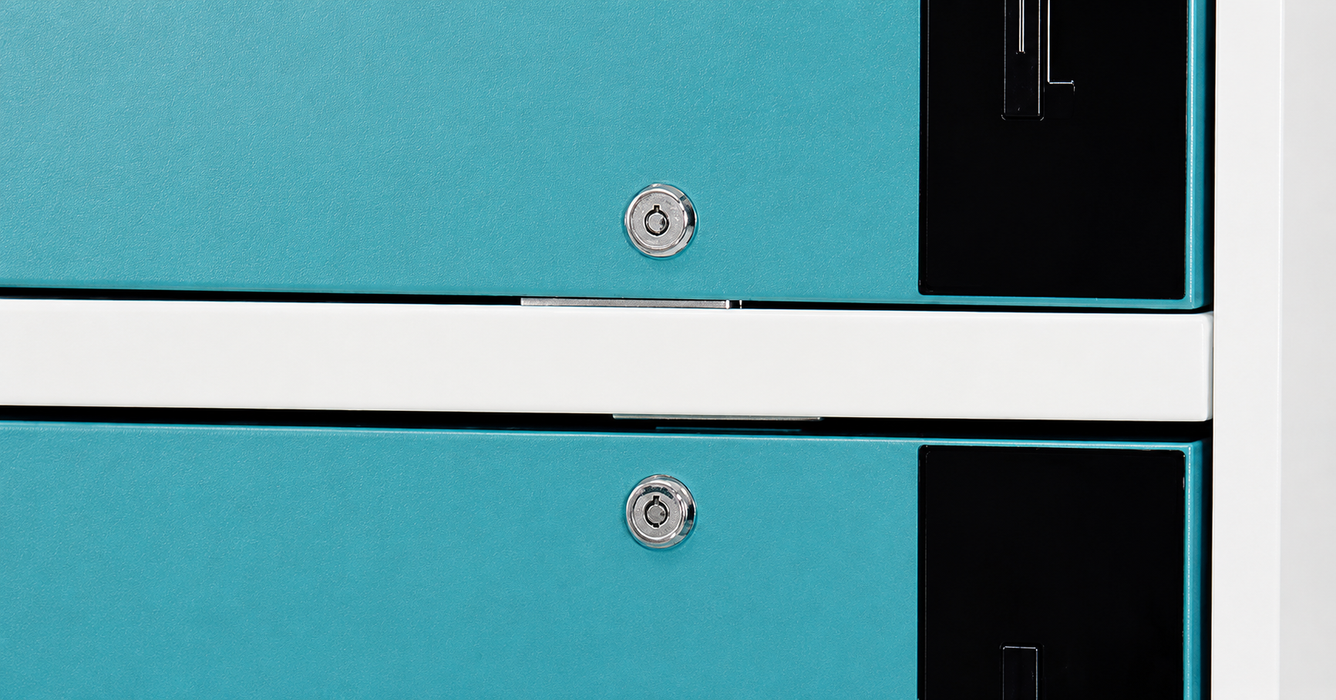

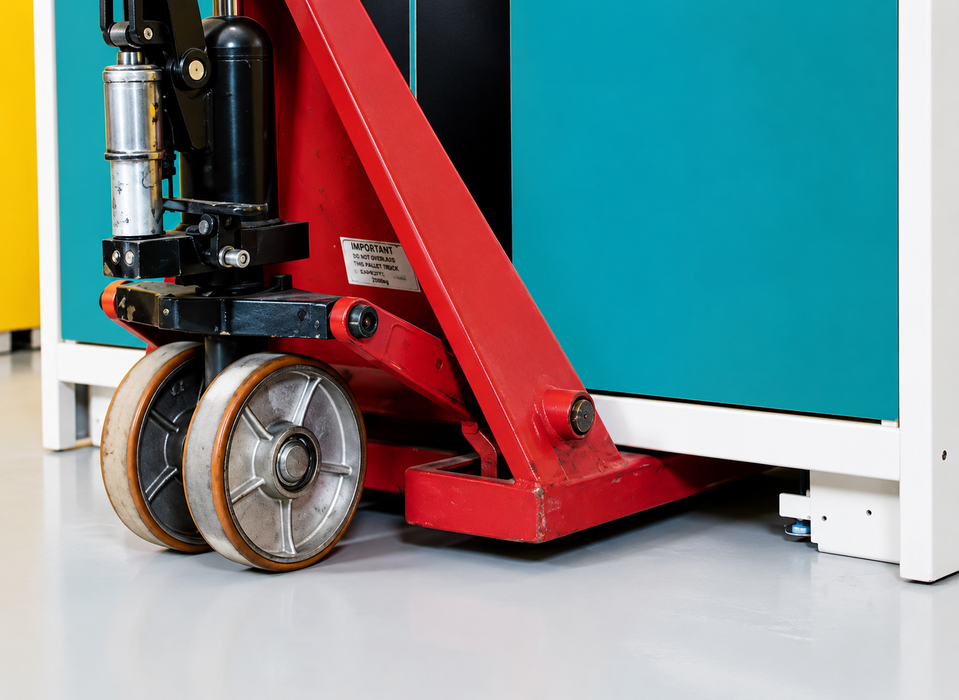

For added security and convenience, the cabinet includes a standard key lock to prevent unauthorized access, forklift access points for easier transport, and leveling feet for stable installation.
The space-efficient interior design helps maximize storage while keeping chemicals safely organized based on laboratory requirements.
The Jeio Tech Corrosive Chemical Storage Cabinet is an ideal solution for laboratories and facilities that require safe, durable, and chemical-resistant storage for corrosive substances and hazardous materials.
Key Features
-
Corrosive Chemical Storage: Safely stores acids, bases, and corrosive chemicals.
-
Steel Construction: Provides strength and long-term durability.
-
Corrosion-Resistant Interior: Protects against chemical damage.
-
Epoxy-Coated Exterior: Resists corrosion and wear.
-
Built-In Ventilation: Helps reduce vapor buildup.
-
Exhaust Compatible: Connects to laboratory ventilation systems.
-
Optional Carbon Filter: Supports hazardous gas removal.
-
Key Lock: Helps secure stored chemicals.
-
PP Spill Tray: Contains leaks and spills.
-
Heavy-Duty Shelves: Support up to 80 kg.
-
Spill-Resistant Design: Raised edges help contain spills.
-
Organized Storage: Maximizes space and accessibility.
-
Safety Labels: Simplify chemical identification.
-
Easy Installation: Includes leveling feet and forklift access.
Specifications
| Corrosive Storage Cabinet Specifications |
| Specification |
SC-C-1912D4 |
SC-C-1912D2 |
SC-C-1906D2 |
SC-C-1906D1 |
| Capacity & Dimensions |
| Internal Volume |
852 L / 30.0 cu ft |
894 L / 31.6 cu ft |
426 L / 15.0 cu ft |
445 L / 15.7 cu ft |
| Interior Dimensions (W × D × H) |
561 × 466 × 818 mm × 4 Compartments |
561 × 466 × 1712 mm × 2 Compartments |
561 × 466 × 818 mm × 2 Compartments |
558 × 466 × 1712 mm |
| Exterior Dimensions (W × D × H) |
1229 × 555 × 1900 mm |
1229 × 555 × 1900 mm |
655 × 555 × 1900 mm |
655 × 555 × 1900 mm |
| Shelf & Tray Configuration |
| Shelves (Standard / Max.) |
4 / 8 |
6 / 12 |
2 / 4 |
3 / 6 |
| Trays (Standard / Max.) |
8 / 12 |
8 / 14 |
4 / 6 |
4 / 7 |
| Shelf Spacing |
120 mm / 4.7 in |
100 mm / 3.9 in |
130 mm / 5.1 in |
100 mm / 3.9 in |
| Max. Load Per Shelf |
50 kg / 110.2 lbs. |
| Weight & Ordering Information |
| Net Weight |
284 kg / 626.1 lbs. |
257 kg / 566.6 lbs. |
160 kg / 352.7 lbs. |
146 kg / 321.9 lbs. |
| Catalog Number |
AAAF60043 |
AAAF60025 |
AAAF60023 |
AAAF60011 |
Product Manual
User manual for Jeio Tech Safety Acid Corrosive Cabinets can be found here.
Shipping
- Free delivery (Contiguous United States Only)
-
Delivery ETA 3-7 business days
- We also offer white glove engineer delivery with assembly and demonstration if required. Please contact us for a quote.
-
If you require faster shipping or shipping anywhere other than the contiguous United States, please contact us for a shipping quote.
Warranty
This product comes with a 2 year manufacturer's warranty.
