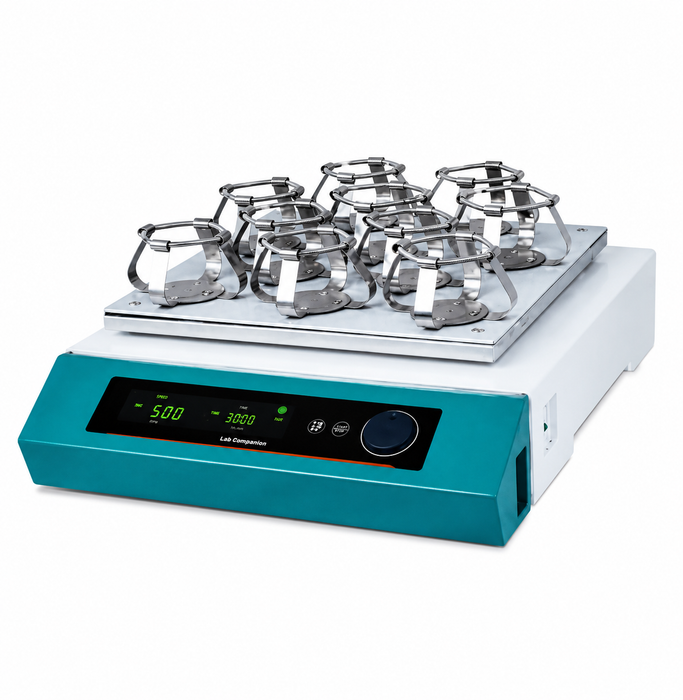

Jeio Tech | Shaker Dual Action | Benchtop Platform Shaker with Orbital and Reciprocating Motion for High Capacity Laboratory Mixing
The Jeio Tech Dual-Action Benchtop Platform Shaker, available at Alto Med Supply, is designed for reliable and efficient laboratory mixing with support for flasks up to 6 liters.
Featuring both orbital and reciprocating shaking motion, this versatile laboratory shaker is ideal for a wide range of research, biotechnology, and laboratory applications that require precise and consistent sample agitation.
Its advanced microprocessor PID control and shaking speed calibration help deliver stable and accurate performance, even during demanding workflows.
With shaking speeds up to 500 rpm and multiple amplitude options depending on the model, the shaker provides flexibility for different sample types and laboratory processes.
The maintenance-free BLDC motor generates smooth, quiet, and powerful shaking motion while maintaining uniform performance under heavy workloads.
The intelligent Best Effort Run function automatically adjusts rpm levels to continue operation when workloads exceed standard capacity.
Smooth acceleration and deceleration controls help create a stable testing environment, while the low-profile design reduces vibration and minimizes sliding during high-speed operation.
Designed for convenience and user-friendly operation, the shaker features a bright and easy-to-read VFD display with durable membrane touch controls and an adjustable control knob.
The digital timer can be set from 1 minute to 999 hours and 59 minutes for both short and long laboratory procedures.
The platform automatically stops at the same position after operation, making repetitive tasks and automated dosing or sampling more efficient.
Users can adjust speed increments in 1, 5, or 10 rpm settings based on their application needs.
Key Features
Dual Shaking Modes: Supports orbital and reciprocating motion.
Large Capacity: Holds flasks up to 6 L.
PID Control: Ensures precise speed control.
High-Speed Operation: Reaches up to 500 rpm.
BLDC Motor: Provides quiet, reliable performance.
Stable Shaking: Maintains consistency under load.
Low-Profile Design: Reduces vibration and movement.
VFD Display: Enables easy operation and monitoring.
Digital Timer: Supports programmable operation.
USB and RS-232: Allows data connectivity.
Auto Restart: Recovers after power interruption.
Safety Protection: Includes alarms and overload protection.
Specifications
OS Series Platform Shaker Specifications
Specification
OS-2000
OS-3000
OS-4000 (Orbital)
OS-4000 (Reciprocal)
Shaking Performance
Motion Type
Orbital / Reciprocal
Orbital / Reciprocal
Orbital
Reciprocal
Speed Range
20 – 500 rpm
20 – 500 rpm
20 – 500 rpm
20 – 450 rpm
Maximum Speed / Load
500 rpm (10 kg) 300 rpm (16 kg)
500 rpm (10 kg) 300 rpm (18 kg)
500 rpm (14 kg) 400 rpm (21 kg)
450 rpm (10 kg) 300 rpm (21 kg)
Amplitude
19.1 mm (0.8 in) Optional: 12.7 mm (0.5 in)
19.1 mm (0.8 in) Optional: 25.4 mm (1.0 in)
19.1 mm (0.75 in)
25.4 mm (1.0 in)
Speed Stability
±1%
Timer
Up To 999 Hr. 59 Min.
Platform and Dimensions
Platform Size (W × D)
320 × 260 mm 12.6 × 10.2 in
350 × 350 mm 13.8 × 13.8 in
450 × 450 mm 17.7 × 17.7 in
Body Dimensions (W × D × H)
354 × 388 × 146 mm 13.9 × 15.3 × 5.7 in
409 × 508 × 141 mm 16.1 × 20.0 × 5.6 in
510 × 632 × 156 mm 20.1 × 24.9 × 6.1 in
Net Weight
22 kg / 48.5 lbs.
28 kg / 61.7 lbs.
43 kg / 94.8 lbs.
43 kg / 94.8 lbs.
Electrical Specifications
230V, 50/60Hz
0.3 A
0.3 A
0.3 A
0.4 A
120V, 50/60Hz
0.6 A
0.6 A
0.6 A
0.8 A
Catalog Numbers
230V Model
AAH3D1115K
AAH3D1215K
AAH3D1315K
120V Model
AAH3D1165U
AAH3D1265U
AAH3D1365U
Product Manual
User manual for Jeio Tech Shaker Dual Action OS can be found here.
Video
Shipping
Free delivery (Contiguous United States Only)
Delivery ETA 3-7 business days
We also offer white glove engineer delivery with assembly and demonstration if required. Please contact us for a quote.
If you require faster shipping or shipping anywhere other than the contiguous United States, please contact us for a shipping quote.
Warranty
This product comes with a 2 year manufacturer's warranty.
